WATTSAN 6090 ST

Espace de travail:: 600x900 mm
Puissance laser:: 80-90 W
Précision de positionnement:: 0,5 mm
Taille de l'appareil:: 1490 x 1030 x 660 mm + if it is on wheels 343 mm
Taille d'emballage:: 1600 x 1160 x 850 mm
Lester:: 256 kg

4 680 € HT

Prix sur demande

Demander à être contacté

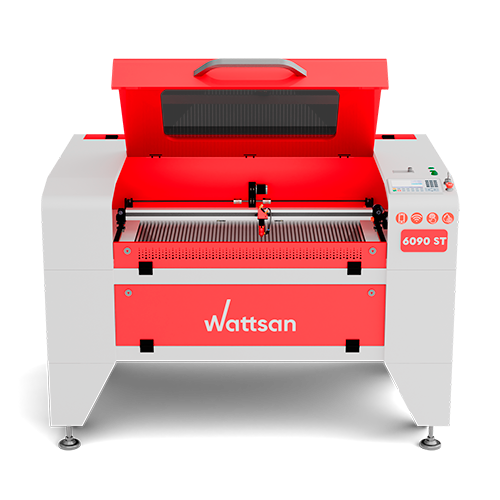

New Wattsan 6090 ST — Unmatched Safety and Precision

This CO2 laser features a unique Safety Assurance System (SAS) that provides instant detection, safeguarding both your workspace and operators. It offers quick alignment, precise power regulation through the ammeter, and a sealed motion system with a perforated glass lid for enhanced accuracy, protection, and low upkeep. Its ergonomic design and sturdy mounting system also ensure safe and secure transport.

Matériaux

– Coupe
– gravure

Laine
Résine
Marbre
Granit
Produits en bambou
Jade cristal
Tuile en céramique
Paronite
Pierre
Verre
MDF
Caoutchouc
Mousse de polyéthylène
Plexiglas (Acrylique)
en tissu
Cuir
Caoutchouc
Plastique
Papier carton
Contre-plaqué
Bois

Introducing the redisgn of the Wattsan laser machines

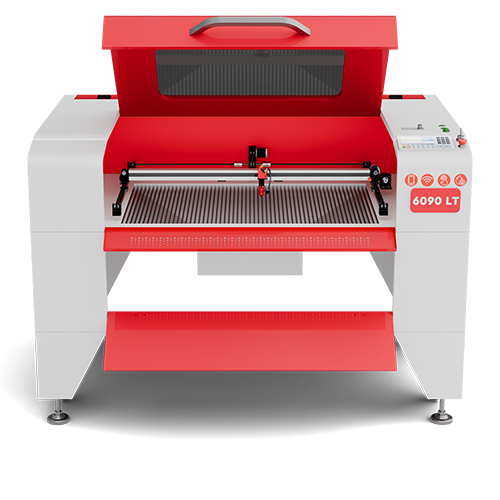

Maximum Safety, Maximum Precision

The CO2 laser system features the advanced Wattsan SAS (Safety Assurance System) for instant smoke and fire detection, protecting both operators and the workshop. It offers quick alignment, power control via ammeter, and an enclosed motion module to minimize dust. A perforated glass cover ensures visibility and safety, while the ergonomic design and secure mounts reduce transport risks.

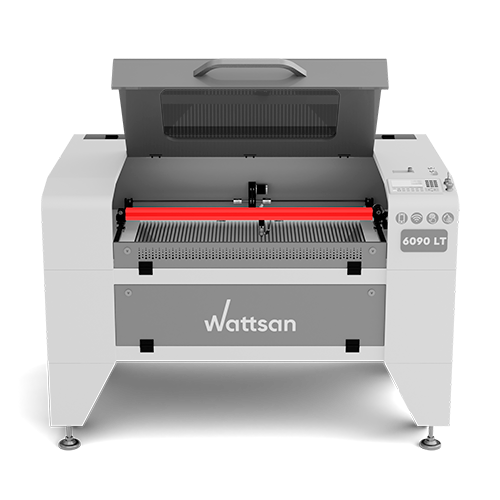

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

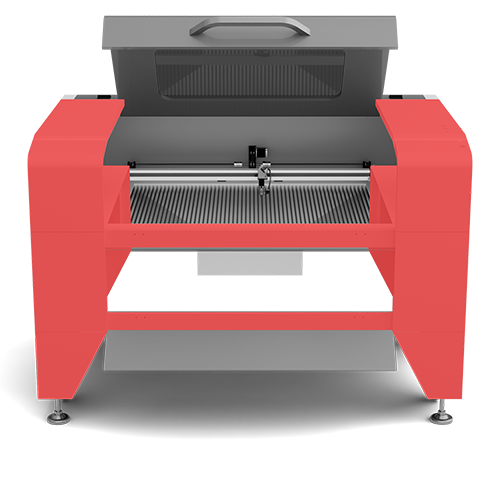

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

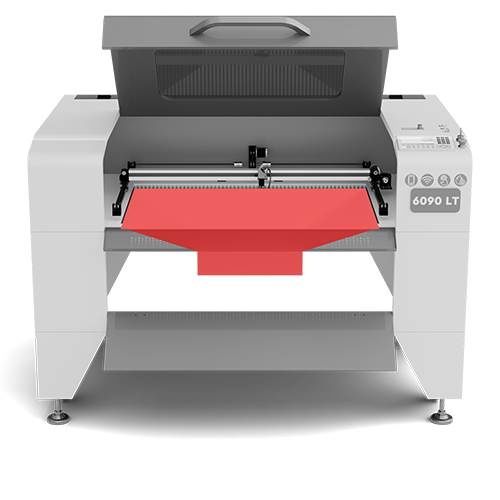

Trash collection compartment

Protects the mechanism from small particles, as well as giving additional sturdiness for the machine

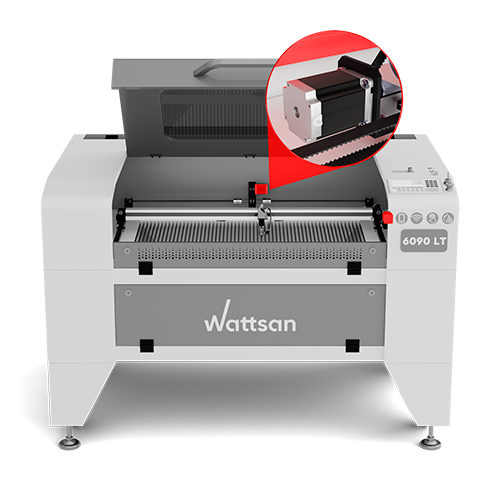

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

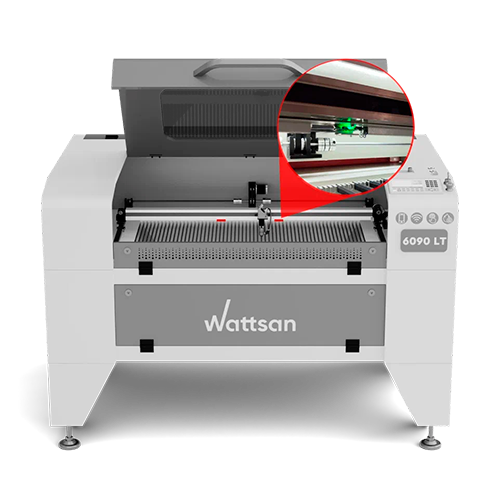

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Procédure d'achat

Choix du matériel

Nous vous aidons à faire votre choix d'une machine correspondant à vos besoins
Envoi de la facture

Nous convenons de l'ensemble complet de la machine et de l'envoi de la facture avec le coût final de l'équipement.
Paiement

En totalité si la machine est en stock. 50 % à l'avance 50 % à la livraison si la machine n'est pas en stock.
Nous vérifions la machine

Le contrôle qualité en 3 étapes : à l'usine Wattsan, dans notre entrepôt aux Pays-Bas, avant la livraison.
Livraison ou enlèvement

Soit une société de transport, soit vous récupérez la machine dans notre entrepôt.
Lancement des équipements

Nous sommes là pour vous aider chaque fois que vous avez besoin d'aide.

Expériences de blogueurs enthousiastes

Cette machine de gravure laser grave sans aucun problème. Quelle rapidité et quelle facilité pour personnaliser les produits !

Riccardo Muscarella
La machine a une surface parfaitement plane. Cela rend le travail répétitif plus facile pour moi !

Matteo Moras
Un excellent travail réalisé en moins d'une heure. Merci à la vitesse de la machine laser CO2.

Roberto D'Adago
Ce modèle est génial, et la précision du laser est incroyable, aussi tranchante qu’un rasoir !

Roger Jungo

Lester:: 256 kg

Taille de l'appareil:: 1490 x 1030 x 660 mm + if it is on wheels 343 mm

Espace de travail:: 600x900 mm

Taille d'emballage:: 1600 x 1160 x 850 mm

À travers le tableau:: Yes

Type d'installation:: Floor-standing

Materials:: Cardboard, Plexiglas, Paronite, Paper, Fabric, Acrylic, Wood, Rubber, Plastic, Denim, MDF and chipboard, Leather and leatherette, Stone, Plywood

Puissance laser:: 80-90 W

Durée de vie du tube laser:: 10000 h

Max. épaisseur de coupe (bois):: 10-13 mm

Lentille ZnSe:: ZnSe D20

Diamètre des miroirs:: 25 mm

Tube laser:: Lasea F4, Reci W4

Distance focale:: 50 mm

Type laser:: Sealed CO2 laser tube

Précision de positionnement:: 0,5 mm

Vitesse de gravure:: 0-700 mm/s

Modèle de table:: Blades

Vitesse de coupe:: 0-500 mm/s

Structure de l'axe XY:: Linear guide AMT PMI MSB 15S

Vitesse de marquage:: 0-500

Moteur sur X et Y:: Stepper motors (three-phase)

Refroidissement:: Water

Consommation d'énergie:: 2000 W

Alimentation électrique:: 220 V

Logiciel:: RDL (LaserWork 8)

Transfert de fichier:: Wi-Fi, USB, LAN

Format pris en charge:: EMF, PNG, RAS, TIF, WBMP, PGX, PNM, PNT, DSB, BMP, DXF, DST, DWG, RAW, PLT, CUR, PCX, JPG, PDF, JPEG, JBG, JPC, MNG, WMF, ICO, TIFF, SKA, AI, TGA, GIF
