Wattsan 1820 Conveyor PRO

Espace de travail:: 1800x2000 mm
Puissance laser:: 150-180 W
Précision de positionnement:: 0.01 mm
Taille de l'appareil:: 3800 x 2300 x 1450 mm
Taille d'emballage:: 3750 x 2300 x 1600 mm
Lester:: 1000 kg

Wattsan 1820 Conveyor PRO for roll material cutting

With its 1800 × 2000 mm working area and automated conveyor table, the Wattsan 1820 Conveyor PRO ensures accurate and stable processing of leather, synthetic leather, linen, tweed, wool, silk, chiffon, organza, and other flexible materials used in mass production.

Lenze servo drives enable speeds up to 1200 mm/s while maintaining controlled motion and reducing idle time. The lightweight yet rigid aluminum gantry provides smooth travel, low vibration, and consistent cutting precision across the full workspace. A 150–180 W CDWG laser source delivers stable output for cutting and engraving non-metallic materials up to 25 mm thick. Combined with servo-driven motion and conveyor automation, the system ensures repeatable edge quality and efficient continuous processing.

Matériaux

– Coupe
– gravure

Laine
Résine
Marbre
Granit
Produits en bambou
Jade cristal
Tuile en céramique
Paronite
Pierre
Verre
MDF
Caoutchouc
Mousse de polyéthylène
Plexiglas (Acrylique)
en tissu
Cuir
Caoutchouc
Plastique
Papier carton
Contre-plaqué
Bois

Wattsan laser machinesare thoughtfully designed

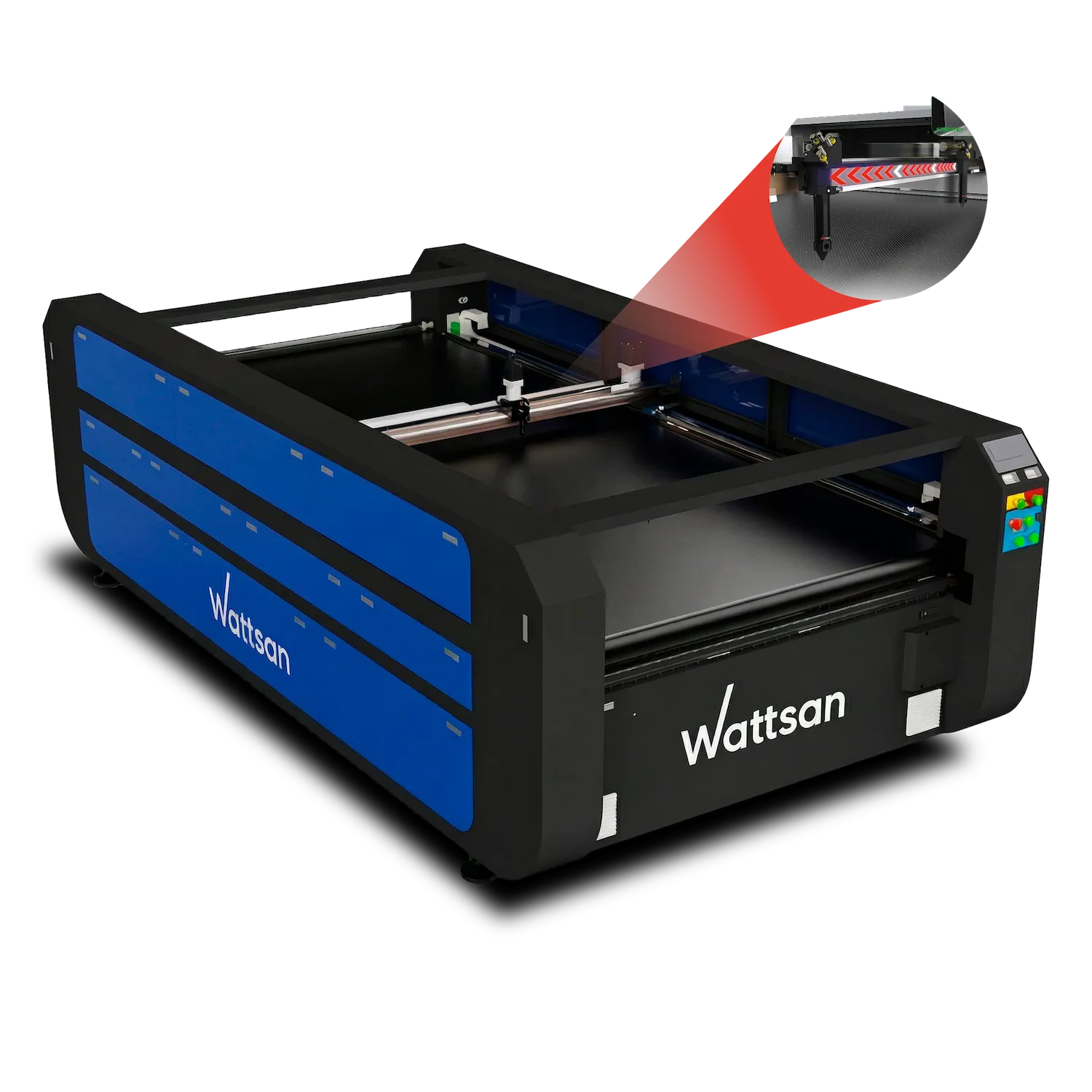

Lenze Servo Motors

Achieve cutting speeds of up to 1200 mm/s on fabrics and roll materials, maximizing throughput while minimizing downtime — built for nonstop industrial performance.

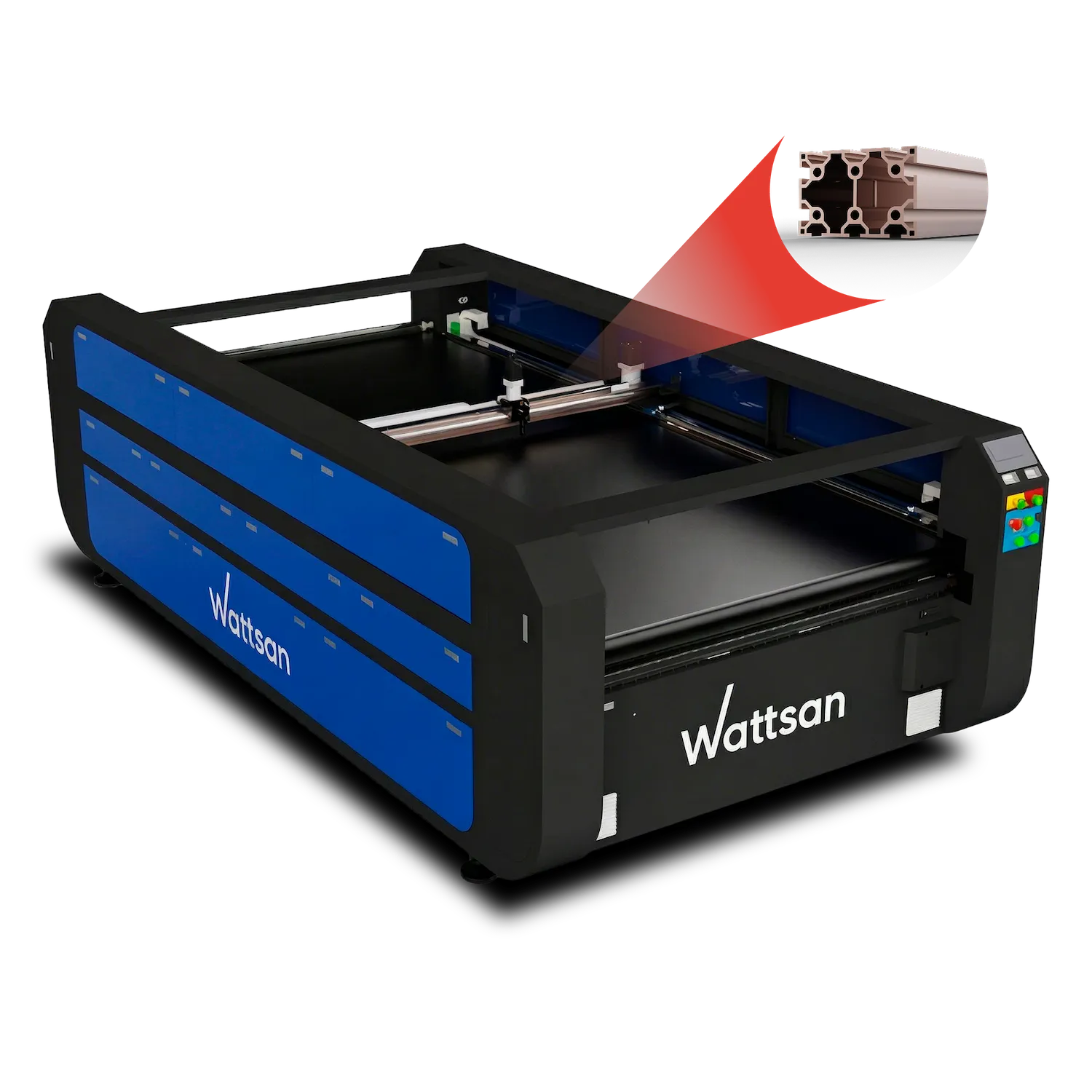

Lightweight Rigid Gantry

The enlarged aluminum gantry is designed to balance strength and low weight, providing smooth motion, reduced vibration, and consistent cutting precision across the entire working area, even under heavy workloads.

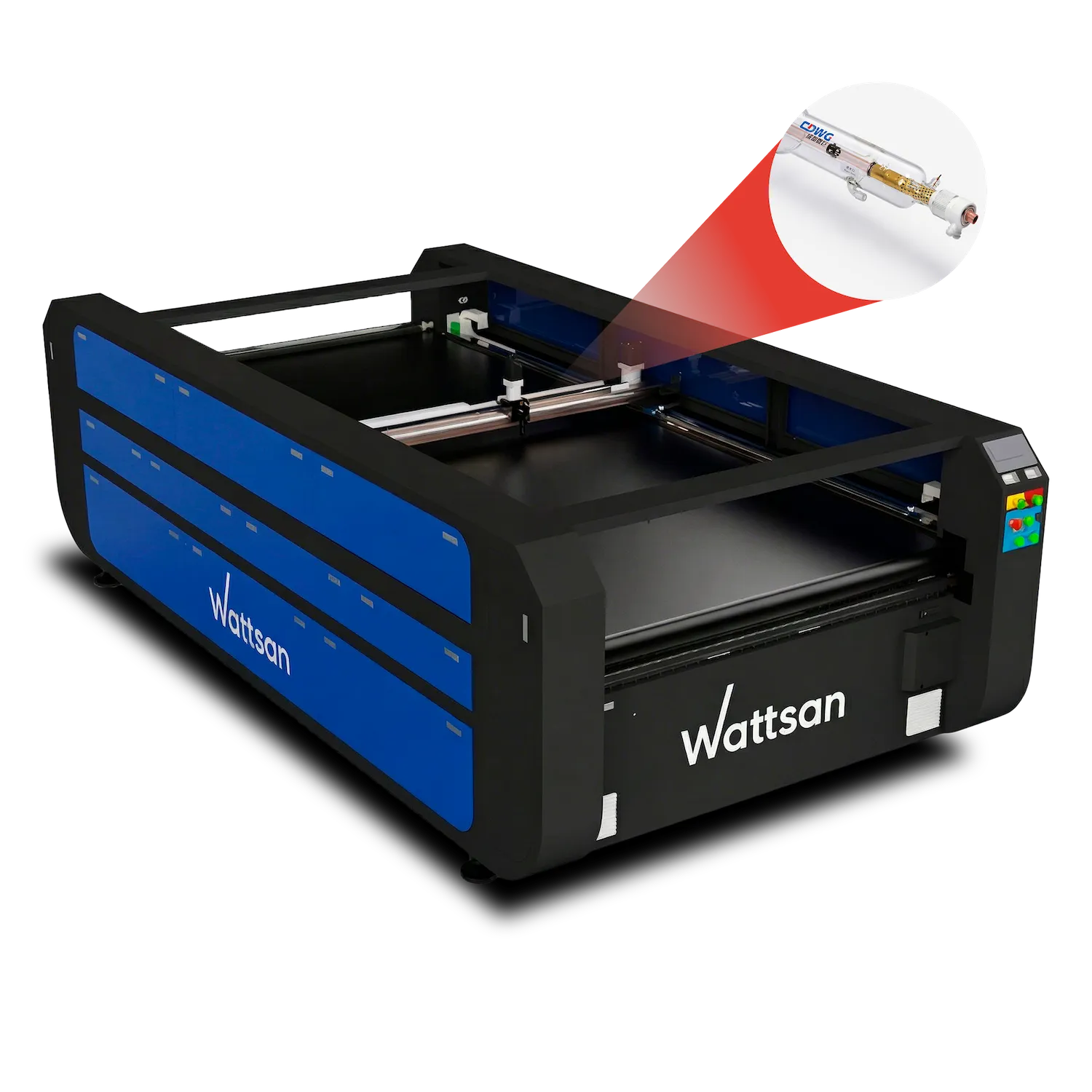

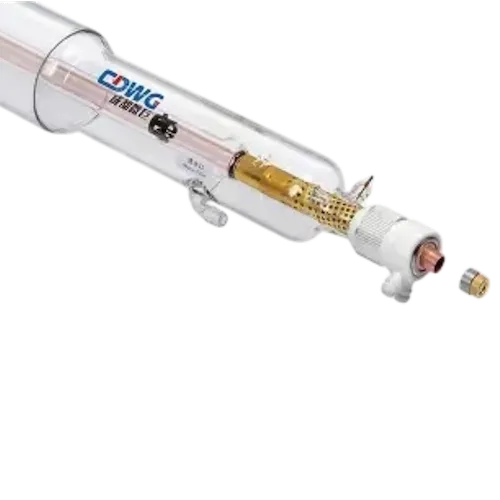

CDWG Laser Tube

A 150–180 W CDWG laser source ensures consistent power delivery for accurate cutting and engraving of non-metallic materials up to 25 mm thick. Combined with servo-driven motion and a conveyor system, it enables efficient processing of continuous materials with uniform edge quality and minimal heat-affected zones.

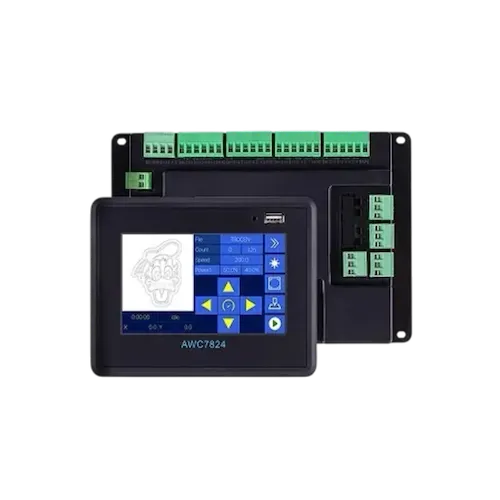

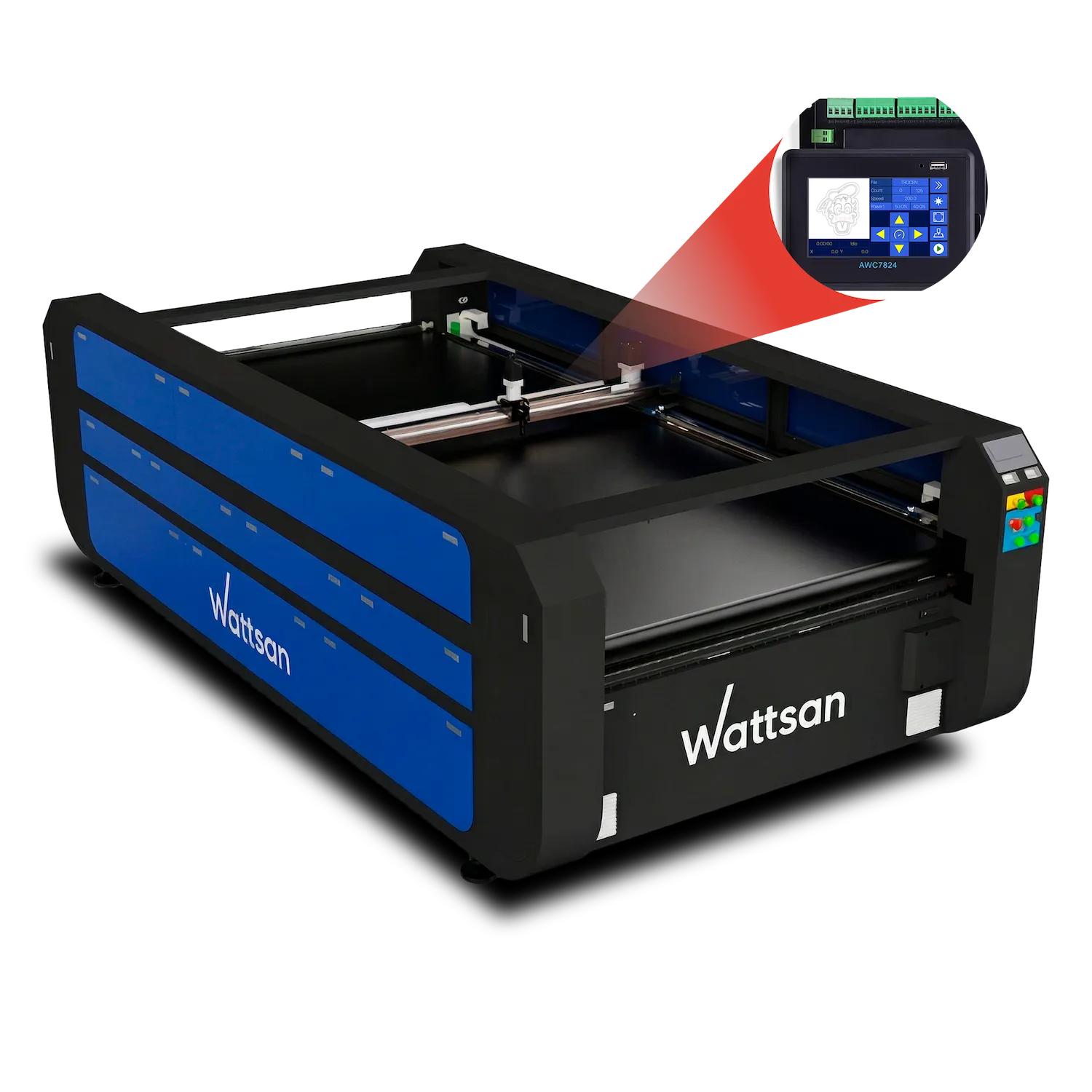

Trocen Control System

Process control is managed by the Trocen AW7824 unit, which coordinates 4-axis movement with repositioning accuracy below 0.01 mm. This level of precision helps maintain uniform geometry across large production batches, reducing scrap rates and eliminating the need for frequent recalibration or post-processing.

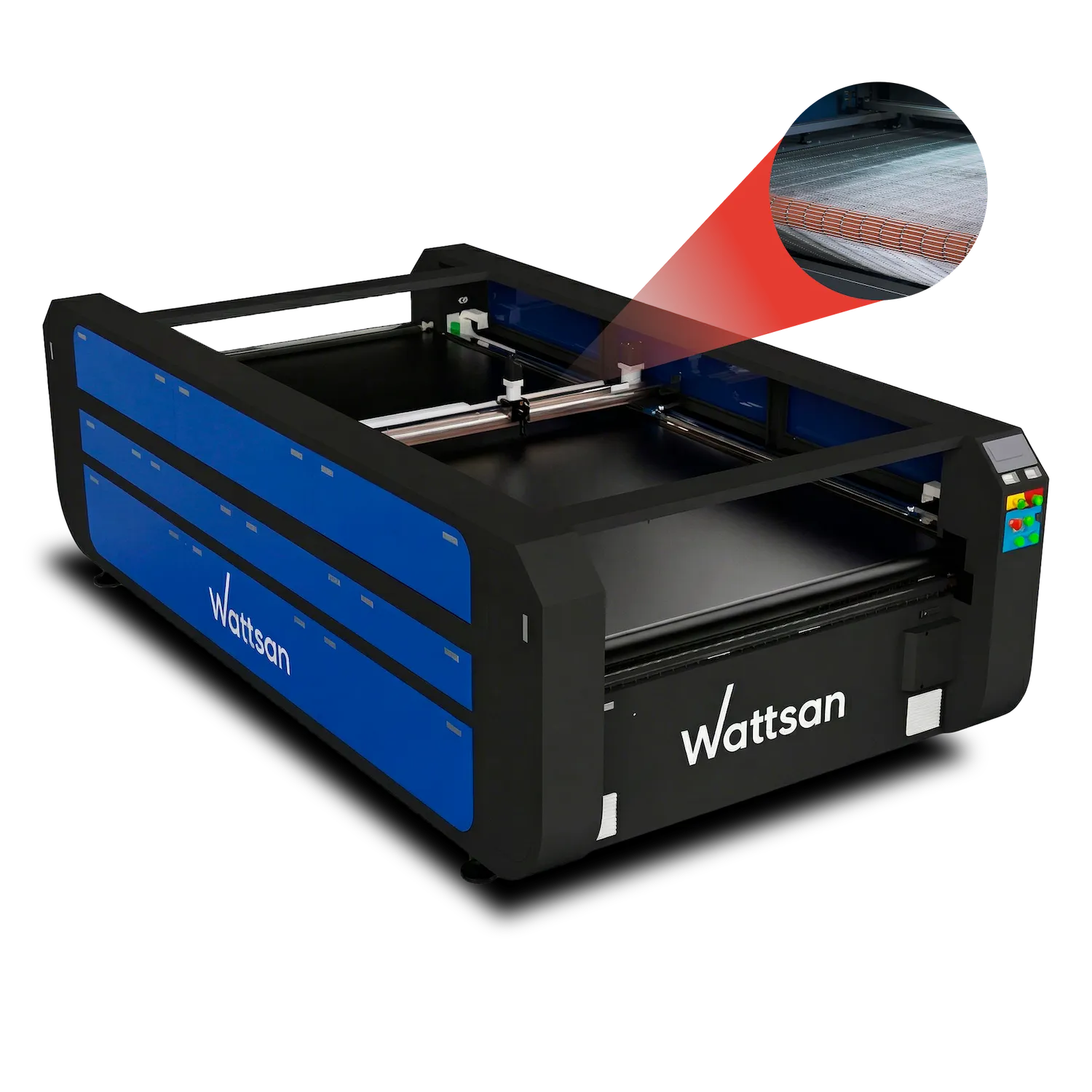

Conveyor Table

The integrated conveyor table enables uninterrupted material feeding and evenly distributes fabric across the cutting area, supporting continuous operation without manual repositioning. This configuration is particularly effective for long production cycles and high-volume textile workflows.

Laser Power and Smart Control Software Integration

The 150–180 W CDWG laser tube delivers stable power for clean cutting at high speeds, while Trocen Laser CAD software streamlines workflow with broad file support and built-in compatibility with CorelDRAW, AutoCAD, and Adobe Illustrator.

The 150–180 W CDWG laser tube provides stable power delivery for clean cutting results and reliable performance even at top processing speeds.
For workflow integration, Trocen Laser CAD software, a Windows-based control platform that accepts a number of file formats like G-code, AI, SVG, PDF, DXF, PLT, DST, DSB, UD5, BMP, JPG, and PNG, is used by the machine. Built-in compatibility with CorelDRAW, AutoCAD, and Adobe Illustrator simplifies file preparation and reduces setup time.

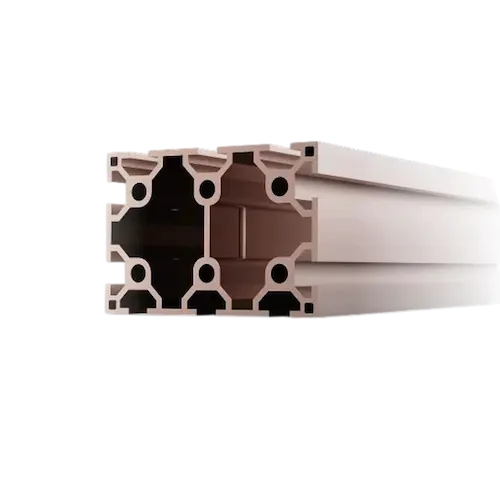

Lightweight by Design, Rigid in Performance

Constructed from high-strength aluminum alloy, the structure combines low weight with excellent rigidity for fast cutting, smooth travel, and accurate positioning.

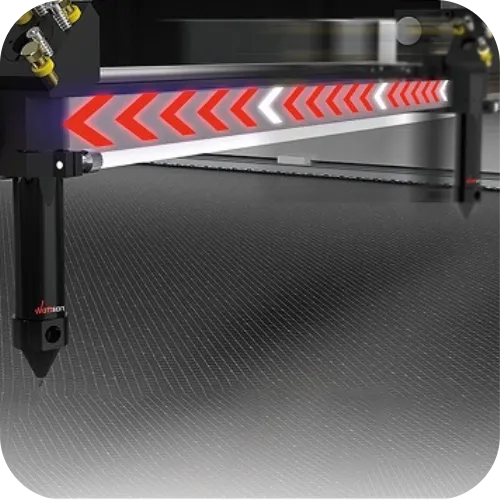

More Power, Higher Speed

Multiple servo motor systems provide strong torque for fast acceleration up to 1200 mm/s and quick deceleration, maintaining precise cutting performance throughout the process.

Wattsan - designed and engineered for business owners

Procédure d'achat

Choix du matériel

Nous vous aidons à faire votre choix d'une machine correspondant à vos besoins
Envoi de la facture

Nous convenons de l'ensemble complet de la machine et de l'envoi de la facture avec le coût final de l'équipement.
Paiement

En totalité si la machine est en stock. 50 % à l'avance 50 % à la livraison si la machine n'est pas en stock.
Nous vérifions la machine

Le contrôle qualité en 3 étapes : à l'usine Wattsan, dans notre entrepôt aux Pays-Bas, avant la livraison.
Livraison ou enlèvement

Soit une société de transport, soit vous récupérez la machine dans notre entrepôt.
Lancement des équipements

Nous sommes là pour vous aider chaque fois que vous avez besoin d'aide.

Expériences de blogueurs enthousiastes

Cette machine de gravure laser grave sans aucun problème. Quelle rapidité et quelle facilité pour personnaliser les produits !

Riccardo Muscarella
La machine a une surface parfaitement plane. Cela rend le travail répétitif plus facile pour moi !

Matteo Moras
Un excellent travail réalisé en moins d'une heure. Merci à la vitesse de la machine laser CO2.

Roberto D'Adago
Ce modèle est génial, et la précision du laser est incroyable, aussi tranchante qu’un rasoir !

Roger Jungo

Taille d'emballage:: 3750 x 2300 x 1600 mm

Lester:: 1000 kg

Taille de l'appareil:: 3800 x 2300 x 1450 mm

À travers le tableau:: Yes

Espace de travail:: 1800x2000 mm

Materials:: Linen, Wool, Wood, Stone, Organza, Bamboo, Resin, Plywood, Chiffon, Plastic, Jade, Tweed, Paronite, Rubber, Acrylic, Silk, Leather, Faux leather, MDF, Granite, Fabric, Ceramic tile, Chipboard, Foam rubber
