Maszyna laserowa WATTSAN 1610 ST

Miejsce pracy:: 1600x1000 mm
Moc lasera:: 100-120 W
Dokładność pozycjonowania:: 0,05 mm
Rozmiar maszyny:: 2200 x 1500 x 660 mm + if it is on wheels 343 mm
Wielkość opakowania:: 2310 x 1530 x 850 mm
Waga:: 450 kg

Wszystkie cechy

7 674 € bez VAT-u

Cena na żądanie

Złóż wniosek

New Wattsan 1290 ST — Unmatched Safety and Precision

CO2 laser with the unique Wattsan SAS instantly detects smoke and fire, protecting both the workshop and operators. Fast alignment, full power control via the ammeter, enclosed motion module, and perforated glass cover ensure precision, safety, and minimal maintenance. The ergonomic body and reliable mounts reduce risks during transportation.

Materiały

– ciąć
– rytownictwo

Wełna
Żywica
Marmur
Granit
Produkty bambusowe
Kryształowy jadeit
Płytki ceramiczne
Paronit
Kamień
Szkło
MDF
Guma piankowa
Pianka polietylenowa
Plexi (akryl)
tkanina
Skóra
Guma
Plastikowy
Karton
Sklejka
Drewno

Introducing the redisgn of the Wattsan laser machines

Maximum Safety, Maximum Precision

The CO2 laser system features the advanced Wattsan SAS (Safety Assurance System) for instant smoke and fire detection, protecting both operators and the workshop. It offers quick alignment, power control via ammeter, and an enclosed motion module to minimize dust. A perforated glass cover ensures visibility and safety, while the ergonomic design and secure mounts reduce transport risks.

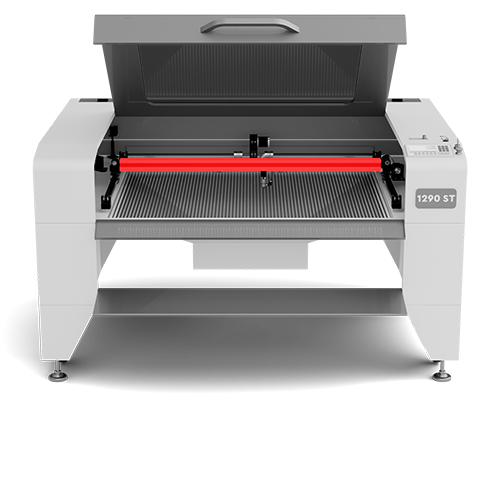

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

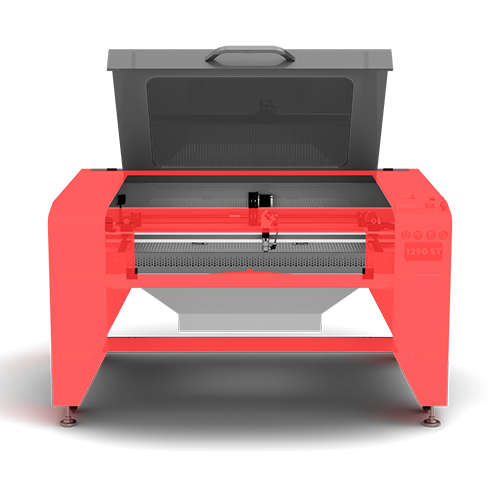

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.
Trash collection compartment

Protects the mechanism from small particles, as well as giving additional sturdiness for the machine

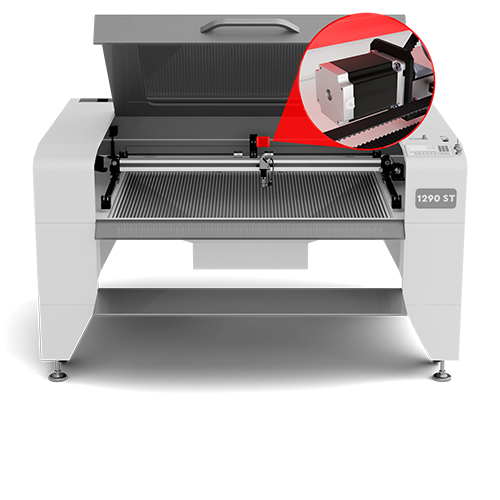

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

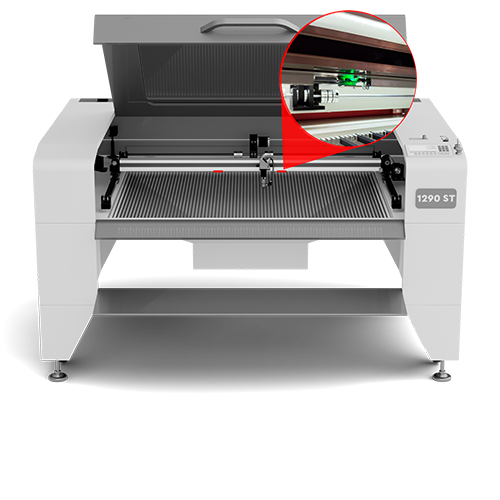

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Procedura zakupu

Wybór sprzętu

Pomagamy w doborze maszyny dopasowanej do Twoich potrzeb
Wysłanie faktury

Uzgadniamy komplet maszyn i przesłanie faktury z ostatecznym kosztem sprzętu.
Płatność

W całości, jeśli maszyna jest na magazynie. 50% z góry 50% przy dostawie, jeśli maszyna nie jest na stanie.
Sprawdzamy maszynę

Trzyetapowa kontrola jakości: w fabryce Wattsan, w naszym magazynie w Holandii, przed dostawą.
Dostawa lub odbiór

Firma transportowa lub Ty odbierasz maszynę z naszego magazynu.
Uruchomienie sprzętu

Jesteśmy tutaj, aby Ci pomóc, gdy tylko będziesz potrzebować wsparcia.

Doświadczenia od entuzjastycznych blogerów

Ten grawer laserowy może grawerować bez żadnych problemów. Jak szybko i łatwo można dostosować produkty!

Riccardo Muscarella
Maszyna ma idealnie płaską powierzchnię. Ułatwia mi to powtarzalną pracę!

Matteo Moras
Świetna robota wykonana w mniej niż godzinę. Dzięki szybkości maszyny laserowej CO2.

Roberto D'Adago
Ten model jest świetny, a precyzja lasera niesamowita – ostra jak brzytwa!

Roger Jungo

Przez stół:: Yes

Typ instalacji:: Floor-standing

Waga:: 450 kg

Rozmiar maszyny:: 2200 x 1500 x 660 mm + if it is on wheels 343 mm

Miejsce pracy:: 1600x1000 mm

Wielkość opakowania:: 2310 x 1530 x 850 mm

Materials:: Plexiglas, Rubber, Stone, Wood, Acrylic, Cardboard, Denim, Fabric, Leather and leatherette, Paper, MDF and chipboard, Plywood, Paronite, Plastic

Długość ogniskowa:: 50 mm

Typ lasera:: Sealed CO2 laser tube

Dokładność pozycjonowania:: 0,05 mm

Moc lasera:: 100-120 W

Maks. grubość cięcia (drewno):: 10-13 mm

Żywotność lampy laserowej:: 10000 h

Soczewka ZnSe:: ZnSe D20

Średnica luster:: 25 mm

Rura laserowa:: Reci W4, Lasea F4

Prędkość grawerowania:: 0-500 mm/s

Model stołu:: Blades

Prędkość cięcia:: 0-500 mm/s

Struktura osi XY:: Linear guide AMT PMI MSB 15S

Prędkość znakowania:: 0-500

Silnik na X i Y:: 57-H350CS / SH

Chłodzenie:: Water

Oprogramowanie:: RDL (LaserWork 8)

Transfer plików:: LAN, USB, Wi-Fi

Obsługiwany format:: TIFF, SKA, RAW, PNG, RAS, PNT, PNM, TGA, TIF, AI, BMP, CUR, PLT, PDF, WMF, WBMP, PCX, MNG, JPG, JPEG, JPC, JBG, ICO, GIF, EMF, DXF, DWG, DST, DSB, PGX
