Maszyna laserowa WATTSAN 6090 LT

Miejsce pracy:: 600x900 mm
Moc lasera:: 100-120 W
Dokładność pozycjonowania:: 0,5 mm
Rozmiar maszyny:: 1550 x 1290 x 1010 mm
Wielkość opakowania:: 1650 x 1390 x 1160 mm
Waga:: 362 kg

Wszystkie cechy

8 166 € bez VAT-u

Cena na żądanie

Złóż wniosek

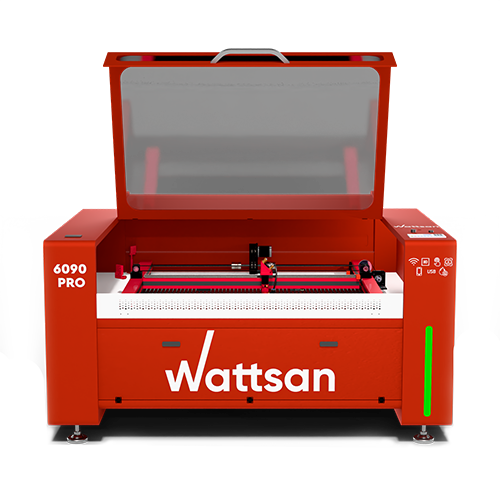

New Wattsan 6090 PRO — Precision Meets Power: Laser Cutting Redefined

The Wattsan 6090 PRO features a 600×900 mm working area, ideal for precise cutting and engraving with minimal waste. Wattsan SAS safety system, enclosed gantry, and smart control screen ensure stable, safe, and intuitive operation. Stepper motors with feedback deliver exceptional precision, while the built-in chiller keeps the system cool and reliable.

The CNC-driven lift table supports up to 100 kg, maintaining perfect focus and durability. Compact, advanced, and professional-ready, the 6090 PRO brings efficiency and accuracy to every project.

Materiały

– ciąć
– rytownictwo

Wełna
Żywica
Marmur
Granit
Produkty bambusowe
Kryształowy jadeit
Płytki ceramiczne
Paronit
Kamień
Szkło
MDF
Guma piankowa
Pianka polietylenowa
Plexi (akryl)
tkanina
Skóra
Guma
Plastikowy
Karton
Sklejka
Drewno

Introducing the redisgn of the Wattsan laser machines

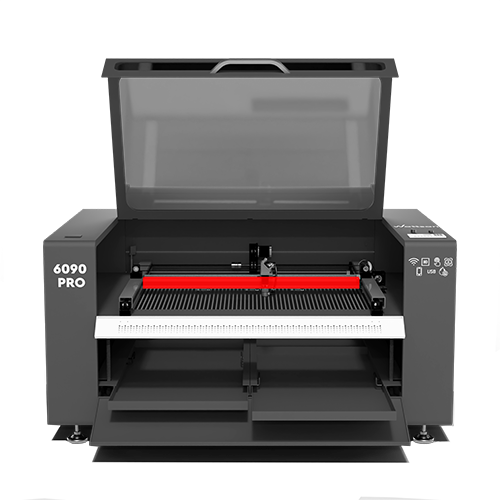

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

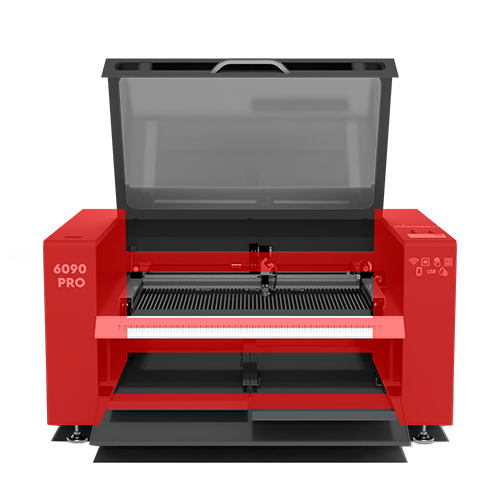

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

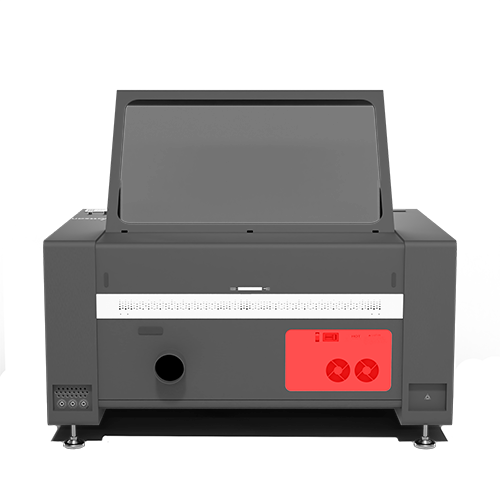

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

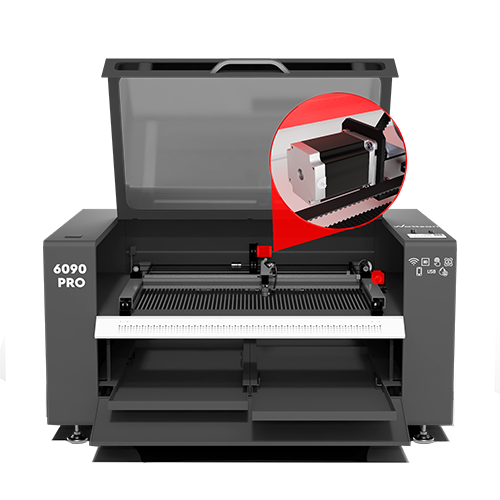

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

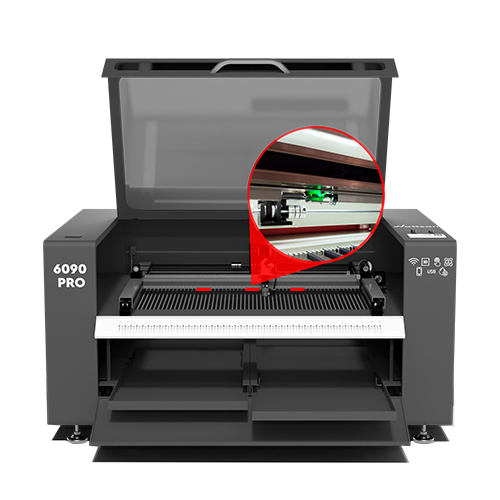

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

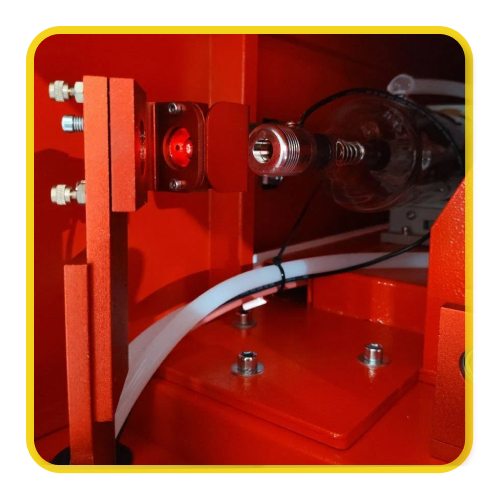

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

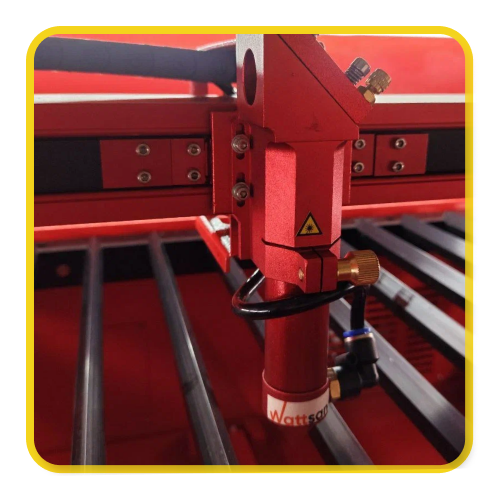

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.
The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.
Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.
Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Procedura zakupu

Wybór sprzętu

Pomagamy w doborze maszyny dopasowanej do Twoich potrzeb
Wysłanie faktury

Uzgadniamy komplet maszyn i przesłanie faktury z ostatecznym kosztem sprzętu.
Płatność

W całości, jeśli maszyna jest na magazynie. 50% z góry 50% przy dostawie, jeśli maszyna nie jest na stanie.
Sprawdzamy maszynę

Trzyetapowa kontrola jakości: w fabryce Wattsan, w naszym magazynie w Holandii, przed dostawą.
Dostawa lub odbiór

Firma transportowa lub Ty odbierasz maszynę z naszego magazynu.
Uruchomienie sprzętu

Jesteśmy tutaj, aby Ci pomóc, gdy tylko będziesz potrzebować wsparcia.

Doświadczenia od entuzjastycznych blogerów

Ten grawer laserowy może grawerować bez żadnych problemów. Jak szybko i łatwo można dostosować produkty!

Riccardo Muscarella
Maszyna ma idealnie płaską powierzchnię. Ułatwia mi to powtarzalną pracę!

Matteo Moras
Świetna robota wykonana w mniej niż godzinę. Dzięki szybkości maszyny laserowej CO2.

Roberto D'Adago
Ten model jest świetny, a precyzja lasera niesamowita – ostra jak brzytwa!

Roger Jungo

Waga:: 362 kg

Rozmiar maszyny:: 1550 x 1290 x 1010 mm

Miejsce pracy:: 600x900 mm

Wielkość opakowania:: 1650 x 1390 x 1160 mm

Przez stół:: Yes

Typ instalacji:: Floor-standing

Materials:: Wood, Rubber, Plywood, Plexiglas, Acrylic, Cardboard, Fabric, Denim, Leather and leatherette, MDF and chipboard, Paper, Paronite, Plastic, Stone

Żywotność lampy laserowej:: 10000 h

Soczewka ZnSe:: ZnSe D20 f50

Średnica luster:: 25 mm

Rura laserowa:: Reci W4, Lasea F4

Długość ogniskowa:: 50 mm

Typ lasera:: Sealed CO2 laser tube

Dokładność pozycjonowania:: 0,5 mm

Moc lasera:: 100-120 W

Prędkość grawerowania:: 0-1000 mm/s

Model stołu:: Blades

Prędkość cięcia:: 0-500 mm/s

Struktura osi XY:: PMI 15 mm linear guides

Silnik na X i Y:: 57-H350CS / SH

Chłodzenie:: Water

Zasilanie elektryczne:: 220 ±10% 50Hz V

Oprogramowanie:: RDL (LaserWork 8)

Układ sterowania:: Ruida RDC8445S

Transfer plików:: Wi-Fi, USB, LAN

Obsługiwany format:: WMF, WBMP, TIFF, TIF, TGA, SKA, RAW, RAS, PNT, PNM, PNG, PLT, PGX, PDF, PCX, MNG, JPG, JPEG, JPC, JBG, ICO, GIF, EMF, DXF, DWG, DST, DSB, CUR, BMP, AI
