Laser kone WATTSAN 6090 LT

Työ alue:: 600x900 mm
Laser teho:: 100-120 W
Paikannustarkkuus:: 0,5 mm
Koneen koko:: 1550 x 1290 x 1010 mm
Pakkauskoko:: 1650 x 1390 x 1160 mm
Paino:: 362 kg

8 166 € ex.VAT

Hintatiedot pyynnöstä

Lähetä tiedustelu

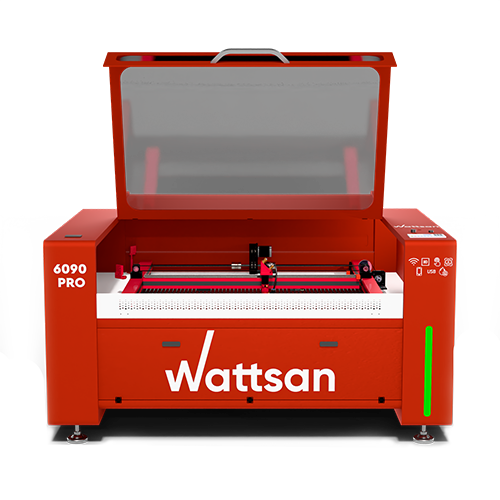

New Wattsan 6090 PRO — Precision Meets Power: Laser Cutting Redefined

The Wattsan 6090 PRO features a 600×900 mm working area, ideal for precise cutting and engraving with minimal waste. Wattsan SAS safety system, enclosed gantry, and smart control screen ensure stable, safe, and intuitive operation. Stepper motors with feedback deliver exceptional precision, while the built-in chiller keeps the system cool and reliable.

The CNC-driven lift table supports up to 100 kg, maintaining perfect focus and durability. Compact, advanced, and professional-ready, the 6090 PRO brings efficiency and accuracy to every project.

Materiaalit

– leikkaus
– kaiverrus

Villa
Hartsi
Marmori
Graniitti
Bambu tuotteet
Kristallinen jade
Keraaminen tiili
Paroniitti
Kivi
Lasi
MDF
Vaahtokumi
Polyeteenivaahto
Pleksilasi (akryyli)
kangas
Nahka
Kumi
Muovi
Pahvi
Vaneri
Puu

Introducing the redisgn of the Wattsan laser machines

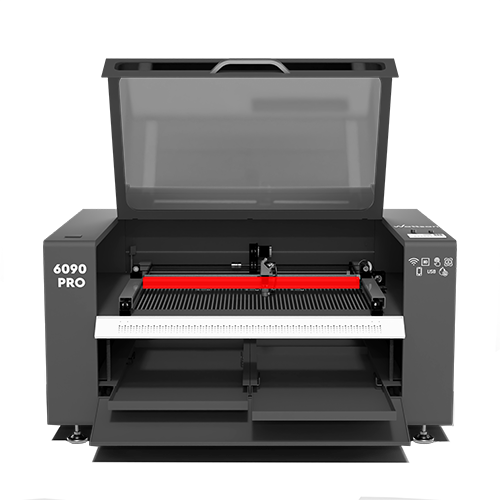

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

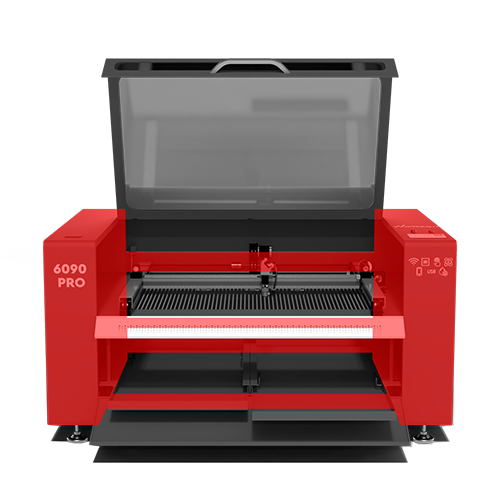

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

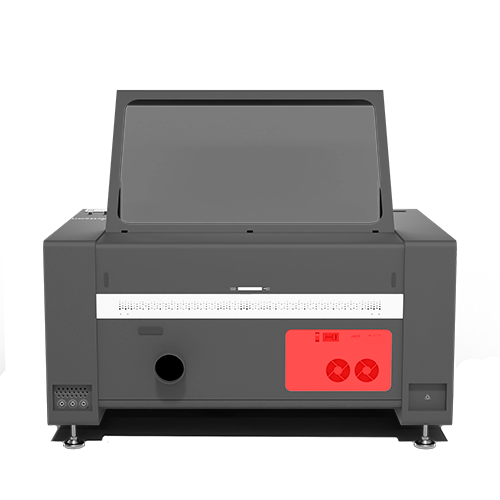

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

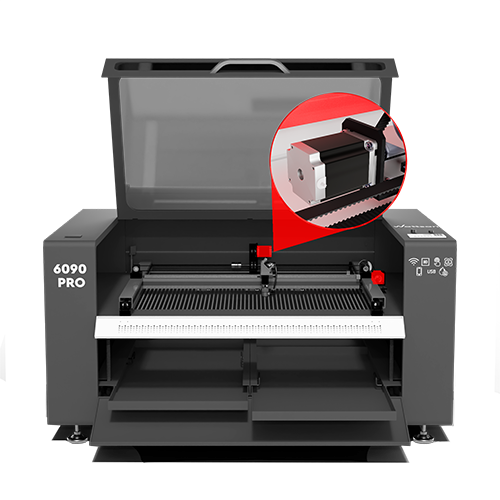

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

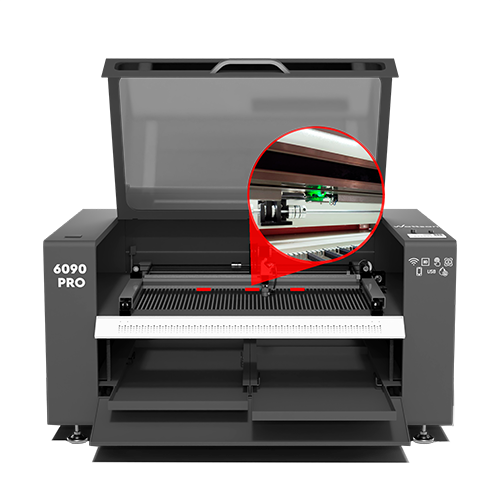

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

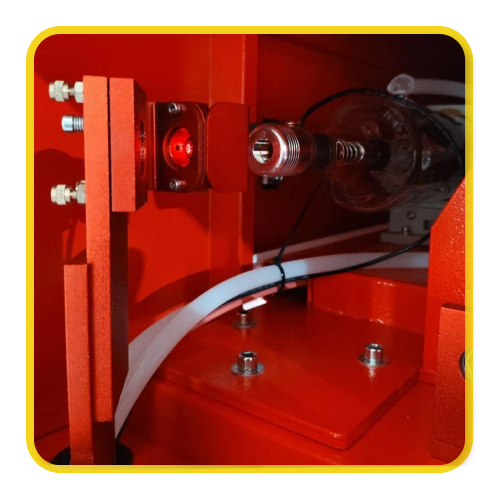

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

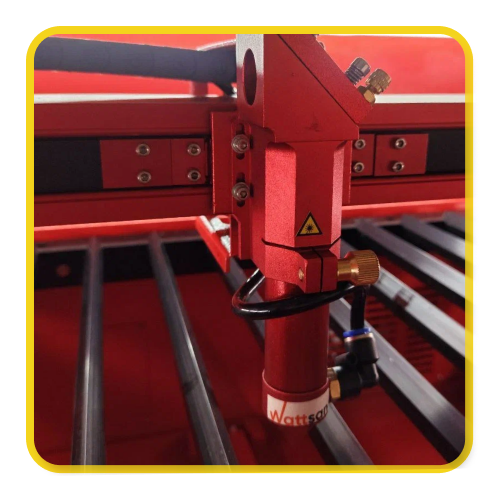

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.
The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.
Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.
Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Ostoprosessi

Laitteiden valinta

Autamme sinua tekemään oikean valinnan tarpeisiisi.
Neuvonta ja laskutus

Koordinoimme koneesi kokoonpanon ja laskemme laitteiston lopulliset kustannukset.
Maksu

Täysimääräisesti, jos kone on varastossa. 50 % ennakkomaksu 50 % toimituksen yhteydessä, jos konetta ei ole varastossa.
Tarkistamme koneen

Laitteella on 3-vaiheinen laadunvalvonta: tehtaalla, varastossamme ja ennen lähettämistä sinulle.
Toimitus tai nouto

Joko kuljetusliike tai nouto koneen varastostamme.
Laitteiden asennus

Olemme täällä auttamassa sinua, kun tarvitset tukea.

Kokemuksia innokkailta bloggaajilta

Tämä laserkaiverrin voi kaivertaa ilman mitään ongelmia. Kuinka nopeaa ja helppoa onkaan räätälöidä tuotteita!

Riccardo Muscarella
Koneessa on täysin tasainen pinta. Se helpottaa toistuvaa työtäni!

Matteo Moras
Loistava työ tehty alle tunnissa. Kiitos CO2-laserkoneen nopeuden.

Roberto D'Adago
Tämä malli on mahtava, ja laserin tarkkuus on uskomaton – terävä kuin partaveitsi!

Roger Jungo

Paino:: 362 kg

Koneen koko:: 1550 x 1290 x 1010 mm

Työ alue:: 600x900 mm

Pakkauskoko:: 1650 x 1390 x 1160 mm

Pöydän kautta:: Yes

Asennustyyppi:: Floor-standing

Materials:: Wood, Rubber, Plywood, Plexiglas, Acrylic, Cardboard, Fabric, Denim, Leather and leatherette, MDF and chipboard, Paper, Paronite, Plastic, Stone

Laser teho:: 100-120 W

Laserputken käyttöikä:: 10000 h

ZnSe linssi:: ZnSe D20 f50

Peilien halkaisija:: 25 mm

Laserputki:: Reci W4, Lasea F4

Polttoväli:: 50 mm

Laser tyyppi:: Sealed CO2 laser tube

Paikannustarkkuus:: 0,5 mm

Kaiverrusnopeus:: 0-1000 mm/s

Pöydän malli:: Blades

Leikkausnopeus:: 0-500 mm/s

XY-akselin rakenne:: PMI 15 mm linear guides

Moottori päällä X ja Y:: 57-H350CS / SH

Jäähdytys:: Water

Sähkövirtalähde:: 220 ±10% 50Hz V

Ohjelmisto:: RDL (LaserWork 8)

Ohjausjärjestelmä:: Ruida RDC8445S

Tiedostonsiirto:: Wi-Fi, USB, LAN

Tuettu muoto:: WMF, WBMP, TIFF, TIF, TGA, SKA, RAW, RAS, PNT, PNM, PNG, PLT, PGX, PDF, PCX, MNG, JPG, JPEG, JPC, JBG, ICO, GIF, EMF, DXF, DWG, DST, DSB, CUR, BMP, AI

Tehon kulutus:: 2000 W

Terät:: + piece

Mukana tuleva paketti

USB-muistitikku
Kuusiokoloavainsarja
Manuaalinen
Ilmakompressori
Vesipumppu
Ethernet-kaapeli
Virtajohto
USB-kaapeli
Silikonitiiviste
Maskiteippi
Letkunkulma
Piiputkisarja

Kysy kysymyksiä

Ensin on päätettävä, mitä aiot valmistaa, mitä materiaalia aiot käyttää, ja tiedä mitat. (pituus ja paksuus). Tämä auttaa sinua määrittämään tarvittavan tehon Tämä auttaa sinua määrittämään laserputken tarvittavan tehon sekä työkentän koon. Voit myös kirjoittaa tai soittaa meille, me olemme iloisia voidessamme auttaa sinua valitsemaan sovellukseesi ja budjettiisi sopivan koneen.
Laserkaiverruskone on erikoislaite, joka toimii numeerisen ohjauksen (CNC) avulla ja joka pystyy kaiverruttamaan tarvittavaa graafista tietoa (kuvaa tai kaiverrusta) erilaisiin pintoihin lasersäteellä.
Kaiverrus on syvyysvaikutusta materiaaliin. Merkitseminen tarkoittaa värisävyn tuomista materiaalin pintaan.
CO2-laserilla voidaan kaivertaa kaikenlaisia puumateriaaleja: massiivipuuta, vaneria, MDF-levyä jne.
