Laser maskine WATTSAN 6090 LT

Arbejdsområde:: 600x900 mm
Laserkraft:: 100-120 W
Positioneringspræcision:: 0,5 mm
Maskinstørrelse:: 1550 x 1290 x 1010 mm
Pakningsstørrelse:: 1650 x 1390 x 1160 mm
Vægt:: 362 kg

Alle egenskaber

8 166 € eks.moms

Pris på forespørgsel

Lav en anmodning

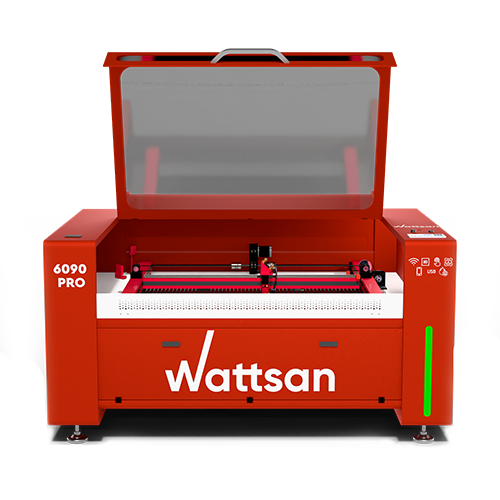

New Wattsan 6090 PRO — Precision Meets Power: Laser Cutting Redefined

The Wattsan 6090 PRO features a 600×900 mm working area, ideal for precise cutting and engraving with minimal waste. Wattsan SAS safety system, enclosed gantry, and smart control screen ensure stable, safe, and intuitive operation. Stepper motors with feedback deliver exceptional precision, while the built-in chiller keeps the system cool and reliable.

The CNC-driven lift table supports up to 100 kg, maintaining perfect focus and durability. Compact, advanced, and professional-ready, the 6090 PRO brings efficiency and accuracy to every project.

Materialer

– skæring
– gravering

Uld
Harpiks
Marmor
Granit
Bambus produkter
Krystal jade
Keramiske fliser
Paronit
Sten
Glas
MDF
Skumgummi
Polyethylenskum
Plexiglas (akryl)
stof
Læder
Gummi
Plast
Pap
Krydsfiner
Træ

Introducing the redisgn of the Wattsan laser machines

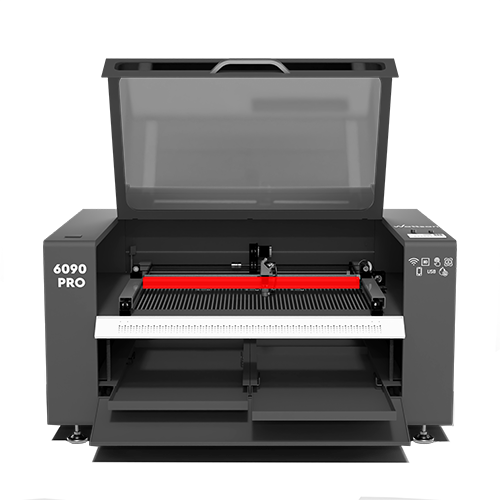

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

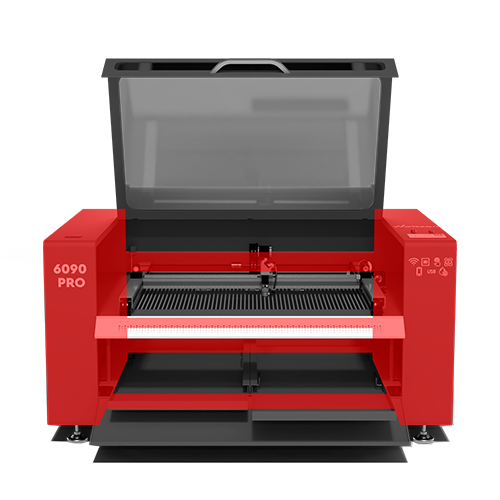

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

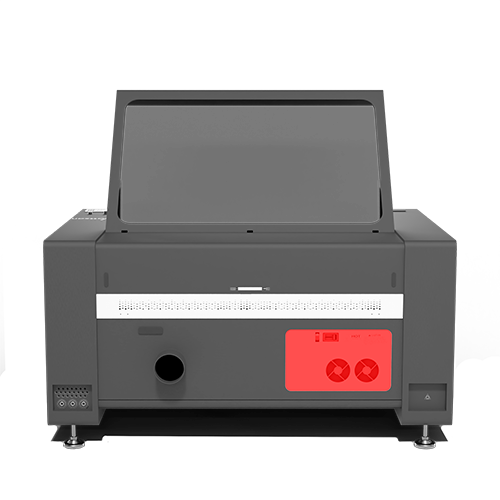

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

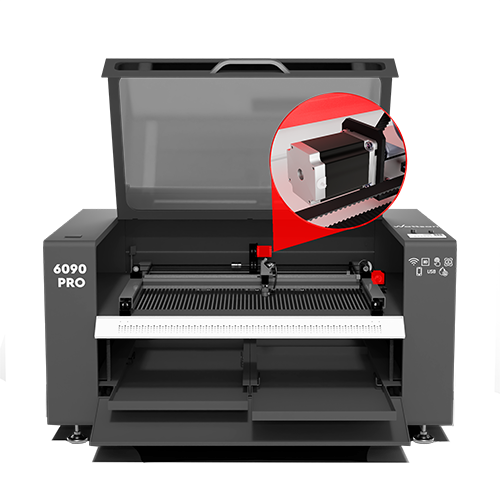

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

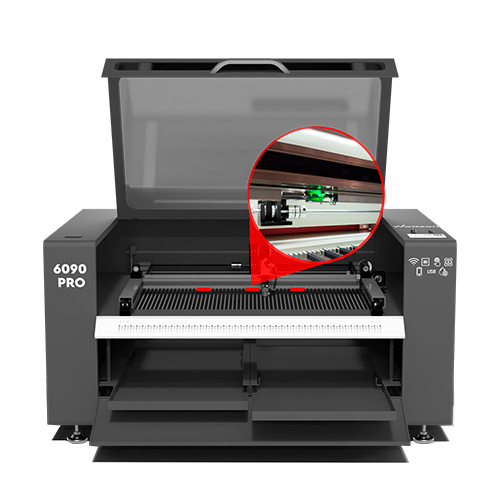

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

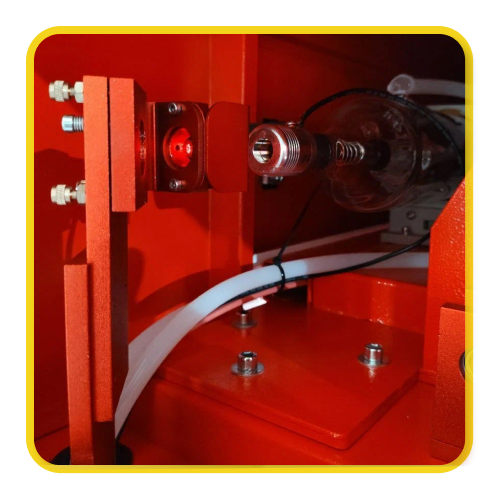

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

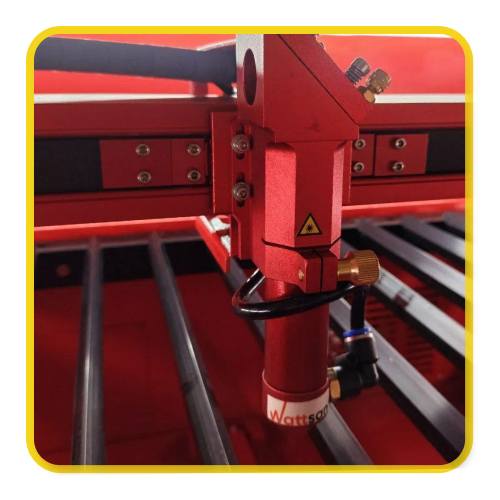

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.

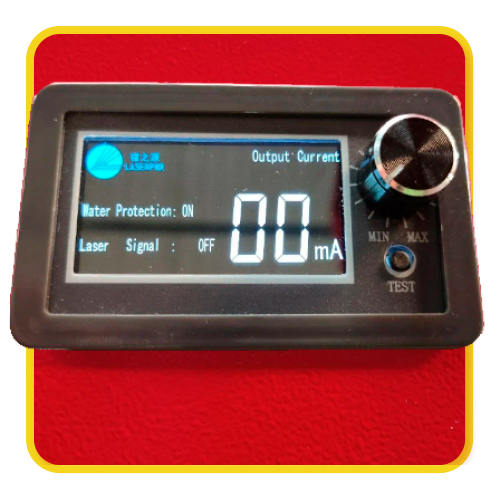

The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.

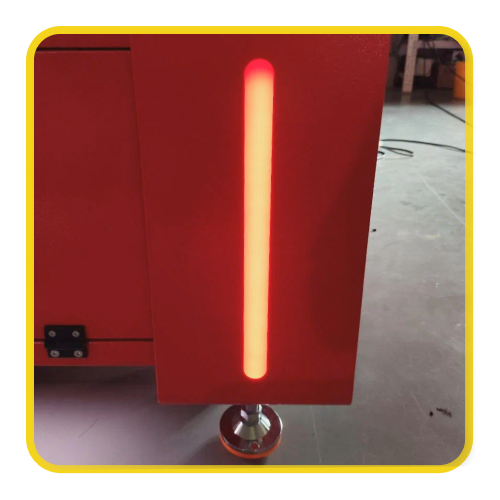

Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

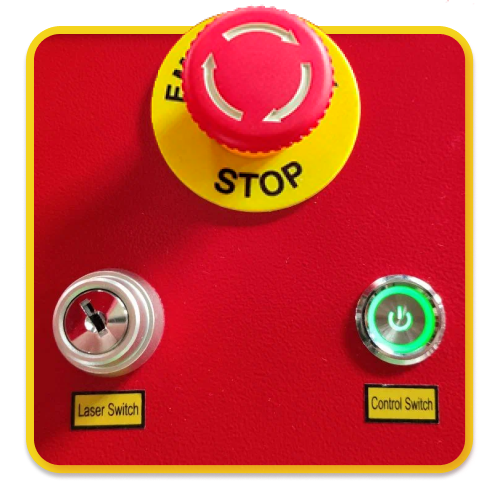

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.

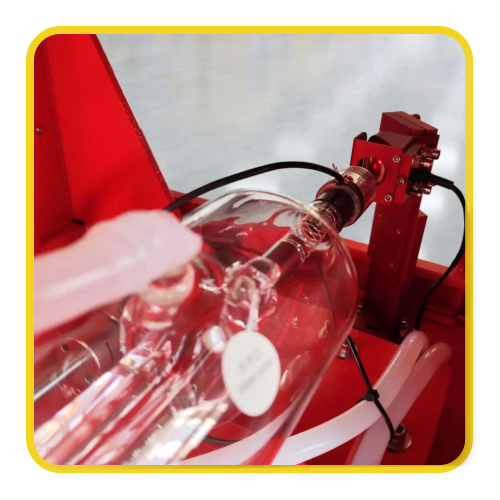

Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Købsprocedure

Udvalg

Vi hjælper dig med at træffe dit valg af en maskine, der matcher dine behov
Sender faktura

Vi aftaler det komplette sæt af maskinen og afsendelse af fakturaen med de endelige omkostninger for udstyret.
Betaling

Fuldstændig hvis maskinen er på lager. 50% forud 50% ved leveringen hvis maskinen ikke er på lager.
Vi tjekker maskinen

3-trins kvalitetskontrol: på Wattsan-fabrikken, på vores lager i Holland, før levering.
Levering eller afhentning

Enten et transportfirma eller du henter maskinen fra vores lager.
Lydningsudstyr

Vi er her for at hjælpe dig, når du har brug for support.

Erfaringer fra entusiastiske bloggere

Denne lasergraver kan gravere uden problemer. Hvor hurtigt og nemt det er at tilpasse produkter!

Riccardo Muscarella
Maskinen har en perfekt flad overflade. Det gør gentagende arbejde lettere for mig!

Matteo Moras
Fantastisk arbejde udført på under en time. Takket være hastigheden på CO2-lasermaskinen.

Roberto D'Adago
Denne model er fantastisk, og laserens præcision er vild – skarp som en ragekniv!

Roger Jungo

Vægt:: 362 kg

Maskinstørrelse:: 1550 x 1290 x 1010 mm

Arbejdsområde:: 600x900 mm

Pakningsstørrelse:: 1650 x 1390 x 1160 mm

Gennem bord:: Yes

Installationstype:: Floor-standing

Materials:: Wood, Rubber, Plywood, Plexiglas, Acrylic, Cardboard, Fabric, Denim, Leather and leatherette, MDF and chipboard, Paper, Paronite, Plastic, Stone

Laserkraft:: 100-120 W

Laserrørets levetid:: 10000 h

ZnSe linse:: ZnSe D20 f50

Diameter på spejle:: 25 mm

Laserrør:: Reci W4, Lasea F4

Brændvidde:: 50 mm

Laser type:: Sealed CO2 laser tube

Positioneringspræcision:: 0,5 mm

Graveringshastighed:: 0-1000 mm/s

Bordmodel:: Blades

Skærehastighed:: 0-500 mm/s

XY akse struktur:: PMI 15 mm linear guides

Motor på X og Y:: 57-H350CS / SH

Køling:: Water

Elektrisk strømforsyning:: 220 ±10% 50Hz V

Software:: RDL (LaserWork 8)

Kontrolsystem:: Ruida RDC8445S

Filoverførsel:: Wi-Fi, USB, LAN

Understøttet format:: WMF, WBMP, TIFF, TIF, TGA, SKA, RAW, RAS, PNT, PNM, PNG, PLT, PGX, PDF, PCX, MNG, JPG, JPEG, JPC, JBG, ICO, GIF, EMF, DXF, DWG, DST, DSB, CUR, BMP, AI

Strømforbrug:: 2000 W

Blade:: + piece

Inkluderet kit

USB-nøgle
Sekskantnøglesæt
Manuel
Luftkompressor
Vandpumpe
Ethernet-kabel
Strømkabel
USB-kabel
Silikoneforsegling
Afdækningstape
Slangestuds
Sæt med silikonerør

Stil spørgsmål

Først og fremmest bør du beslutte dig for, hvad du skal bruge maskinen til, hvilken slags materiale den skal være og dens størrelse (længde og tykkelse). Dette vil hjælpe med at bestemme laserrørets krævede kraft samt størrelsen af arbejdsområdet. Du kan også skrive eller ringe til os, vi hjælper dig gerne med at vælge den rigtige maskine til dine opgaver og budget
Lasergraveringsmaskine er et stykke computer numerisk kontroludstyr (CNC), der bruger en laserstråle til at gravere nødvendig grafisk information (billede eller inskriptioner) på forskellige overflader.
Gravering er effekten på materialet i dybden. Markering på den anden side ændrer kun farven på materialet.
Ved hjælp af CO2-lasermaskine kan du gravere alle typer træmaterialer: massivt træ, krydsfiner, MDF og andre.
