máquina láser WATTSAN 6090 PRO

Área de trabajo:: 600x900 mm
Potencia láser:: 100-120 W
Precisión de posicionamiento:: 0,5 mm
Tamaño de la máquina:: 1550 x 1260 x 960 mm
Tamaño de embalaje:: 1650 x 1370 x 1160 mm
Peso:: 350 kg

8 166 € sin IVA

Precio en demanda

Hacer una petición

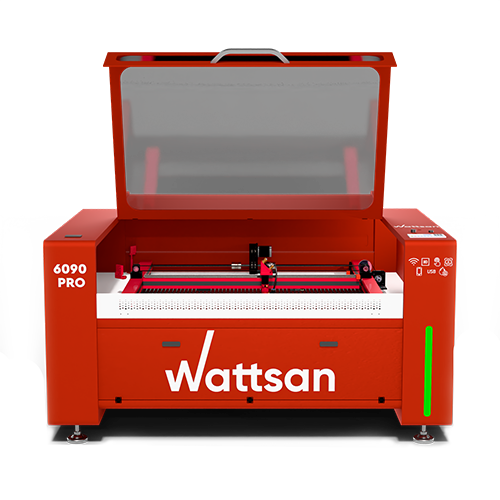

New Wattsan 6090 PRO — Precision Meets Power: Laser Cutting Redefined

The Wattsan 6090 PRO features a 600×900 mm working area, ideal for precise cutting and engraving with minimal waste. Wattsan SAS safety system, enclosed gantry, and smart control screen ensure stable, safe, and intuitive operation. Stepper motors with feedback deliver exceptional precision, while the built-in chiller keeps the system cool and reliable.

The CNC-driven lift table supports up to 100 kg, maintaining perfect focus and durability. Compact, advanced, and professional-ready, the 6090 PRO brings efficiency and accuracy to every project.

Materiales

– corte
– grabado

Lana
Resina
Mármol
Granito
Productos de bambú
jade cristalino
Baldosas de cerámica
paronita
Piedra
Vaso
MDF
Espuma de caucho
Espuma de polietileno
Plexiglás (Metacrilato)
tela
Cuero
Goma
El plastico
Cartulina
Madera contrachapada
Madera

Introducing the redisgn of the Wattsan laser machines

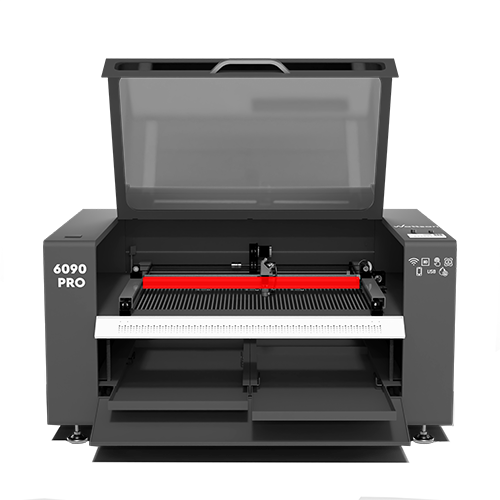

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

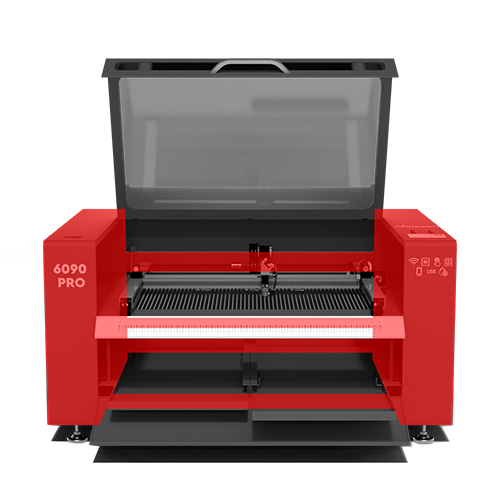

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

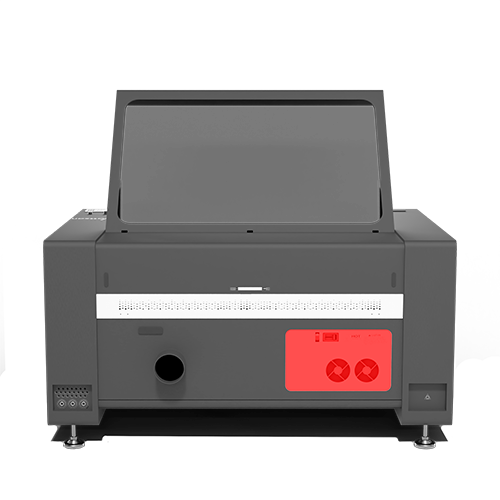

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

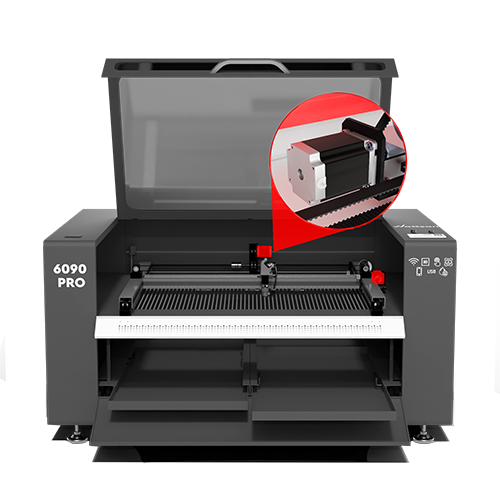

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

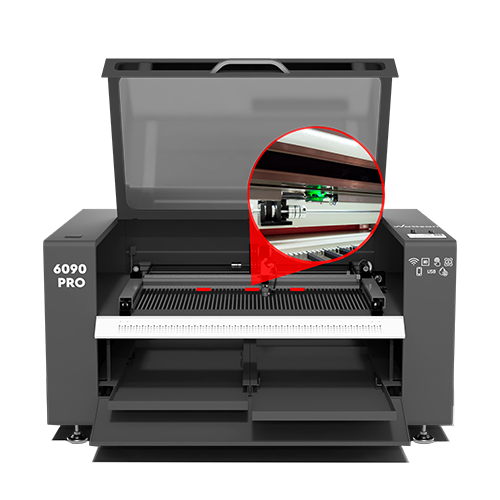

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

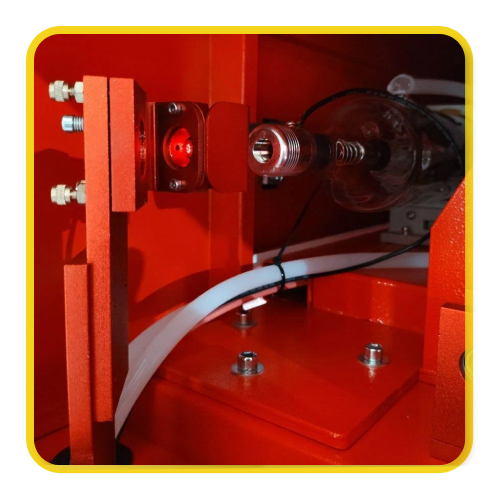

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

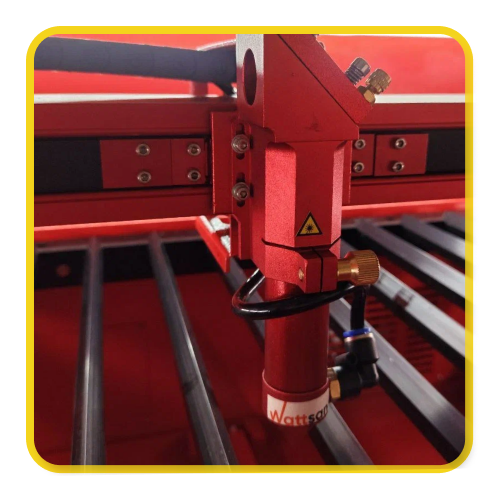

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.

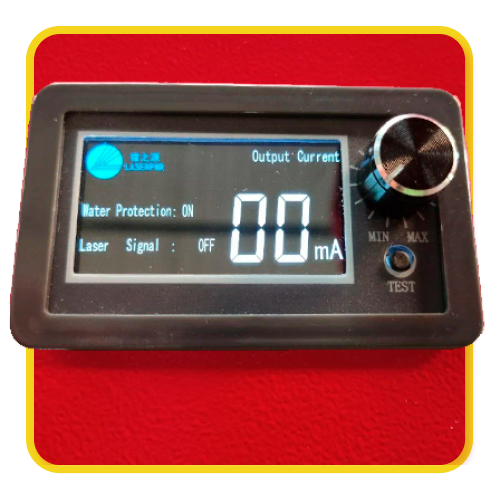

The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.

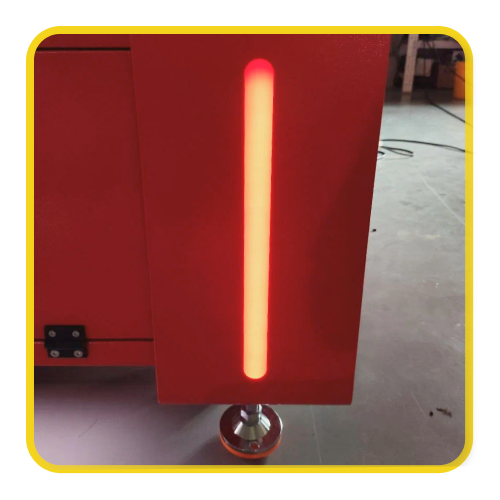

Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

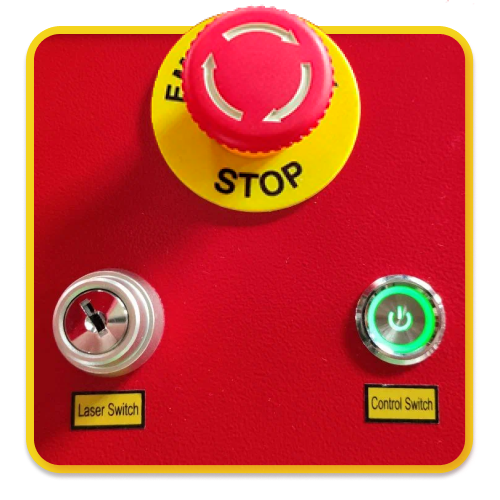

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.

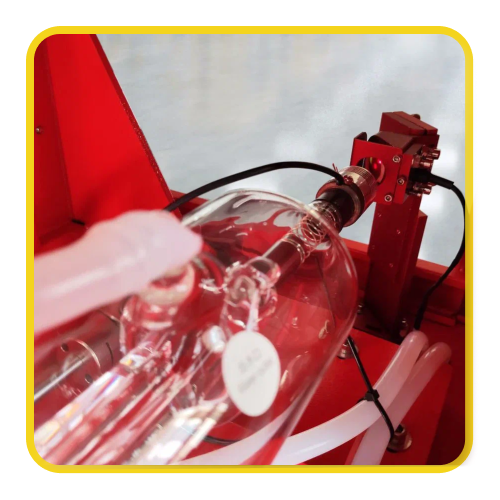

Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Procedimiento de compra

Selección de equipo

Le ayudamos a elegir una máquina que se adapte a sus necesidades
Envío de factura

Acordamos el conjunto completo de la máquina y el envío de la factura con el coste final del equipo.
Pago

En su totalidad si la máquina está en stock. 50% por adelantado 50% a la entrega si la máquina no está en stock.
Revisamos la máquina

El control de calidad de 3 pasos: en la fábrica de Wattsan, en nuestro almacén en los Países Bajos, antes de la entrega.
Entrega o recogida

O una empresa de transporte o recoges la máquina en nuestro almacén.
Equipo de lanzamiento

Estamos aquí para ayudarte cuando necesites ayuda.

Experiencias de blogueros entusiastas

Este grabador láser puede grabar sin ningún problema. ¡Qué rápido y fácil es personalizar productos!

Riccardo Muscarella
La máquina tiene una superficie perfectamente plana. ¡Hace que el trabajo repetitivo sea más fácil para mí!

Riccardo Muscarella
Un gran trabajo realizado en menos de una hora. Gracias a la velocidad de la máquina láser de CO2.

Roberto D'Adago
Este modelo es genial, y la precisión del láser es increíble, ¡tan afilado como una navaja!

Roger Jungo

Tamaño de embalaje:: 1650 x 1370 x 1160 mm

Peso:: 350 kg

Tamaño de la máquina:: 1550 x 1260 x 960 mm

Tipo de instalación:: Floor-standing

A través de la mesa:: Yes

Área de trabajo:: 600x900 mm

Materials:: Acrylic, Cardboard, Fabric, Denim, Leather and leatherette, MDF and chipboard, Paper, Stone, Paronite, Plastic, Plexiglas, Plywood, Rubber, Wood

Potencia láser:: 100-120 W

Vida útil del tubo láser:: 10000 h

Lente ZnSe:: ZnSe D20 f50

tubo láser:: Reci W4, Lasea F4

Longitud focal:: 50 mm

Precisión de posicionamiento:: 0,5 mm

Tipo de láser:: Sealed CO2 laser tube

Diámetro de los espejos:: 25 mm

Velocidad de grabado:: 0-1000 mm/s

Estructura del eje XY:: PMI 15 mm linear guides

Modelo de mesa:: Blades

Enfriamiento:: Water

Velocidad cortante:: 0-500 mm/s

Motor en X e Y:: 57-H350CS / SH

Suministro de energía eléctrica:: 220 ±10% 50Hz V

El consumo de energía:: 2000 W

Transferencia de archivos:: USB, LAN, Wi-Fi

formato compatible:: PNG, CUR, DSB, PNM, AI, WMF, WBMP, TIFF, TIF, TGA, RAW, SKA, ICO, DST, JBG, DXF, DWG, PLT, GIF, PCX, MNG, JPG, JPEG, JPC, RAS, PNT, EMF, PGX, PDF, BMP

Sistema de control:: Ruida RDC8445S

Software:: RDL (LaserWork 8)

Cuchillas:: + piece

Kit incluido

Unidad flash USB
Juego de llaves hexagonales
Manual
Compresor de aire
Bomba de agua
Cable Ethernet
Cable de alimentación
Cable USB
Sellador de silicona
Cinta adhesiva
Juego de tubos de silicona

Hacer preguntas

En primer lugar, debe decidir para qué va a utilizar la máquina, qué tipo de material será y su tamaño (longitud y grosor). Esto ayudará a determinar la potencia necesaria del tubo láser, así como el tamaño del área de trabajo. También puede escribirnos o llamarnos, estaremos encantados de ayudarle a elegir la máquina adecuada para sus tareas y su presupuesto.
La máquina de grabado láser es un equipo de control numérico computarizado (CNC) que utiliza un rayo láser para grabar la información gráfica necesaria (imagen o inscripciones) en diversas superficies.
El grabado es el efecto sobre el material en profundidad. El marcado, en cambio, sólo cambia el color del material.
Con la máquina láser de CO2 se puede grabar cualquier tipo de material de madera: madera maciza, contrachapado, MDF y otros.
