Μηχανή λέιζερ WATTSAN 6090 LT

Χώρο εργασίας:: 600x900 mm
Ισχύς λέιζερ:: 100-120 W
Ακρίβεια τοποθέτησης:: 0,5 mm
Μέγεθος μηχανής:: 1550 x 1290 x 1010 mm
Μέγεθος συσκευασίας:: 1650 x 1390 x 1160 mm
Βάρος:: 362 kg

8 166 € π. Φ.Π.Α

Τιμή κατόπιν αιτήματος

Κάνε ένα αίτημα

New Wattsan 6090 PRO — Precision Meets Power: Laser Cutting Redefined

The Wattsan 6090 PRO features a 600×900 mm working area, ideal for precise cutting and engraving with minimal waste. Wattsan SAS safety system, enclosed gantry, and smart control screen ensure stable, safe, and intuitive operation. Stepper motors with feedback deliver exceptional precision, while the built-in chiller keeps the system cool and reliable.

The CNC-driven lift table supports up to 100 kg, maintaining perfect focus and durability. Compact, advanced, and professional-ready, the 6090 PRO brings efficiency and accuracy to every project.

Υλικά

– τομή
– χαρακτική

Μαλλί
Ρητίνη
Μάρμαρο
Γρανίτης
Προϊόντα μπαμπού
Κρυστάλλινος νεφρίτης
Κεραμικό πλακάκι
Παρονίτης
Πέτρα
Ποτήρι
MDF
Αφρώδες λάστιχο
Αφρός πολυαιθυλενίου
Πλεξιγκλάς (ακρυλικό)
ύφασμα
Δέρμα
Καουτσούκ
Πλαστική ύλη
Χαρτόνι
Κόντρα πλακέ
Ξύλο

Introducing the redisgn of the Wattsan laser machines

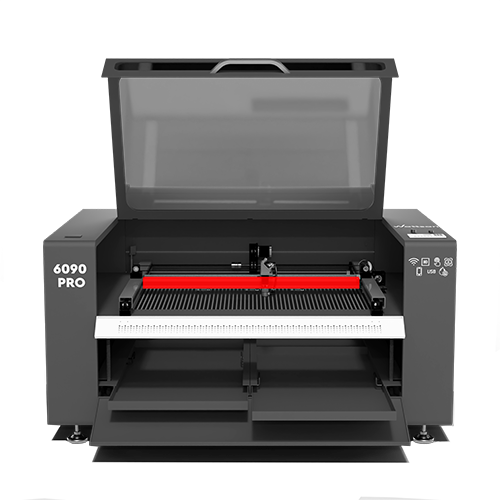

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

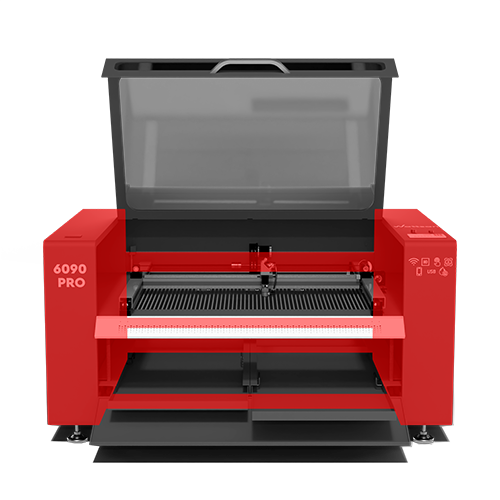

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

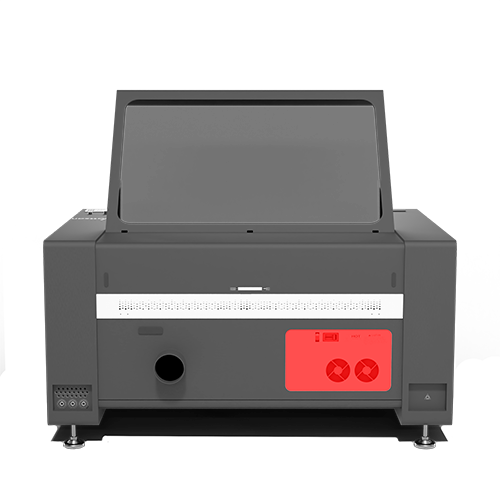

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

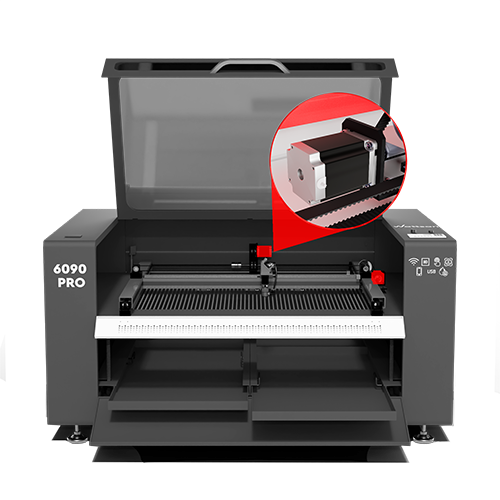

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

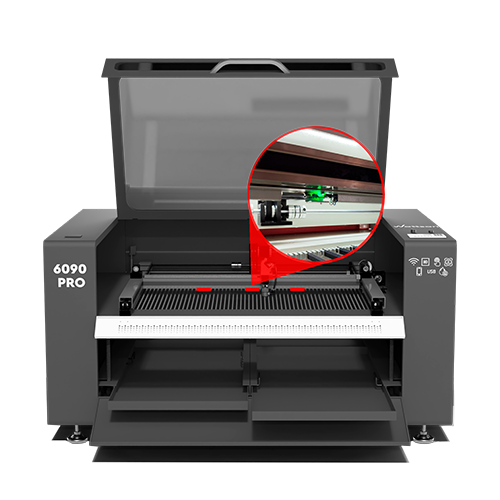

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Wattsan's Most Ambitious Laser Cutter Yet

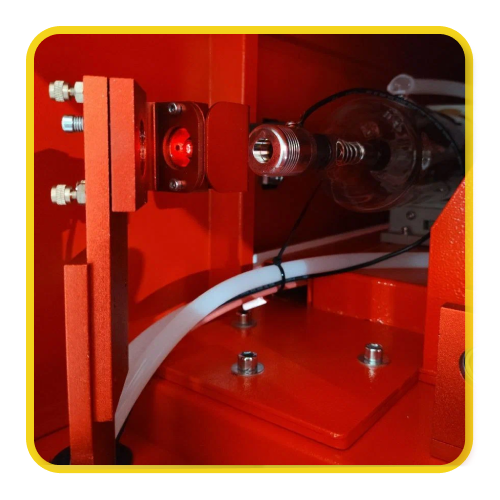

Engineered for Safety, Built for Professionals

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

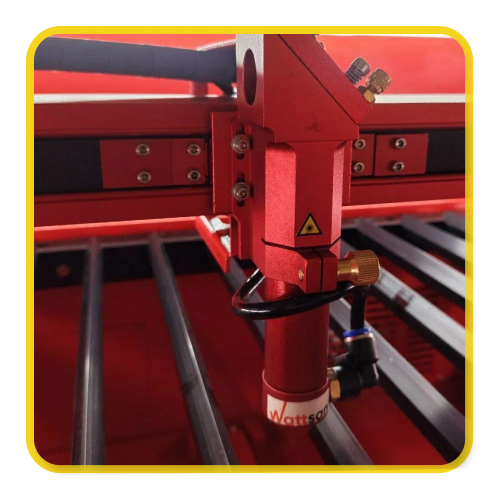

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.
The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.
Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.
Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Διαδικασία αγοράς

Επιλογή εξοπλισμού

Σας βοηθάμε να επιλέξετε ένα μηχάνημα που ταιριάζει στις ανάγκες σας
Αποστολή τιμολογίου

Συμφωνούμε για το πλήρες σετ του μηχανήματος και την αποστολή του τιμολογίου με το τελικό κόστος του εξοπλισμού.
Πληρωμή

Πλήρως εάν το μηχάνημα είναι σε απόθεμα. 50% εκ των προτέρων 50% κατά την παράδοση εάν το μηχάνημα δεν είναι σε απόθεμα.
Ελέγχουμε το μηχάνημα

Ο ποιοτικός έλεγχος 3 βημάτων: στο εργοστάσιο Wattsan, στην αποθήκη μας στην Ολλανδία, πριν από την παράδοση.
Παράδοση ή παραλαβή

Είτε μεταφορική εταιρεία είτε παραλαμβάνετε το μηχάνημα από την αποθήκη μας.
Εξοπλισμός εκκίνησης

Είμαστε εδώ για να σας βοηθήσουμε όποτε χρειάζεστε υποστήριξη.

Εμπειρίες από ενθουσιώδεις bloggers

Αυτός ο χάρακας λέιζερ μπορεί να χαράξει χωρίς κανένα πρόβλημα. Πόσο γρήγορο και εύκολο είναι να προσαρμόζεις προϊόντα!

Riccardo Muscarella
Η μηχανή έχει μια τέλεια επίπεδη επιφάνεια. Αυτό κάνει την επαναλαμβανόμενη εργασία πιο εύκολη για μένα!

Riccardo Muscarella
Εξαιρετική δουλειά ολοκληρωμένη σε λιγότερο από μία ώρα. Χάρη στην ταχύτητα της μηχανής λέιζερ CO2.

Roberto D'Adago
Αυτό το μοντέλο είναι υπέροχο και η ακρίβεια του λέιζερ είναι απίστευτη – κοφτερή σαν ξυράφι!

Roger Jungo

Βάρος:: 362 kg

Μέγεθος μηχανής:: 1550 x 1290 x 1010 mm

Χώρο εργασίας:: 600x900 mm

Μέγεθος συσκευασίας:: 1650 x 1390 x 1160 mm

Μέσω πίνακα:: Yes

Τύπος εγκατάστασης:: Floor-standing

Materials:: Wood, Rubber, Plywood, Plexiglas, Acrylic, Cardboard, Fabric, Denim, Leather and leatherette, MDF and chipboard, Paper, Paronite, Plastic, Stone

Φακός ZnSe:: ZnSe D20 f50

Διάμετρος καθρεφτών:: 25 mm

Σωλήνας λέιζερ:: Reci W4, Lasea F4

Εστιακό μήκος:: 50 mm

Τύπος λέιζερ:: Sealed CO2 laser tube

Ακρίβεια τοποθέτησης:: 0,5 mm

Ισχύς λέιζερ:: 100-120 W

Διάρκεια ζωής σωλήνα λέιζερ:: 10000 h

Δομή άξονα XY:: PMI 15 mm linear guides

Κινητήρας στα Χ και Υ:: 57-H350CS / SH

Ψύξη:: Water

Ταχύτητα χάραξης:: 0-1000 mm/s

Μοντέλο τραπεζιού:: Blades

Ταχύτητα κοπής:: 0-500 mm/s

Ηλεκτρική παροχή ρεύματος:: 220 ±10% 50Hz V

Λογισμικό:: RDL (LaserWork 8)

Σύστημα ελέγχου:: Ruida RDC8445S

Μεταφορά αρχείων:: Wi-Fi, USB, LAN

Υποστηριζόμενη μορφή:: WMF, WBMP, TIFF, TIF, TGA, SKA, RAW, RAS, PNT, PNM, PNG, PLT, PGX, PDF, PCX, MNG, JPG, JPEG, JPC, JBG, ICO, GIF, EMF, DXF, DWG, DST, DSB, CUR, BMP, AI
