WATTSAN 6090 PRO

Espace de travail:: 600x900 mm
Puissance laser:: 100-120 W
Précision de positionnement:: 0,5 mm
Taille de l'appareil:: 1550 x 1260 x 960 mm
Taille d'emballage:: 1650 x 1370 x 1160 mm
Lester:: 350 kg

8 166 € HT

Prix sur demande

Demander à être contacté

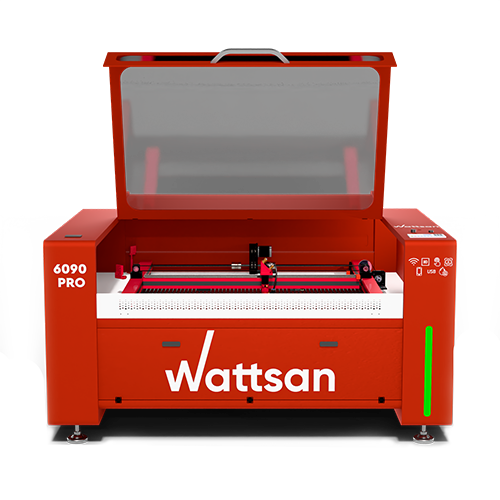

New Wattsan 6090 PRO — Precision Meets Power: Laser Cutting Redefined

The Wattsan 6090 PRO features a 600×900 mm working area, ideal for precise cutting and engraving with minimal waste. Wattsan SAS safety system, enclosed gantry, and smart control screen ensure stable, safe, and intuitive operation. Stepper motors with feedback deliver exceptional precision, while the built-in chiller keeps the system cool and reliable.

The CNC-driven lift table supports up to 100 kg, maintaining perfect focus and durability. Compact, advanced, and professional-ready, the 6090 PRO brings efficiency and accuracy to every project.

Matériaux

– Coupe
– gravure

Laine
Résine
Marbre
Granit
Produits en bambou
Jade cristal
Tuile en céramique
Paronite
Pierre
Verre
MDF
Caoutchouc
Mousse de polyéthylène
Plexiglas (Acrylique)
en tissu
Cuir
Caoutchouc
Plastique
Papier carton
Contre-plaqué
Bois

Introducing the redisgn of the Wattsan laser machines

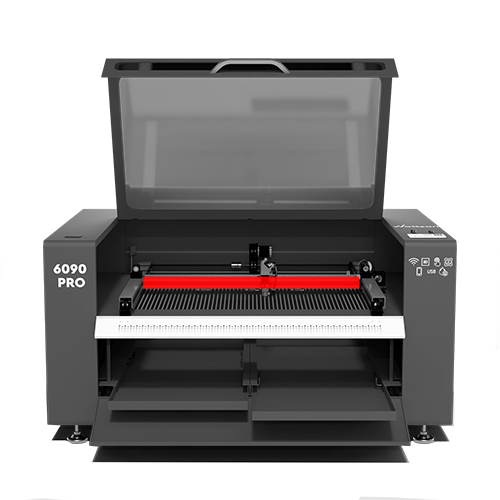

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

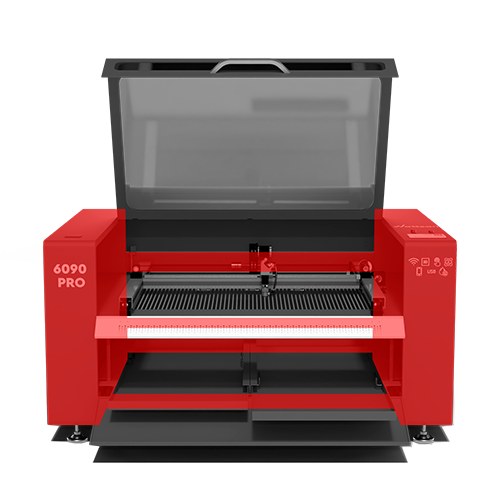

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

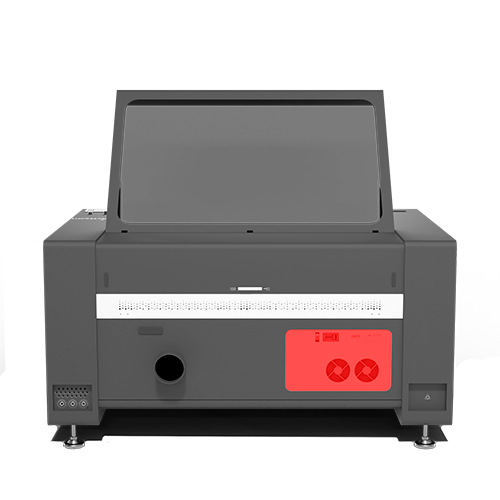

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

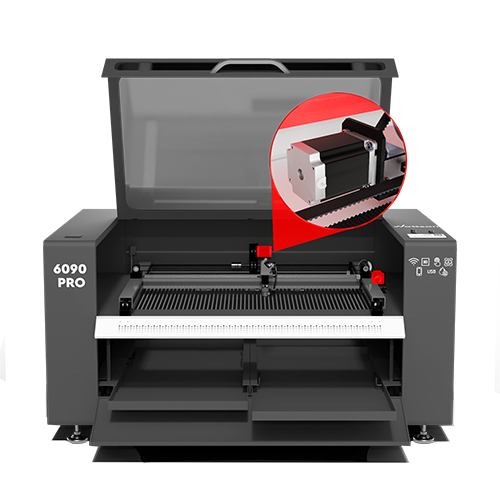

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

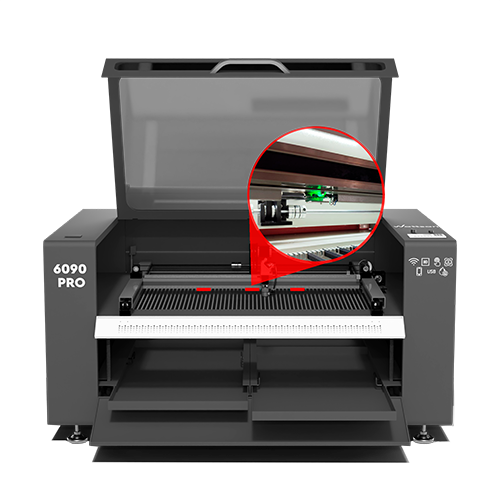

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

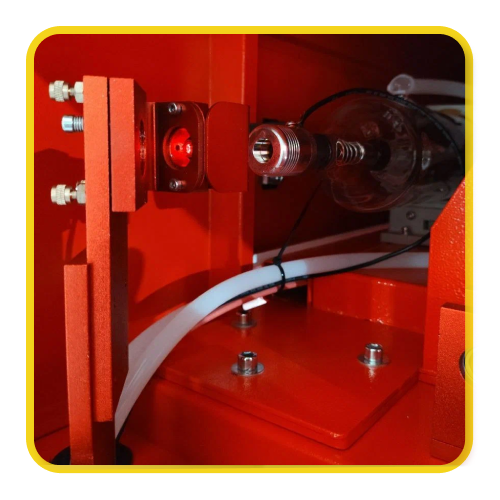

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

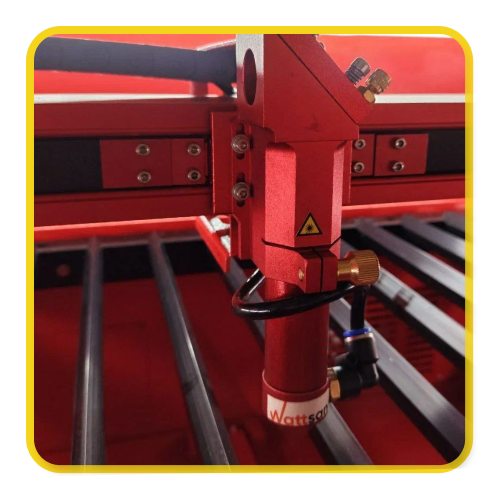

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.
The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.
Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.
Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Procédure d'achat

Choix du matériel

Nous vous aidons à faire votre choix d'une machine correspondant à vos besoins
Envoi de la facture

Nous convenons de l'ensemble complet de la machine et de l'envoi de la facture avec le coût final de l'équipement.
Paiement

En totalité si la machine est en stock. 50 % à l'avance 50 % à la livraison si la machine n'est pas en stock.
Nous vérifions la machine

Le contrôle qualité en 3 étapes : à l'usine Wattsan, dans notre entrepôt aux Pays-Bas, avant la livraison.
Livraison ou enlèvement

Soit une société de transport, soit vous récupérez la machine dans notre entrepôt.
Lancement des équipements

Nous sommes là pour vous aider chaque fois que vous avez besoin d'aide.

Expériences de blogueurs enthousiastes

Cette machine de gravure laser grave sans aucun problème. Quelle rapidité et quelle facilité pour personnaliser les produits !

Riccardo Muscarella
La machine a une surface parfaitement plane. Cela rend le travail répétitif plus facile pour moi !

Matteo Moras
Un excellent travail réalisé en moins d'une heure. Merci à la vitesse de la machine laser CO2.

Roberto D'Adago
Ce modèle est génial, et la précision du laser est incroyable, aussi tranchante qu’un rasoir !

Roger Jungo

Taille d'emballage:: 1650 x 1370 x 1160 mm

Lester:: 350 kg

Taille de l'appareil:: 1550 x 1260 x 960 mm

Type d'installation:: Floor-standing

À travers le tableau:: Yes

Espace de travail:: 600x900 mm

Materials:: Acrylic, Cardboard, Fabric, Denim, Leather and leatherette, MDF and chipboard, Paper, Stone, Paronite, Plastic, Plexiglas, Plywood, Rubber, Wood

Puissance laser:: 100-120 W

Durée de vie du tube laser:: 10000 h

Lentille ZnSe:: ZnSe D20 f50

Tube laser:: Reci W4, Lasea F4

Distance focale:: 50 mm

Précision de positionnement:: 0,5 mm

Type laser:: Sealed CO2 laser tube

Diamètre des miroirs:: 25 mm

Vitesse de gravure:: 0-1000 mm/s

Structure de l'axe XY:: PMI 15 mm linear guides

Modèle de table:: Blades

Refroidissement:: Water

Vitesse de coupe:: 0-500 mm/s

Moteur sur X et Y:: 57-H350CS / SH

Alimentation électrique:: 220 ±10% 50Hz V

Consommation d'énergie:: 2000 W

Transfert de fichier:: USB, LAN, Wi-Fi

Format pris en charge:: PNG, CUR, DSB, PNM, AI, WMF, WBMP, TIFF, TIF, TGA, RAW, SKA, ICO, DST, JBG, DXF, DWG, PLT, GIF, PCX, MNG, JPG, JPEG, JPC, RAS, PNT, EMF, PGX, PDF, BMP
