Mașină cu laser WATTSAN 6090 LT

Zona de lucru:: 600x900 mm
Putere laser:: 100-120 W
Precizia poziționării:: 0,5 mm
Dimensiunea mașinii:: 1550 x 1290 x 1010 mm
Dimensiunea de ambalare:: 1650 x 1390 x 1160 mm
Greutate:: 362 kg

8 166 € ex.TVA

Pret la cerere

A face o cerere

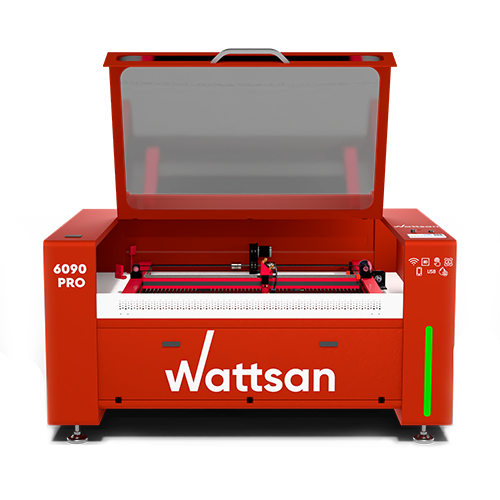

New Wattsan 6090 PRO — Precision Meets Power: Laser Cutting Redefined

The Wattsan 6090 PRO features a 600×900 mm working area, ideal for precise cutting and engraving with minimal waste. Wattsan SAS safety system, enclosed gantry, and smart control screen ensure stable, safe, and intuitive operation. Stepper motors with feedback deliver exceptional precision, while the built-in chiller keeps the system cool and reliable.

The CNC-driven lift table supports up to 100 kg, maintaining perfect focus and durability. Compact, advanced, and professional-ready, the 6090 PRO brings efficiency and accuracy to every project.

Materiale

– tăiere
– gravare

Lână
Răşină
Marmură
Granit
Produse din bambus
Crystale jad
Placă ceramică
Paronit
Piatră
Sticlă
MDF
Cauciuc spumos
Spumă de polietilenă
Plexiglas (acrilic)
țesătură
Piele
Cauciuc
Plastic
Carton
Placaj
Lemn

Introducing the redisgn of the Wattsan laser machines

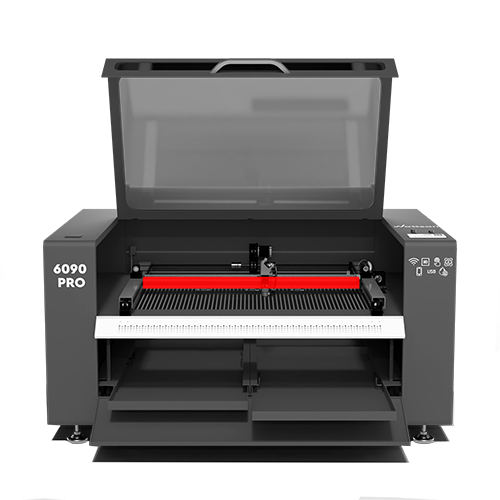

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

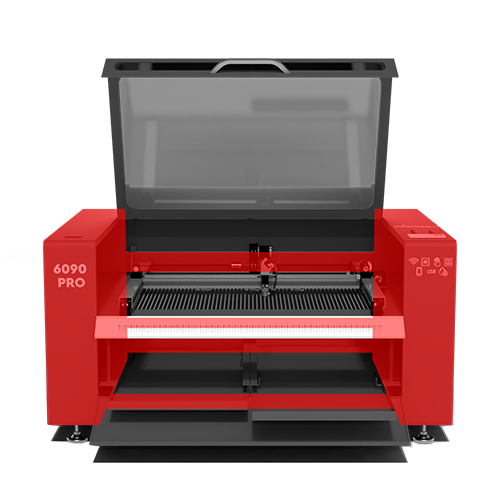

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—specifically models like the 1610 and larger—feature a reinforced frame body with a thickness of 2.9 mm or more. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

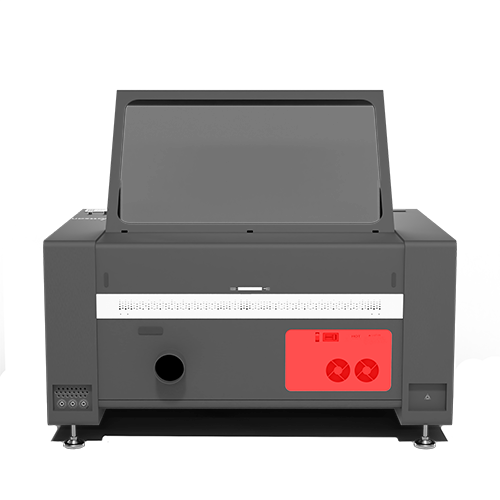

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

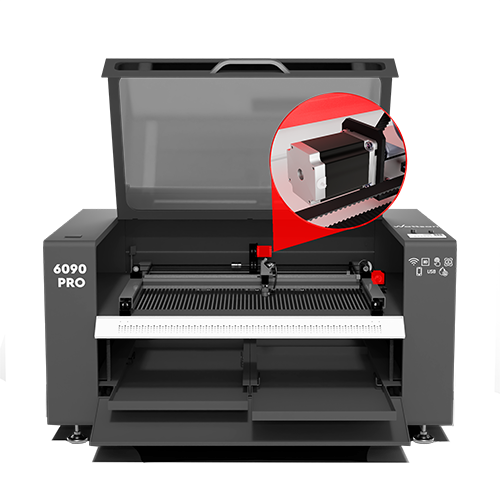

Three-phase stepper motors

Three-phase stepper motors provide higher torque, finer steps, and exceptional reliability compared to conventional two-phase motors. This combination ensures smooth, stable operation and consistently precise cuts and engravings, even during complex or detailed work.

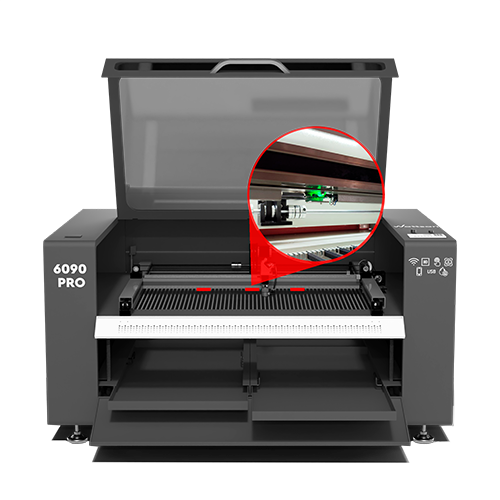

FOX System

Wattsan FOX (Fire Overwatch Expert) System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

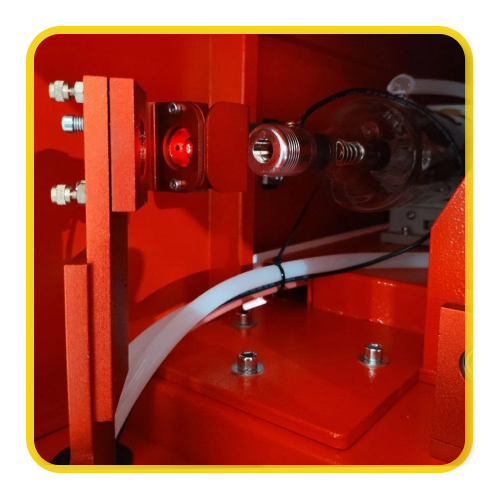

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

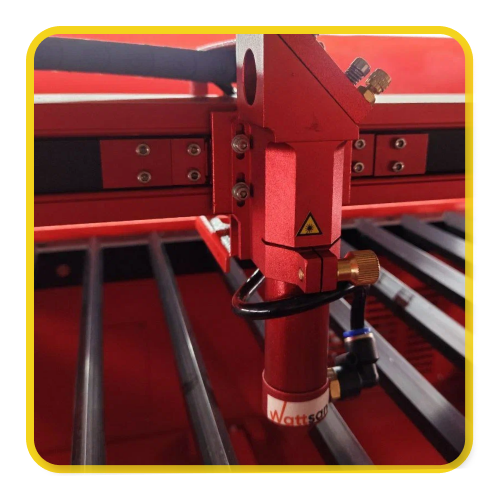

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.

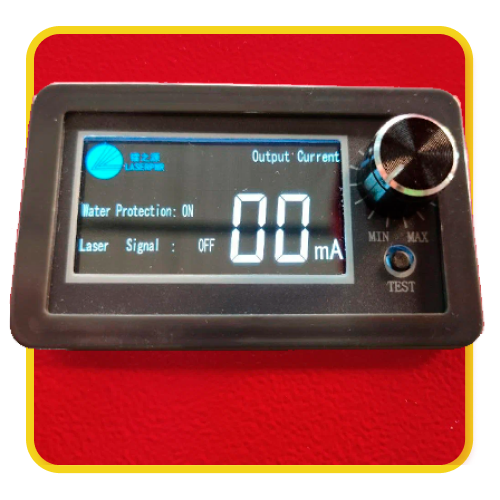

The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.

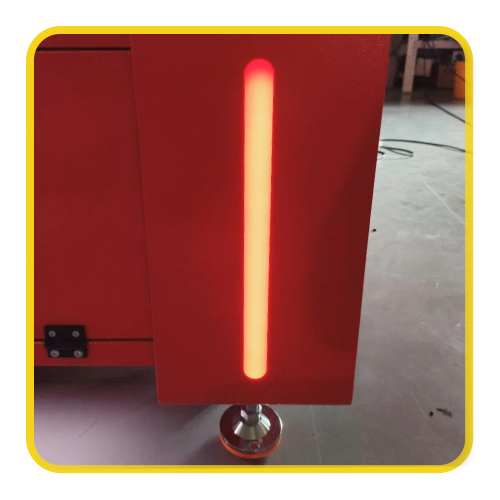

Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

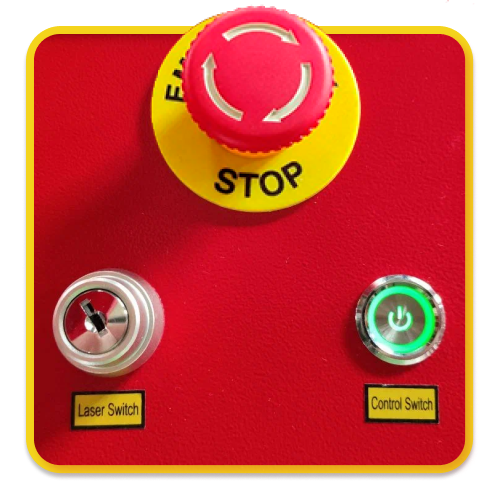

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.

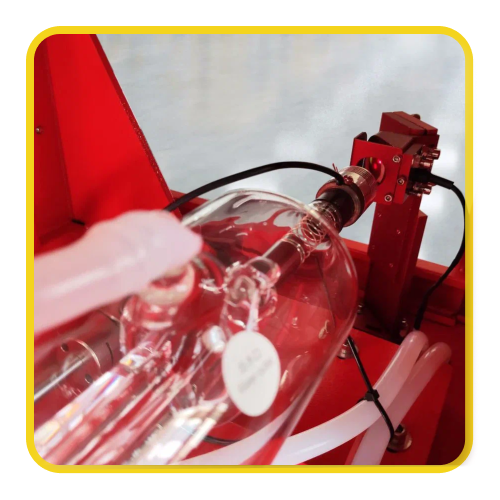

Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

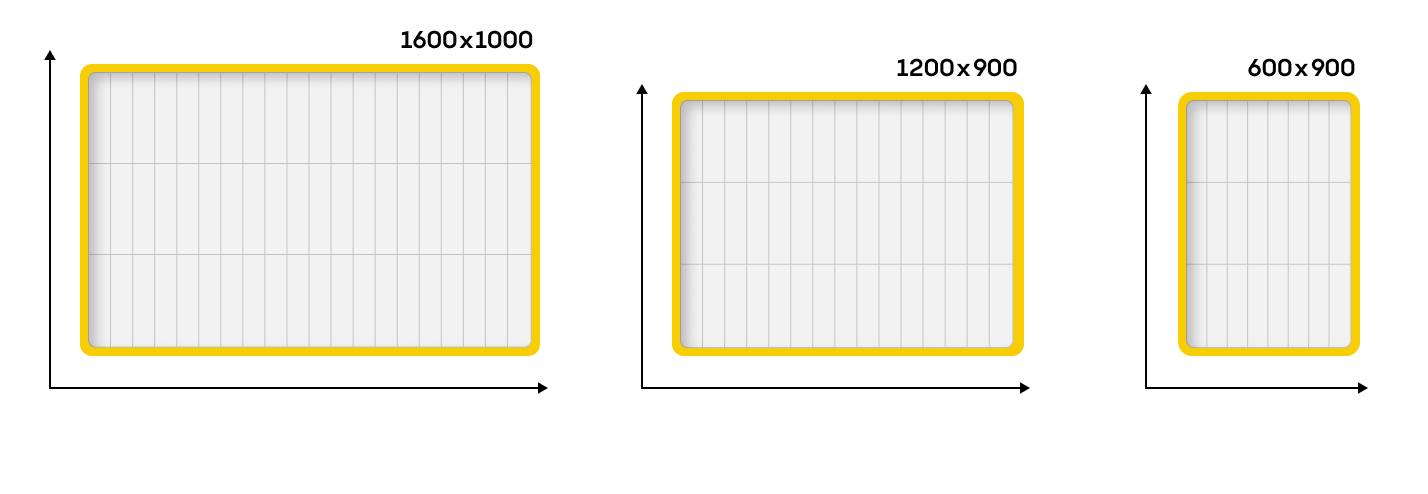

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.

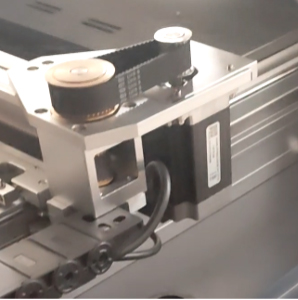

Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Procedura de achizitie

Selectarea echipamentului

Vă asistăm să alegeți o mașină care să corespundă nevoilor dvs.
Trimiterea facturii

Suntem de acord asupra setului complet al mașinii și trimitem factura cu costul final al echipamentului.
Payment

Complet dacă mașina este în stoc. 50% în avans 50% la livrare dacă aparatul nu este în stoc.
Verificăm mașina

Controlul calității în 3 etape: la fabrica Wattsan, la depozitul nostru din Olanda, înainte de livrare.
Livrare sau ridicare

Fie o companie de transport, fie ridicați mașina din depozitul nostru.
Echipament de lansare

Suntem aici pentru a vă ajuta oricând aveți nevoie de sprijin.

Experiențe de la bloggeri entuziaști

Acest gravator laser poate grava fără nicio problemă. Cât de rapid și ușor este să personalizezi produsele!

Riccardo Muscarella
Mașina are o suprafață perfect plată. Acest lucru îmi face munca repetitivă mai ușoară!

Matteo Moras
O treabă excelentă realizată în mai puțin de o oră. Mulțumită vitezei mașinii cu laser CO2.

Roberto D'Adago
Acest model este grozav, iar precizia laserului este incredibilă, la fel de ascuțită ca un brici!

Roger Jungo

Dimensiunea mașinii:: 1550 x 1290 x 1010 mm

Zona de lucru:: 600x900 mm

Dimensiunea de ambalare:: 1650 x 1390 x 1160 mm

Prin masă:: Yes

Tip de instalare:: Floor-standing

Greutate:: 362 kg

Materials:: Wood, Rubber, Plywood, Plexiglas, Acrylic, Cardboard, Fabric, Denim, Leather and leatherette, MDF and chipboard, Paper, Paronite, Plastic, Stone

Lentila ZnSe:: ZnSe D20 f50

Diametrul oglinzilor:: 25 mm

Tub laser:: Reci W4, Lasea F4

Distanta focala:: 50 mm

Tip laser:: Sealed CO2 laser tube

Precizia poziționării:: 0,5 mm

Putere laser:: 100-120 W

Durata de viață a tubului laser:: 10000 h

Motor pe X și Y:: 57-H350CS / SH

Răcire:: Water

Viteza de gravare:: 0-1000 mm/s

Model de masă:: Blades

Viteza de taiere:: 0-500 mm/s

Structura axei XY:: PMI 15 mm linear guides

Alimentare cu energie electrică:: 220 ±10% 50Hz V

Software:: RDL (LaserWork 8)

Sistem de control:: Ruida RDC8445S

Transfer de fișier:: Wi-Fi, USB, LAN

Format acceptat:: WMF, WBMP, TIFF, TIF, TGA, SKA, RAW, RAS, PNT, PNM, PNG, PLT, PGX, PDF, PCX, MNG, JPG, JPEG, JPC, JBG, ICO, GIF, EMF, DXF, DWG, DST, DSB, CUR, BMP, AI

Consumul de energie:: 2000 W

Lame:: + piece

Kit inclus

Unitate flash USB
Set de chei hexagonale
Manual
Compresor de aer
Pompă de apă
Cablu Ethernet
Cablu de alimentare
Cablu USB
Silicon de etanșare
Bandă de mascare
Racord pentru furtun
Set de tuburi din silicon

Întreabă întrebări

În primul rând ar trebui să decideți pentru ce veți folosi mașina, ce fel de material ar fi și dimensiunea lui (lungime și grosime). Acest lucru va ajuta la determinarea puterii necesare a tubului laser, precum și a dimensiunii zonei de lucru. De asemenea, ne puteți scrie sau suna, vom fi bucuroși să vă ajutăm să alegeți mașina potrivită pentru sarcinile și bugetul dvs.
Mașina de gravat cu laser este un echipament de control numeric computerizat (CNC) care utilizează un fascicul laser pentru a grava informațiile grafice necesare (imagine sau inscripții) pe diferite suprafețe.
Gravura este efectul asupra materialului în profunzime. Marcarea, pe de altă parte, schimbă doar culoarea materialului.
Cu ajutorul mașinii laser CO2 puteți grava orice tip de materiale lemnoase: lemn masiv, placaj, MDF și altele.
