Laser kone WATTSAN 1290 Duos ST

Työ alue:: 1200x900 mm
Laser teho:: 100-120 W
Paikannustarkkuus:: 0,03 mm
Koneen koko:: 1410 x 1790 x 670 mm + if it is on wheels 315 mm
Paino:: 345 kg

7 546 € ex.VAT

Hintatiedot pyynnöstä

Lähetä tiedustelu

Maximum Safety and Precision

The Wattsan FOX CO2 laser engraver offers full protection for both the operator and the workshop. Its instant fire detection system provides immediate alerts, minimizing downtime and safety risks.

Accurate alignment and precise ammeter control ensure exceptional precision, while the enclosed motion module and upgraded airflow system improve safety and ventilation efficiency.

A central Y-axis stepper motor and reinforced mounts prevent misalignment, ensuring stable operation and consistently high-quality cuts.

Ergonomic design and durable mechanics reduce transport risks and keep maintenance to a minimum.

Materiaalit

– leikkaus
– kaiverrus

Villa
Hartsi
Marmori
Graniitti
Bambu tuotteet
Kristallinen jade
Keraaminen tiili
Paroniitti
Kivi
Lasi
MDF
Vaahtokumi
Polyeteenivaahto
Pleksilasi (akryyli)
kangas
Nahka
Kumi
Muovi
Pahvi
Vaneri
Puu

Introducing the redisgn of the Wattsan laser machines

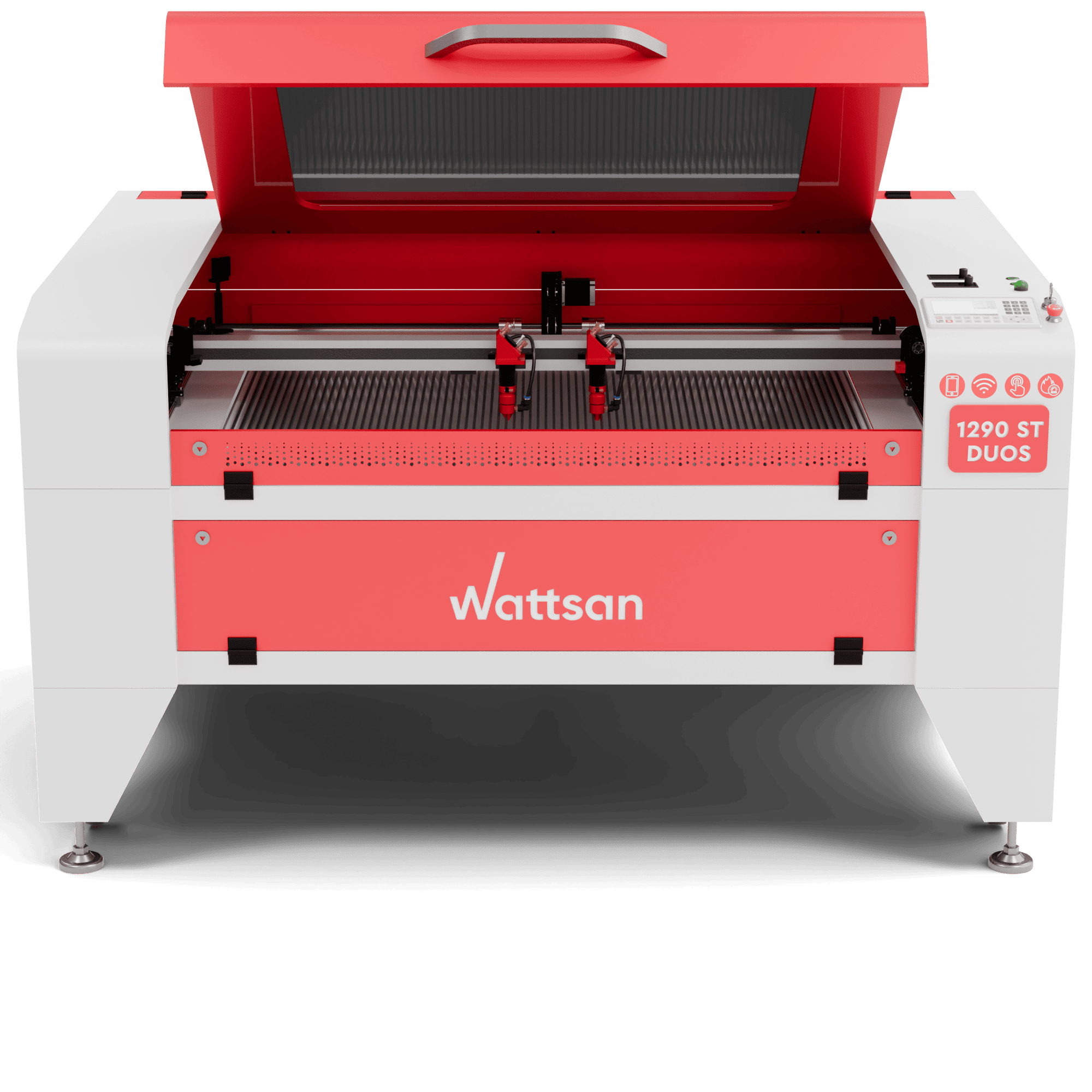

Maximum Safety, Maximum Precision

The CO2 laser system features the advanced Wattsan for instant fire detection, protecting both operators and the workshop. It offers quick alignment, power control via ammeter, and an enclosed motion module to minimize dust. A perforated glass cover ensures visibility and safety, while the ergonomic design and secure mounts reduce transport risks.
Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

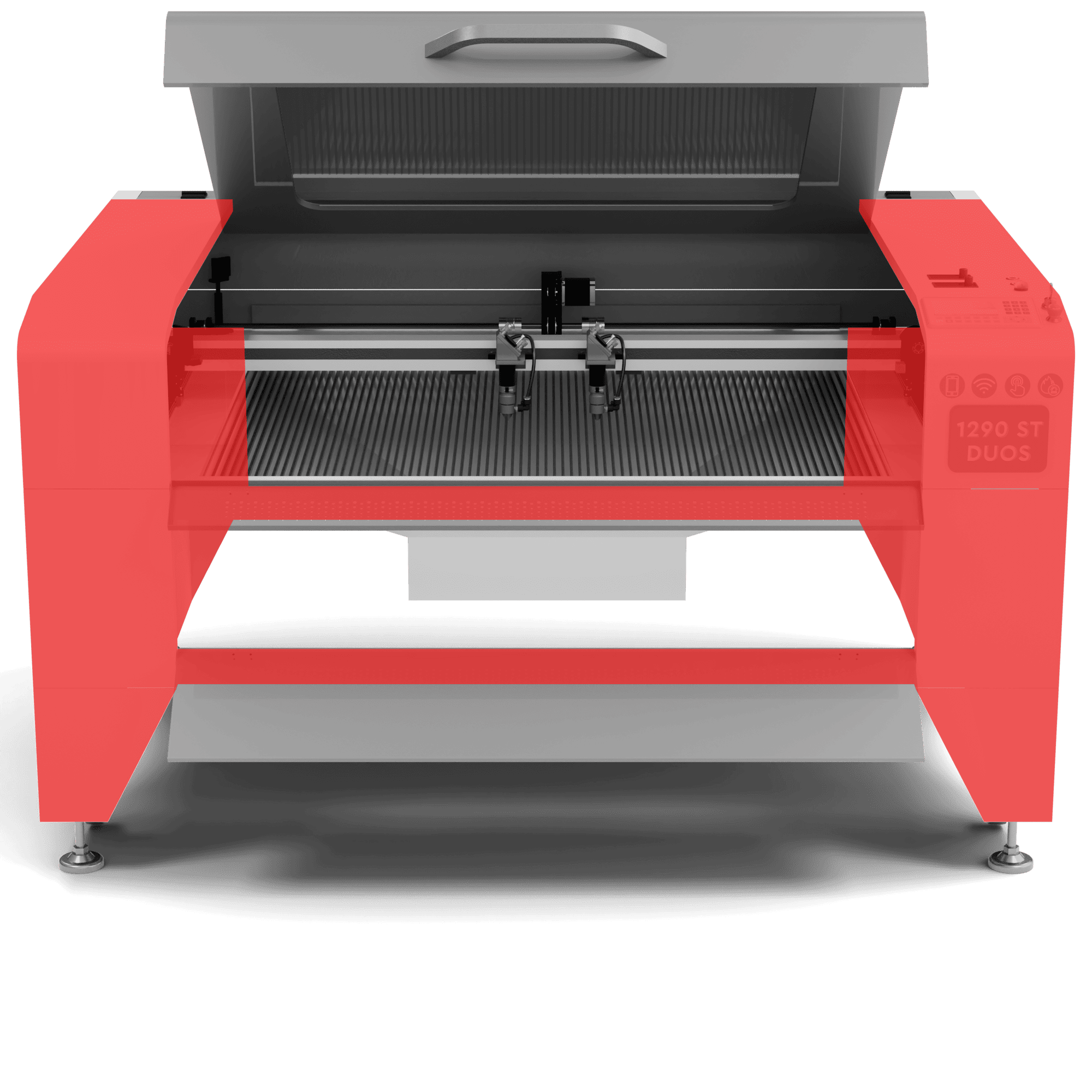

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—feature a reinforced frame body with a thickness of 2.9 mm. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.
Trash collection compartment

Protects the mechanism from small particles, as well as giving additional sturdiness for the machine.

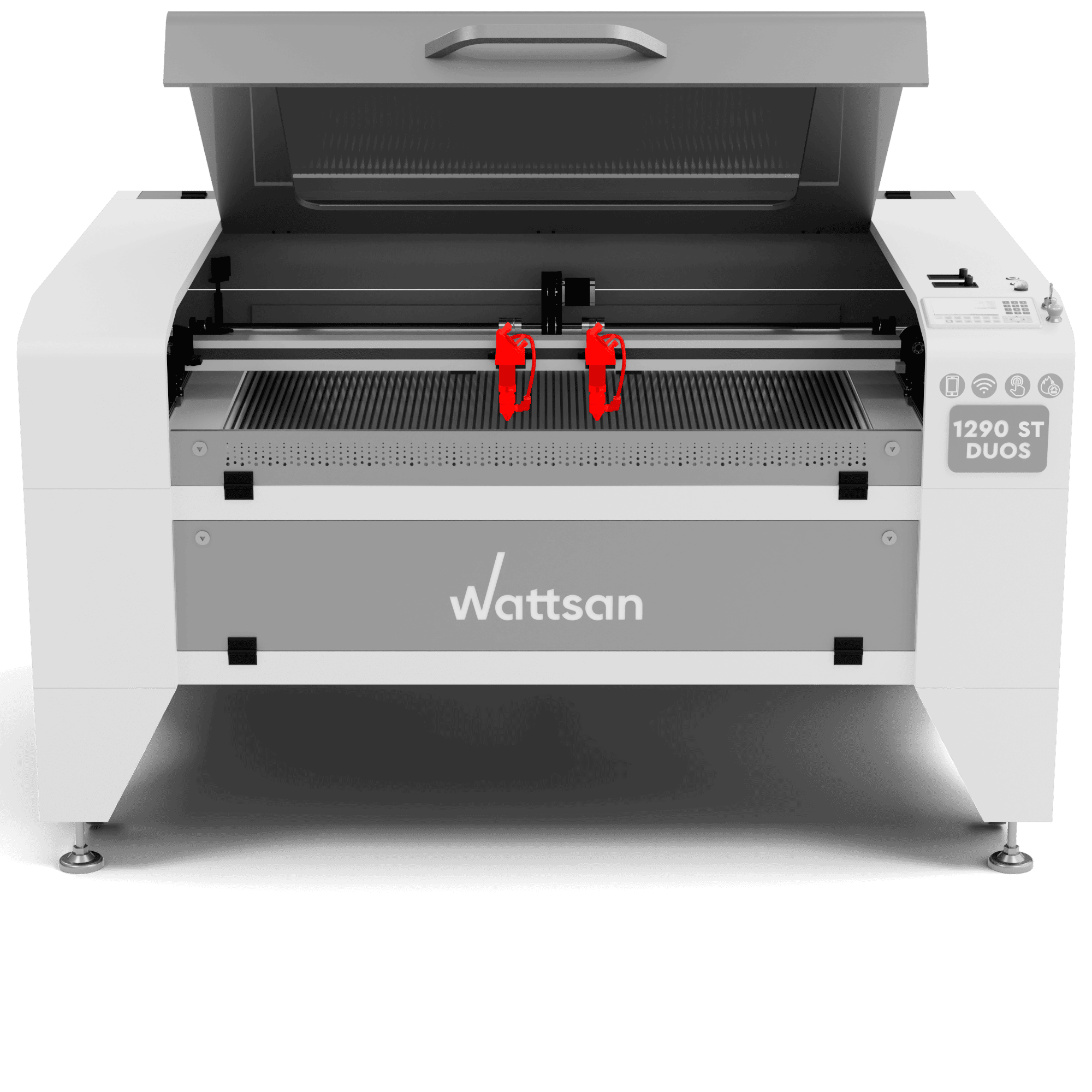

2 laser heads

The use of two laser heads operating simultaneously significantly increases the machine’s throughput, making it especially effective for cutting fabrics and creating items such as souvenirs or puzzles. The heads can either split the working area into two independent zones for processing large pieces or function side by side for synchronized tasks. When needed, a single laser head can also be utilized to handle oversized workpieces.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.
Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.
The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.
Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.
Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Ostoprosessi

Laitteiden valinta

Autamme sinua tekemään oikean valinnan tarpeisiisi.
Neuvonta ja laskutus

Koordinoimme koneesi kokoonpanon ja laskemme laitteiston lopulliset kustannukset.
Maksu

Täysimääräisesti, jos kone on varastossa. 50 % ennakkomaksu 50 % toimituksen yhteydessä, jos konetta ei ole varastossa.
Tarkistamme koneen

Laitteella on 3-vaiheinen laadunvalvonta: tehtaalla, varastossamme ja ennen lähettämistä sinulle.
Toimitus tai nouto

Joko kuljetusliike tai nouto koneen varastostamme.
Laitteiden asennus

Olemme täällä auttamassa sinua, kun tarvitset tukea.

Kokemuksia innokkailta bloggaajilta

Tämä laserkaiverrin voi kaivertaa ilman mitään ongelmia. Kuinka nopeaa ja helppoa onkaan räätälöidä tuotteita!

Riccardo Muscarella
Koneessa on täysin tasainen pinta. Se helpottaa toistuvaa työtäni!

Matteo Moras
Loistava työ tehty alle tunnissa. Kiitos CO2-laserkoneen nopeuden.

Roberto D'Adago
Tämä malli on mahtava, ja laserin tarkkuus on uskomaton – terävä kuin partaveitsi!

Roger Jungo

Paino:: 345 kg

Koneen koko:: 1410 x 1790 x 670 mm + if it is on wheels 315 mm

Asennustyyppi:: Floor-standing

Pöydän kautta:: Yes

Työ alue:: 1200x900 mm

Materials:: Stone, Plastic, Plexiglas, Paronite, Paper, MDF and chipboard, Leather and leatherette, Fabric, Denim, Wood, Plywood, Rubber, Acrylic, Cardboard

Laser teho:: 100-120 W

Laserputken käyttöikä:: 6000 h

ZnSe linssi:: ZnSe D20 f50

Laserputki:: SPT, Reci, Lasea

Polttoväli:: 50 mm

Paikannustarkkuus:: 0,03 mm

Laser tyyppi:: Sealed CO2 laser tube

Peilien halkaisija:: 25 mm

Kaiverrusnopeus:: 0-500 mm/s

XY-akselin rakenne:: PMI 15 mm linear guides

Pöydän malli:: Blades

Jäähdytys:: Water

Leikkausnopeus:: 0-500 mm/s

Moottori päällä X ja Y:: 57-H350CS / SH

Sähkövirtalähde:: 220 ±10% 50Hz V

Tehon kulutus:: 2000 W

Tiedostonsiirto:: USB, LAN

Tuettu muoto:: GIF, PNG, PLT, PDF, JPEG, DXF, BMP, AI

Ohjausjärjestelmä:: Ruida RDC8445S

Ohjelmisto:: RDL (LaserWork 8)

Terät:: + piece

Mukana tuleva paketti

USB-muistitikku
Kuusiokoloavainsarja
Manuaalinen
Ilmakompressori
Vesipumppu
Ethernet-kaapeli
Virtajohto
USB-kaapeli
Silikonitiiviste
Maskiteippi
Piiputkisarja

Kysy kysymyksiä

Ensin on päätettävä, mitä aiot valmistaa, mitä materiaalia aiot käyttää, ja tiedä mitat. (pituus ja paksuus). Tämä auttaa sinua määrittämään tarvittavan tehon Tämä auttaa sinua määrittämään laserputken tarvittavan tehon sekä työkentän koon. Voit myös kirjoittaa tai soittaa meille, me olemme iloisia voidessamme auttaa sinua valitsemaan sovellukseesi ja budjettiisi sopivan koneen.
Laserkaiverruskone on erikoislaite, joka toimii numeerisen ohjauksen (CNC) avulla ja joka pystyy kaiverruttamaan tarvittavaa graafista tietoa (kuvaa tai kaiverrusta) erilaisiin pintoihin lasersäteellä.
Kaiverrus on syvyysvaikutusta materiaaliin. Merkitseminen tarkoittaa värisävyn tuomista materiaalin pintaan.
CO2-laserilla voidaan kaivertaa kaikenlaisia puumateriaaleja: massiivipuuta, vaneria, MDF-levyä jne.
