Laser maskine WATTSAN 1290 Duos ST

Arbejdsområde:: 1200x900 mm
Laserkraft:: 100-120 W
Positioneringspræcision:: 0,03 mm
Maskinstørrelse:: 1410 x 1790 x 670 mm + if it is on wheels 315 mm
Vægt:: 345 kg

Alle egenskaber

7 546 € eks.moms

Pris på forespørgsel

Lav en anmodning

Maksimal sikkerhed og præcision

Wattsan FOX CO2-lasergravøren tilbyder komplet beskyttelse for både operatøren og værkstedet. Dens øjeblikkelige branddetekteringssystem giver øjeblikkelige advarsler, hvilket minimerer nedetid og sikkerhedsrisici.

Præcis justering og præcis amperemeterstyring sikrer exceptionel nøjagtighed, mens det lukkede bevægelsesmodul og det opdaterede luftstrømssystem forbedrer sikkerheden og ventilationseffektiviteten.

En central Y-akse steppermotor og forstærkede understøtninger forhindrer fejljustering, hvilket sikrer stabil drift og ensartede kvalitetssnit.

Det ergonomiske design og den holdbare mekanik reducerer transportrisici og holder vedligeholdelsen på et minimum.

Materialer

– skæring
– gravering

Uld
Harpiks
Marmor
Granit
Bambus produkter
Krystal jade
Keramiske fliser
Paronit
Sten
Glas
MDF
Skumgummi
Polyethylenskum
Plexiglas (akryl)
stof
Læder
Gummi
Plast
Pap
Krydsfiner
Træ

Introducing the redisgn of the Wattsan laser machines

Maximum Safety, Maximum Precision

The CO2 laser system features the advanced Wattsan for instant fire detection, protecting both operators and the workshop. It offers quick alignment, power control via ammeter, and an enclosed motion module to minimize dust. A perforated glass cover ensures visibility and safety, while the ergonomic design and secure mounts reduce transport risks.

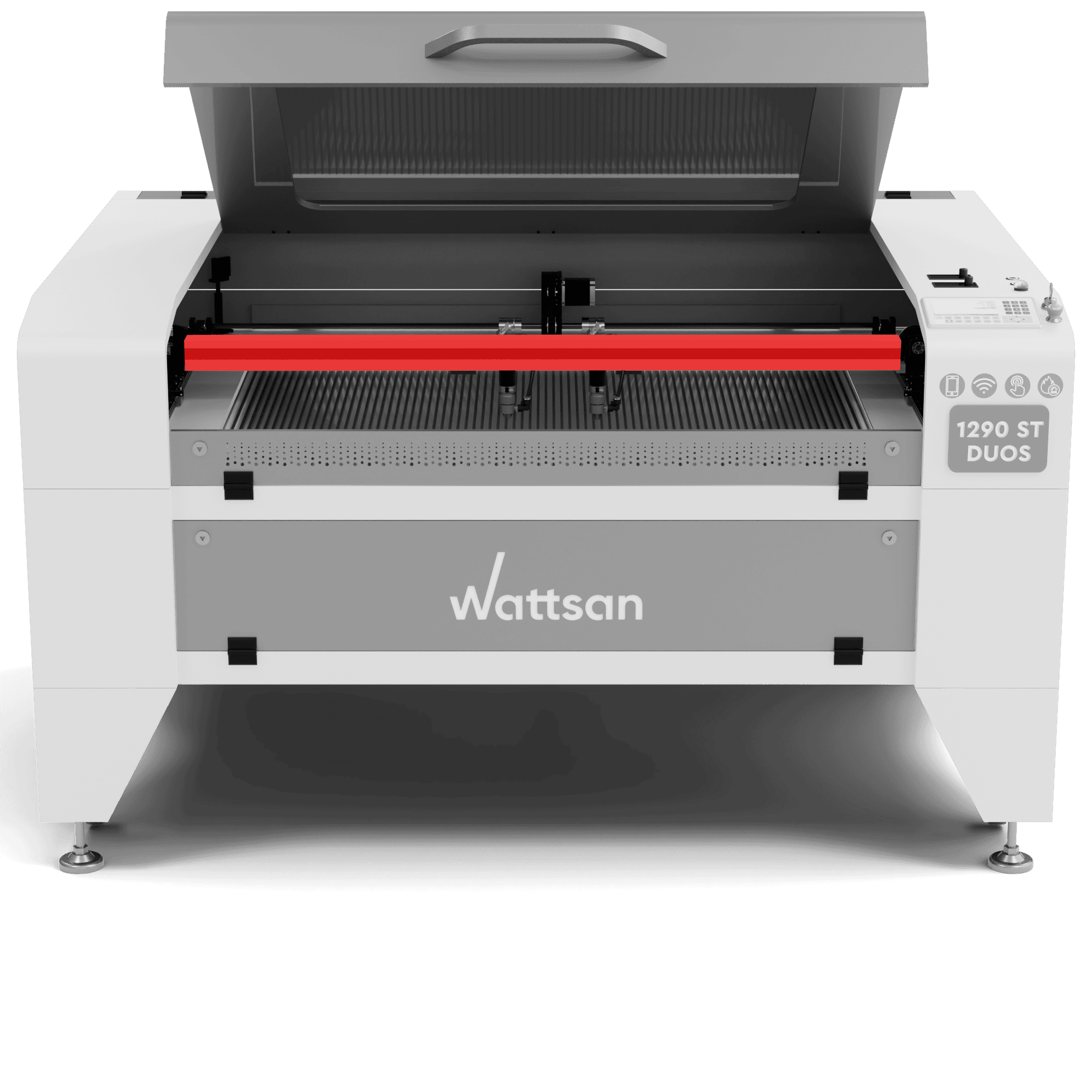

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

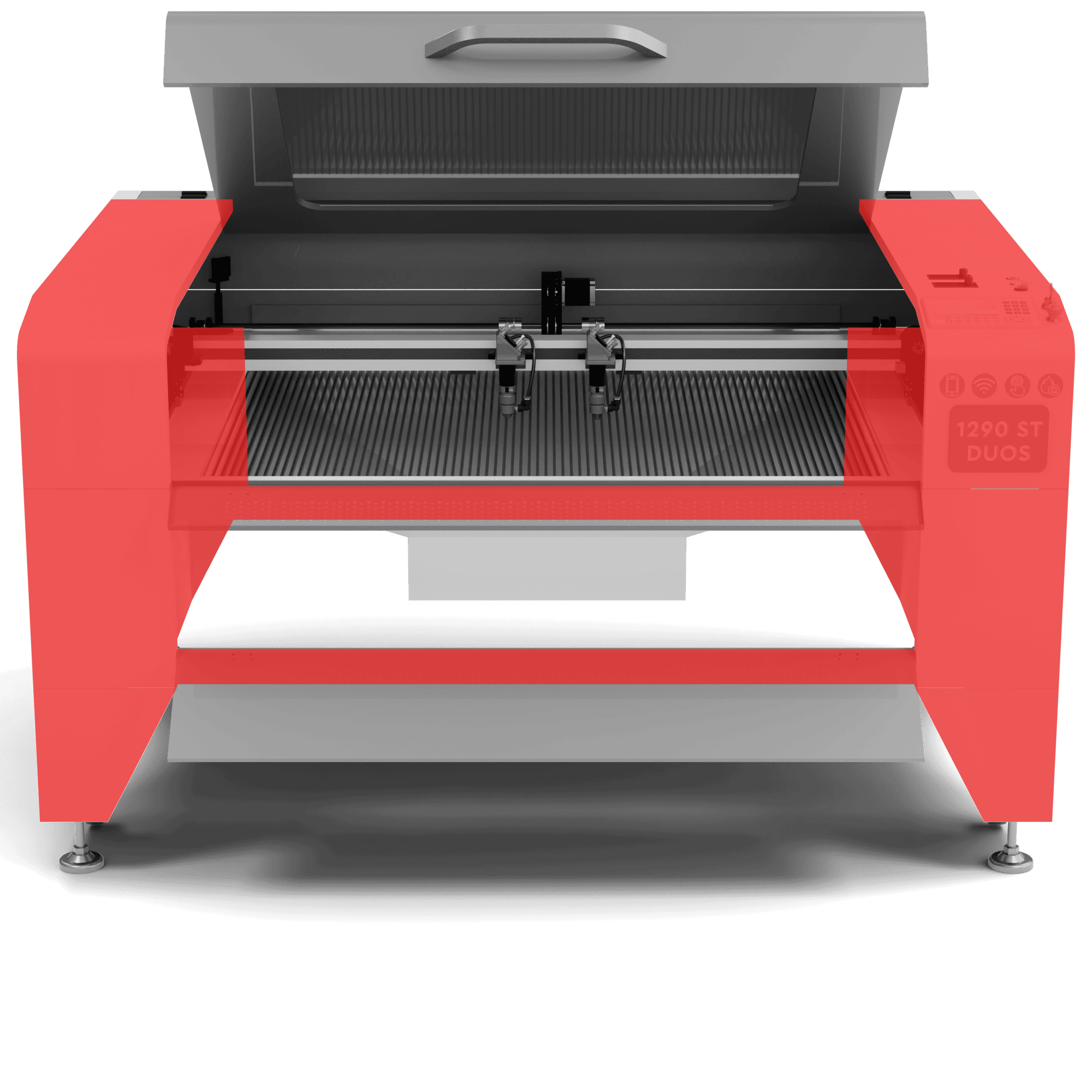

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—feature a reinforced frame body with a thickness of 2.9 mm. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.
Trash collection compartment

Protects the mechanism from small particles, as well as giving additional sturdiness for the machine.

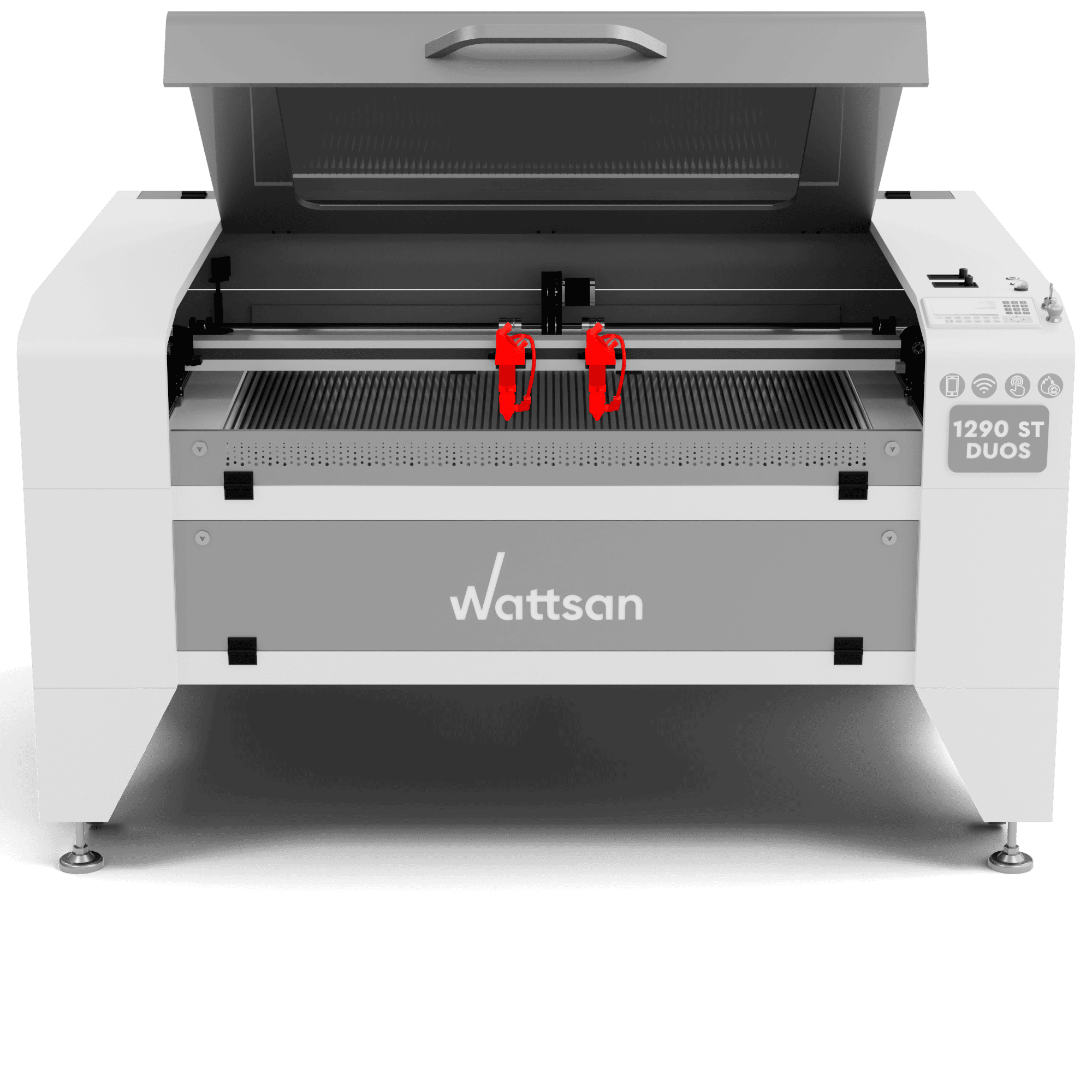

2 laser heads

The use of two laser heads operating simultaneously significantly increases the machine’s throughput, making it especially effective for cutting fabrics and creating items such as souvenirs or puzzles. The heads can either split the working area into two independent zones for processing large pieces or function side by side for synchronized tasks. When needed, a single laser head can also be utilized to handle oversized workpieces.

Wattsan's Most Ambitious Laser Cutter Yet

Engineered for Safety, Built for Professionals

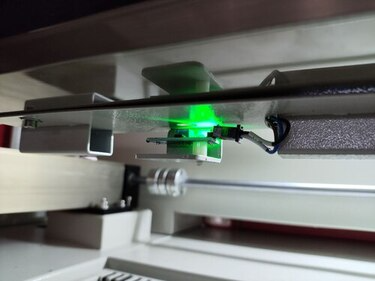

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.

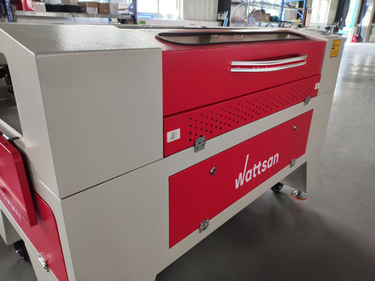

Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.
The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.

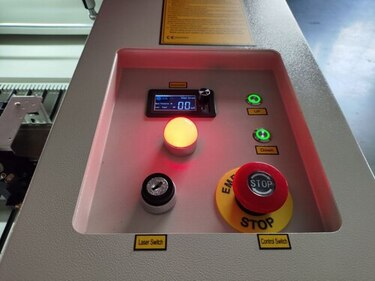

Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

User-friendly Design

The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.

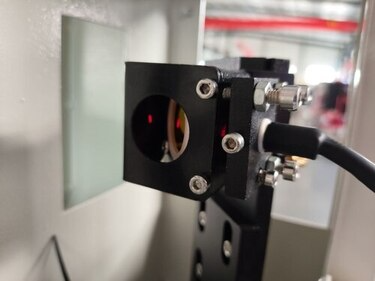

Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan – high accuracy & precise movement

3-phase stepper motor

A 3-phase stepper motor is more accurate than a 2-phase stepper motor and has increased reliability and longer service life.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Købsprocedure

Udvalg

Vi hjælper dig med at træffe dit valg af en maskine, der matcher dine behov
Sender faktura

Vi aftaler det komplette sæt af maskinen og afsendelse af fakturaen med de endelige omkostninger for udstyret.
Betaling

Fuldstændig hvis maskinen er på lager. 50% forud 50% ved leveringen hvis maskinen ikke er på lager.
Vi tjekker maskinen

3-trins kvalitetskontrol: på Wattsan-fabrikken, på vores lager i Holland, før levering.
Levering eller afhentning

Enten et transportfirma eller du henter maskinen fra vores lager.
Lydningsudstyr

Vi er her for at hjælpe dig, når du har brug for support.

Erfaringer fra entusiastiske bloggere

Denne lasergraver kan gravere uden problemer. Hvor hurtigt og nemt det er at tilpasse produkter!

Riccardo Muscarella
Maskinen har en perfekt flad overflade. Det gør gentagende arbejde lettere for mig!

Matteo Moras
Fantastisk arbejde udført på under en time. Takket være hastigheden på CO2-lasermaskinen.

Roberto D'Adago
Denne model er fantastisk, og laserens præcision er vild – skarp som en ragekniv!

Roger Jungo

Vægt:: 345 kg

Maskinstørrelse:: 1410 x 1790 x 670 mm + if it is on wheels 315 mm

Installationstype:: Floor-standing

Gennem bord:: Yes

Arbejdsområde:: 1200x900 mm

Materials:: Stone, Plastic, Plexiglas, Paronite, Paper, MDF and chipboard, Leather and leatherette, Fabric, Denim, Wood, Plywood, Rubber, Acrylic, Cardboard

Laserkraft:: 100-120 W

Laserrørets levetid:: 6000 h

ZnSe linse:: ZnSe D20 f50

Laserrør:: SPT, Reci, Lasea

Brændvidde:: 50 mm

Positioneringspræcision:: 0,03 mm

Laser type:: Sealed CO2 laser tube

Diameter på spejle:: 25 mm

Graveringshastighed:: 0-500 mm/s

XY akse struktur:: PMI 15 mm linear guides

Bordmodel:: Blades

Køling:: Water

Skærehastighed:: 0-500 mm/s

Motor på X og Y:: 57-H350CS / SH

Elektrisk strømforsyning:: 220 ±10% 50Hz V

Strømforbrug:: 2000 W

Filoverførsel:: USB, LAN

Understøttet format:: GIF, PNG, PLT, PDF, JPEG, DXF, BMP, AI

Kontrolsystem:: Ruida RDC8445S

Software:: RDL (LaserWork 8)

Blade:: + piece

Inkluderet kit

USB-nøgle
Sekskantnøglesæt
Manuel
Luftkompressor
Vandpumpe
Ethernet-kabel
Strømkabel
USB-kabel
Silikoneforsegling
Afdækningstape
Sæt med silikonerør

Stil spørgsmål

Først og fremmest bør du beslutte dig for, hvad du skal bruge maskinen til, hvilken slags materiale den skal være og dens størrelse (længde og tykkelse). Dette vil hjælpe med at bestemme laserrørets krævede kraft samt størrelsen af arbejdsområdet. Du kan også skrive eller ringe til os, vi hjælper dig gerne med at vælge den rigtige maskine til dine opgaver og budget
Lasergraveringsmaskine er et stykke computer numerisk kontroludstyr (CNC), der bruger en laserstråle til at gravere nødvendig grafisk information (billede eller inskriptioner) på forskellige overflader.
Gravering er effekten på materialet i dybden. Markering på den anden side ændrer kun farven på materialet.
Ved hjælp af CO2-lasermaskine kan du gravere alle typer træmaterialer: massivt træ, krydsfiner, MDF og andre.
