Laser maskine WATTSAN 1610 PRO

Arbejdsområde:: 1600x1000 mm
Laserkraft:: 100-120 W
Positioneringspræcision:: 0,03 mm
Maskinstørrelse:: 2250 х 1660 х 1010 mm mm

Alle egenskaber

11 657 € eks.moms

Pris på forespørgsel

Lav en anmodning

Præcisionslaserskæring og -gravering til ethvert professionelt projekt

Den Laserskære- og graveringsmaskine 1610 PRO har et arbejdsområde på 1600×1000 mm, hvilket gør den perfekt til præcis skæring og gravering med optimeret materialeanvendelse. Dens Wattsan SAS-sikkerhedssystem, lukkede gantry og intuitiv kontrolgrænseflade garanterer stabilitet, sikkerhed og brugervenlighed. Udstyret med feedback stepmotorer sikrer maskinen høj præcision, mens den integrerede køler opretholder en ensartet ydelse under lange operationer.

Det CNC-styrede løftebord understøtter op til 100 kg og bevarer fokusnøjagtighed og holdbarhed. Ved at kombinere kompakt design med avanceret teknologi leverer 1610 PRO effektivitet og præcision i professionel kvalitet til både kreative og industrielle anvendelser.

Materialer

– skæring
– gravering

Uld
Harpiks
Marmor
Granit
Bambus produkter
Krystal jade
Keramiske fliser
Paronit
Sten
Glas
MDF
Skumgummi
Polyethylenskum
Plexiglas (akryl)
stof
Læder
Gummi
Plast
Pap
Krydsfiner
Træ

Vi præsenterer den nye udgave af Wattsan-lasermaskinerne

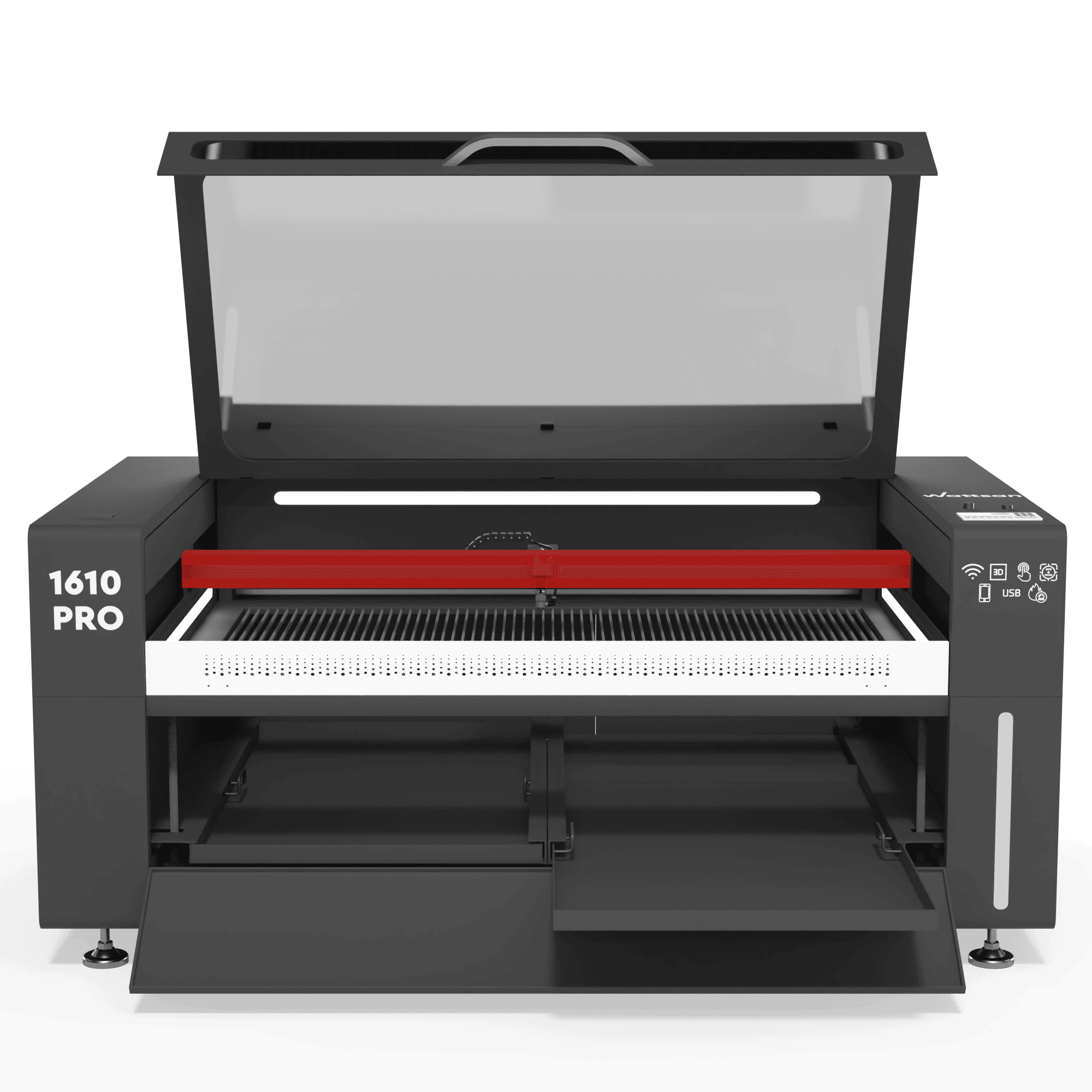

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

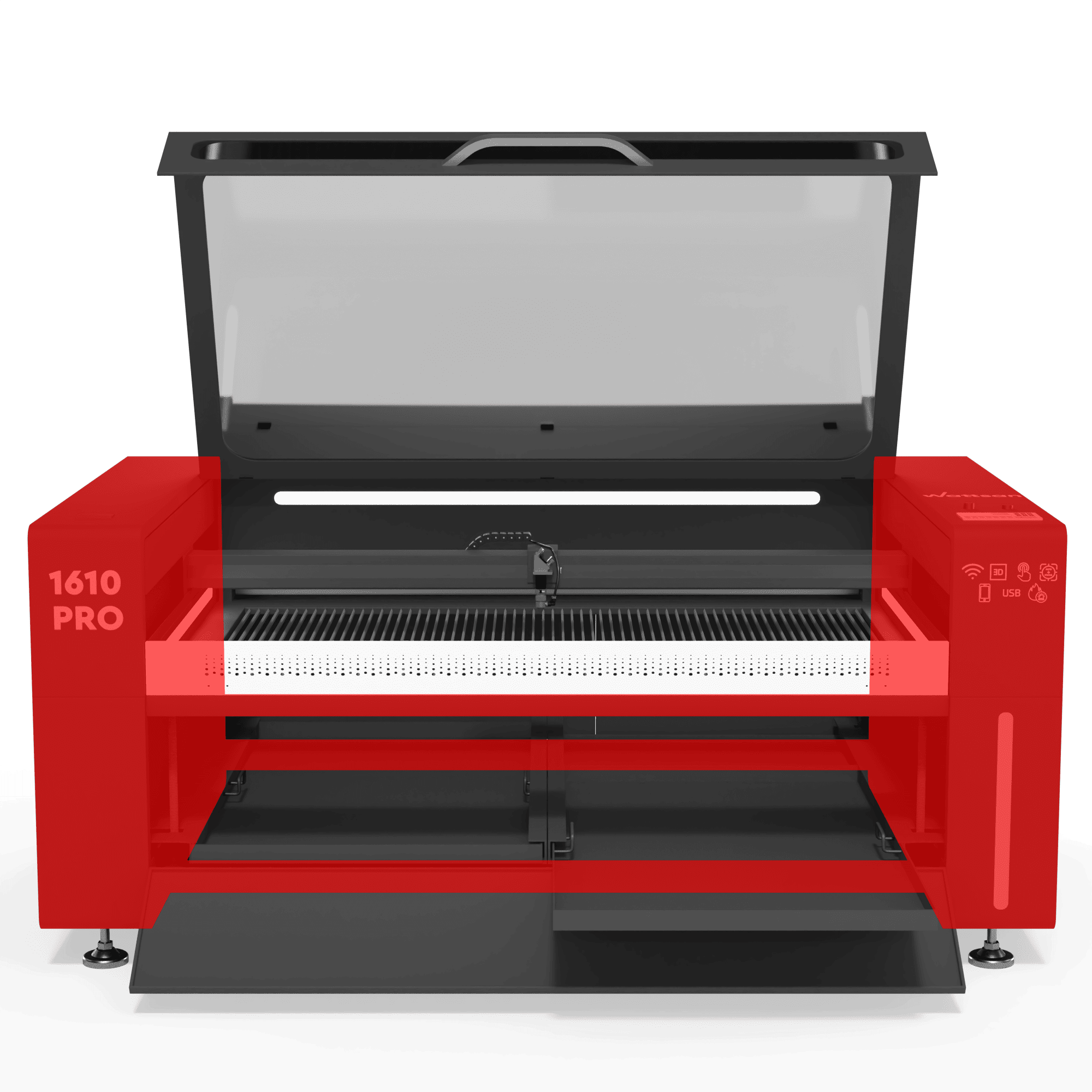

The frame structure

The machine frame is engineered to dampen vibrations—particularly critical during engraving, when the system experiences its highest moment of inertia. Structural stability is key to maintaining accuracy.

Wattsan machines—feature a reinforced frame body with a thickness of 2.9 mm. This increased body thickness significantly reduces vibration, extends the machine’s lifespan, and ensures reliable, trouble-free operation over time.

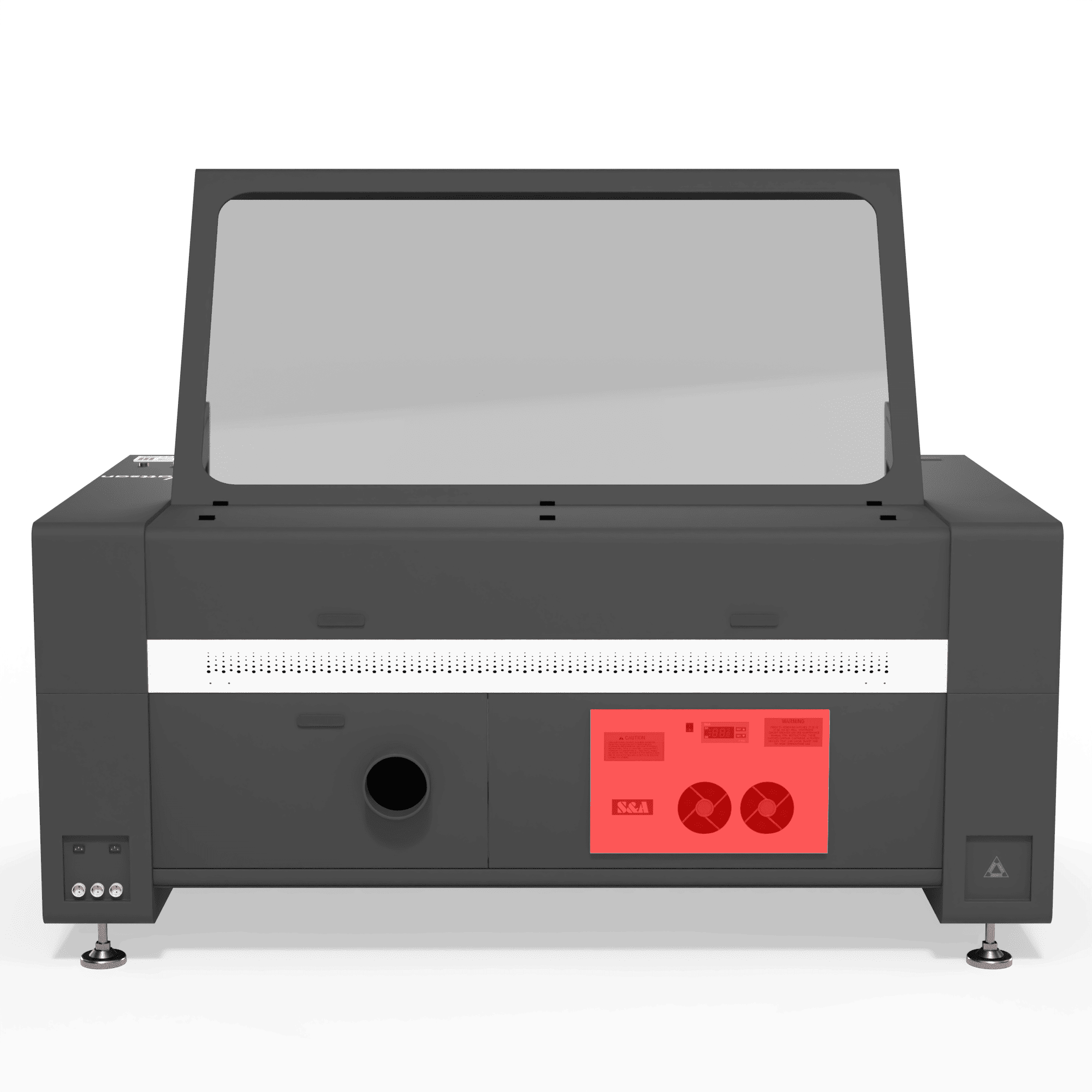

Built-in chiller

The integrated chiller keeps the machine compact and tidy, reducing cables, noise, and setup hassle. It works in sync with the machine, preventing overheating and operator errors. This ensures stable cutting performance, extends the laser tube’s lifespan, and delivers consistent results in a convenient, professional setup.

Wattsans mest ambitiøse laserskærer til dato

Konstrueret til sikkerhed, bygget til professionelle

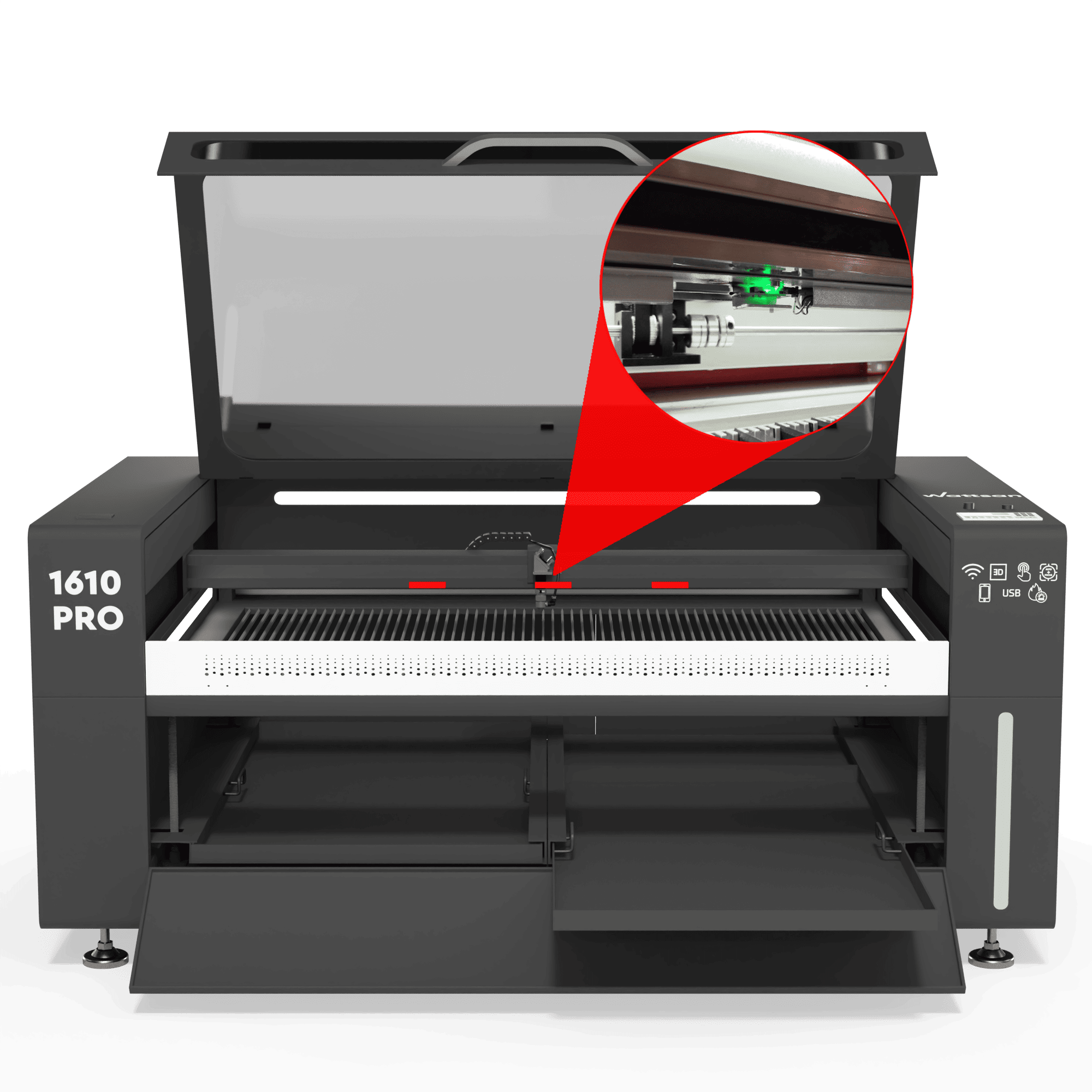

Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.
Our Enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system ×1.5 more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.
The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.
Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

User-friendly Design

The machine is equipped with a large, easy-to-reach emergency stop button, a secure key-operated laser switch, and a bright illuminated control button, providing intuitive operation and enhanced safety during every use.
Easiest Set-up on the Market

Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

Available work areas:

Wattsan - høj nøjagtighed og præcis bevægelse

Easy Servo Motors

The machine is equipped with easy servo motors that provide positioning accuracy of up to 0.03 mm thanks to real-time feedback. This ensures smooth, stable operation without step loss, even during high-speed tasks and under heavy loads.
Belt gearbox

The belt gearbox converts speed into force and splits the pitch thereby improving the engraving quality. Another function of the belt gearbox is to reduce the load on the stepper motor.
Unique laser head

The anodized laser head is backfiring protected and allows you to use all types of lenses (short-, medium-, and long-focus). For engraving, an extended nozzle is recommended, while for cutting, a narrowed nozzle is the better choice to increase blowing force.
Central positioning of the stepper motor in the Y axis

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.
Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation.
Inductive Fotek sensors

On Wattsan machines, the stepper motor is centrally located to ensure an even movement of the gantry along the Y-axis. This positioning and the use of couplings prevents the gantry overbalance.

Købsprocedure

Udvalg

Vi hjælper dig med at træffe dit valg af en maskine, der matcher dine behov
Sender faktura

Vi aftaler det komplette sæt af maskinen og afsendelse af fakturaen med de endelige omkostninger for udstyret.
Betaling

Fuldstændig hvis maskinen er på lager. 50% forud 50% ved leveringen hvis maskinen ikke er på lager.
Vi tjekker maskinen

3-trins kvalitetskontrol: på Wattsan-fabrikken, på vores lager i Holland, før levering.
Levering eller afhentning

Enten et transportfirma eller du henter maskinen fra vores lager.
Lydningsudstyr

Vi er her for at hjælpe dig, når du har brug for support.

Erfaringer fra entusiastiske bloggere

Denne lasergraver kan gravere uden problemer. Hvor hurtigt og nemt det er at tilpasse produkter!

Riccardo Muscarella
Maskinen har en perfekt flad overflade. Det gør gentagende arbejde lettere for mig!

Matteo Moras
Fantastisk arbejde udført på under en time. Takket være hastigheden på CO2-lasermaskinen.

Roberto D'Adago
Denne model er fantastisk, og laserens præcision er vild – skarp som en ragekniv!

Roger Jungo

Maskinstørrelse:: 2250 х 1660 х 1010 mm mm

Installationstype:: Floor-standing

Gennem bord:: Yes

Arbejdsområde:: 1600x1000 mm

Materials:: Stone, Paper, MDF and chipboard, Acrylic, Cardboard, Denim, Fabric, Paronite, Plastic, Plexiglas, Plywood, Rubber, Wood, Leather and leatherette

Laserkraft:: 100-120 W

Laserrørets levetid:: 6000 h

ZnSe linse:: ZnSe D20 f50

Laserrør:: Reci W4, Lasea F4

Brændvidde:: 50 mm

Positioneringspræcision:: 0,03 mm

Laser type:: Sealed CO2 laser tube

Diameter på spejle:: 25 mm

Graveringshastighed:: 0-1000 mm/s

XY akse struktur:: PMI 15 mm linear guides

Bordmodel:: Blades

Køling:: Water

Skærehastighed:: 0-500 mm/s

Motor på X og Y:: 573HBM20-1000

Elektrisk strømforsyning:: 220 ±10% 50Hz V

Strømforbrug:: 2000 W

Filoverførsel:: USB, LAN, Wi-Fi

Understøttet format:: JPEG, AI, BMP, DXF, PNG, PDF, PLT, GIF

Kontrolsystem:: Ruida RDC8445S

Software:: RDL (LaserWork 8)

Blade:: + piece

Inkluderet kit

USB-nøgle
Sekskantnøglesæt
Manuel
Luftkompressor
Vandpumpe
Ethernet-kabel
Strømkabel
USB-kabel
Silikoneforsegling
Afdækningstape
Sæt med silikonerør

Stil spørgsmål

Først og fremmest bør du beslutte dig for, hvad du skal bruge maskinen til, hvilken slags materiale den skal være og dens størrelse (længde og tykkelse). Dette vil hjælpe med at bestemme laserrørets krævede kraft samt størrelsen af arbejdsområdet. Du kan også skrive eller ringe til os, vi hjælper dig gerne med at vælge den rigtige maskine til dine opgaver og budget
Lasergraveringsmaskine er et stykke computer numerisk kontroludstyr (CNC), der bruger en laserstråle til at gravere nødvendig grafisk information (billede eller inskriptioner) på forskellige overflader.
Gravering er effekten på materialet i dybden. Markering på den anden side ændrer kun farven på materialet.
Ved hjælp af CO2-lasermaskine kan du gravere alle typer træmaterialer: massivt træ, krydsfiner, MDF og andre.
