Maszyna laserowa Wattsan 1820 CAM Conveyor PRO

Miejsce pracy:: 1800x2000 mm
Moc lasera:: 150-180 W
Dokładność pozycjonowania:: 0.01 mm
Rozmiar maszyny:: 3800 x 2300 x 2600 mm
Wielkość opakowania:: 3680 x 2300 x 1600 mm
Waga:: 1250 kg

Wszystkie cechy

Laser Cutter for Fabric & Leather Wattsan 1820 CAM Conveyor PRO

Wattsan 1820 Cam Conveyor PRO with vision system

Its 1800 × 2000 mm conveyor workspace is equipped with a CCD camera that scans the full surface, detects edges, identifies contours, and aligns cutting paths automatically. This allows accurate processing of leather, artificial leather, linen, tweed, wool, silk, chiffon, organza, and other flexible materials used in large-scale production.

The motion system is powered by Lenze servo drives, reaching speeds up to 1200 mm/s while maintaining stable movement and reducing idle time. A reinforced gantry ensures smooth travel, low vibration, and consistent positioning accuracy during continuous operation.

A 150–180 W CDWG laser tube provides stable power for precise cutting of non-metallic materials. Combined with servo mechanics and camera-based positioning, the system achieves repositioning accuracy below 0.01 mm for reliable contour matching and repeatable quality.

Materiały

– ciąć
– rytownictwo

Wełna
Żywica
Marmur
Granit
Produkty bambusowe
Kryształowy jadeit
Płytki ceramiczne
Paronit
Kamień
Szkło
MDF
Guma piankowa
Pianka polietylenowa
Plexi (akryl)
tkanina
Skóra
Guma
Plastikowy
Karton
Sklejka
Drewno

Wattsan laser machinesare thoughtfully designed

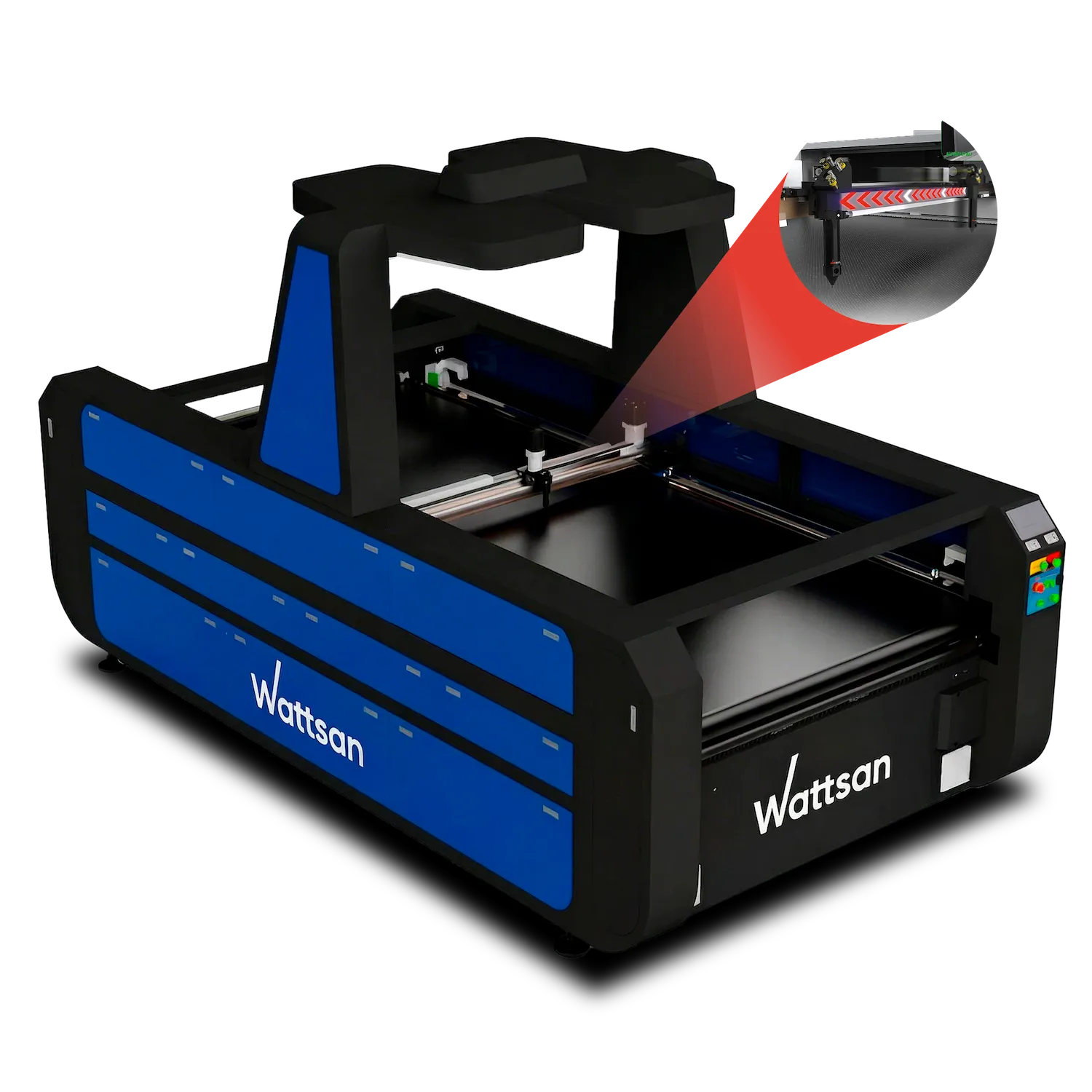

Lenze Servo Motors

Process fabrics and roll materials at speeds up to 1200 mm/s, minimizing downtime and maximizing productivity.

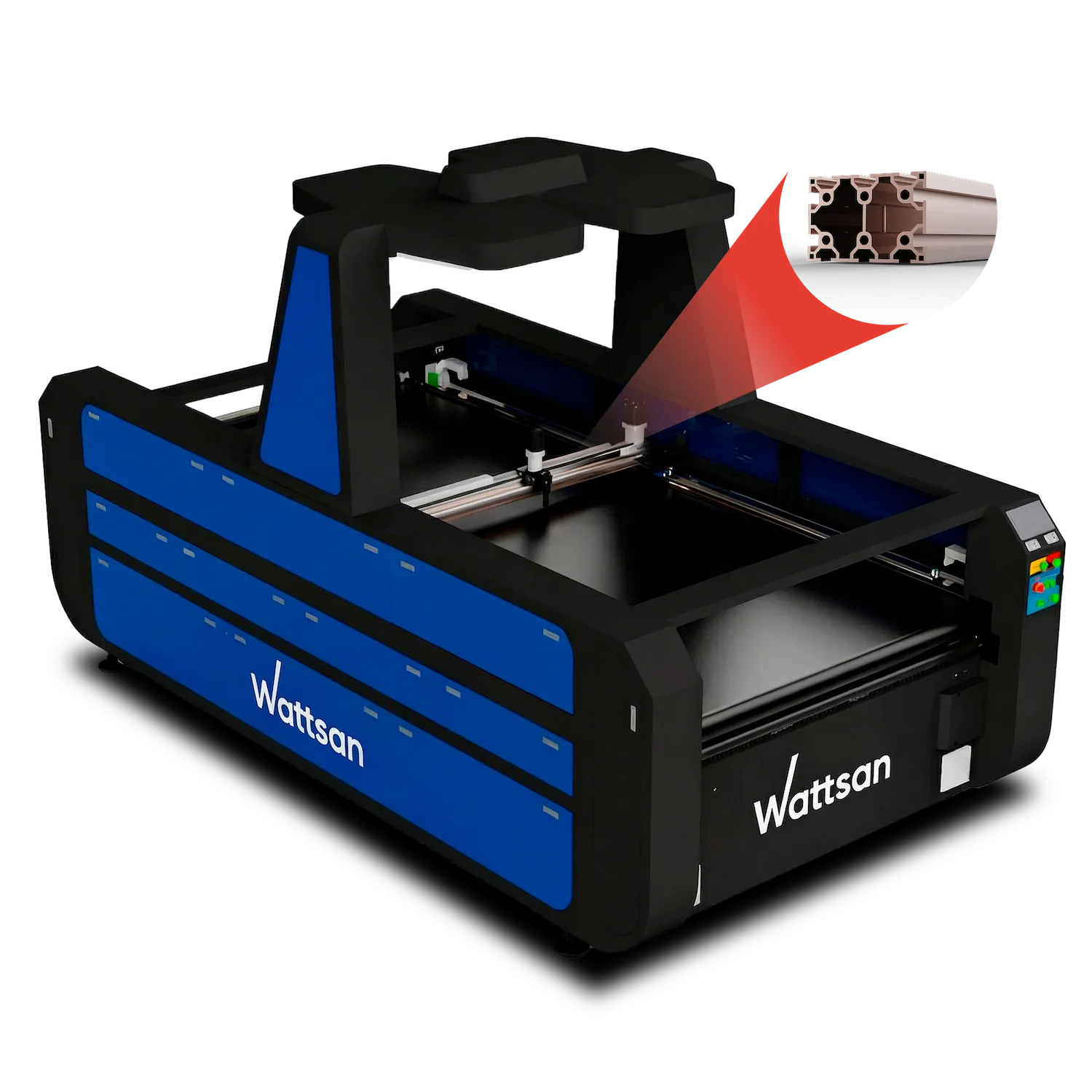

Lightweight Rigid Gantry

A large aluminum gantry structure maintains cutting precision at high speeds, providing smooth and stable motion across the entire work area.

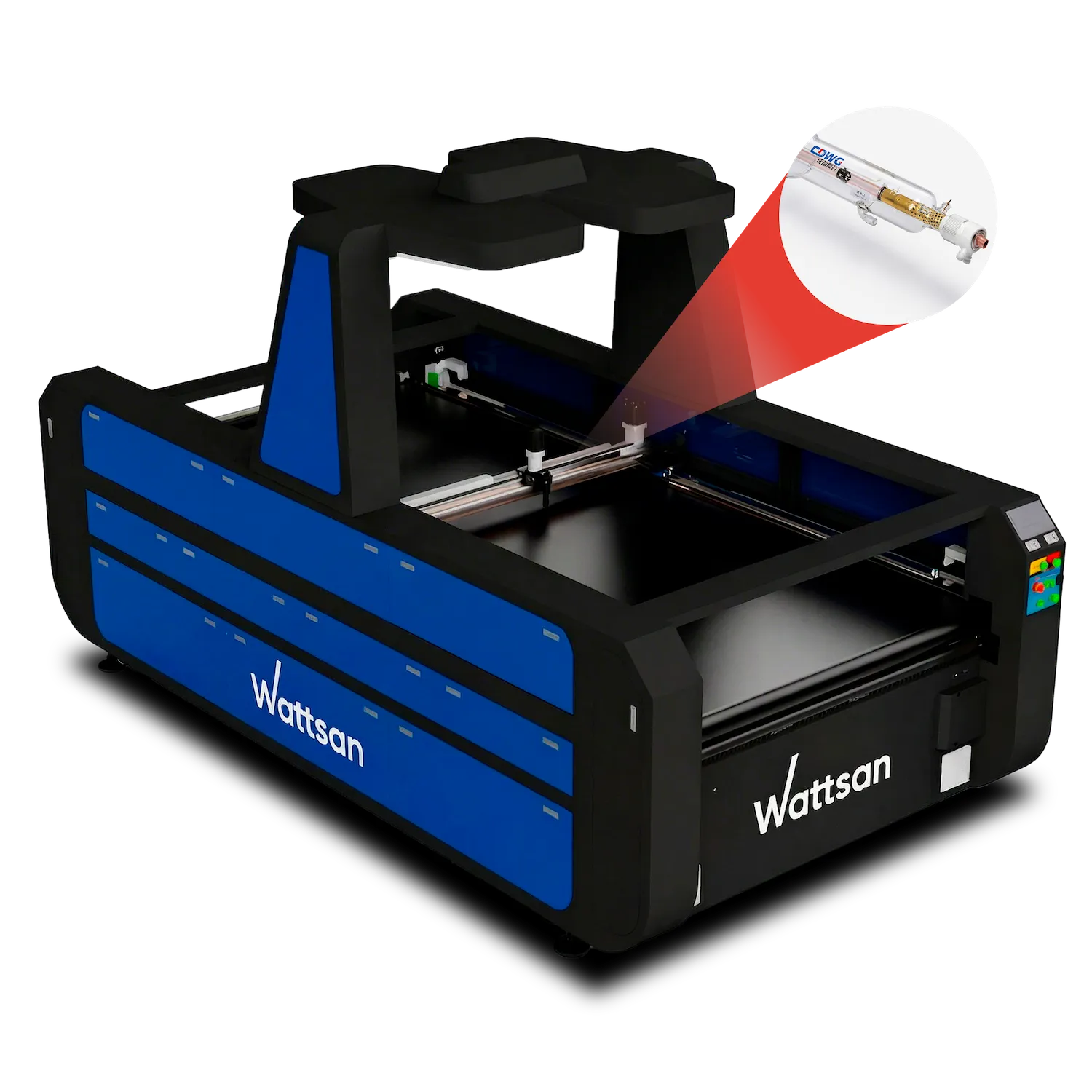

CDWG Laser Tube

Outfitted with a 150–180 W CDWG laser tube, the system processes and engraves non-metallic materials up to 25 mm thick. Together with the conveyor platform and servo-driven motion, it efficiently handles fabric, leather, faux leather, and other roll-based materials.

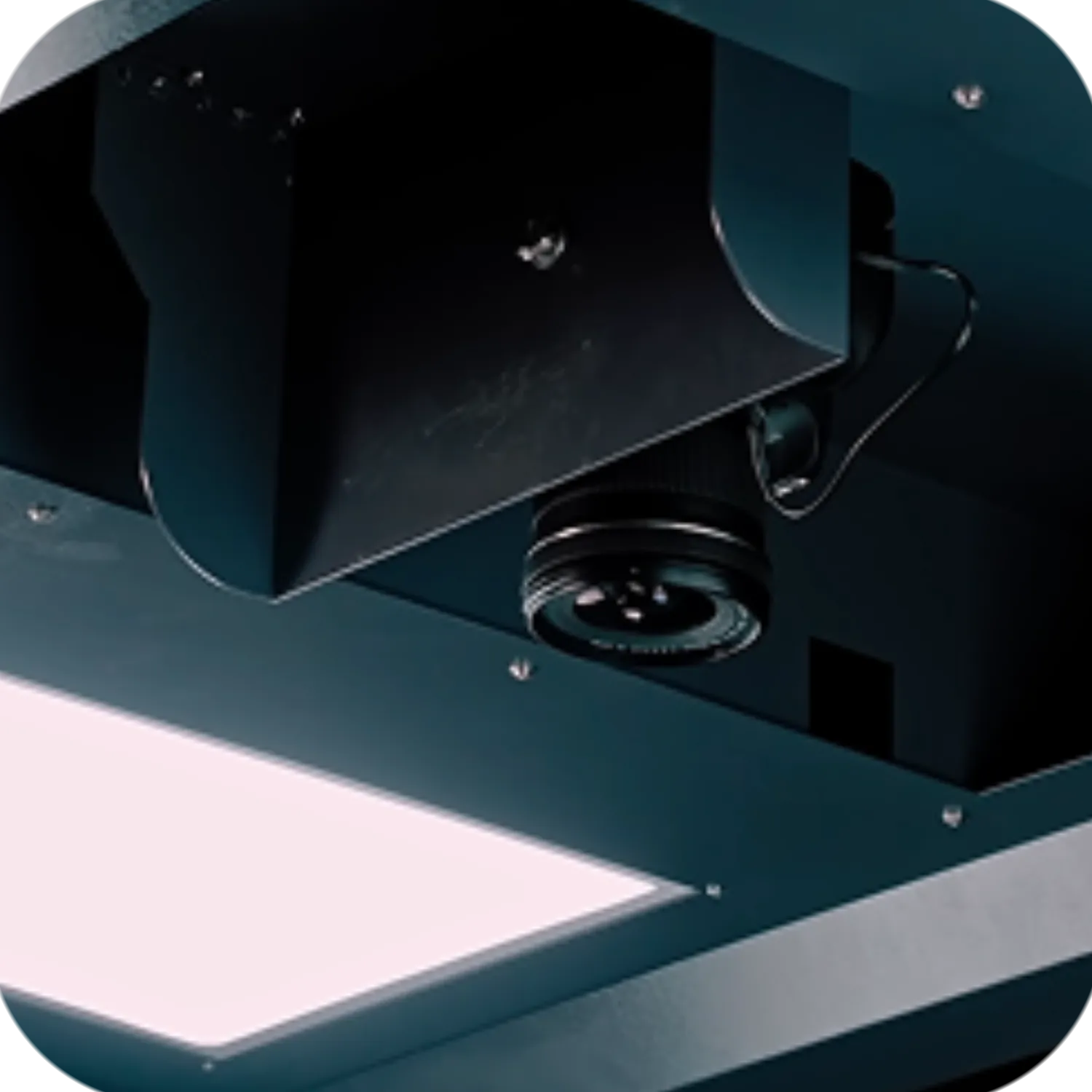

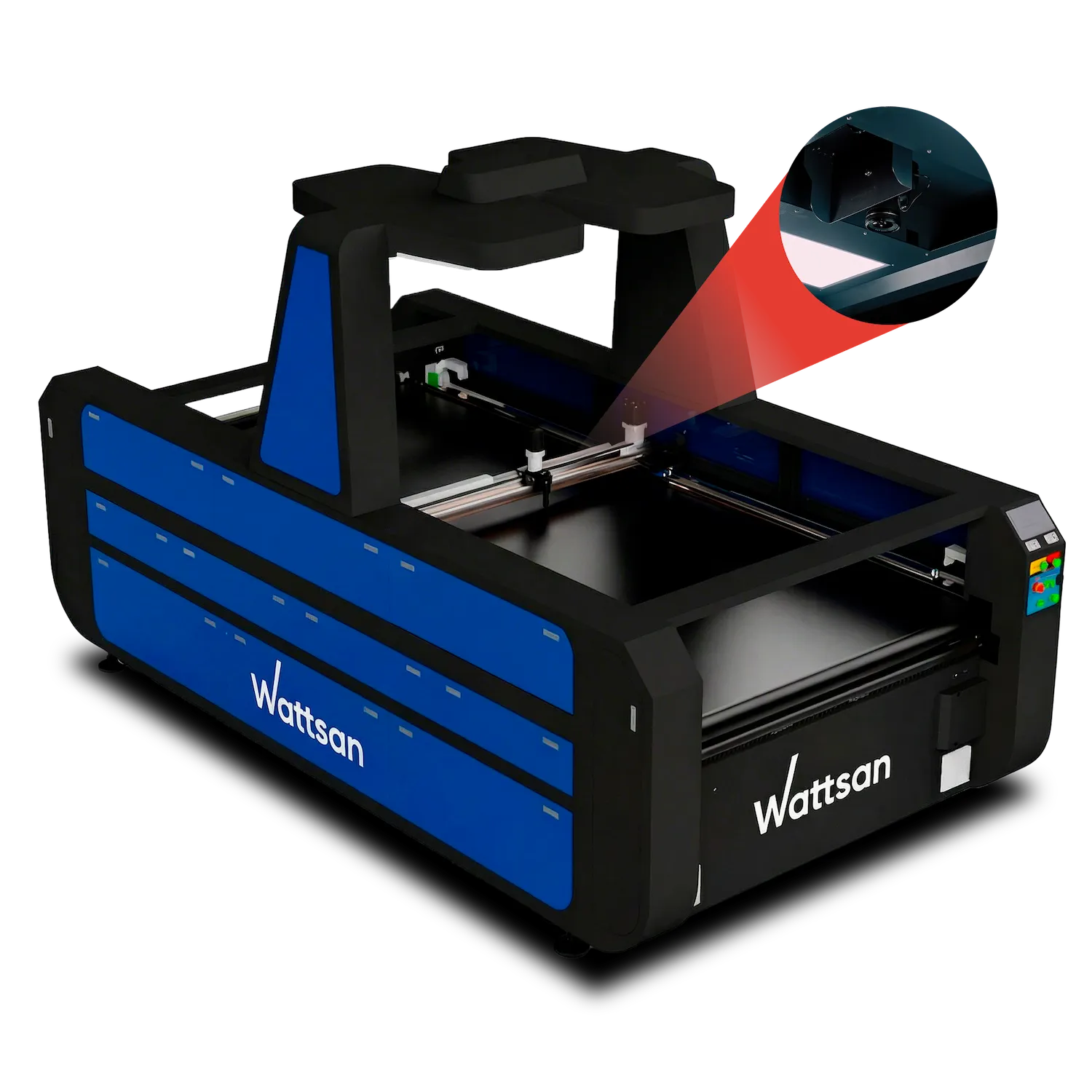

Machine vision for Recognition and Perfect Alignment

A high-resolution industrial CCD camera enables precise work with large-format materials, providing automatic contour detection and cutting. It can capture design outlines or align elements across the entire workspace simultaneously.

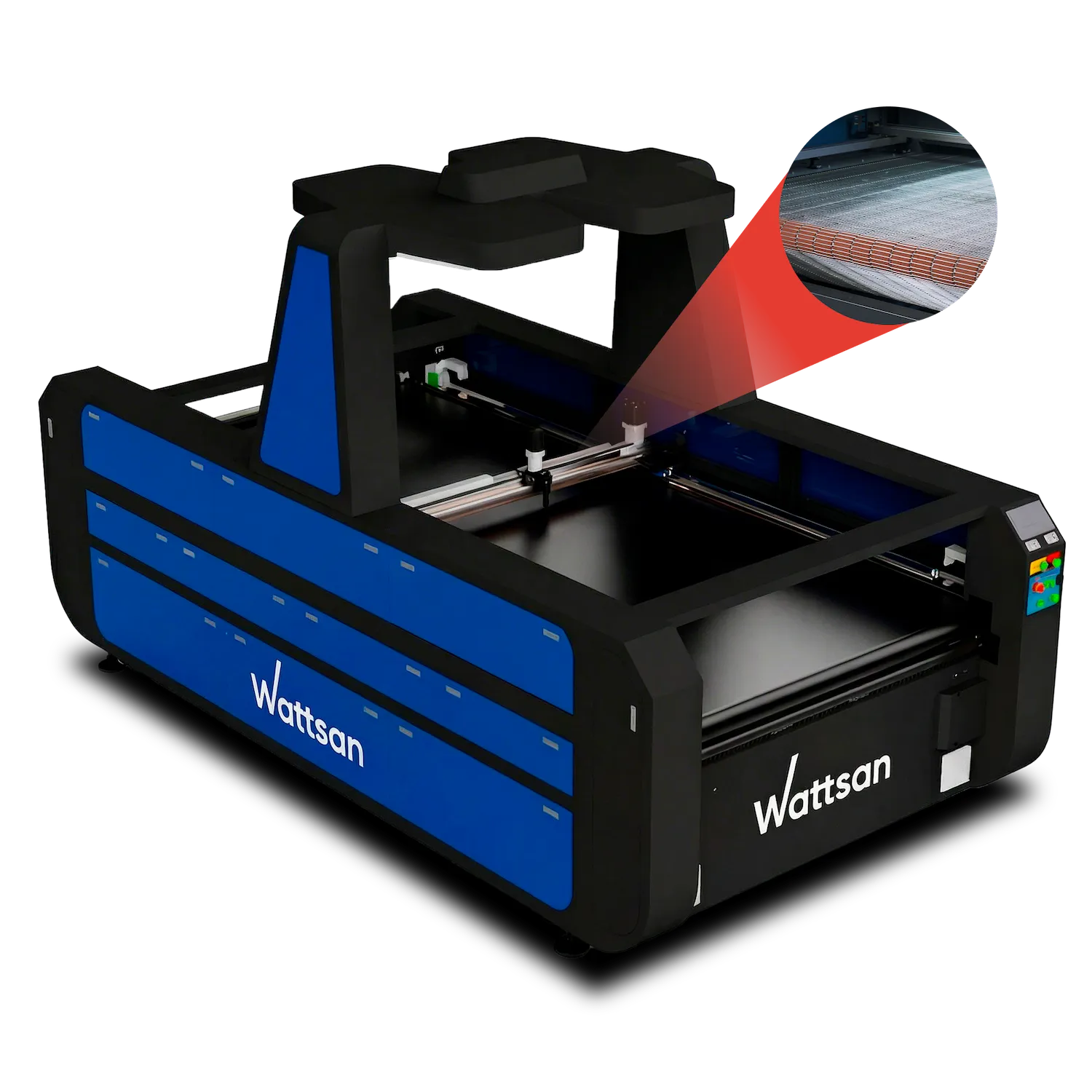

Conveyor Table

The conveyor system spreads material evenly across the work area, allowing uninterrupted cutting of fabrics and other roll-fed materials.

Vision Control for Precise Automated Cutting

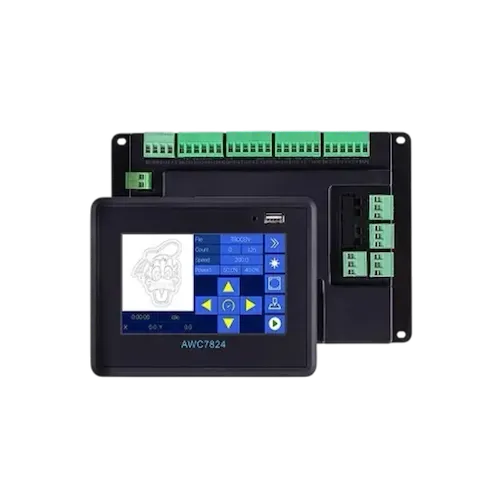

The integrated vision package combines a CCD camera with Trocen Laser Vision software to automate contour detection, registration mark recognition, and material alignment across the full work area for precise, uninterrupted cutting with advanced matching and positioning features.

An integrated vision system detects material contours and registration marks across the full work area, enabling fully automated, high-precision cutting.
Provides automatic edge recognition and pattern matching for uninterrupted cutting processes. Includes features such as layout nesting, corner optimization, and multi-point alignment.

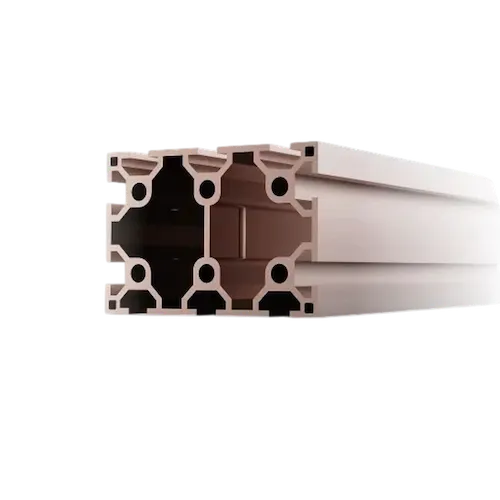

Lightweight by Design, Rigid in Performance

Constructed from high-strength aluminum alloy, the structure combines low weight with excellent rigidity for fast cutting, smooth travel, and accurate positioning.

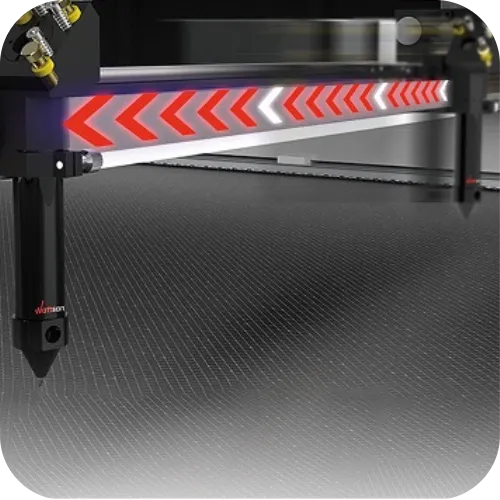

More Power, Higher Speed

Multiple servo motor systems provide strong torque for fast acceleration up to 1200 mm/s and quick deceleration, maintaining precise cutting performance throughout the process.

Wattsan - designed and engineered for business owners

Procedura zakupu

Wybór sprzętu

Pomagamy w doborze maszyny dopasowanej do Twoich potrzeb
Wysłanie faktury

Uzgadniamy komplet maszyn i przesłanie faktury z ostatecznym kosztem sprzętu.
Płatność

W całości, jeśli maszyna jest na magazynie. 50% z góry 50% przy dostawie, jeśli maszyna nie jest na stanie.
Sprawdzamy maszynę

Trzyetapowa kontrola jakości: w fabryce Wattsan, w naszym magazynie w Holandii, przed dostawą.
Dostawa lub odbiór

Firma transportowa lub Ty odbierasz maszynę z naszego magazynu.
Uruchomienie sprzętu

Jesteśmy tutaj, aby Ci pomóc, gdy tylko będziesz potrzebować wsparcia.

Doświadczenia od entuzjastycznych blogerów

Ten grawer laserowy może grawerować bez żadnych problemów. Jak szybko i łatwo można dostosować produkty!

Riccardo Muscarella
Maszyna ma idealnie płaską powierzchnię. Ułatwia mi to powtarzalną pracę!

Matteo Moras
Świetna robota wykonana w mniej niż godzinę. Dzięki szybkości maszyny laserowej CO2.

Roberto D'Adago
Ten model jest świetny, a precyzja lasera niesamowita – ostra jak brzytwa!

Roger Jungo

Wielkość opakowania:: 3680 x 2300 x 1600 mm

Waga:: 1250 kg

Rozmiar maszyny:: 3800 x 2300 x 2600 mm

Przez stół:: Yes

Miejsce pracy:: 1800x2000 mm

Materials:: Granite, Acrylic, MDF, Organza, Paronite, Linen, Plastic, Wool, Ceramic tile, Faux leather, Foam rubber, Bamboo, Chiffon, Resin, Chipboard, Fabric, Stone, Silk, Tweed, Wood, Rubber, Jade, Leather, Plywood
