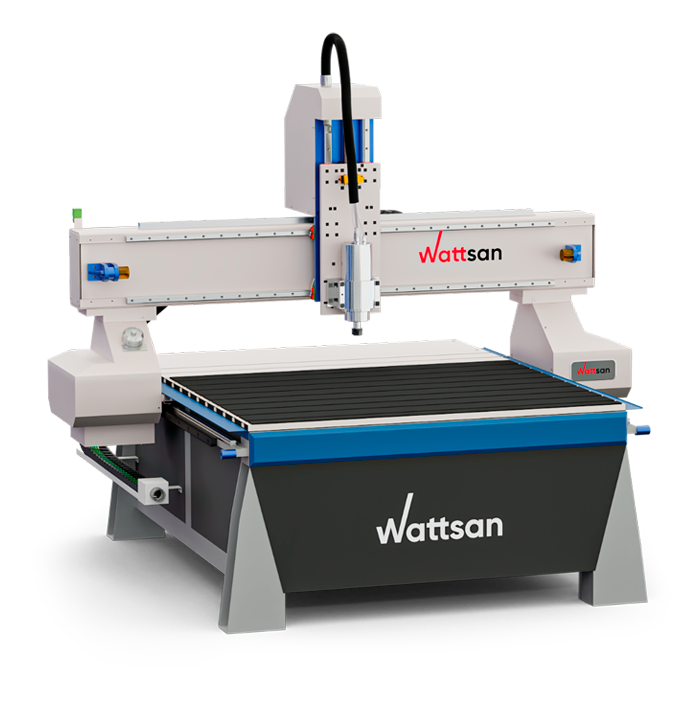

CNC router machine WATTSAN A1 1313

Working area:
1300x1300 mm
2.2 kW
Machine size:
1960x1900x1662 mm
470 kg
All characteristics

7 800 € ex.VAT

Price on request

Make a request
CNC Router Machine WATTSAN A1 1313

Unique selling proposition

  • Extensive upgrade options
  • Showroom and Demo
  • T-slot rack coating
  • Belt gear
  • Framed structure

Brief of CNC Router Machine WATTSAN A1 1313

Milling machine Wattsan A1 1313 — medium-format CNC router machine

The CNC router machine WATTSAN A1 1313 is an economical, easy-to-operate and multi-purpose machine. The WATTSAN A1 1313 model is designed for cutting and engraving as well as for 3D milling.

On this machine you can make doors, cabinets, tables, chairs, machine parts and gasket materials from paronite, stand bases, souvenirs and a three-dimensional relief on wood.

The WATTSAN A1 1313 machine has a working field of 1300×1300x200 mm with a lattice table. But if you want to process deeper products, we advise you to consider the WATTSAN M1 1313 model. The standard equipment of the Wattsan A1 1313 machine includes a spindle with an ER-20 collet chuck and a power of 2.2 kW. And two-phase stepper motors are responsible for precise movements.

Multi-stage heat treatment and annealing of the bed in a furnace make it possible to equip Wattsan machines with a 4.5 kW spindle and thus increase production.


  • – milling

  • Brass

  • Paronite

  • Copper

  • Aluminium

  • MDF

  • Plexiglas (Acrylic)

    Plexiglas (Acrylic)
  • Foam rubber

    Foam rubber
  • Plastic

  • Chipboard

  • Plywood

  • Wood


Wattsan machine beds will provide for 7 years of machine continuous operation

  • Annealing of the bed

    The solid-cast machine bed provides the required level of rigidity and vibration resistance. For the durability of the machine frame structure we anneal it in a special furnace for stress relief. Furnace tempering guarantees the service life of the frame for more than 10 years.

    Annealing of the bed
  • HIWIN guides

    Wattsan machines are equipped with HIWIN guides. They are distinguished by their quality and reliability, unlike analogues. Four closed rows of bearings are 30% superior to similar designs in terms of load capacity and rigidity.

    HIWIN guides
  • Rack table

    The working field of the machine has a special T-slot rack coating. The standard shaped longitudinal grooves of this coating make it possible to fix the material with a mechanical holdback, bolts or clamps.

    Rack table
  • Two-phase stepper motor

    These motors are responsible for the machine movement along the Y, X and Z axes. Such motors usually do not break down and are easily replaced. At the request of the customer, the machine is equipped with a stepper motor, a hybrid stepper motor or a servo motor.

    Two-phase stepper motor
  • Belt gear

    The A-series models are equipped with belt gears, which increases the service life of the engine and compensates for inaccuracies. These gears are very easy to replace and maintain and work silently. The optimal solution for processing soft wood and plastic.

    Belt gear

Firm frame structure of Wattsan machines

During the machine operation inertia of gentry motion is transferred to the frame which is subjected to significant loads. Therefore material and structure of the machine play a significant role in securing the machine against deformation and breakage.

  • All frames undergo multi-stage heat treatment within a day followed by milling. Furnace annealing guarantees a frame service life of more than 7 years.

    Heat-treated frame
  • All-welded frame of steel profile provides the right level of rigidity and vibration resistance. High strength and resistance of the frame ensure 10 years of operation without distortion and deformation.

    Massive frame

Purchase procedure

  • Equipment selection

    We assist you in making your choice of a machine matching your needs

  • Sending invoice

    We agree on the complete set of the machine and sending the invoice with the final cost of the equipment.

  • Payment

    In full if the machine is in stock. 50% in advance 50% at the delivery if the machine is not in stock.

  • We check the machine

    The 3 step quality control: at the Wattsan factory, at our warehouse in the Netherlands, before the delivery.

  • Delivery or pick-up

    Either a transport company or you pick up the machine from our warehouse.

  • Launching equipment

    We are here to assist you whenever you need support.

Experiences from enthusiastic bloggers

  • I’m extremely happy with the device! Its powerful reinforced frame reduces wobbling which is perfect for engraving at high speeds. I’ve been using it for acrylic glass and the results look really cool.

    Heinrich Schüür Heinrich Schüür
  • A great laser engraver, it can cut significant thicknesses of wood without effort. I used it for both engraving and cutting, and the machine worked wonderfully.

    Il Makerstauratore Il Makerstauratore
  • This laser engraver can engrave without any problem. How fast and easy it is able to customize products!

    Riccardo Muscarella Riccardo Muscarella
  • Machine has a perfectly flat surface. It makes repetitive work easier for me!

    Matteo Moras Matteo Moras
  • Great job done within an hour. Thanks to the speed of the laser CO2 machine.

    Roberto D'Adago Roberto D'Adago
  • This model is great, and laser precision is crazy, it’s sharp as a razor!

    Roger Jungo Roger Jungo

Technical characteristics


Welded steel
Working area:
1300x1300 mm
Installation type:
470 kg
Machine size:
1960x1900x1662 mm

Materials Table

Composite, Plywood, Paronite, Chipboard, Wood, Plexiglass, Plastic, Soft Metal, MDF, Aluminium


Dimension of the guides:
20 mm
Engine on X and Y:
Step engine Yako 2405
Idle speed:
15 000 mm/min
Tool lifting height (Z-axis travel):
200 mm
Positional accuracy:
0,05 mm
Positional resolution:
0,00625 mm
Engine power:
4A 5N.m


Power electrics:
Siemens, Chint
Motor drivers:
Leadshine DM542
End sensors:
Electric power supply:
220/380 V
File transfer:
Power consumption:
3000 W


2.2 kW
Spindle RPM:
24 000 rpm
Collet chuck:


Bed type:
Welded steel
Lubrication system:
Number of axis movements:
Rotary device (optional):
