Laser surface cleaning machine Wattsan CW JPT

Cooling:: water
Laser power:: 1500 / 2000 / 3000 W
Machine size:: 1075x664x1055 mm
Packing size:: 1200x780x1240 mm
Laser source:: Raycus, JPT
Weight:: 235 kg

Watch the review

Laser Surface Cleaning Machine Wattsan CW JPT

More than 100,000 hours of use
Cleaning of wide surfaces with high speed
No consumables required
Eco-friendly
Relfar-(V2/V3) Ruida for intuitive use

1 / 15

Wattsan CW, a continuous cleaning laser machine, for fast and efficient operations on metals, concrete, brick, and more

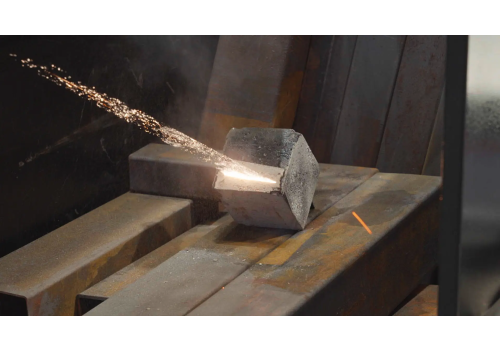

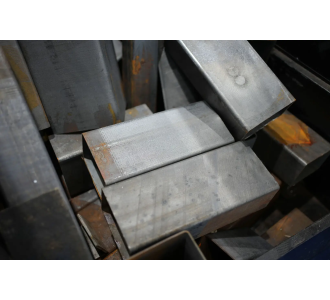

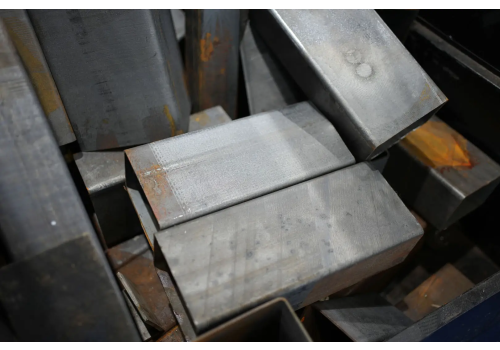

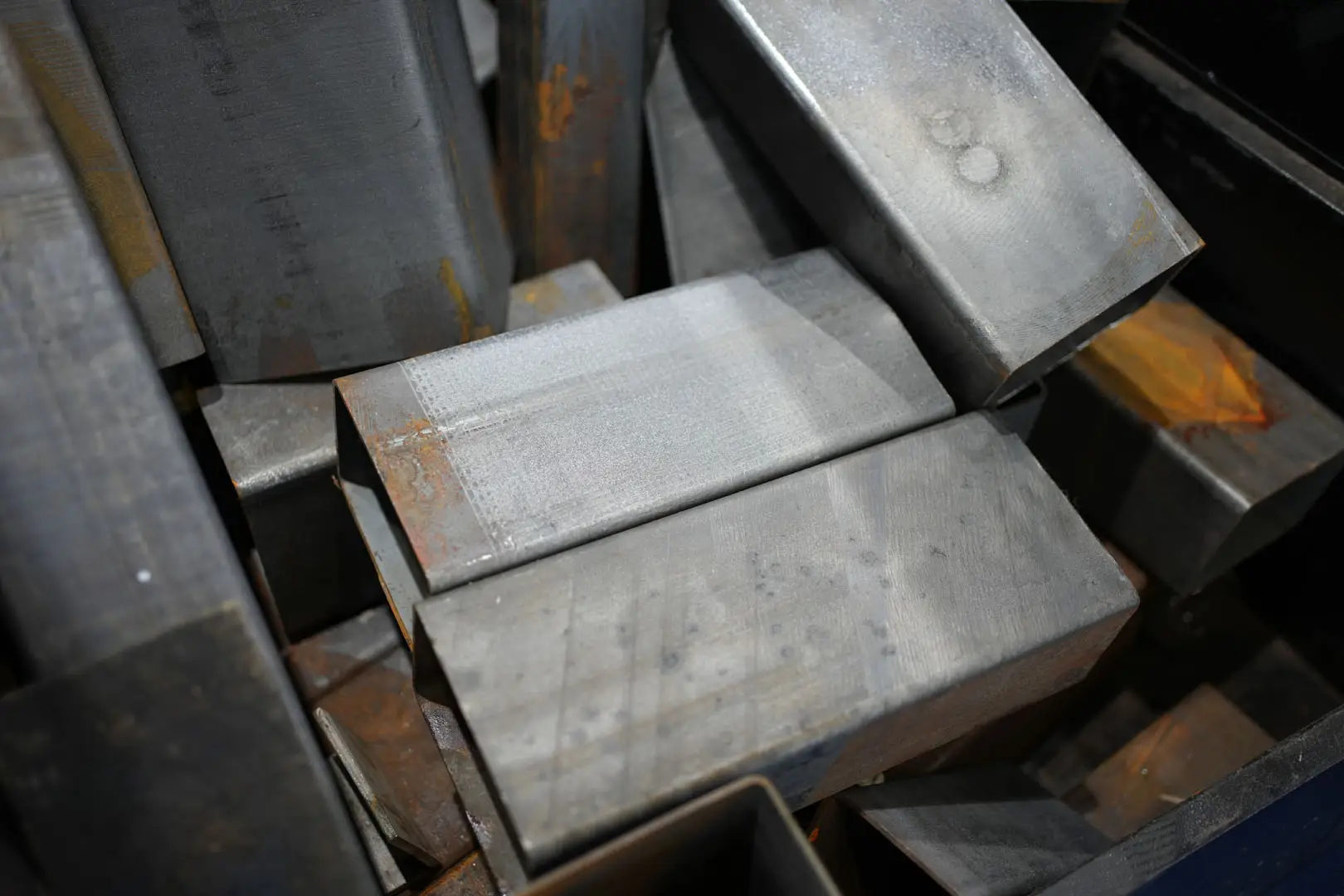

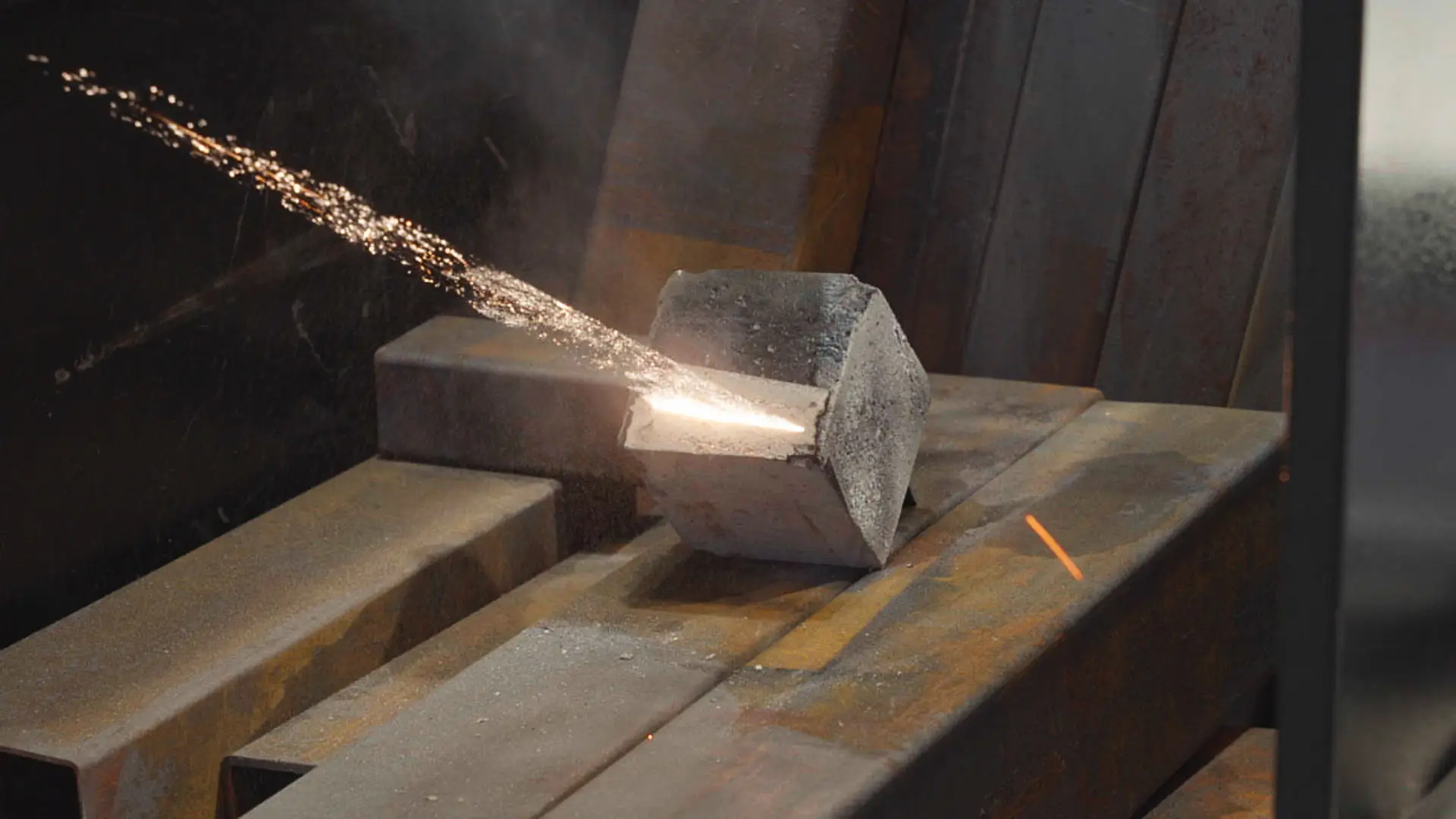

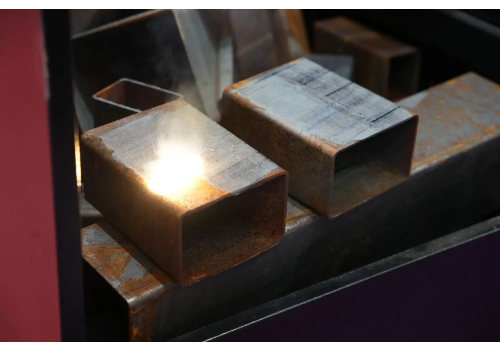

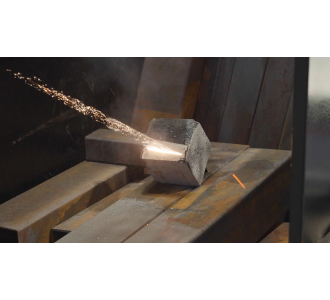

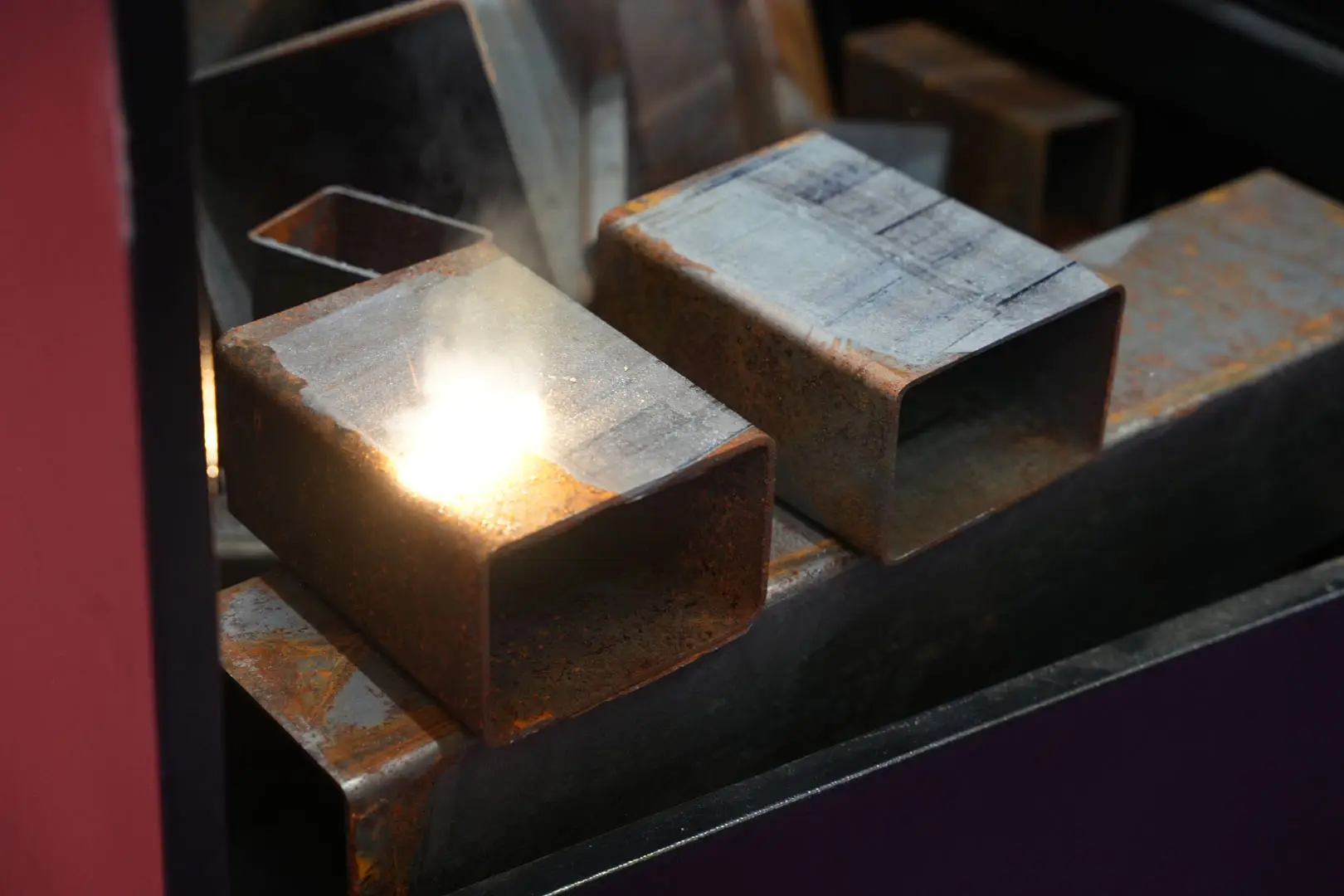

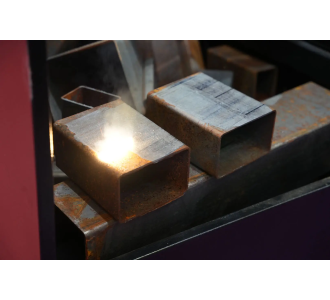

The Wattsan CW continuous laser cleaning is a modern, high-tech, and high-speed method of cleaning surfaces. The laser cleaning equipment is ideal for all types of surfaces. It easily removes rust from metal products, layers of paint, varnish, and other coatings or deposits. The surface is degreased and the effects of oxidation and carbon deposits are removed. The speed of a continuous cleaning machine is several times faster than the one of a pulsed cleaning. A wide range of settings allows the use of laser cleaning in various fields. Cleaning can be carried out at any angle in the most inaccessible places, which allows you to extend the life of structures made of different types of metals. There are no consumables (sand and other abrasives), no need for a workshop or metal cabinet. After cleaning, only the destroyed particles (dust) of the cleaned "foreign" layer remain. A special protective suit for the employee is not required while working with the equipment. No mechanical post-treatment after cleaning is required.

Materials

– cleaning

Dye
Electroplating
Oil paint
Oxide coating
Oxidized rusty metal
Rubber
Rust
Soot

Wattsan laser cleaning are thoughtfully designed

LIght and handy gun

The cleaning gun weighs 0.78 kg. The gun’s little weight is essential for the operator when cleaning steep buildings or standing at heights for extended periods of time—even in awkward positions.
Relfar-(V2/V3) RuiDa

For ease of use, each cleaning parameter group can be numbered. This allows you to rapidly change them when processing different sorts of materials. The line’s width ranges from 0 to 300 mm, allowing you to clean both small and large things.
Laser source

The machine is equipped with a JPT fiber source. Other laser sources, such as Raycus, can be installed upon customer request. The source has high single pulse energy, uniform energy distribution, easy to operate and maintain. Suitable for processing in automobile manufacturing, marine industry, petrochemical industry, etc.
TEYU water cooling system

The chiller is built-in, making transportation easy. This also allows for continuous operation because the machine does not need to be turned off for rest.

CW PRO

The control system allows you to set and select your own parameters for each task. The gun's scan types are also customizable, allowing you to create different patterns for better cleaning.

Six patterns

300x300 mm

1500 / 2000 / 3000 W

Power

up to 20000 mm/s

Scanning speed

0.78 / 0.96 kg

Weight
CW

For ease of use, each cleaning parameter group can be numbered. This allows you to rapidly change them when processing different sorts of materials. The line's width ranges from 0 to 300 mm, allowing you to clean both small and large things.

One pattern

Adjustable line up to 300 mm

1500 / 2000 / 3000 W

Power

up to 20000 mm/s

Scanning speed

0.78 kg

Weight
CW 6000

The Relfar FWH60-C30A Laser Gun is the latest development in laser cleaning technology. With its powerful performance, it efficiently cleans large surfaces, removing rust, paint, and coatings. Designed for high-output industrial use, it ensures maximum coverage and reliability.

One pattern

Adjustable line from 200 to 500 mm

6000 W

Power

up to 40000 mm/s

Scanning speed

2.2 kg

Weight

Comparison table

Cleaning thickness (Nm)	Cleaning speed (mm/s)	Cleaning line width (mm)	Performance (m2/h)
Oxide layer
≤25	Difficult to clean	-	-
≤50	Difficult to clean	-	-
>50	Difficult to clean	-	-
Rust
Cleaning thickness (Nm)	Cleaning speed (mm/s)	Cleaning line width (mm)	Performance (m2/h)
≤50	25	140	12
≤100	15	70	6
>100	15	60	3
Paint / Coating
Cleaning thickness (Nm)	Cleaning speed (mm/s)	Cleaning line width (mm)	Performance (m2/h)
≤50	20	70	5
≤100	15	60	3
>100	10	40	1,5
Rubber / Soot
Cleaning thickness (Nm)	Cleaning speed (mm/s)	Cleaning line width (mm)	Performance (m2/h)
≤50	25	80	7
≤100	20	60	4
>100	10	60	2

The scanner is easy to operate and requires little maintenance.

F-Theta lenses

It ensures a flat field and maximum quality of focused radiation on the surface of the processed material
Mirror galvanometers

Mirror galvanometers located along the X and Y axes are designed to align the laser beam.
Collimator module

It converts the output laser radiation into a directed parallel beam, minimizing its divergence.

Purchase procedure

Equipment selection

We assist you in making your choice of a machine matching your needs
Sending invoice

We agree on the complete set of the machine and sending the invoice with the final cost of the equipment.
Payment

In full if the machine is in stock. 50% in advance 50% at the delivery if the machine is not in stock.
We check the machine

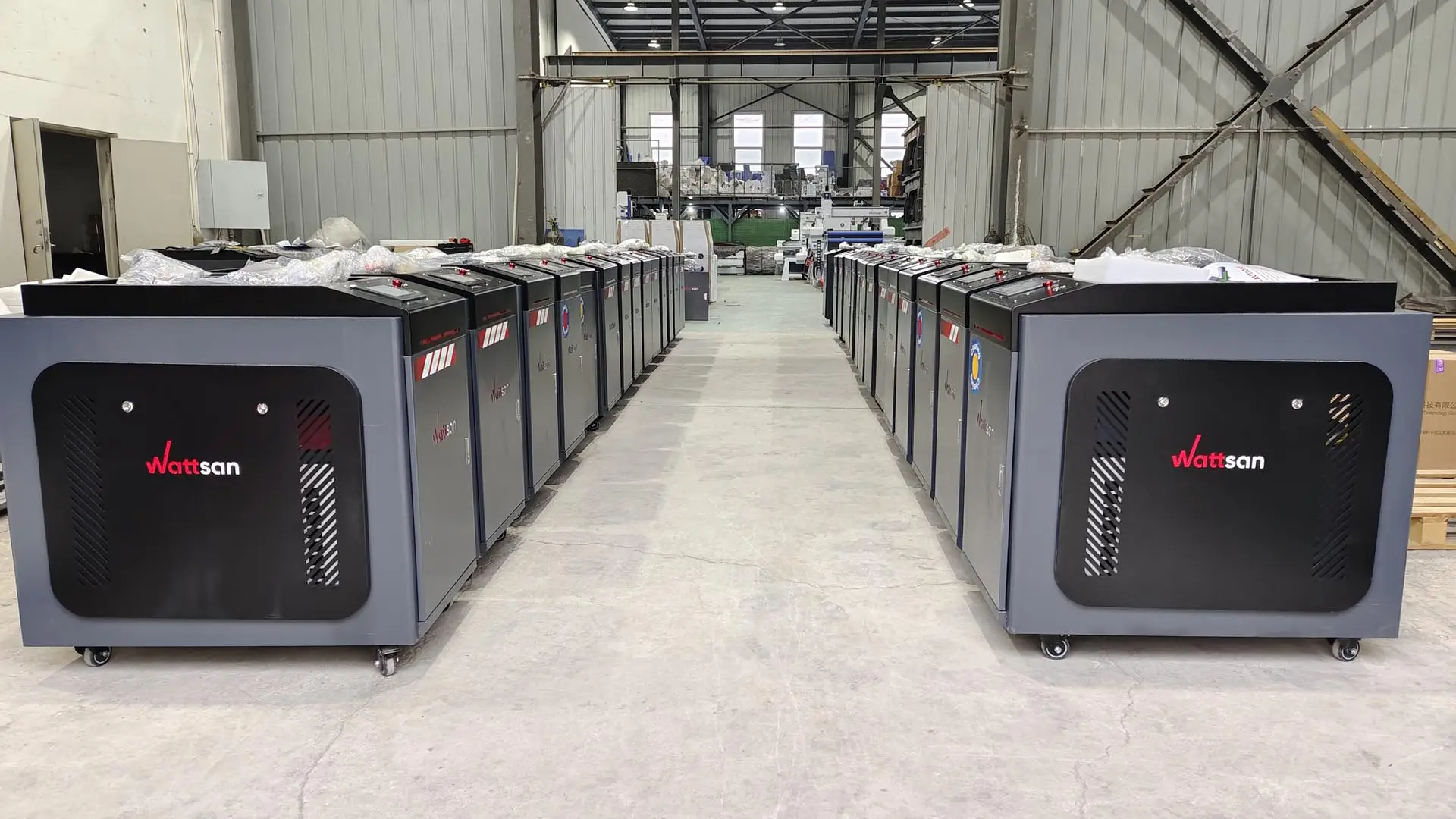

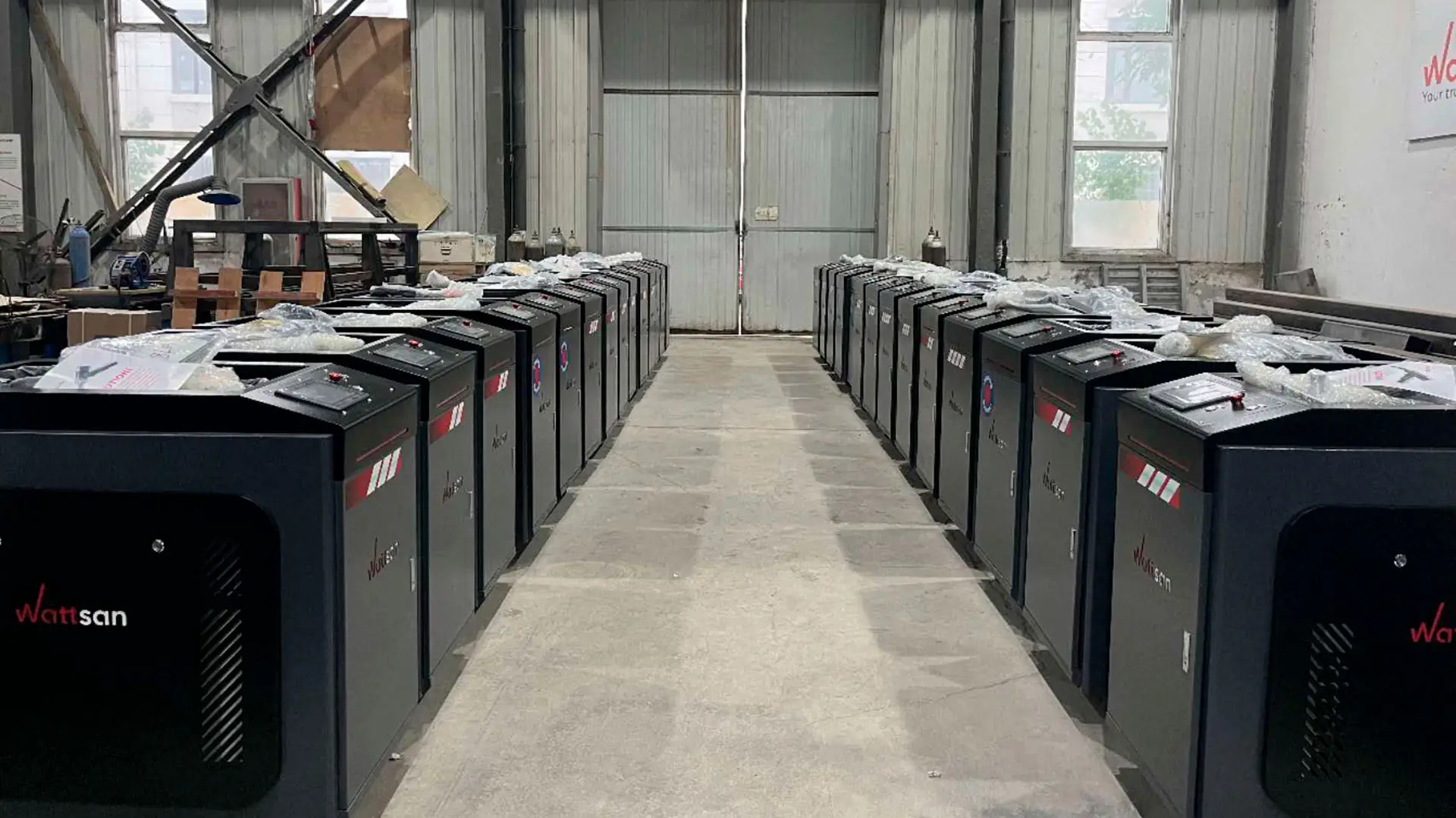

The 3 step quality control: at the Wattsan factory, at our warehouse in the Netherlands, before the delivery.
Delivery or pick-up

Either a transport company or you pick up the machine from our warehouse.
Launching equipment

We are here to assist you whenever you need support.

Experiences from enthusiastic bloggers

This laser engraver can engrave without any problem. How fast and easy it is able to customize products!

Riccardo Muscarella
Machine has a perfectly flat surface. It makes repetitive work easier for me!

Matteo Moras
Great job done within an hour. Thanks to the speed of the laser CO2 machine.

Roberto D'Adago
This model is great, and laser precision is crazy, it’s sharp as a razor!

Roger Jungo

Machine size:: 1075x664x1055 mm

Packing size:: 1200x780x1240 mm

Welding head weight:: 0.78 kg

Fiber length:: 8 m

Weight:: 235 kg

Cooling:: water

Operating temperature range:: 5-40 ℃

Laser power:: 1500 / 2000 / 3000 W

Scan width range:: 300 mm

Scan length range:: 300 mm

Focal length:: F800

Operating mode:: Continuous wave

Laser frequency:: up to 20 kHz

Operating humidity range:: 30-70 %

Laser source:: Raycus, JPT

Laser wavelength:: 1080 nm

Scanner MODEL:: RelFar FWH20-C20A

Mode setting:: Yes

Electric power supply:: 220 V

Control system:: RuiDa

Ask questions

Laser cleaning removes corrosion, rust, paint-and-lacquer coatings, scale, carbon deposits, electroplating coatings, adhesive coatings, and organic deposits.
Compared to mechanical and chemical methods, this method is not traumatic – it does not imply human contact with the treated surface, and is environmentally friendly – there are no toxic vapors. The risk of damaging the metal from which you remove rust or paint is also eliminated.
There are a few basic parameters that affect the choice when buying the laser cleaning machine, namely: pulsed or continuous mode of radiation, power of laser head, type of cooling, laser cleaning functionality, and requirements to the supplier. First of all, it is necessary to decide which tasks will prevail – delicate cleaning or handling with gross contaminations and deposits. This determines which type of radiation to choose – pulsed or continuous.
The service life of the laser emitter is up to 100 000 hours, which is 30 years of continuous operation 8 hours a day, 5 days a week.
Laser cleaning machine performs its main functions fast and allows you to save time on dismantling. Therefore, laser cleaning is 6-8 times faster than chemical cleaning methods.
