CNC router machine WATTSAN M1 6090

Working area:: 600x900 mm
Spindle:: 2.2 kW
Machine size:: 1380 x 1500 x 1890 mm
Weight:: 400 kg

Bed with pre-annealing

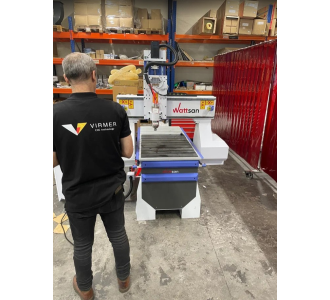

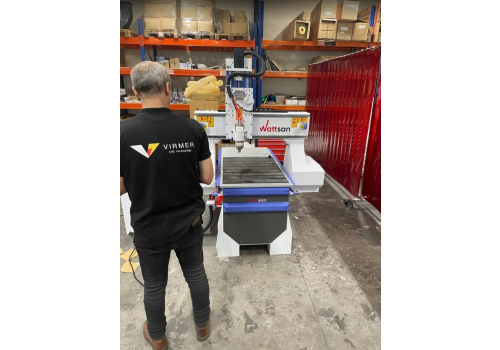

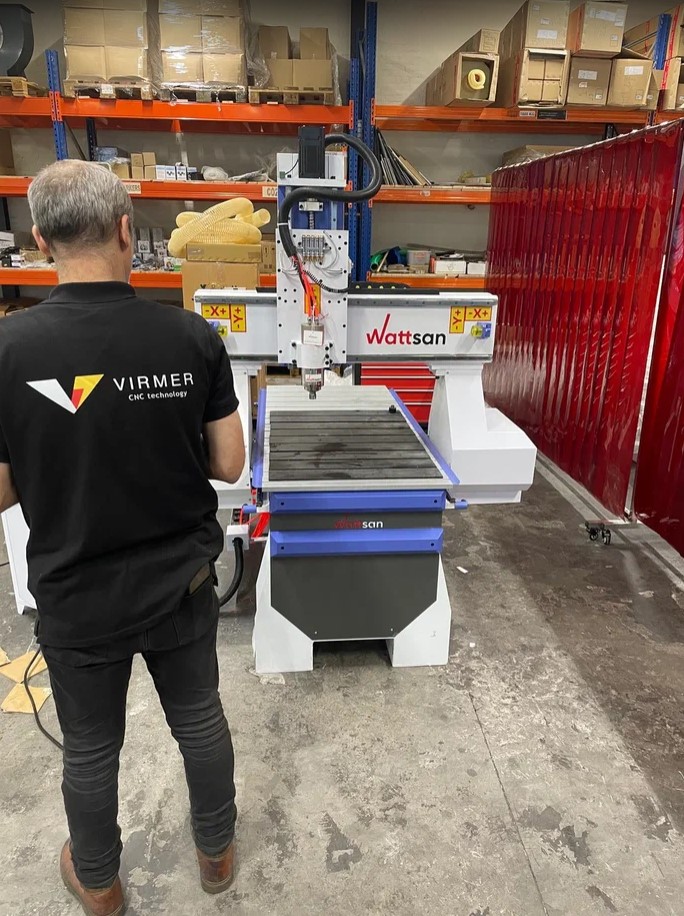

Showroom and Demo
Increased thickness of housing
Reinforced portal
Framed structure

CNC Router Machine WATTSAN M1 6090 slide 1
CNC Router Machine WATTSAN M1 6090 slide 1
CNC Router Machine WATTSAN M1 6090 slide 2
CNC Router Machine WATTSAN M1 6090 slide 3
CNC Router Machine WATTSAN M1 6090 slide 4
CNC Router Machine WATTSAN M1 6090 slide 5
CNC Router Machine WATTSAN M1 6090 slide 6
CNC Router Machine WATTSAN M1 6090 slide 7
CNC Router Machine WATTSAN M1 6090 slide 8
CNC Router Machine WATTSAN M1 6090 slide 9
CNC Router Machine WATTSAN M1 6090 slide 10
CNC Router Machine WATTSAN M1 6090 slide 11
CNC Router Machine WATTSAN M1 6090 slide 12
CNC Router Machine WATTSAN M1 6090 slide 13
CNC Router Machine WATTSAN M1 6090 slide 14

The Wattsan M1 6090 — CNC router machine is a reliable working machine

The CNC router machine WATTSAN M1 6090 is designed for cutting and engraving wood, MDF, chipboard, acrylic, plexiglass, PVC, composite, aluminum, etc. It is also possible to perform 3D milling cutting on the WATTSAN M1 6090.

With this machine, you can make doors from paronite, cabinets, tables, chairs, machine parts and gasket materials, stand bases, LED and light boxes, souvenirs and three-dimensional images.

The WATTSAN M1 6090 machine has a working field of 600×900x300 mm. The portal height of 300 mm makes it possible to increase the processing depth in one pass by 20% compared to the A1 6090 model. And the high strength and stability of the frame provides 10 years of work without distortion and deformation, which significantly minimizes the reject rate and allows you to process heavier workpieces.

Materials

– milling

Brass
Paronite
Copper
Aluminium
MDF
Plexiglass (Acrylic)
Foam rubber
Plastic
Chipboard
Plywood
Wood

Wattsan machine beds will provide for 7 years of machine continuous operation

Annealing of the bed

The solid-cast machine bed provides the required level of rigidity and vibration resistance. For the durability of the machine frame structure we anneal it in a special furnace for stress relief. Furnace tempering guarantees the service life of the frame for more than 10 years.
Massive machine bed

On the M1 series machine, unlike A1, the bed is reinforced and has a thickness of 10 mm, which gives high strength and stability of the frame structure and provides 10 years of work without distortion and deformation. And the stiffeners increase the stability of the frame and its tensile strength.
Reinforced portal

The portal side pillars have increased rigidity to allow working with heavy loads, and also ensure the absence of vibrations when working at high speeds. It allows you to use from 1 to 12 spindles, depending on the machine design.
Planetary gear

Milling machines of the M series are equipped with Shimpo planetary gearboxes. They are designed to work with high loads, converting the torque from the servo motor and transferring it to the skew gear, which drives the portal movement. It is used in machines for cutting hard wood and soft metals.
HIWIN guides

Wattsan machines are equipped with HIWIN guides. They are distinguished by their quality and reliability, unlike analogues. Four closed rows of bearings are 30% superior to similar designs in terms of load capacity and rigidity.
Rack table

The working field of the machine has a special T-slot rack coating. The standard shaped longitudinal grooves of this coating make it possible to fix the material with a mechanical holdback, bolts or clamps.
Two-phase stepper motor

These motors are responsible for the machine movement along the Y, X and Z axes. Such motors usually do not break down and are easily replaced. At the request of the customer, the machine is equipped with a stepper motor, a hybrid stepper motor or a servo motor.

Firm frame structure of Wattsan machines

During the machine operation inertia of gentry motion is transferred to the frame which is subjected to significant loads. Therefore material and structure of the machine play a significant role in securing the machine against deformation and breakage.

Purchase procedure

Equipment selection

We assist you in making your choice of a machine matching your needs
Sending invoice

We agree on the complete set of the machine and sending the invoice with the final cost of the equipment.
Payment

In full if the machine is in stock. 50% in advance 50% at the delivery if the machine is not in stock.
We check the machine

The 3 step quality control: at the Wattsan factory, at our warehouse in the Netherlands, before the delivery.
Delivery or pick-up

Either a transport company or you pick up the machine from our warehouse.
Launching equipment

We are here to assist you whenever you need support.

Experiences from enthusiastic bloggers

I’m extremely happy with the device! Its powerful reinforced frame reduces wobbling which is perfect for engraving at high speeds. I’ve been using it for acrylic glass and the results look really cool.

Heinrich Schüür
A great laser engraver, it can cut significant thicknesses of wood without effort. I used it for both engraving and cutting, and the machine worked wonderfully.

Il Makerstauratore
This laser engraver can engrave without any problem. How fast and easy it is able to customize products!

Riccardo Muscarella
Machine has a perfectly flat surface. It makes repetitive work easier for me!

Matteo Moras
Great job done within an hour. Thanks to the speed of the laser CO2 machine.

Roberto D'Adago
This model is great, and laser precision is crazy, it’s sharp as a razor!

Roger Jungo

Working area:: 600x900 mm

Installation type:: Floor-standing

Weight:: 400 kg

Machine size:: 1380 x 1500 x 1890 mm

Frame:: Welded steel

Materials:: Paronite, Plywood, Aluminium, Soft Metal, MDF, Plexiglass, Chipboard, Composite, Wood, Plastic

Engine on X and Y:: Step engine Leadshine 860

Idle speed:: 25000 mm/min

Tool lifting height (Z-axis travel):: 300 mm

Positional accuracy:: 0,05 mm

Positional resolution:: 0,00625 mm

Engine power:: 5A 6.8N

Dimension of the guides:: 20 mm

Motor drivers:: Leadshine dma860H

End sensors:: Capacitive

Electric power supply:: 220 V

Software:: NcStudio

File transfer:: USB, DSUB

Power consumption:: 3500 W

Power electrics:: Chint, Siemens

Spindle:: 2.2 kW

Spindle RPM:: 24 000 rpm

Collet chuck:: ER-20

Number of axis movements:: 3

Rotary device (optional):: Yes

Bed type:: Welded steel

Lubrication system:: Manual
