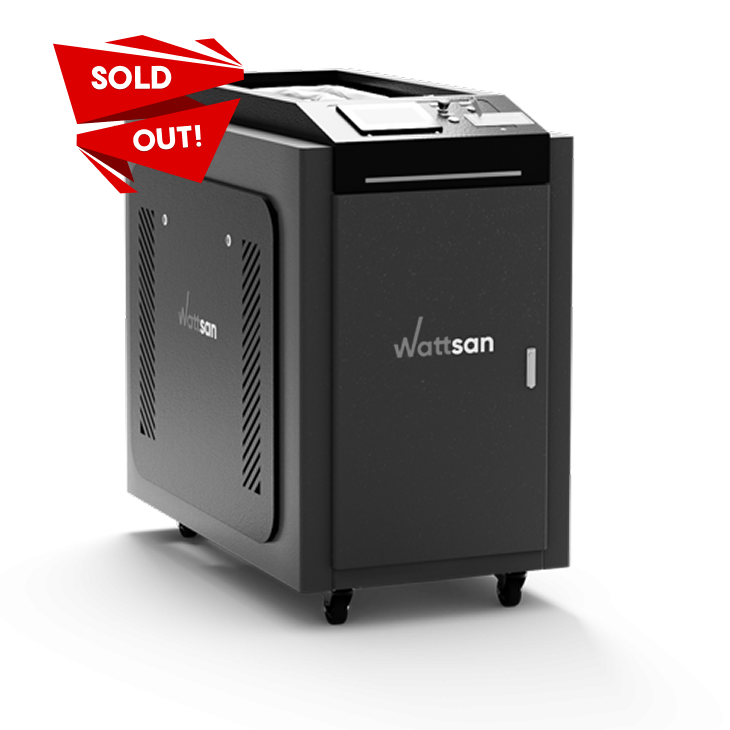

Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

Cooling:
water
Laser power:
1500 W
Machine size:
880x560x1010 mm
Laser source:
JPT
Weight:
145 kg
All characteristics

Price on request

Price on request

Make a request
Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • 3 in 1: welding, cleaning, cutting

  • Quick function switching

  • Extended fiber length

  • Wireless control module

  • High precision and speed

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

  • Handheld laser welding machine Wattsan Welding 3-in-1 Х1500 JPT

Multifunctional welding machine - 3 in 1: welding, cleaning, cutting

The Wattsan X 3 in 1 manual laser welding system is fitted with a universal laser head capable of cleaning, cutting and welding metal. This offers substantial saving by purchasing one machine instead of three. A library of loaded modes for joining various metals with a 0.3 to 7-mm thickness simplify the welding process. Laser welding technology allows welding metals such as carbon steel, galvanized stainless steel, as well as alloys of aluminum, brass and titanium, etc. The kit includes a specific nozzle for each type of task such as cleaning metals, butt welding, welding internal and external corners of welding with wire feed, cutting thin sheet metal, etc. The welding module can be easily replaced with a cleaning scanner, without reconnecting the welding gun and optical fiber. Easy to use, no specific skills required.

Materials

  • – welding

  • – cleaning

  • – cutting

  • Carbon steel

    Carbon steel

  • Stainless steel

    Stainless steel

  • Galvanized steel

    Galvanized steel

  • Aluminium

    Aluminium

  • Copper

    Copper

  • Brass

    Brass

  • Titanium

    Titanium

  • Dye

    Dye

  • Electroplating

    Electroplating

  • Oil paint

    Oil paint

  • Oxide coating

    Oxide coating

  • Oxidized rusty metal

    Oxidized rusty metal

  • Rubber

    Rubber

  • Rust

    Rust

  • Soot

    Soot

Select the type of seam for your task!

Before starting work, it is important to determine the type of weld, whether it be a butt joint, fillet weld, tee weld, lap weld and end joint. This will help you opt for the best welding technique in each case:

  • Spot
    Spot
  • Line
    Line
  • Circle
    Circle
  • Double circle
    Double circle
  • Triangle
    Triangle
  • Eight
    Eight

  • Small patch, high power. Fits for rivet welding and butt joints.

  • The line width can be adjusted. This method is suitable for welding thin metals, butt welding and wire feed welding. Ensures a wide seam, which gives a better parts bonding.

  • The diameter can be adjusted. The uniform distribution of specific power allows getting a wide seam coupled with a greater depth of penetration compared to the linear type of oscillation. Fits for welding thin sheets.

  • The diameter can be adjusted. The uniform distribution of the specific laser power makes it possible to obtain a wide seam with a deeper penetration along the seam edges. This method is suitable for all types of fillet welding.

  • Adjustable width. Enables the beam to increase the depth of the weld pool. The frequency can be reduced by adding wire feed welding. This type of oscillation is suitable when working with plumb lines.

  • Ensures a wide seam and deep penetration. This method is suitable for welding wide joints, as well as when working with plumb lines.

Wattsan laser welding are thoughtfully designed

  • Control Panel

    The availability of preset processing modes for various metals and thickness degrees, with the option to save user parameters for demanded tasks, on and off buttons, as well as an emergency stop of the machine, is sure to ease the start of your work.

    Control Panel

  • High speed and performance

    Welds parts with a welding gun in one pass 4-5 times faster than traditional welding. Guarantees neat, high-quality welds on all surfaces. Does not heat up or deform the near-weld area.

    High speed and performance

  • 3 in 1: welding, cleaning, cutting

    In addition to welding, the machine performs the two major options in any production:
    1. Laser cleaning – when changing the laser gun nozzle, the device turns into a full-fledged laser cleaning of continuous exposure;
    2. Laser cutting – when replacing the laser cutting nozzle on the welding gun (standard equipment), and with the appropriate settings, the machine performs the function of metal laser cutting

    3 in 1: welding, cleaning, cutting

Materials

Stainless steel Stainless steel
Material Set the power Speed (mm/sec) Frequency (kHz)
1 mm 260 watts 800 5
1.5 mm 340 watts 750 5
2 mm 600 watts 800 5
2.5 mm 730 watts 700 5
3 mm 860 watts 720 5
Aluminium Aluminium
Material Set the power Speed (mm/sec) Frequency (kHz)
1 mm 480 watts 700 20
1.5 mm 560 watts 800 20
2 mm 780 watts 800 20
2.5 mm 920 watts 800 20
3 mm 1150 watts 800 20
Brass Brass
Material Set the power Speed (mm/sec) Frequency (kHz)
1 mm 900 watts 600 30
1.5 mm 1100 watts 600 30
2 mm 1350 watts 500 30
2.5 mm 1600 watts 500 30
3 mm 1850 watts 500 30
Copper Copper
Material Set the power Speed (mm/sec) Frequency (kHz)
1 mm 650 watts 600 30
1.5 mm 850 watts 600 30
2 mm 1100 watts 500 30
2.5 mm 1400 watts 500 30
Copper Carbon steel
Material Set the power Speed (mm/sec) Frequency (kHz)
1 mm 300 watts 500 20
1.5 mm 370 watts 500 20
2 mm 480 watts 600 20
2.5 mm 600 watts 600 20
3 mm 760 watts 700 20
Galvanized steel Galvanized steel
Material Set the power Speed (mm/sec) Frequency (kHz)
1 mm 320 watts 600 20
1.5 mm 460 watts 600 20
2 mm 600 watts 500 20
2.5 mm 800 watts 700 20
3 mm 960 watts 650 20

Working in uncomfortable positions – gun weighing only 1 kg

  • Nozzle module
  • Cleaning module
  • Focus module
  • Galvanometer module
  • Wireless control module
  • QBH connector
  • Collimator module
  • Automatic wire feeder

  • Nozzle module

    The machine comes with a set of tips for welding various joints, as well as a nozzle for cutting.

  • Cleaning module

    When changing the nozzle and the focal lens on the laser gun, the device turns into a full-fledged laser cleaning of continuous exposure.

  • Focus module

    The mirror system built into the welding gun is essential for creating complex types of welds.

  • Galvanometer module

    The welding gun has a gas and a laser beam control.

  • Wireless control module

    The welding gun has a wireless control module. The module controls machine settings and filler wire feed speed.

  • QBH connector

    The module controls machine settings and filler wire feed speed.

  • Collimator module

    The collimator module is designed to level the laser beam.

  • Automatic wire feeder

    Based on the type of seam, the device features special nozzles as standard. It includes nozzles for working with filler metal wire.

Purchase procedure

  • Equipment selection

    We assist you in making your choice of a machine matching your needs

  • Sending invoice

    We agree on the complete set of the machine and sending the invoice with the final cost of the equipment.

  • Payment

    In full if the machine is in stock. 50% in advance 50% at the delivery if the machine is not in stock.

  • We check the machine

    The 3 step quality control: at the Wattsan factory, at our warehouse in the Netherlands, before the delivery.

  • Delivery or pick-up

    Either a transport company or you pick up the machine from our warehouse.

  • Launching equipment

    We are here to assist you whenever you need support.

Experiences from enthusiastic blogers

  • Riccardo Muscarella

    This laser engraver can engrave without any problem. How fast and easy it is able to customize products!

    Riccardo Muscarella Riccardo Muscarella
  • Matteo Moras

    Machine has a perfectly flat surface. It makes repetitive work easier for me!

    Matteo Moras Matteo Moras
  • Roberto D'Adago

    Great job done within an hour. Thanks to the speed of the laser CO2 machine.

    Roberto D'Adago Roberto D'Adago
  • Roger Jungo

    This model is great, and laser precision is crazy, it’s sharp as a razor!

    Roger Jungo Roger Jungo

Technical characteristics

Welding head weight:
1 kg
Fiber length:
10 m
Machine size:
880x560x1010 mm
Weight:
145 kg
Cooling:
water
Scan length range:
80 mm
Operating temperature range:
5-40 ℃
Laser power:
1500 W
Laser frequency:
up to 20 kHz
Operating mode:
CW
Weld depth:
3
Operating humidity range:
30-70 %
Laser source:
JPT
Laser wavelength:
1080 nm
Welding head:
Au3tech HWS5000L
Focal length:
150/600 mm
Collimator focal length:
50 mm
Protective lens:
20x3
Electric power supply:
220 V
Control system:
Au3tech HW970

Ask questions

  • The machines requires the minimum amount of consumables: nitrogen/argon and electricity, consumable electrodes are not required. Parts are welded without using a filler wire although it can be fed as an option.

  • The working surface does not need cleaning or polishing before and after welding. The surface cleanness is not so essential for laser welding as for MIG welding.

  • The laser welding machine suits for butt welds, fillet welds, T-welds, circumferential welds, ill-fitting items. The welding process results in a high-quality weld free from distortions and burn-through that does not require postweld treatment (due to a limited heat-affected zone).

  • The laser welding machine is able to weld: carbon steel, low-alloy steel, high-strength constructional alloys, stainless steels, aluminium, copper and brass alloys, titanium, plastics, dissimilar materials. Quick adjustment for a new material is available. Laser welding is easily integrated in a manufacturing process.

  • Laser welding is much more fire-safe as compared to traditional welding processes, no molten metal and hazardous sparks are ejected during welding. This makes labour conditions more comfortable.
