Laser machine Wattsan 1820 CAM Conveyor PRO DUAL

Working area:: 1800x2000 mm
Laser power:: 150-180 W
Positioning precision:: 0.01 mm
Machine size:: 3800 x 2300 x 2600 mm
Packing size:: 3680 x 2300 x 1600 mm
Weight:: 1300 kg

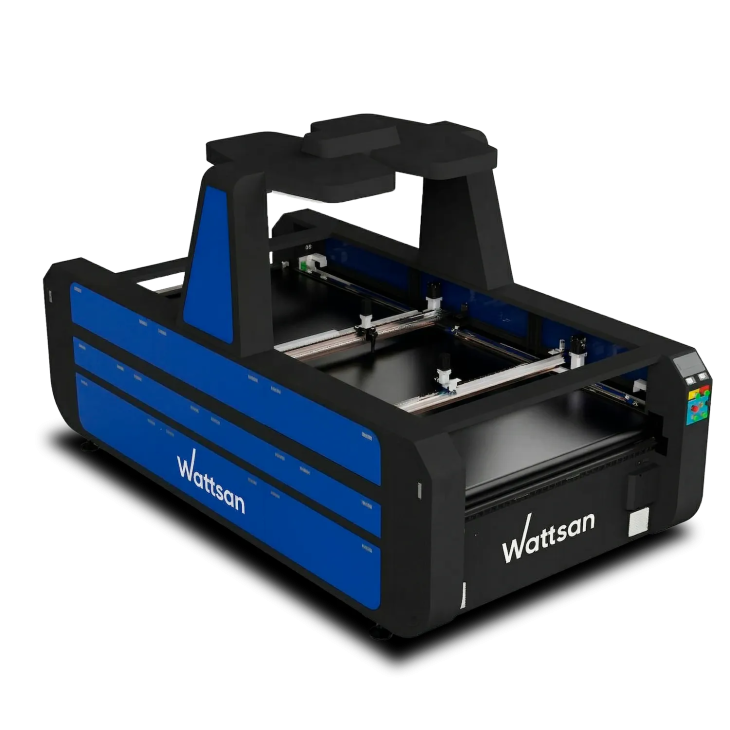

Laser Cutter for Fabric & Leather Wattsan 1820 CAM Conveyor PRO DUAL

Scanning camera
High performance
Conveyer table

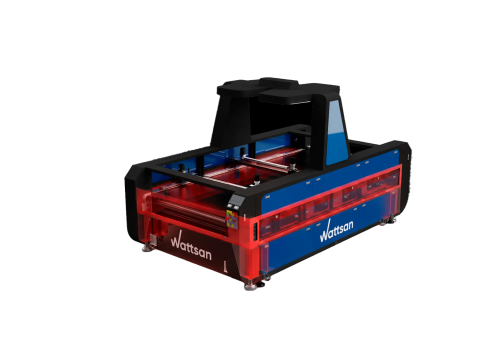

Framed structure
Lifelong support

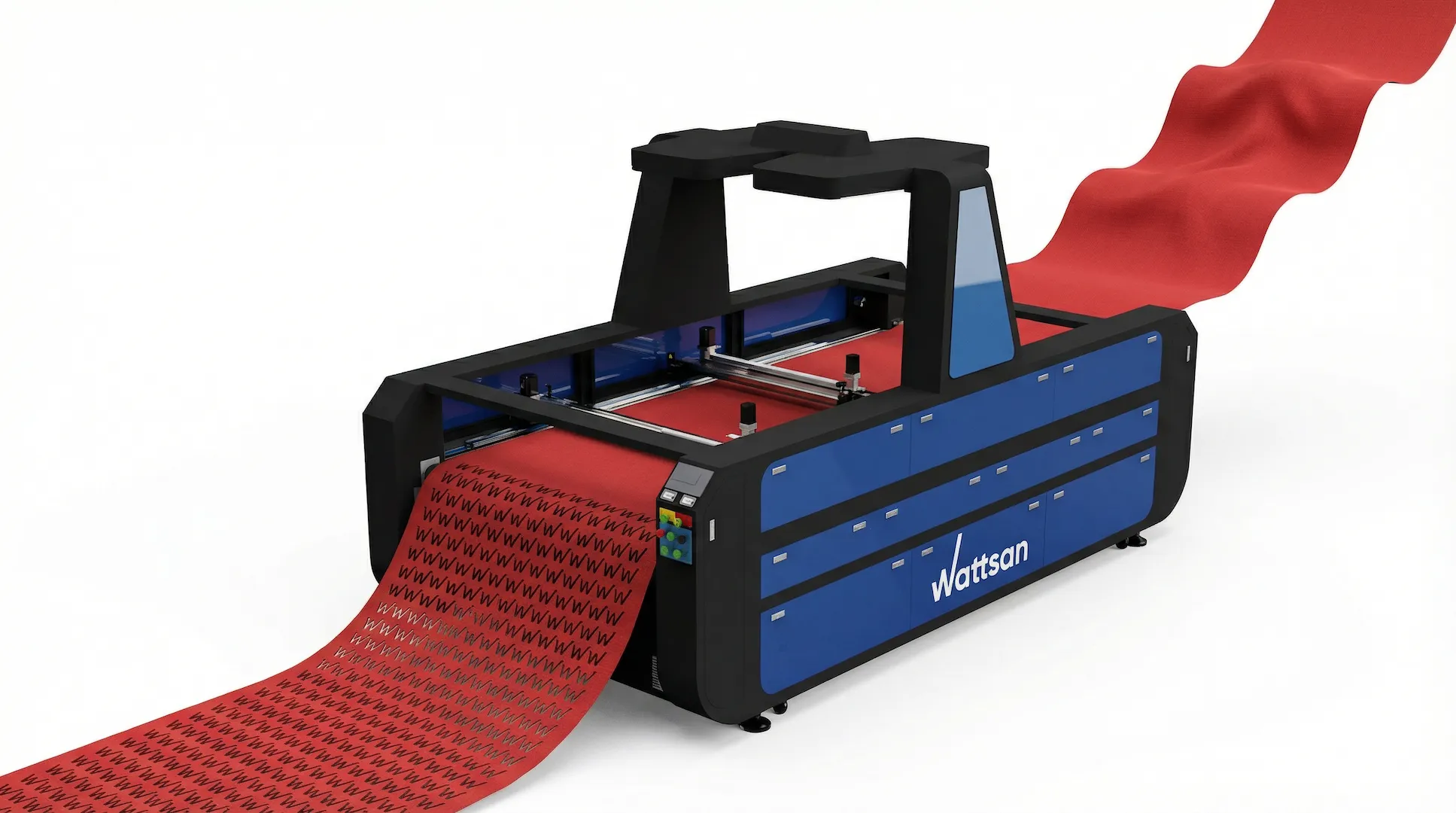

Wattsan 1820 Cam Conveyor PRO Dual for fast cutting

Its 1800 × 2000 mm conveyor workspace features two independent gantries working simultaneously, doubling productivity and reducing production time. An industrial CCD camera scans the surface, detects edges, extracts contours, and matches registration marks for precise alignment and accurate cutting across the full area.

Lenze servo motors drive both gantries at speeds up to 1200 mm/s, ensuring smooth motion and minimal idle time. The rigid gantry structure maintains stable positioning and consistent accuracy during continuous operation.

A 150–180 W CDWG laser tube provides stable power for clean cutting of non-metallic materials. Combined with servo motion and camera-based positioning, the system ensures precise contour cutting and repeatable results.

Materials

– cutting
– engraving

Wool
Resin
Marble
Granite
Bamboo products
Crystale jade
Ceramic tile
Paronite
Stone
Glass
MDF
Foam rubber
Polyethylene foam
Plexiglass (Acrylic)
Fabric
Leather
Rubber
Plastic
Cardboard
Plywood
Wood

Wattsan laser machinesare thoughtfully designed

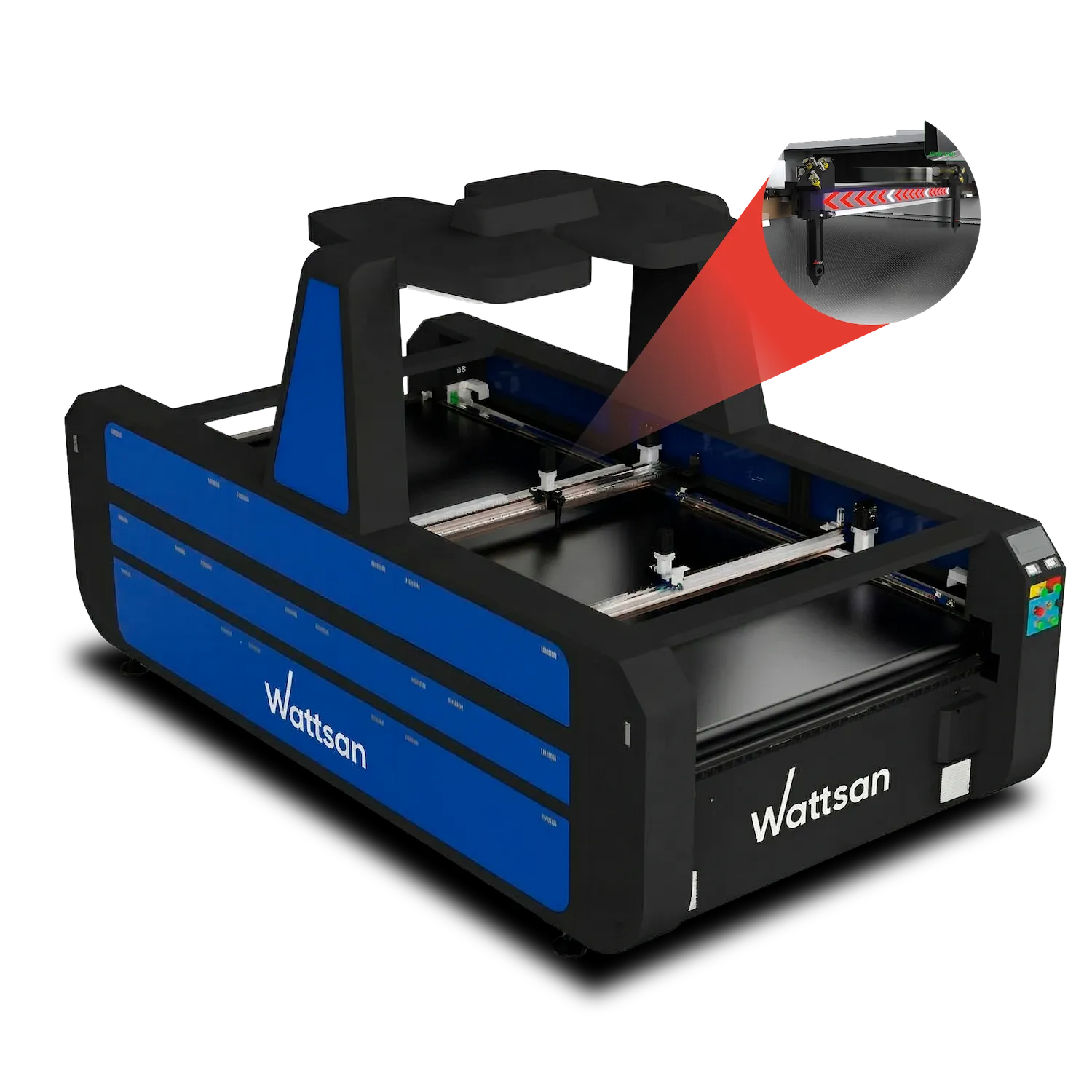

Lenze Servo Motors

Process fabrics and roll materials at speeds up to 1200 mm/s, minimizing downtime and maximizing productivity.

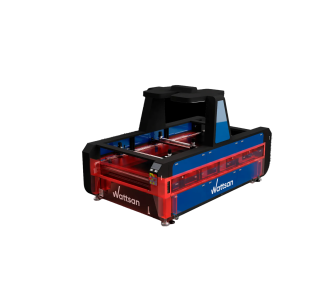

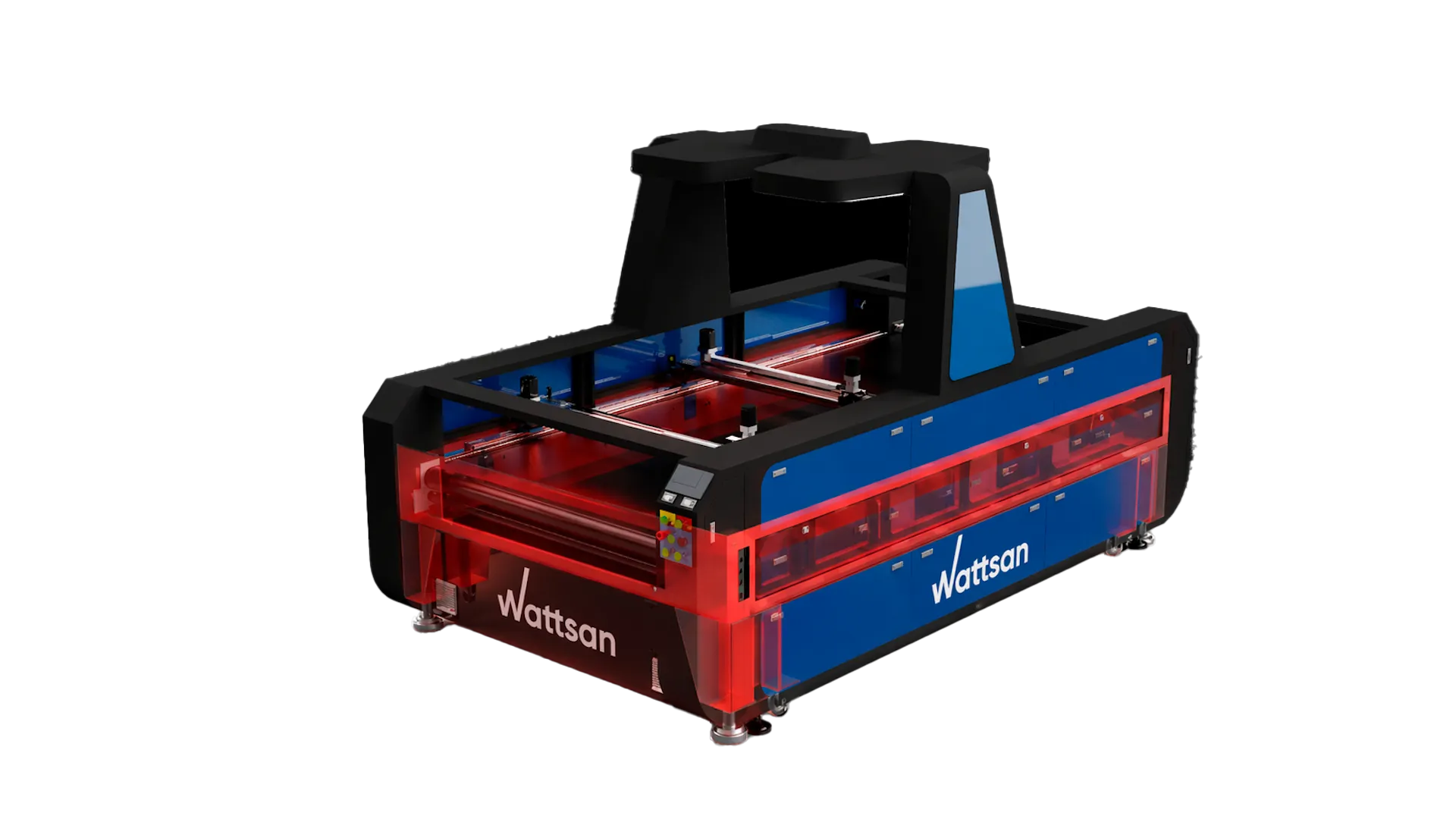

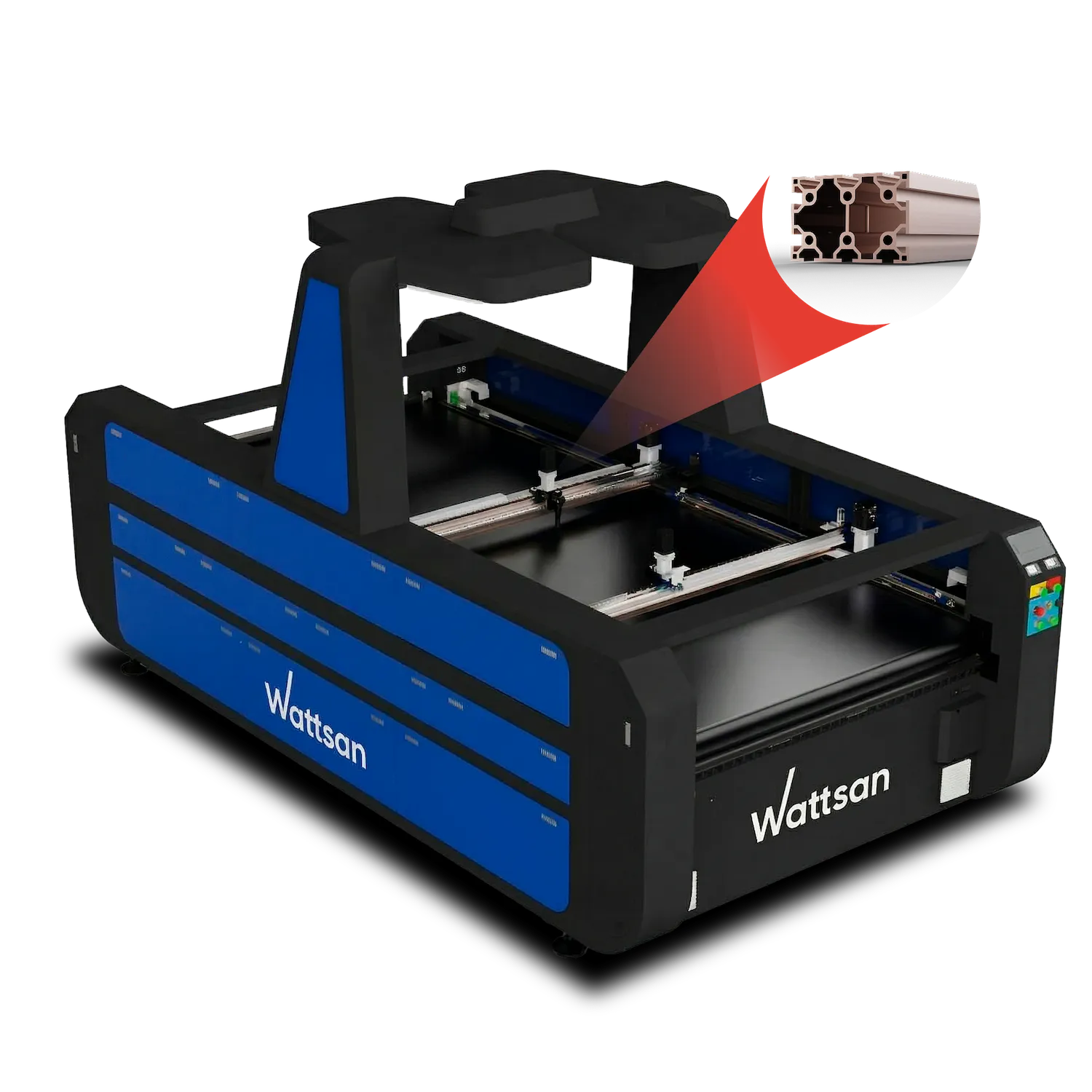

Lightweight Rigid Gantry

A large aluminum gantry maintains precision at high speeds, ensuring smooth and stable motion across the entire work area.

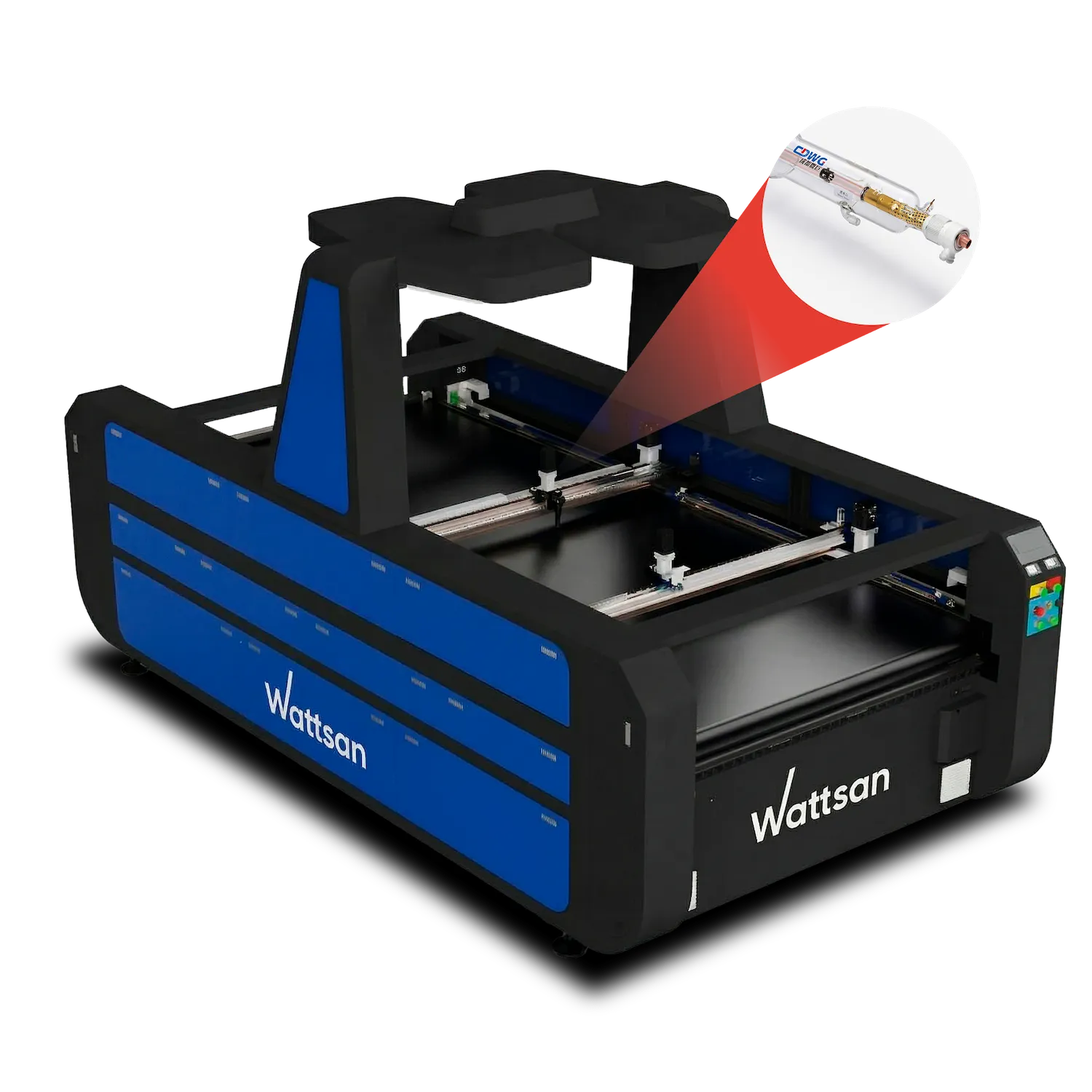

CDWG Laser Tube

Outfitted with a 150–180 W CDWG laser tube, the system processes and engraves non-metallic materials up to 25 mm thick. Working with the conveyor table and servo-driven mechanics, it efficiently handles fabric, leather, faux leather, and other roll-based materials.

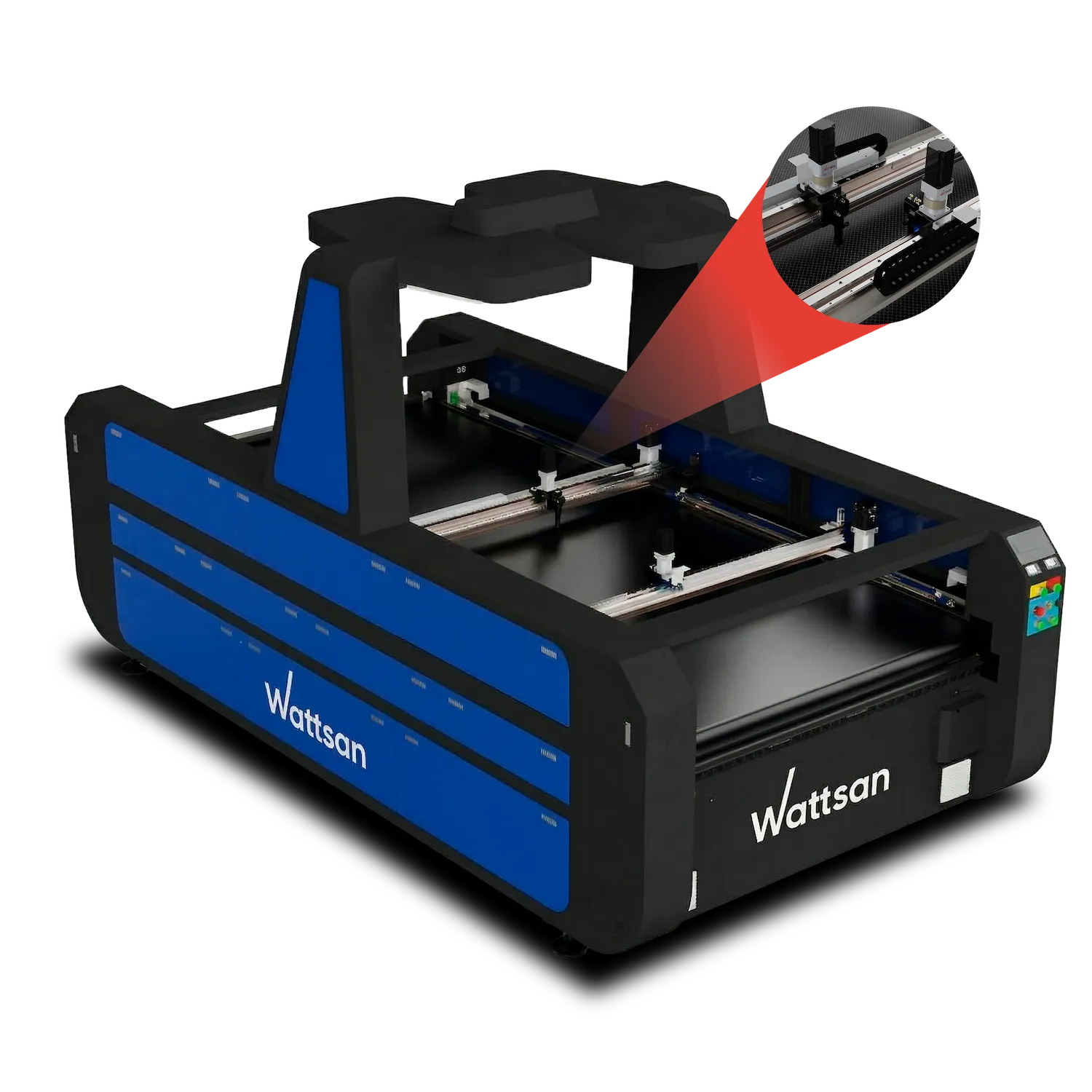

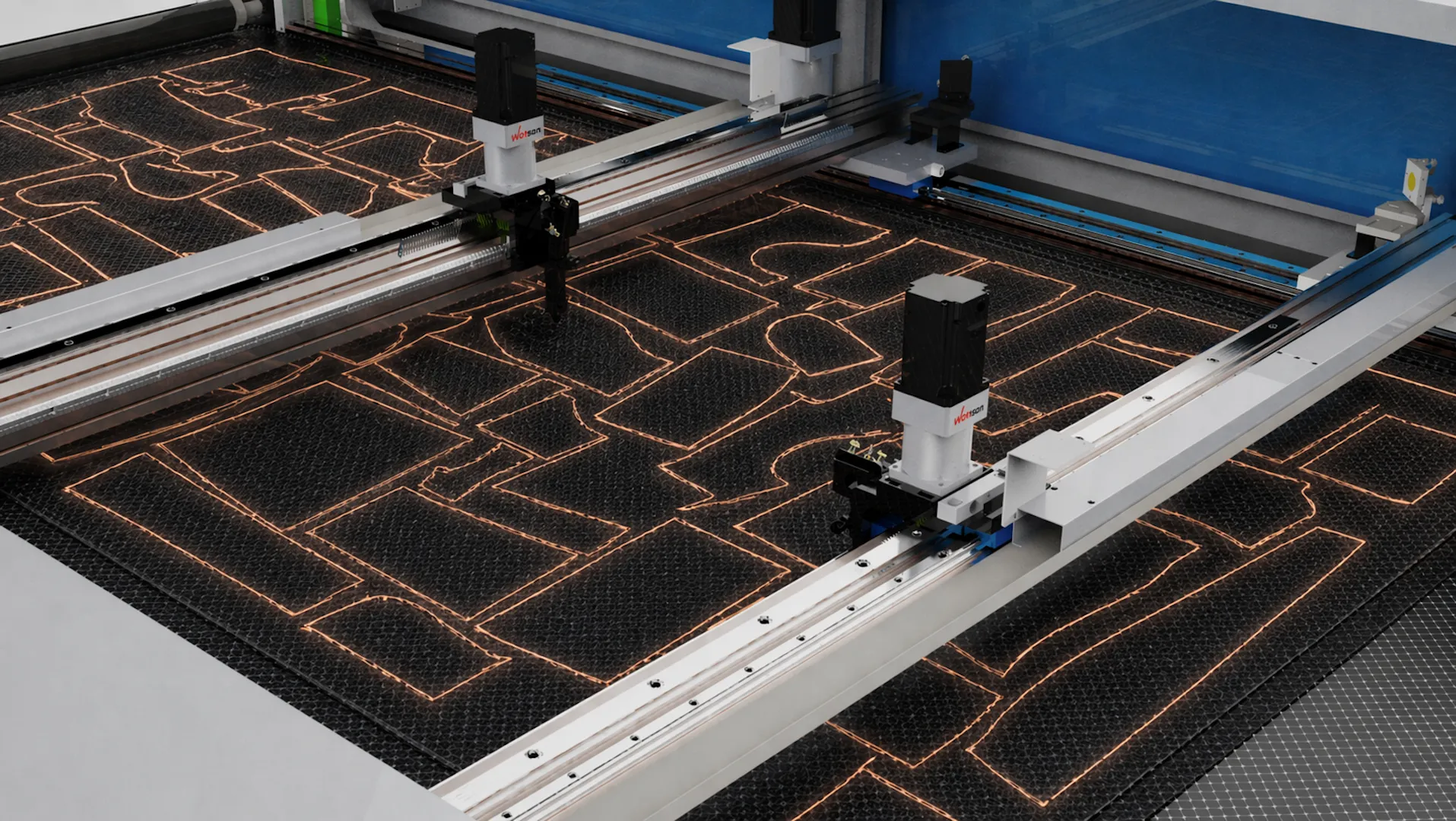

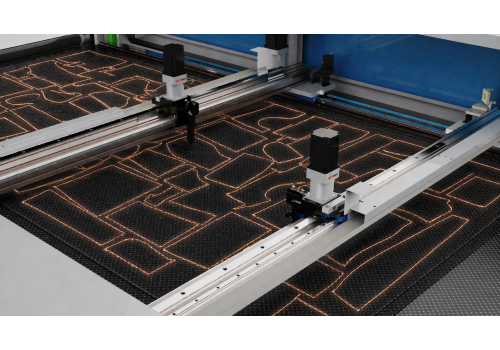

Dual Independent Gantries

Controlled by the Trocen TL5269 intelligent system, two independent gantries operate simultaneously in separate zones of the work area, effectively cutting production time in half.

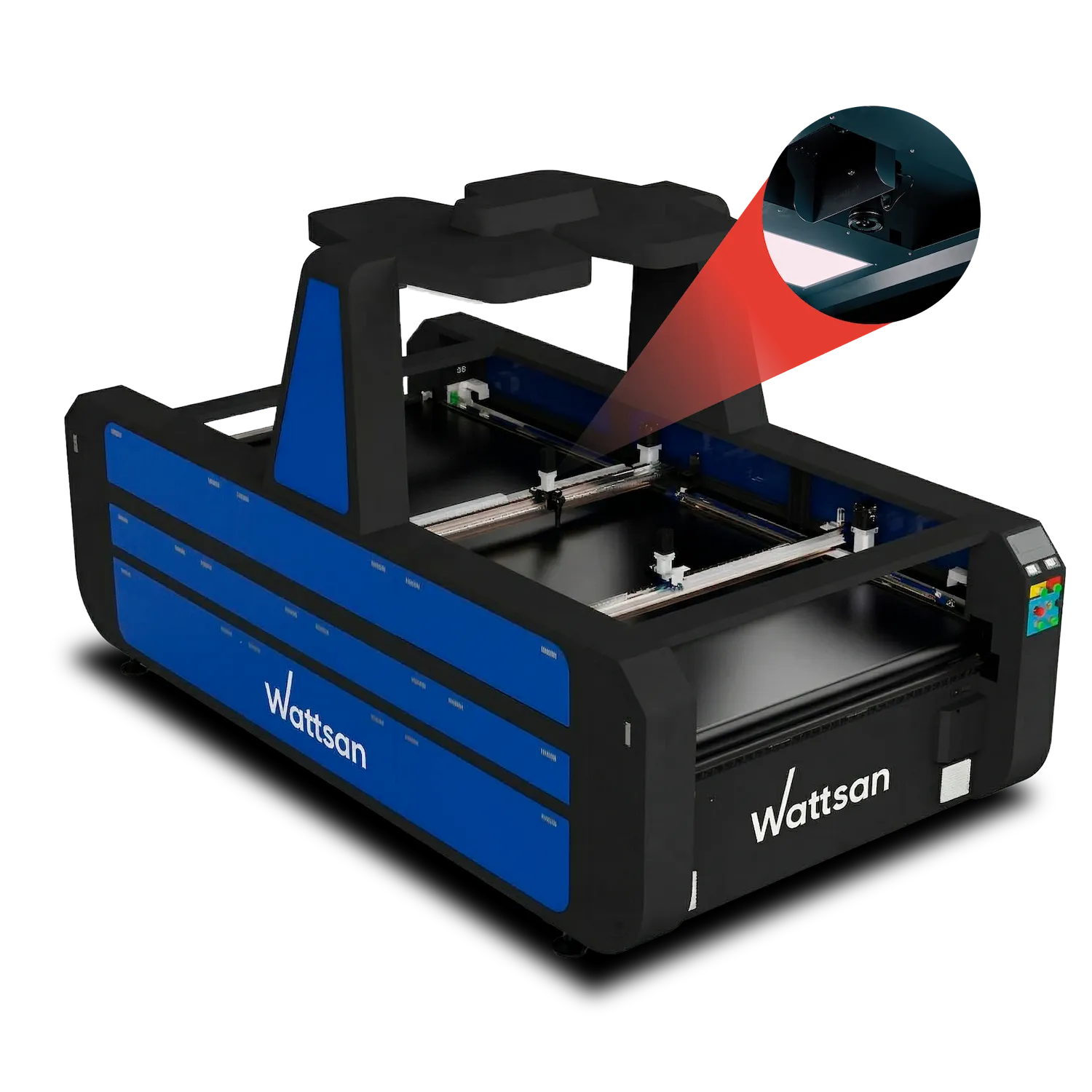

Machine vision for Recognition and Perfect Alignment

A high-resolution industrial CCD camera enables precise processing of large-format materials with automatic recognition and cutting. It can simultaneously capture design contours or align elements across the entire work area.

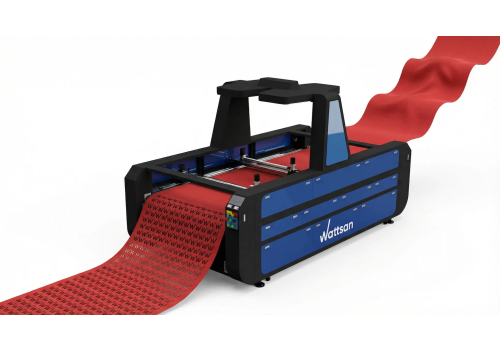

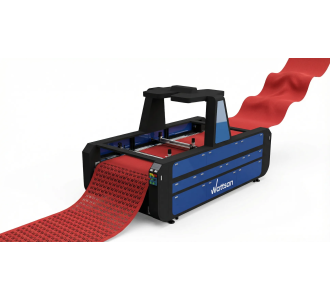

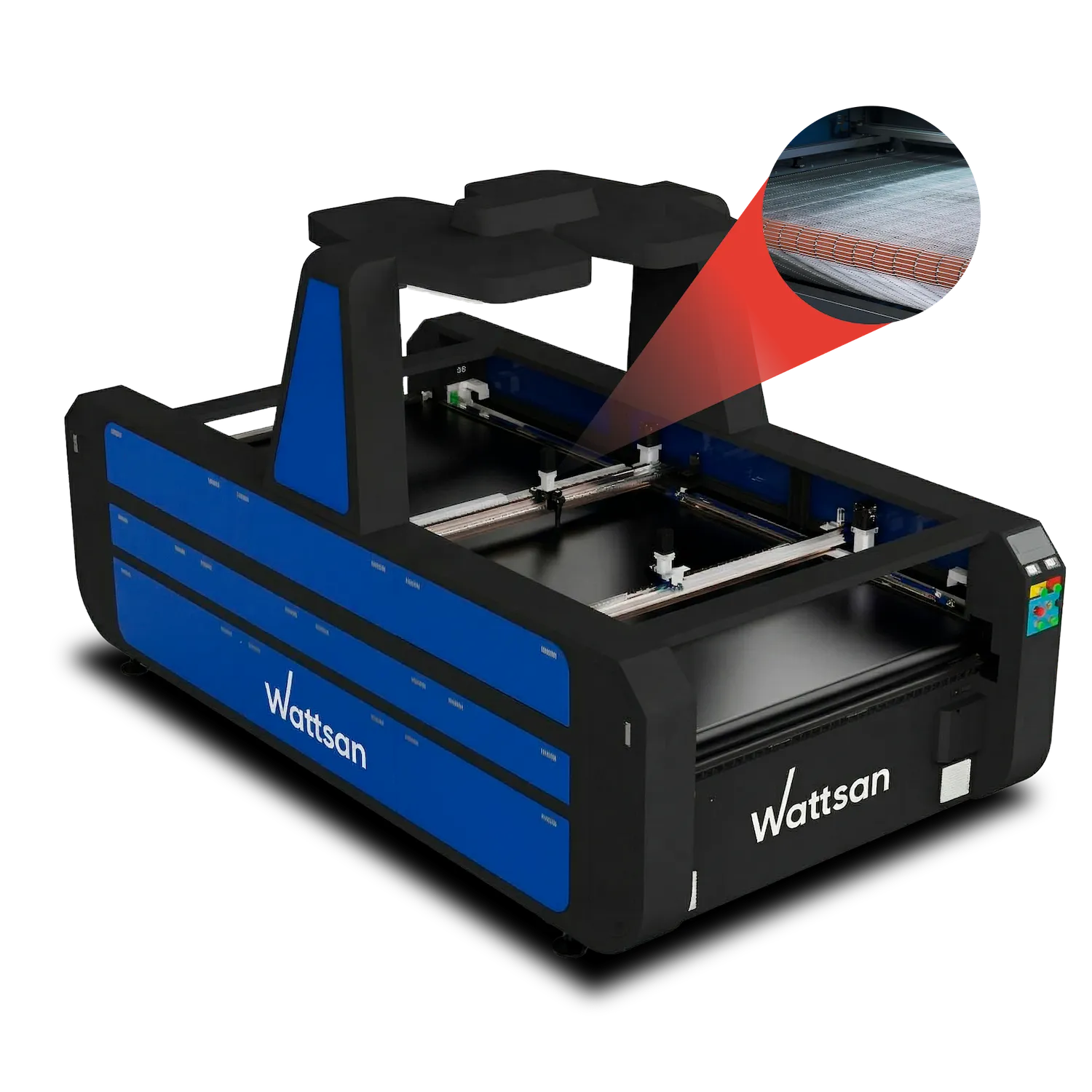

Conveyor Table

The conveyor system spreads material evenly across the work area, allowing uninterrupted cutting of fabrics and other roll-fed materials.

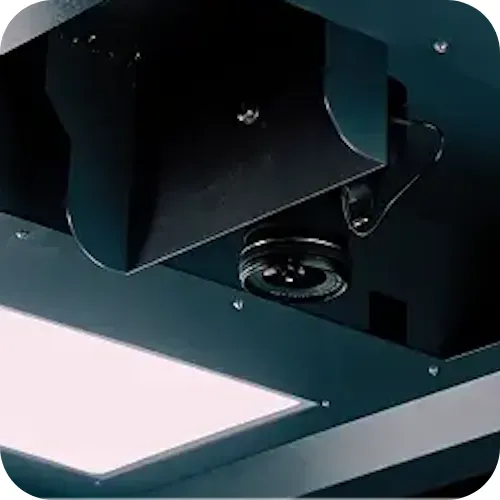

CCD Vision System for Precise Automated Cutting

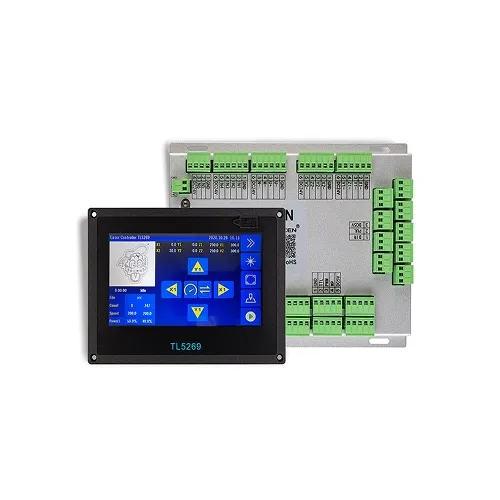

The integrated CCD camera and Trocen Laser Vision software automate contour detection, registration mark recognition, and edge matching across the full work area, enabling accurate, uninterrupted cutting with nesting, corner smoothing, and multi-point positioning.

An integrated vision system detects material contours and registration marks across the full work area, enabling fully automated, high-precision cutting.

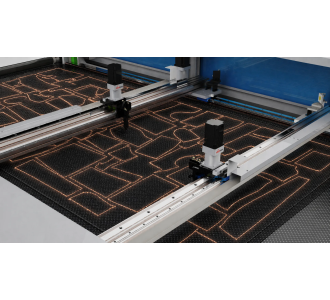

Enables automatic edge detection and pattern matching for uninterrupted cutting workflows. Features include layout nesting, corner smoothing, and multi-point positioning for handling complex tasks.

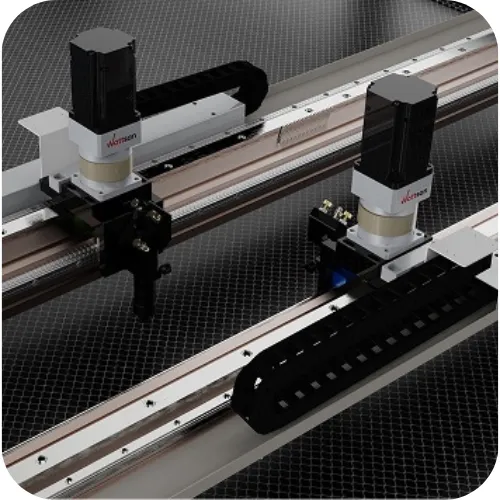

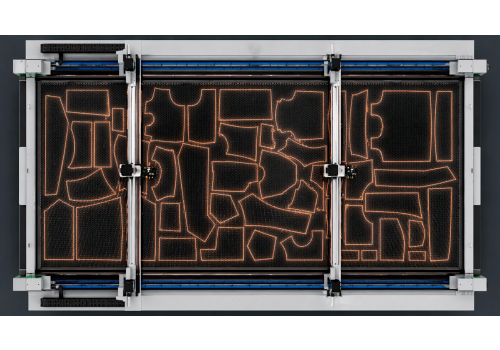

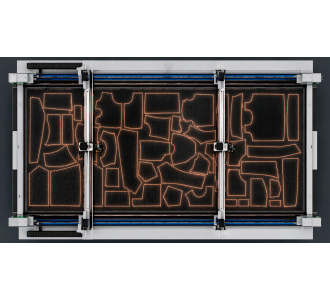

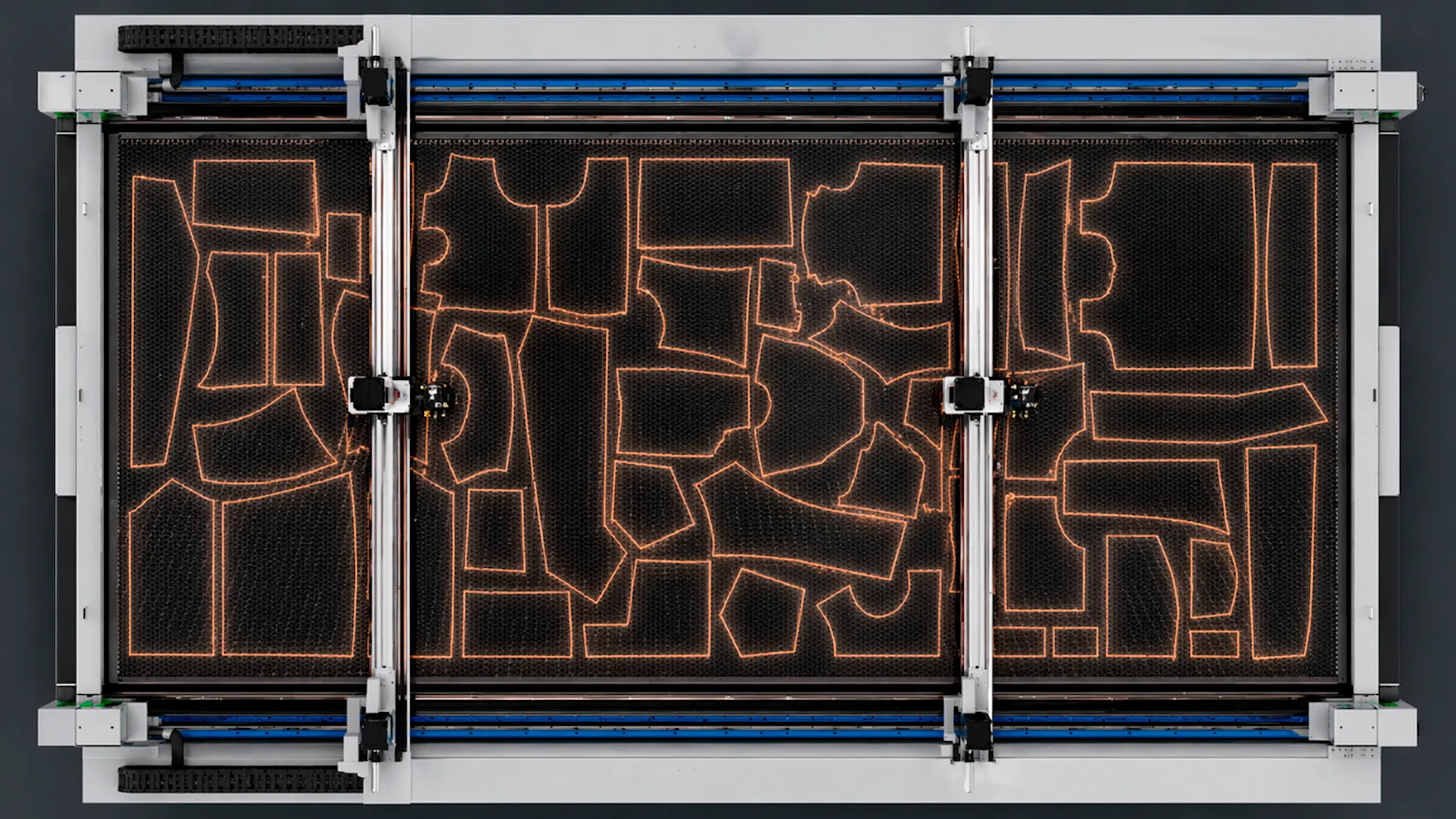

Dual Gantries and Asynchronous by Design

Two independent gantries operate in parallel across separate zones of the table, simultaneously processing different areas and increasing output by up to two times.

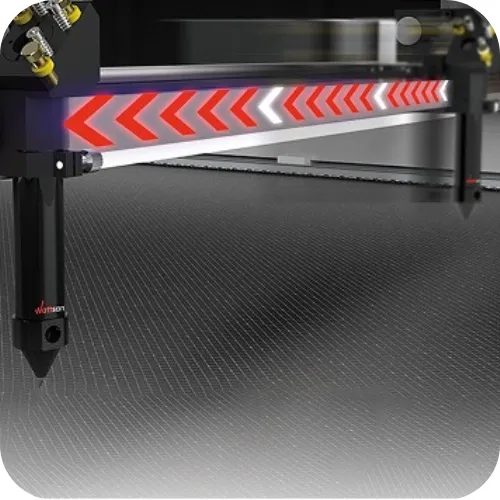

More Power, Higher Speed

Multiple servo motor systems provide strong torque for fast acceleration up to 1200 mm/s and quick deceleration, maintaining precise cutting performance throughout the process.

Wattsan - designed and engineered for business owners

Purchase procedure

Equipment selection

We assist you in making your choice of a machine matching your needs
Sending invoice

We agree on the complete set of the machine and sending the invoice with the final cost of the equipment.
Payment

In full if the machine is in stock. 50% in advance 50% at the delivery if the machine is not in stock.
We check the machine

The 3 step quality control: at the Wattsan factory, at our warehouse in the Netherlands, before the delivery.
Delivery or pick-up

Either a transport company or you pick up the machine from our warehouse.
Launching equipment

We are here to assist you whenever you need support.

Experiences from enthusiastic bloggers and clients

I recently purchased the Wattsan metal cutter, and I am thoroughly impressed. Customer support was very helpful throughout the process.

Martin Todorov
This laser engraver can engrave without any problem. How fast and easy it is able to customize products!

Riccardo Muscarella
The Wattsan metal cutter exceeded my expectations. It’s very precise and easy to operate. Perfect for my workshop projects. Delivery was smooth, and customer service was very responsive. A great investment!

Emma Rossi
Machine has a perfectly flat surface. It makes repetitive work easier for me!

Matteo Moras
Fantastic quality and performance! The Wattsan metal cutter is powerful and reliable, making my work much more efficient. I’m very happy with this purchase. Highly recommended!

Lucas Schmidt
Great job done within an hour. Thanks to the speed of the laser CO2 machine.

Roberto D'Adago
This model is great, and laser precision is crazy, it’s sharp as a razor!

Roger Jungo

Packing size:: 3680 x 2300 x 1600 mm

Weight:: 1300 kg

Machine size:: 3800 x 2300 x 2600 mm

Through table:: Yes

Working area:: 1800x2000 mm

Materials:: Plywood, Plastic, Paronite, Resin, Rubber, Organza, Jade, Leather, Linen, MDF, Granite, Tweed, Wood, Acrylic, Bamboo, Ceramic tile, Chiffon, Chipboard, Silk, Stone, Wool, Fabric, Faux leather, Foam rubber

Laser power:: 150-180 W

Laser tube lifetime:: 10000 h

Laser tube:: CDWG

Focal length:: 63.5 mm

Positioning precision:: 0.01 mm

Laser type:: CO2

Diameter of mirrors:: 25 mm

Engraving speed:: up to 1200 mm/s

Second laser head:: Yes

Cooling:: Water, chiller CW-6000

Outline scanning camera:: Yes

Cutting speed:: up to 1200 mm/s

Engine on X and Y:: Lenze servo motor

Electric power supply:: 220, 100 V

Type of end sensors:: Omron, Inductive

Power consumption:: 5000 W

File transfer:: USB, LAN

Supported format:: JPG, AI, PLT, JIF, DXF, SVG, PNG, UD5, PDF, DST, DSB, BMP

Control system:: Trocen TL-5269

Software:: Trocen LaserVision

Power electrics:: Zhongtai

Included kit

USB flash drive
Hex wrench set
Manual
Air compressor
Water pump
Ethernet cable
Power cable
USB cable
Silicone sealent
Masking tape
Silicon tube set

Frequently Asked Questions

First of all you should decide what are you going to use the machine for, what kind of material would it be and it's size (length and thickness). This will help determine the required power of the laser tube as well as the size of the working area. You can also write or call us, we will be happy to help you choose the right machine for your tasks and budget
Laser engraving machine is a piece of computer numerical control (CNC) equipment that uses a laser beam to engrave necessary graphic information (image or inscriptions) on various surfaces.
Engraving is the effect on the material in depth. Marking on the other hand only changes the color of the material.
Using CO2 laser machine you can engrave any type of wood materials: solid wood, plywood, MDF and others.
