Laser machine Wattsan 1820 Conveyor PRO Dual

Working area:: 1800x2000 mm
Laser power:: 150-180 W
Positioning precision:: 0.01 mm
Machine size:: 3800 x 2300 x 1450 mm
Packing size:: 3750 x 2300 x 1600 mm
Weight:: 1300 kg

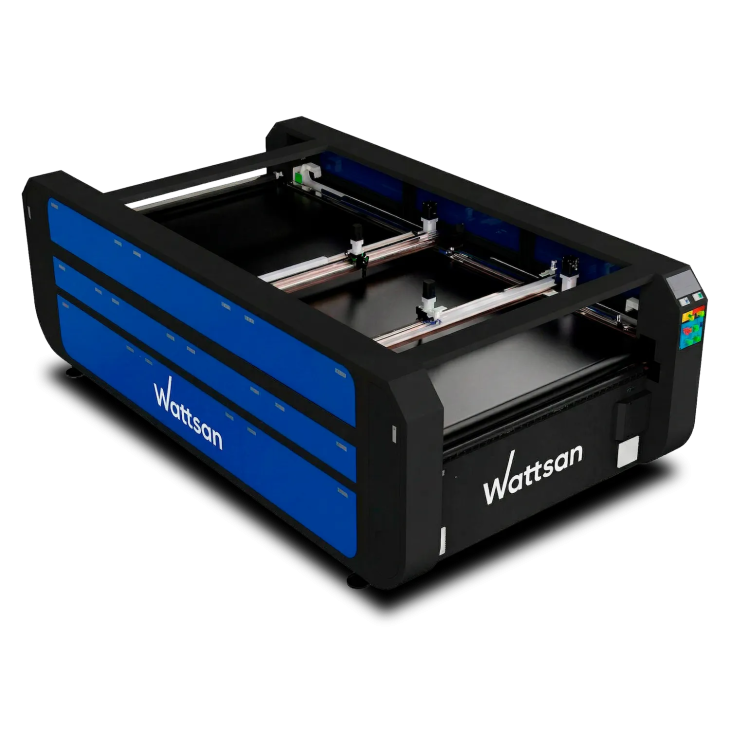

Laser Cutter for Fabric & Leather Wattsan 1820 Conveyor Dual

High performance
Conveyer table

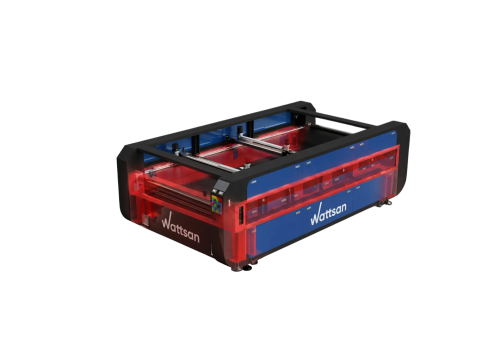

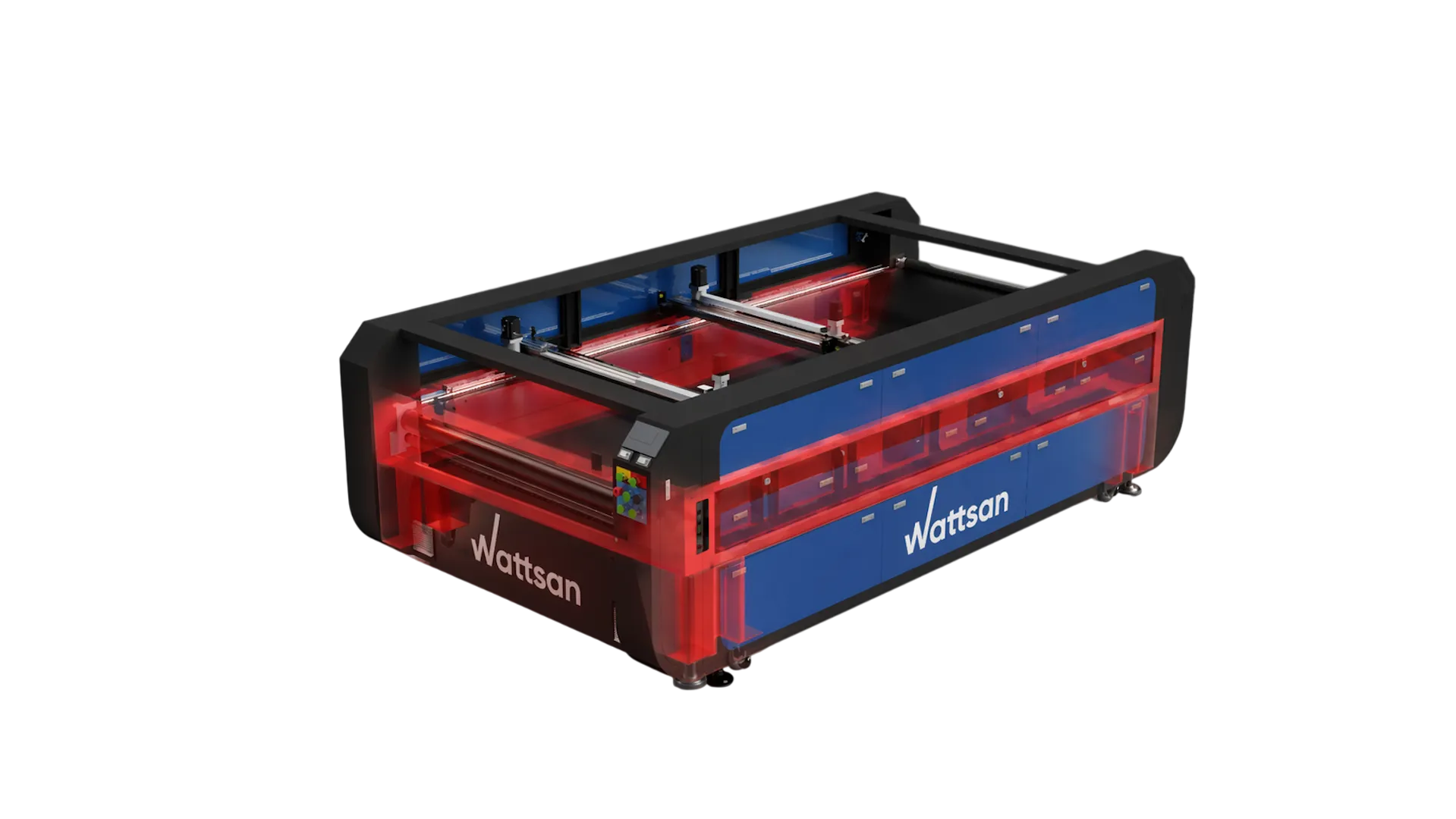

Framed structure
Lifelong support

Wattsan 1820 Conveyor PRO Dual for maximum output

Its 1800 × 2000 mm conveyor work area features two fully independent gantries operating asynchronously, enabling simultaneous cutting across the entire surface. Controlled by the Trocen TL5269 system, the machine processes leather, faux leather, linen, tweed, wool, silk, chiffon, organza, and other flexible materials with high stability and precision, effectively doubling output.

Both gantries are driven by Lenze servo motors, reaching speeds up to 1200 mm/s with smooth motion and minimal idle time. The rigid dual-gantry structure ensures stable performance even under intensive workloads.

A 150–180 W CDWG laser tube delivers stable power for clean cutting of non-metallic materials. Combined with conveyor feeding and servo-driven mechanics, the system обеспечивает continuous processing with consistent edge quality and repeatable results.

Materials

– cutting
– engraving

Wool
Resin
Marble
Granite
Bamboo products
Crystale jade
Ceramic tile
Paronite
Stone
Glass
MDF
Foam rubber
Polyethylene foam
Plexiglass (Acrylic)
Fabric
Leather
Rubber
Plastic
Cardboard
Plywood
Wood

Wattsan laser machinesare thoughtfully designed

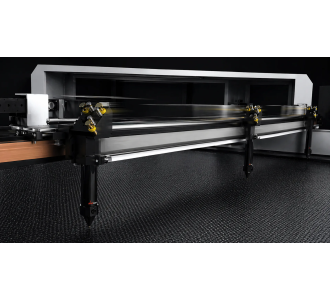

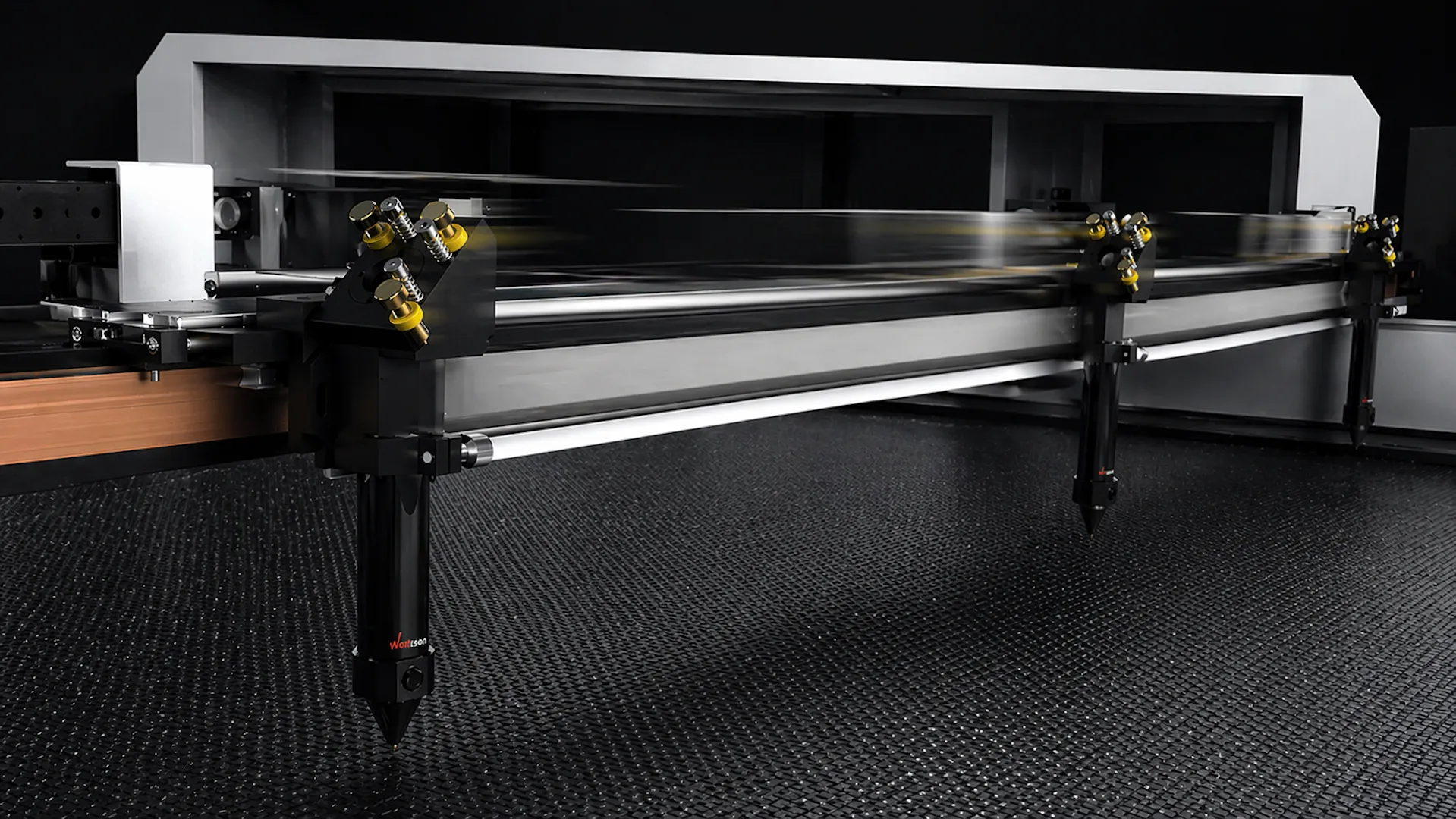

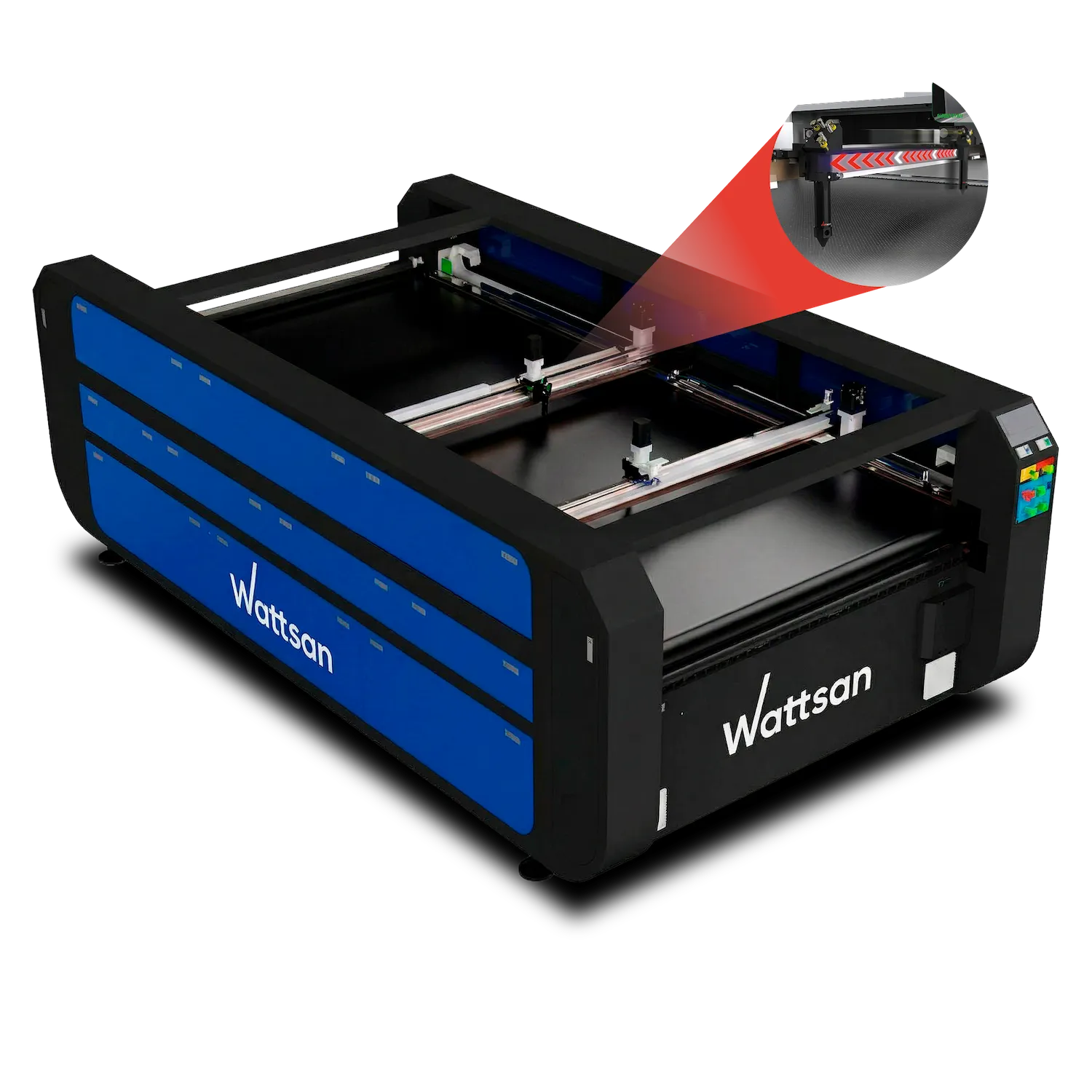

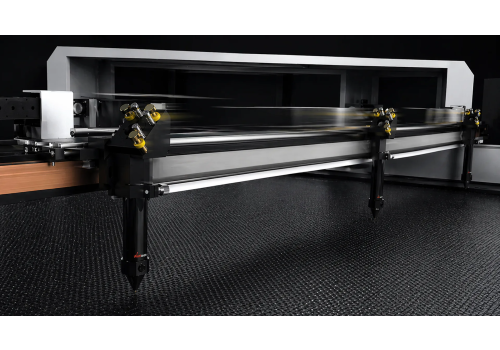

Lenze Servo Motors

Process fabrics and roll materials at speeds up to 1200 mm/s, boosting productivity while minimizing downtime — efficiency that makes every second count.

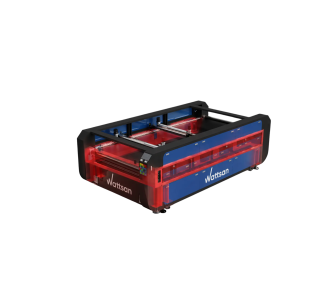

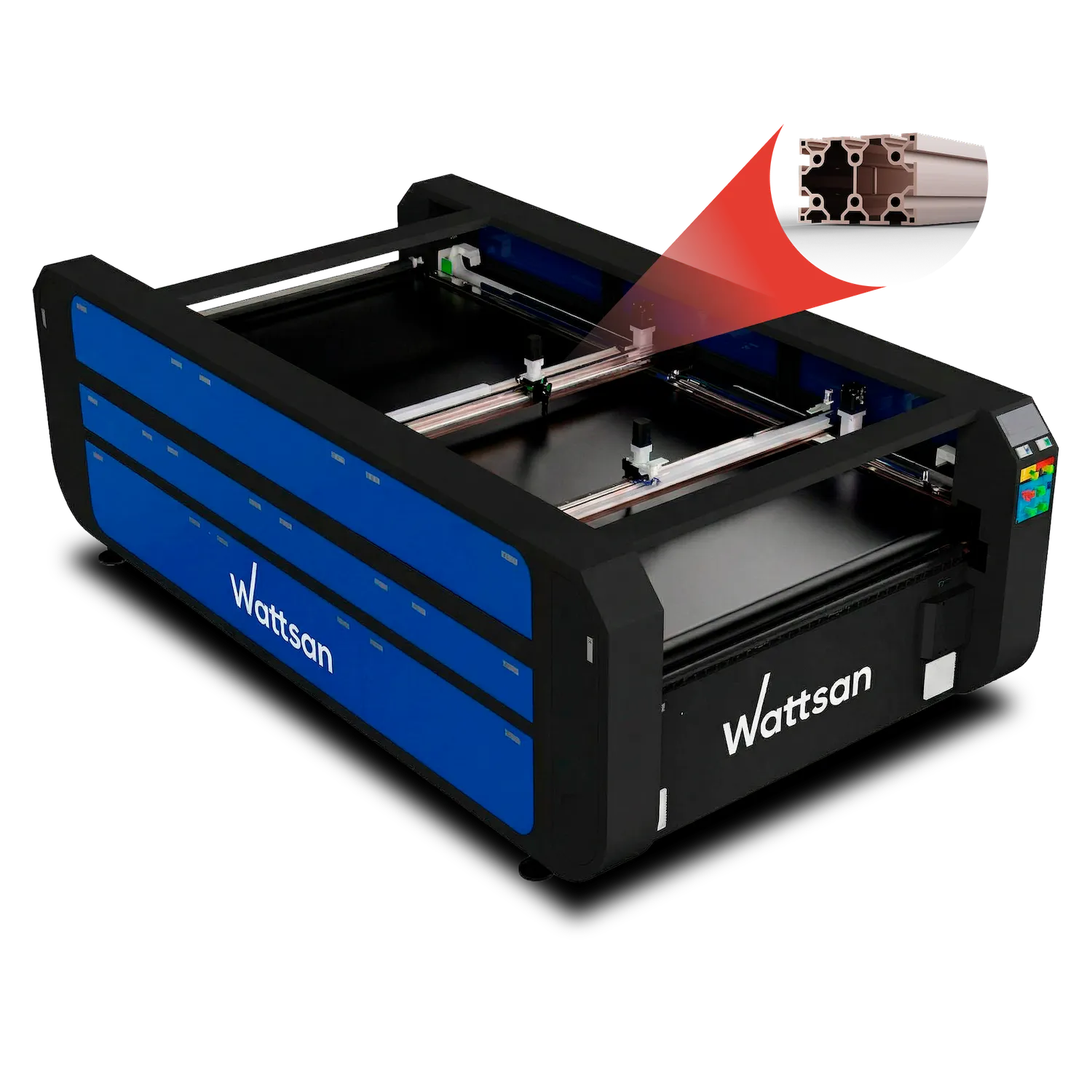

Lightweight Rigid Gantry

A large-format aluminum gantry maintains precise cutting at high speeds, ensuring smooth and stable movement across the entire working area.

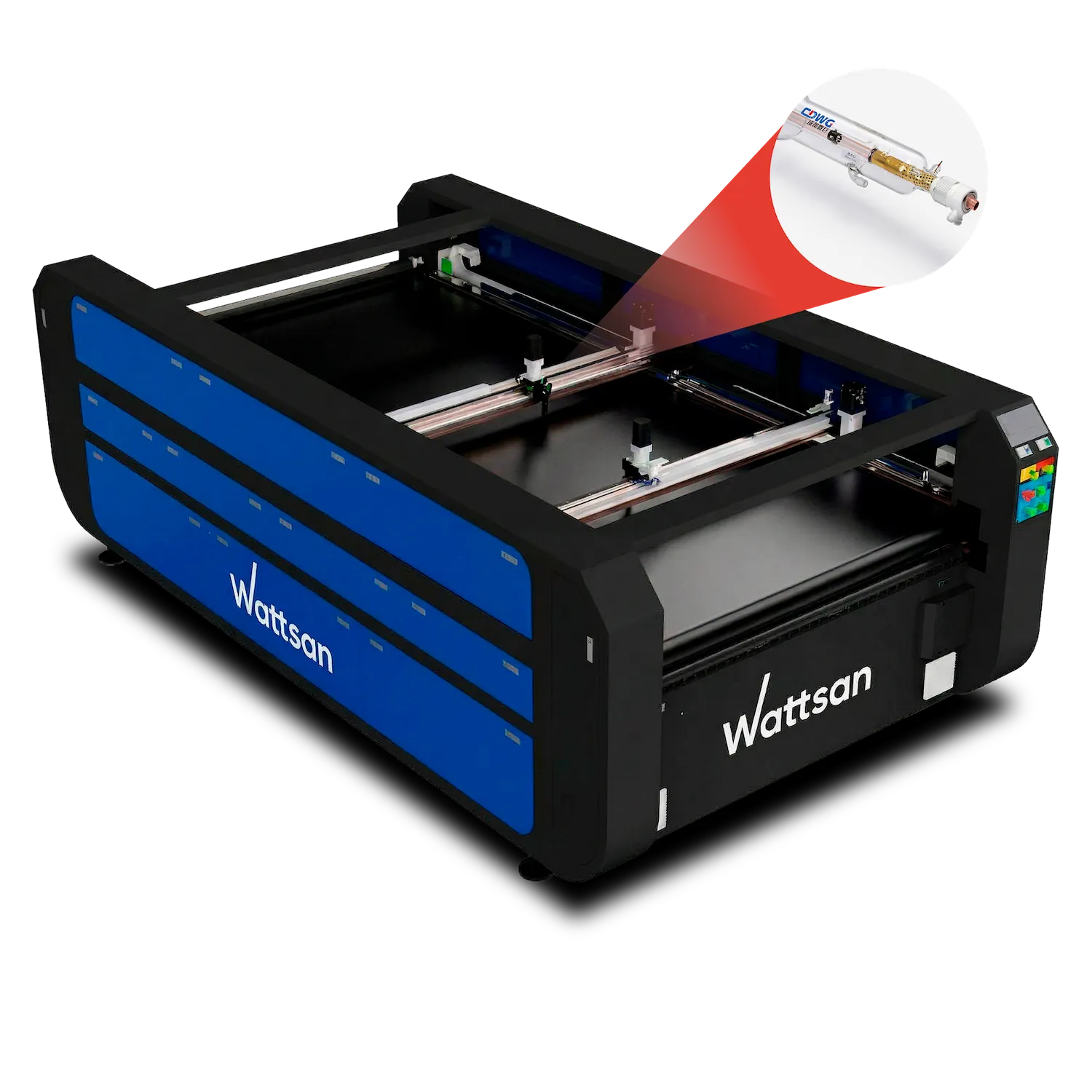

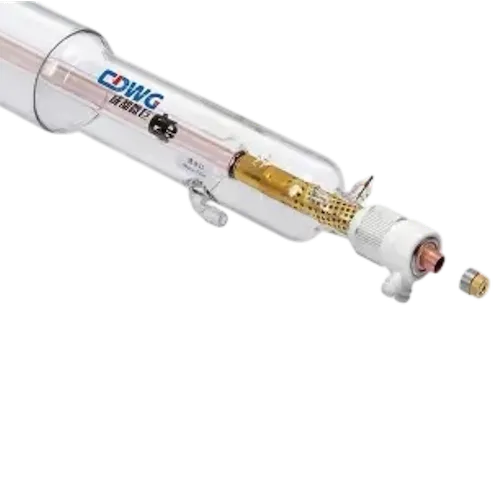

CDWG Laser Tube

Fitted with a 150–180 W CDWG laser tube, the machine cuts and engraves non-metallic materials up to 25 mm thick. Working together with the conveyor table and servo-driven system, it processes fabric, leather, faux leather, and other roll materials smoothly and efficiently.

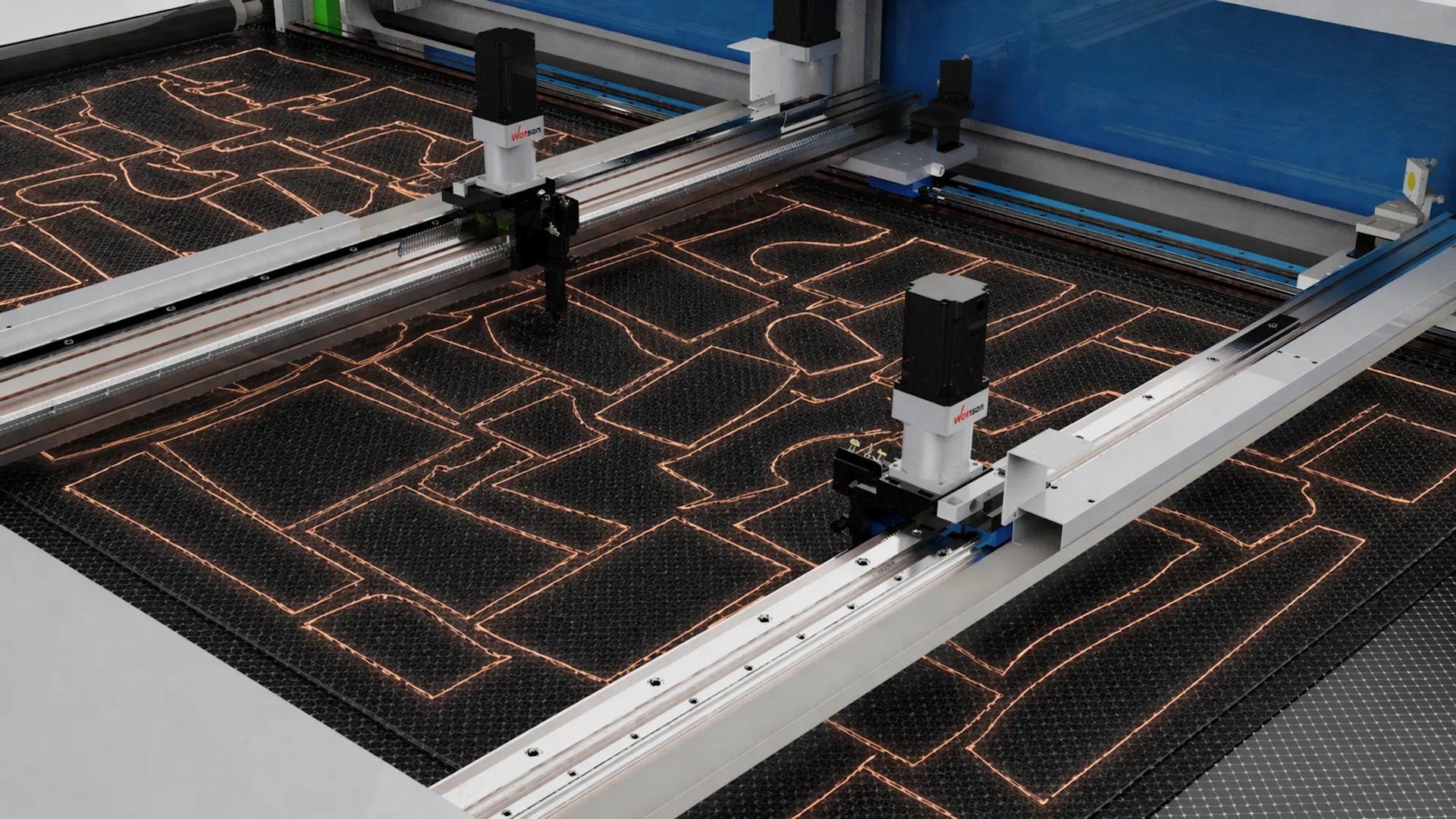

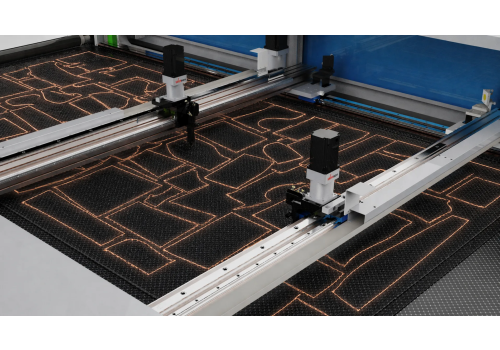

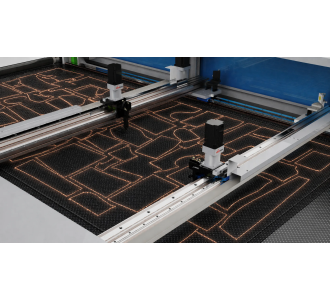

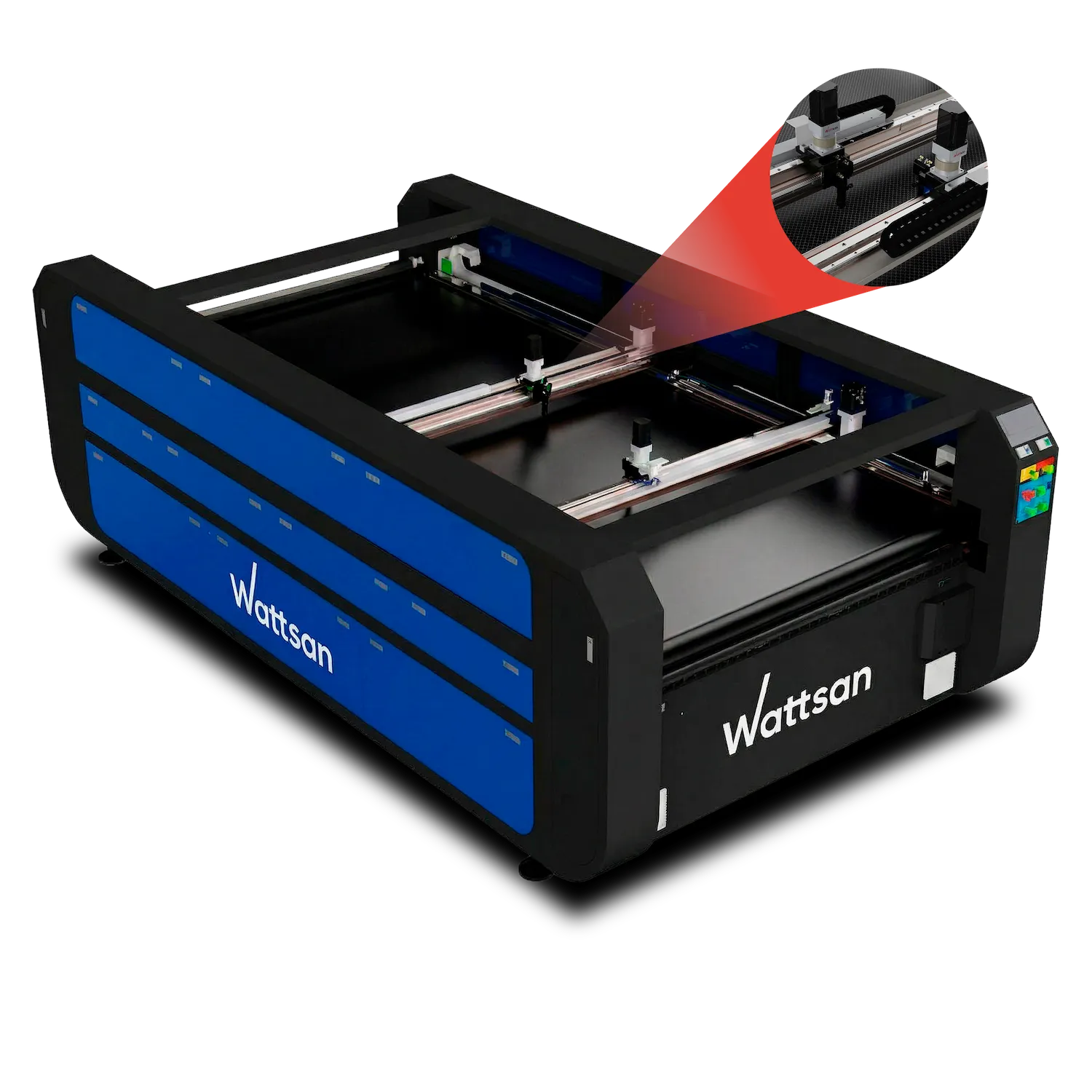

Dual Independent Gantries

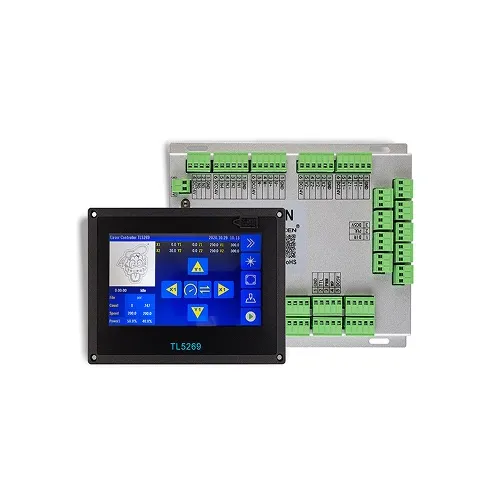

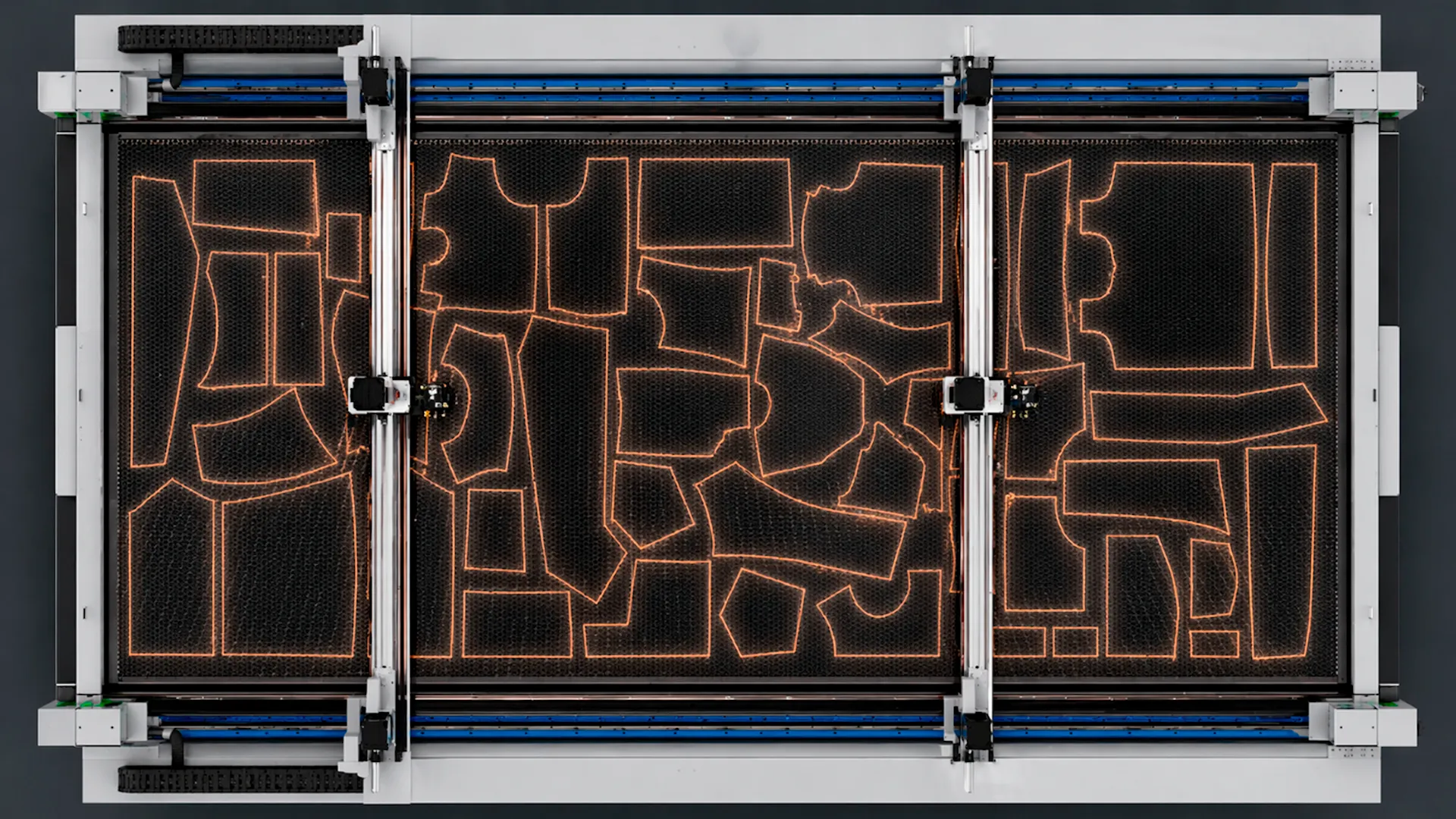

Driven by the Trocen TL5269 intelligent control system, two independent gantries work simultaneously in separate zones of the table, significantly reducing overall production time.

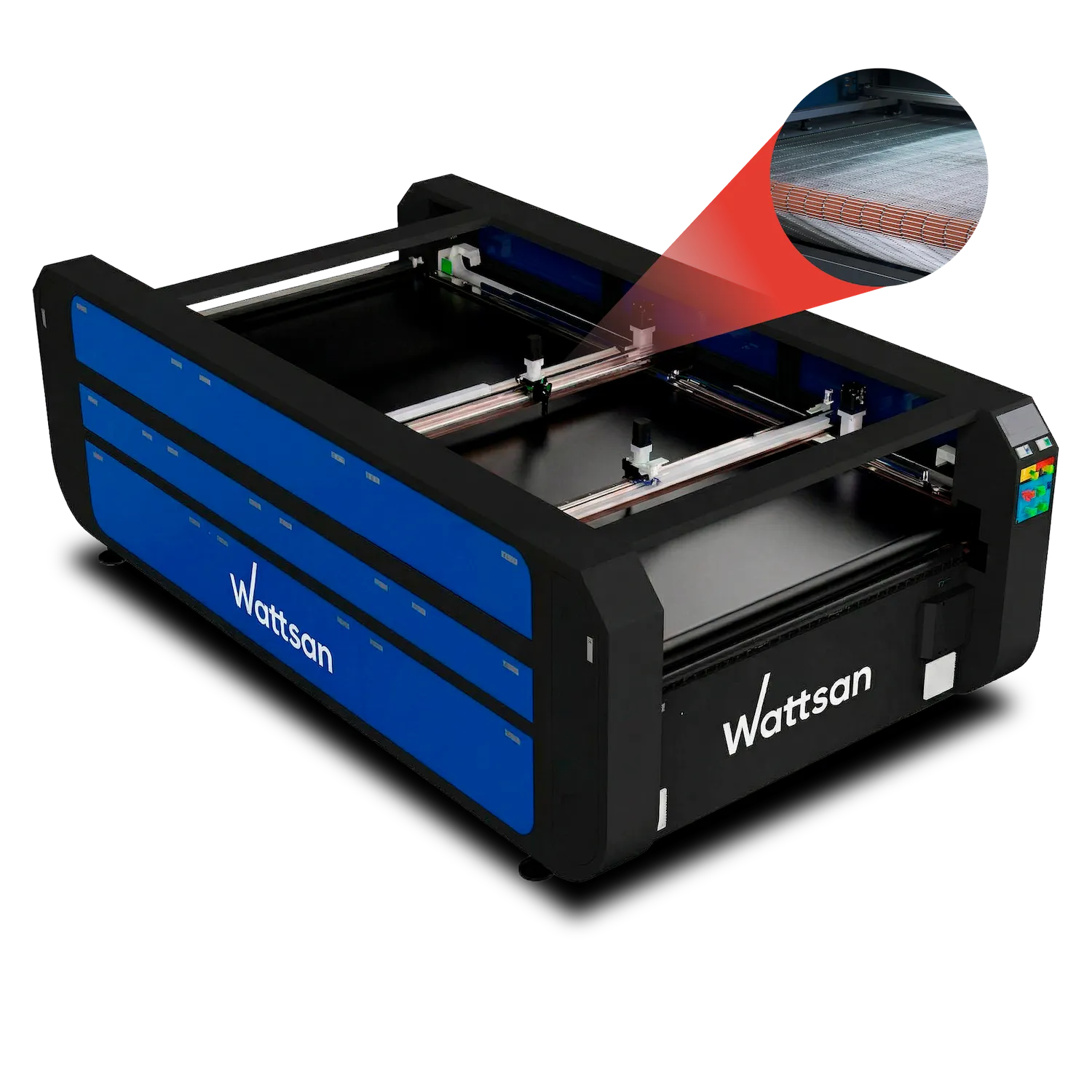

Conveyor Table

The conveyor system evenly feeds material across the work area, enabling uninterrupted cutting of fabrics and other roll-based materials.

Stable Laser Power with Flexible CAD Software

Trocen Laser CAD software supports a wide range of file formats and includes plugins for CorelDRAW, AutoCAD, and Adobe Illustrator, while the 150–180 W CDWG laser tube provides stable power for clean edges and reliable cutting at high speeds.

A Windows-based motion control software with support for a wide range of file formats, including G-code, AI, SVG, PDF, DXF, PLT, DST, DSB, UD5, BMP, JIF, JPG, PNG, and more. Built-in plugins for CorelDRAW, AutoCAD, and Adobe Illustrator are included.
The 150–180 W CDWG tube ensures stable power output for smooth edges and reliable cutting quality even at maximum processing speeds.

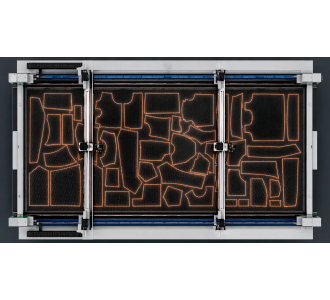

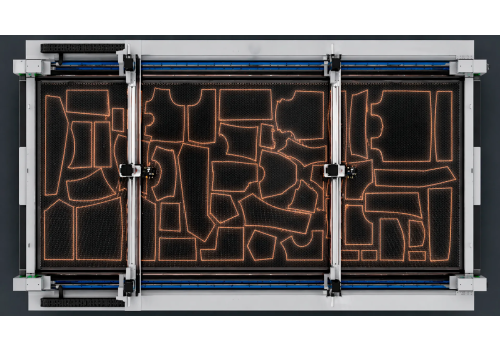

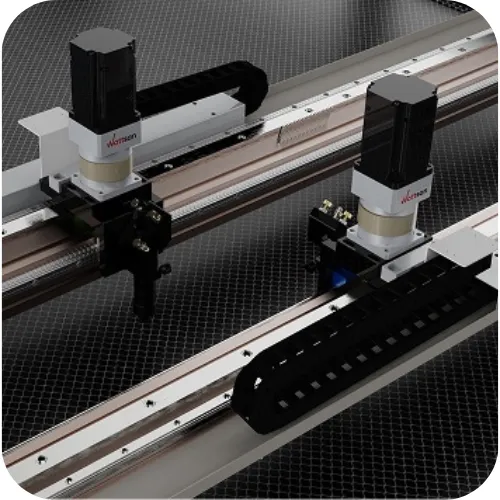

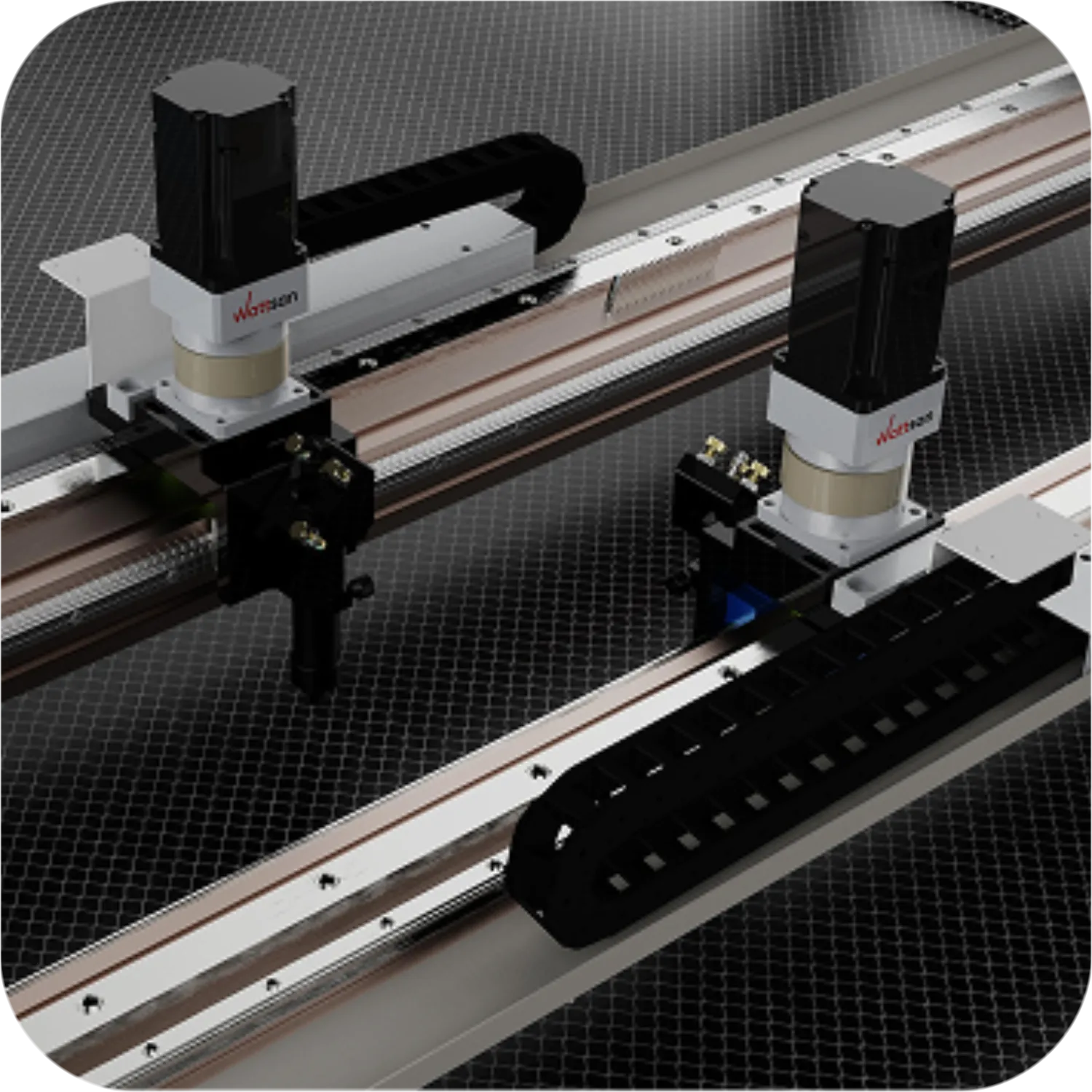

Dual Gantries, Independent Operation

Two separate gantries work simultaneously in different areas of the table, increasing productivity and delivering up to twice the output.

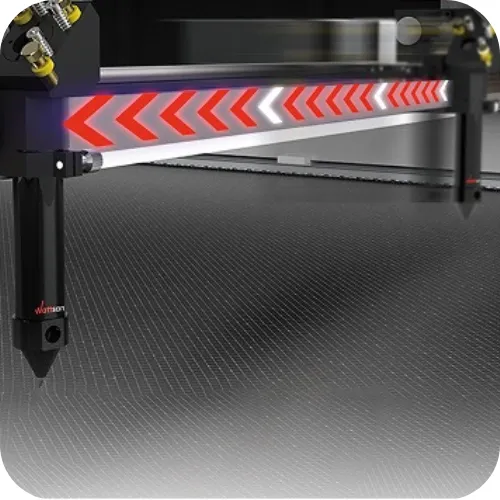

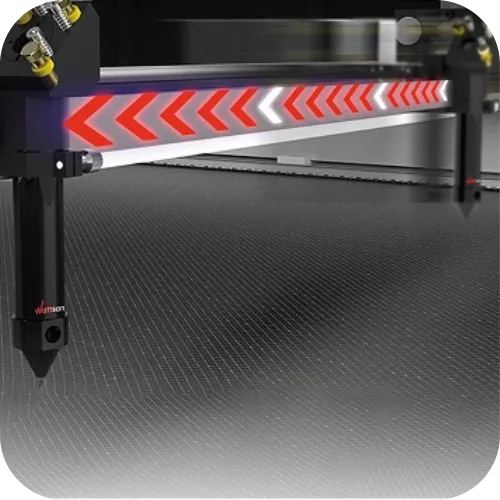

Higher Torque, Faster Processing

Multiple servo motor sets provide strong torque for fast acceleration up to 1200 mm/s and controlled deceleration for highly accurate cutting.

Wattsan - designed and engineered for business owners

Purchase procedure

Equipment selection

We assist you in making your choice of a machine matching your needs
Sending invoice

We agree on the complete set of the machine and sending the invoice with the final cost of the equipment.
Payment

In full if the machine is in stock. 50% in advance 50% at the delivery if the machine is not in stock.
We check the machine

The 3 step quality control: at the Wattsan factory, at our warehouse in the Netherlands, before the delivery.
Delivery or pick-up

Either a transport company or you pick up the machine from our warehouse.
Launching equipment

We are here to assist you whenever you need support.

Experiences from enthusiastic bloggers and clients

I recently purchased the Wattsan metal cutter, and I am thoroughly impressed. Customer support was very helpful throughout the process.

Martin Todorov
This laser engraver can engrave without any problem. How fast and easy it is able to customize products!

Riccardo Muscarella
The Wattsan metal cutter exceeded my expectations. It’s very precise and easy to operate. Perfect for my workshop projects. Delivery was smooth, and customer service was very responsive. A great investment!

Emma Rossi
Machine has a perfectly flat surface. It makes repetitive work easier for me!

Matteo Moras
Fantastic quality and performance! The Wattsan metal cutter is powerful and reliable, making my work much more efficient. I’m very happy with this purchase. Highly recommended!

Lucas Schmidt
Great job done within an hour. Thanks to the speed of the laser CO2 machine.

Roberto D'Adago
This model is great, and laser precision is crazy, it’s sharp as a razor!

Roger Jungo

Packing size:: 3750 x 2300 x 1600 mm

Weight:: 1300 kg

Machine size:: 3800 x 2300 x 1450 mm

Through table:: Yes

Working area:: 1800x2000 mm

Materials:: MDF, Resin, Organza, Bamboo, Ceramic tile, Stone, Wood, Silk, Plywood, Plastic, Granite, Leather, Faux leather, Fabric, Acrylic, Foam rubber, Chipboard, Chiffon, Wool, Tweed, Paronite, Jade, Linen, Rubber

Laser power:: 150-180 W

Laser tube lifetime:: 10000 h

Laser tube:: CDWG

Focal length:: 63.5 mm

Positioning precision:: 0.01 mm

Laser type:: CO2

Diameter of mirrors:: 25 mm

Engraving speed:: up to 1200 mm/s

Cooling:: Water, chiller CW-6000

Cutting speed:: up to 1200 mm/s

Engine on X and Y:: Lenze servo motor

Electric power supply:: 220, 100 V

Type of end sensors:: Inductive, Omron

Power consumption:: 5000 W

File transfer:: USB, LAN

Supported format:: AI, PDF, SVG, PNG, PLT, JPG, DXF, JIF, BMP, UD5, DST, DSB

Control system:: Trocen TL-5269

Software:: Trocen LaserCAD

Power electrics:: Zhongtai

Included kit

USB flash drive
Hex wrench set
Manual
Air compressor
Water pump
Ethernet cable
Power cable
USB cable
Silicone sealent
Masking tape
Silicon tube set

Frequently Asked Questions

First of all you should decide what are you going to use the machine for, what kind of material would it be and it's size (length and thickness). This will help determine the required power of the laser tube as well as the size of the working area. You can also write or call us, we will be happy to help you choose the right machine for your tasks and budget
Laser engraving machine is a piece of computer numerical control (CNC) equipment that uses a laser beam to engrave necessary graphic information (image or inscriptions) on various surfaces.
Engraving is the effect on the material in depth. Marking on the other hand only changes the color of the material.
Using CO2 laser machine you can engrave any type of wood materials: solid wood, plywood, MDF and others.
