CNC Laser Marking & Etching Machine WATTSAN FM

Working area:: 200x200 mm
Machine size:: 660 x 510 x 1460 mm
Packing size:: 2090 x 650 x 900 mm
Weight:: 66 kg
Fiber laser power :: 20/30/50/60/100 W
UV laser power:: 5/10/15/20 W
CO2 source laser power:: 30/60/100 W

From 8 070 € ex.VAT

Price on request

Make a request

Adjustable tripod
No consumables required
No water cooling required
High precision and speed
Sino-Galvo scanner

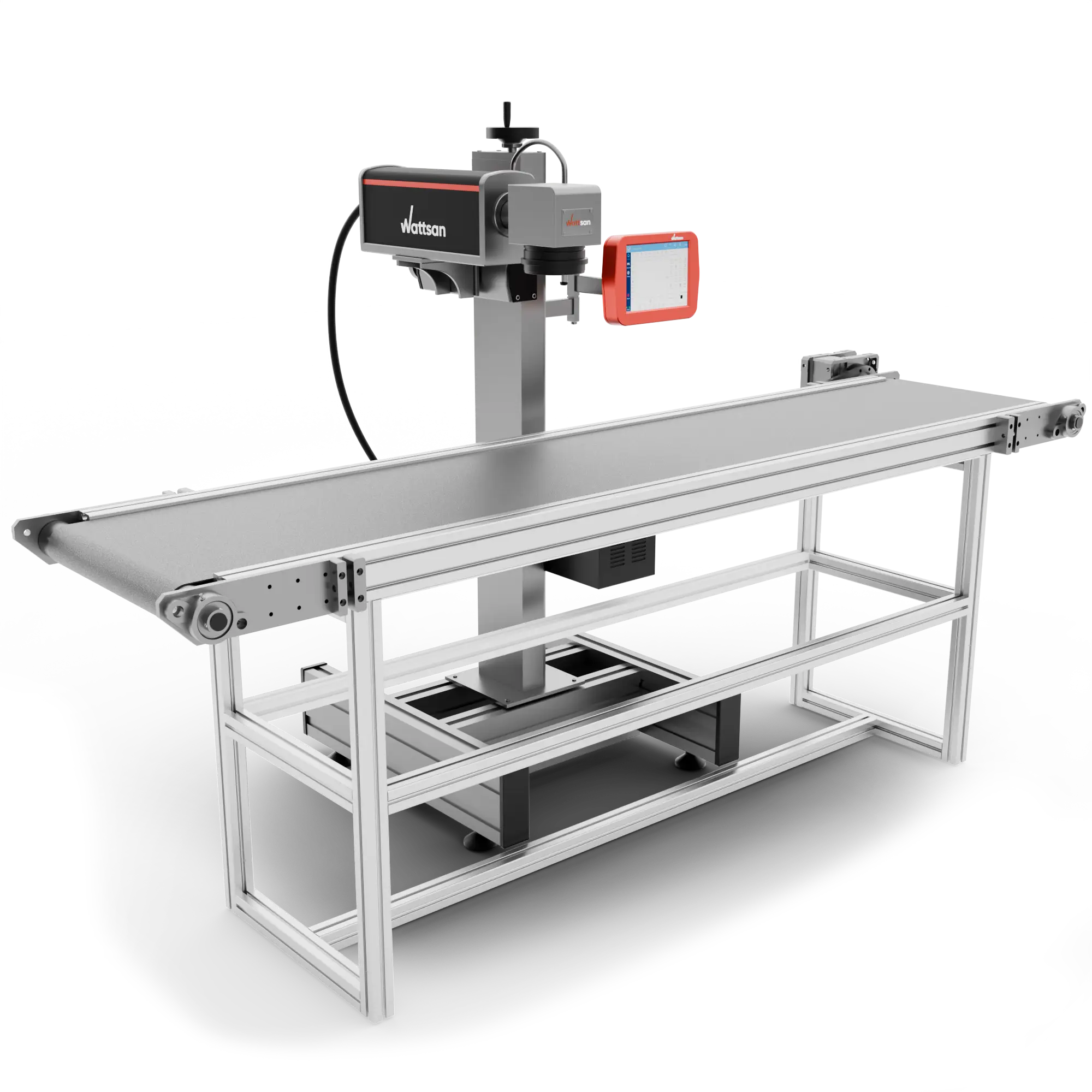

WATTSAN FM laser marker – Mark on the Move

Wattsan FM is a laser marker built to integrate into your production line and mark products on the fly, without stopping the conveyor. In the basic configuration it runs at 10-15 m/min with an 800 mm Z-axis height, cutting production time and delivering consistent, repeatable marking.

It is well suited to electronics, packaging, automotive, medical, and food production, where every product needs reliable identification. The machine marks QR codes, barcodes, serial numbers, lot codes, images, and other identification signs on a wide range of materials, depending on the laser source.

Materials

– engraving
– marking

Wood
Plywood
Cardboard
Chipboard
Plastic
Rubber
Leather
Plexiglass (Acrylic)
Polyethylene
Bamboo products

Wattsan laser markers are easy and convenient to use

The LC3000 Controller

This system was chosen due to its efficient work at mass and serial productions. It has accuracy up to 0.01 mm and can process around 100 000 workpieces per month. Ease of use and an intuitive interface allow for faster implementation of the machine in the manufacturing line.
Overall, it increases the speed of work by 30%.

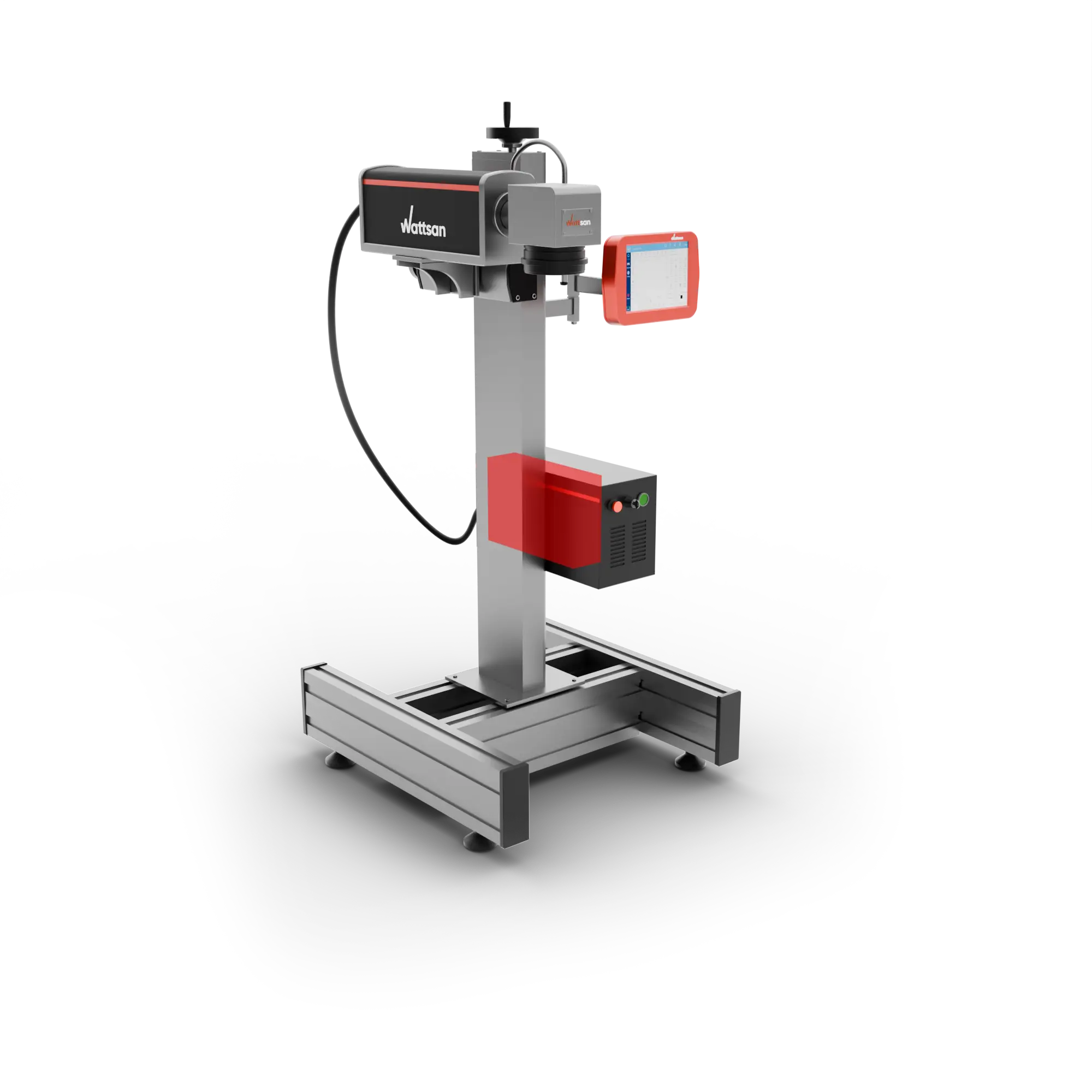

The laser source of your choosing

Wattsan FM may have a source from Raycus, JPT MOPA for fiber laser, JPT SEAL 355 for ultraviolet laser, and DAVI for CO2 laser.
CO2 laser is processing organic materials like wood, leather, fabrics, stone, wool, etc.
A fiber source is a preferred choice if you plan to work primarily with metals.
A UV source can mark almost any material, from wood and food to silver and circuit boards.

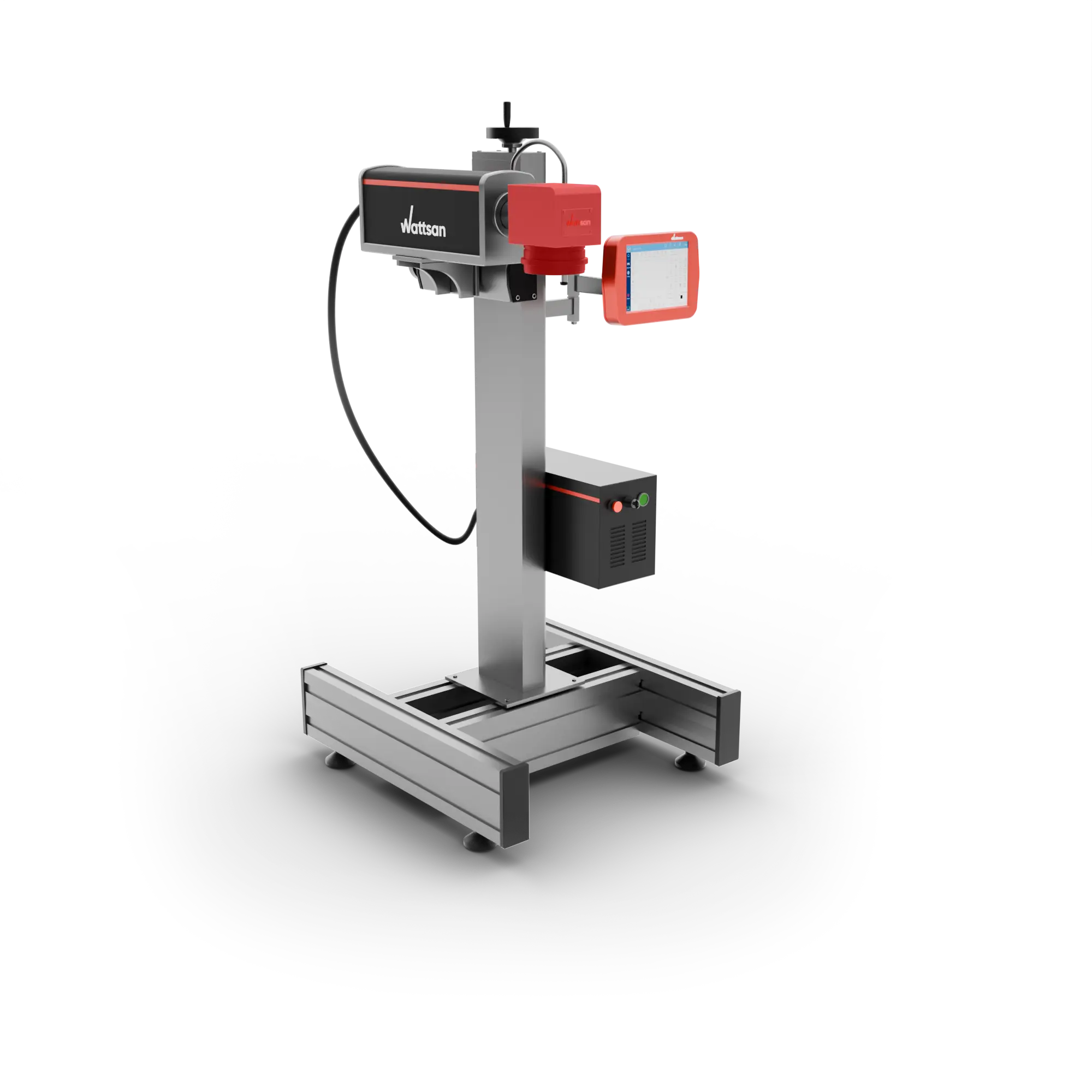

The Sino-Galvo Scanner SG7310

It’s a part of the basic configuration and has a working speed of 8000 mm/sec and can mark 540 symbols per second. This model has a good operational rate and great positioning precision, resulting in repeatability up to ±0.002 mm.

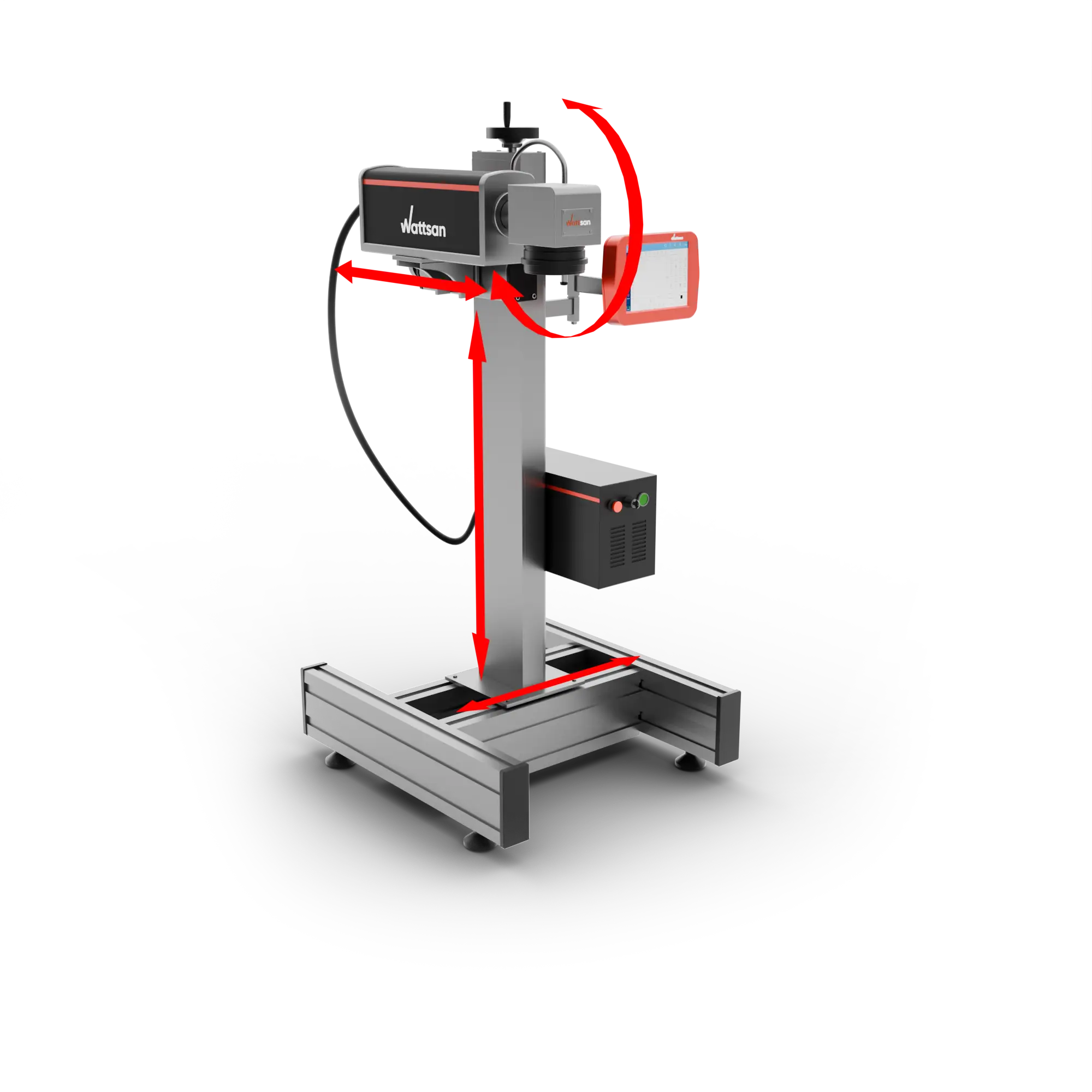

Integrate in any place

Wattsan FM has a modular design that allows you to turn and adjust its elements in four directions. As a result, the machine can be easily integrated into the production line in any place. It also allows you to fine-tune its position to find the best one for any workpiece.

High precision, high speed — high results

Wattsan's machine are comprised from a variety of finest components

When using lenses with a working area of 75x75 mm. They have larger efficiency due to the smaller spot size. You get a very thin line, which is necessary when working with materials in depth, and if you need to engrave large-area products, use a lens of 300 * 300 mm.
We use lenses with a universal mounting thread diameter of 85 mm.
For working with uneven surfaces, achieving different shades or engraving in depth, your machine can be equipped with an autofocus system.
Combines the working beam and the red pilot beam, which makes it easier to position the layout.
To withstand long and continuous operations

MOPA laser (M7 series)

Latest technology for high-quality results on a wide range of materials. Maintains peak power at all frequencies. Perfect for detailed markings that require extra precision and even jewellery work. MOPA allows you to have: a high peak value, better control over the frequencies, and control over pulse width. That results in a wider color palette and better quality of marking and engraving.

2 – 200 ns

Pulse Duration

1 kHz – 4000 kHz

Pulse frequency range

Short, adjustable

Peak power rise time
Q-switch laser

Budget-friendly technology for basic operations and reliable results. Ideal for precise cutting of tough metals and efficient processing of large material quantities. When it comes to blackening and graying plastic materials, Q-switching is quicker than MOPA, although being less exact. Well-suited for basic tasks like QR and bar-code marking.

70 – 170 ns

Pulse duration

20 – 200 kHz

Pulse frequency range

Long, fixed

Peak power rise time

Purchase procedure

Equipment selection

We assist you in making your choice of a machine matching your needs
Sending invoice

We agree on the complete set of the machine and sending the invoice with the final cost of the equipment.
Payment

In full if the machine is in stock. 50% in advance 50% at the delivery if the machine is not in stock.
We check the machine

The 3 step quality control: at the Wattsan factory, at our warehouse in the Netherlands, before the delivery.
Delivery or pick-up

Either a transport company or you pick up the machine from our warehouse.
Launching equipment

We are here to assist you whenever you need support.

Customer Experiences

I recently purchased the Wattsan metal cutter, and I am thoroughly impressed. Customer support was very helpful throughout the process.

Martin Todorov
This laser engraver can engrave without any problem. How fast and easy it is able to customize products!

Riccardo Muscarella
The Wattsan metal cutter exceeded my expectations. It’s very precise and easy to operate. Perfect for my workshop projects. Delivery was smooth, and customer service was very responsive. A great investment!

Emma Rossi
Machine has a perfectly flat surface. It makes repetitive work easier for me!

Matteo Moras
Fantastic quality and performance! The Wattsan metal cutter is powerful and reliable, making my work much more efficient. I’m very happy with this purchase. Highly recommended!

Lucas Schmidt
Great job done within an hour. Thanks to the speed of the laser CO2 machine.

Roberto D'Adago
This model is great, and laser precision is crazy, it’s sharp as a razor!

Roger Jungo

Packing size:: 2090 x 650 x 900 mm

Machine size:: 660 x 510 x 1460 mm

Weight:: 66 kg

Installation type:: Stand

Working area:: 200x200 mm

Materials:: Stone, Metal, Rubber, Fabric, Plastic

Wave length:: 1064 nm (for fiber laser)/355 nm (for uv laser)/10640 nm (for CO2 laser) nm

Scanator:: Sino-Galvo

Operating temperature range:: 0-40 С°

CO2 source laser power:: 30/60/100 W

UV laser power:: 5/10/15/20 W

Fiber laser power :: 20/30/50/60/100 W

Emitter life:: 40 000 h

Laser output frequency:: 0-4000

Laser type:: JPT SEAL, JPT (LP/M7), Raycus, DAVI, IPG

ZnSe lens:: F-Theta

Table model:: Static

Marking speed:: 8000

Cooling:: Air (for fiber and RFsources)/Water (for uv source)

Control system:: LC3000

Supported format:: PLT, AI, DXF, SVG, BMP, JPEG, PNG

Software:: GuangYue

Software:: EzCad 2 piece

Rotary device (optional):: Option

Included kit

USB flash drive
Hex wrench set
Protective glasses with a case
The marker pedal (Foot switch)
Key set
Clamping lever
Power cable
USB cable

Ask questions

Laser markers usually have small working area: from 100*100 to 300*300. You should keep it in mind while choosing the machine.Then you should decide what type of material are you going to work with. For exaple Co2 marker is good for wood, plastic and plexiglass. If you want to mark metal then you should pick fiber laser marker. The choice of emitter depends on the desired result. For example, if you want to do color marking on metal, then IPG or JPT are an excellent choice.
It is a permanent image resistant to mechanical damage, acidic and alkaline media, high and low temperatures.
It depends on your application. The main selection criterion is the emitter power and the lens. For quick deep engraving or working on highly reflective metals, it is better to use emitters with a power of 50W and a lens with a working area of 110x100mm. For high quality marking a 20-30W emitter and a 200x200 or 300x300 mm lens will do the trick. For more details, please contact Virmer managers: +31208082045, е-mail: info@virmer.com
For the hobby, budget markers with MaxPhotonics or Raycus emitters are suitable. However, if your hobby is jewellery making, you should consider machines with IPG emitters from 50W. For more details, please contact Virmer managers: +31208082045,
е-mail: info@virmer.com
CO2 laser sources mark and engrave organic materials: plywood and all types of wood-based materials, paper and cardboard, leather and faux leather, fabric, glass and mirror, plastics and rubber, stone and ceramics. Fiber emitters mark and engrave metals (ferrous metals, stainless steel, aluminium, titanium, etc), plastics and rubber, leather and faux leather.
