A fiber laser is a solid-state laser in which an optical fiber doped with rare-earth ions acts as the gain medium. Pump diodes inject light into the fiber, the doped core amplifies it through stimulated emission, and an optical resonator builds a controlled beam that is delivered and focused for cutting, marking, welding, cleaning, and other applications.
This article explains what happens inside a fiber laser source, walks through the beam-generation process step by step, covers the main classification types, and shows how wavelength connects source design to real-world material processing. It also covers where the technology fits into industrial machines, how long a source typically lasts, and what safety precautions apply. For the underlying physics of stimulated emission, see Virmer's guide on how lasers work.
What Is a Fiber Laser?
A fiber laser is a type of solid-state laser that uses a length of optical fiber - not a gas, crystal rod, or semiconductor chip - as the medium that generates and amplifies light. The word "fiber" refers to the active fiber itself, not to a cable that simply carries a beam produced somewhere else.
Three points are worth clarifying before going further:
- The fiber is the active medium, not a delivery cable. The core of the fiber is doped with rare-earth ions - commonly ytterbium for industrial systems - and light is generated and amplified inside that doped core.
- A fiber laser source is not the same as a fiber laser machine. The source produces and shapes the beam. A finished machine also needs a motion or scanning system, a process head, focusing optics, controls, cooling, an enclosure, and fume or particle extraction.
- Ytterbium dominates industrial metal processing, but it isn't the only option. Other dopants, such as erbium and thulium, produce different wavelengths for telecommunications, medical, and sensing applications.

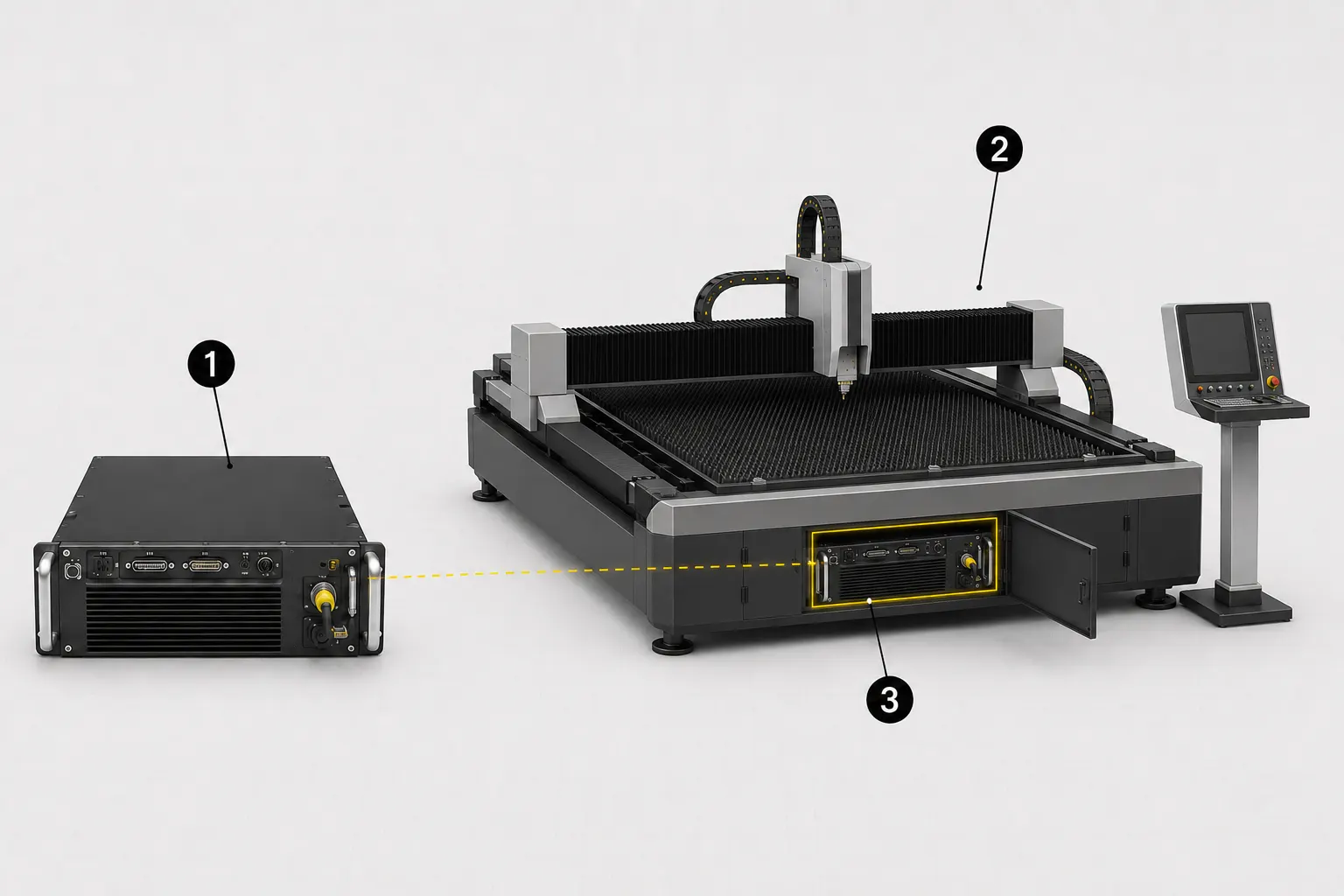

Caption: 1 - Standalone fiber laser source, 2 - Complete fiber laser cutting machine, 3 - Fiber laser source installed inside the machine
What Is Inside a Fiber Laser?
A fiber laser source is built from a small set of components that each perform one job in the path from electrical power to a usable beam. Understanding this component map makes the step-by-step process in the next section easier to follow, since each step corresponds to one or more of these parts.

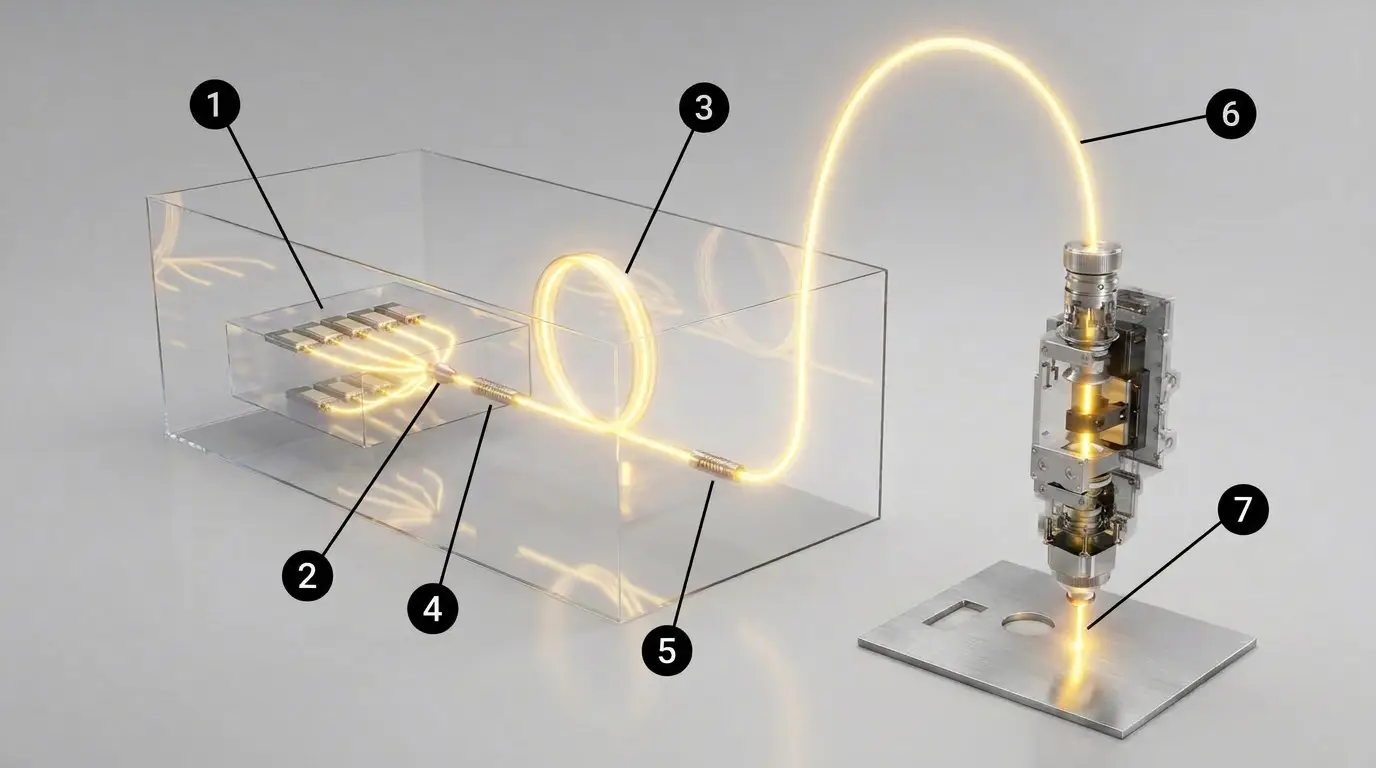

Caption:1 - Pump diodes, 2 - Pump combiner, 3 - Doped active fiber, 4 - High-reflectivity Fiber Bragg Grating, 5 - Partially reflective output Bragg Grating, 6 - Delivery fiber, 7 - Focusing optics and workpiece
Pump Diodes
Pump diodes convert electrical current into light, typically in the 900-980 nm range for ytterbium systems. This light - called pump light - is not the finished laser beam. It is the energy input that will later be absorbed and converted inside the doped fiber.
Doped Fiber Core and Cladding
The active fiber has a silica core doped with rare-earth ions, surrounded by one or more cladding layers with a lower refractive index. This structure keeps light confined to the core through total internal reflection. In high-power industrial designs, the fiber typically uses a double-clad structure: pump light travels through an inner cladding layer and repeatedly crosses the doped core, while the core itself carries the amplified signal beam.
Optical Resonator and Fiber Bragg Gratings
The resonator provides optical feedback so that light builds up into a coherent beam instead of simply passing through once. In many fiber lasers, this feedback comes from fiber Bragg gratings - sections of fiber with a periodic structure that reflects a specific wavelength band. One grating acts as a high reflector, and another acts as a partial, or output, reflector that lets part of the amplified light exit as the usable beam. Resonator architecture varies between manufacturers and source designs, so not every fiber laser is built exactly the same way.
Output and Beam Delivery Interface
At the output end of the source, the formed beam passes into the delivery and machine optics. From this point, collimation, steering, and focusing depend on the specific machine - a cutting head, a galvo scanner for marking, a welding head, or a cleaning head each route and shape the beam differently. That equipment-level detail is covered in Virmer's dedicated guides on cutting, welding, marking, and cleaning machines rather than here.
How Does a Fiber Laser Work? Step by Step
The six steps below trace one continuous path from electrical input to a focused beam at the workpiece. Each step builds on the one before it, so the sequence matters: skipping from pump light straight to "amplification" without the absorption stage would leave out why the fiber needs rare-earth doping in the first place. The process takes place almost instantly once the source is powered and stabilized.
Step 1: Pump Diodes Generate Light
Electrical current powers semiconductor pump diodes, which convert that current into light at a wavelength the doped fiber can absorb. This pump light is coupled into the fiber but is not yet the working laser beam.
Step 2: The Fiber Guides the Pump Light
The core and cladding geometry keeps the pump light confined and moving along the fiber. In high-power double-clad designs, pump light travels through the inner cladding and repeatedly crosses the doped core as it propagates, increasing the chance of absorption.

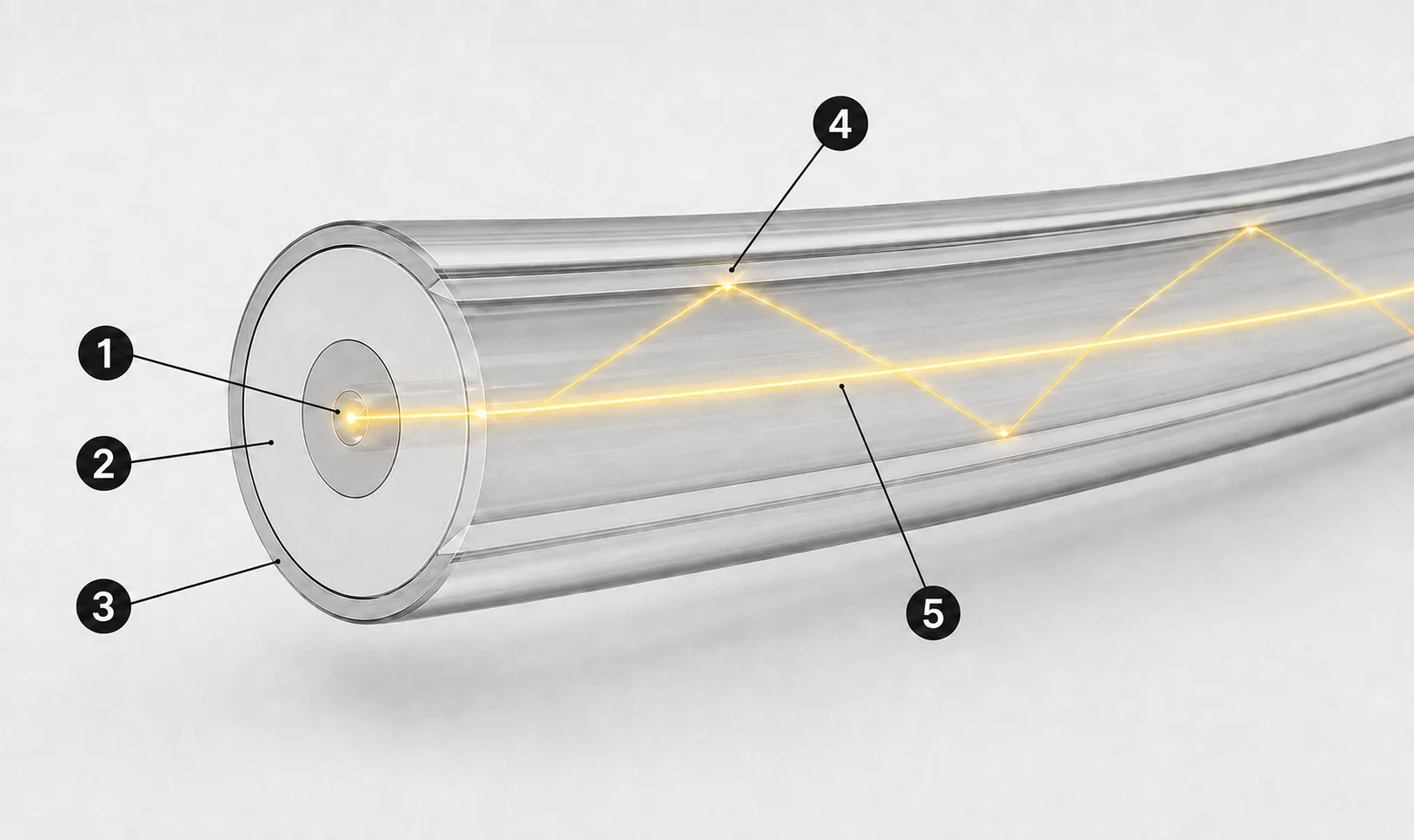

Caption: 1 - Doped core, 2 - Inner cladding, 3 - Outer cladding, 4 - Pump light reflected within the inner cladding, 5 - Laser signal guided through the central core
Step 3: Rare-Earth Ions Absorb Energy
As pump light crosses the doped core, rare-earth ions absorb that energy and move into a higher-energy, excited state. When enough ions are excited, the fiber reaches population inversion - the condition needed for light amplification to begin.
Step 4: Stimulated Emission Amplifies the Light
An existing photon traveling through the excited core can trigger an excited ion to release a matching photon - same wavelength, phase, and direction. This process, called stimulated emission, repeats along the fiber length, amplifying the light as it travels.
Step 5: The Resonator Selects and Builds the Laser Output
Fiber Bragg gratings reflect the target wavelength back into the active fiber, so light passes through the gain medium repeatedly and keeps building in intensity. A portion of this amplified light exits through the output reflector as the usable laser beam. Grating-based resonators are common, but they are not the only resonator design used across the fiber laser industry.

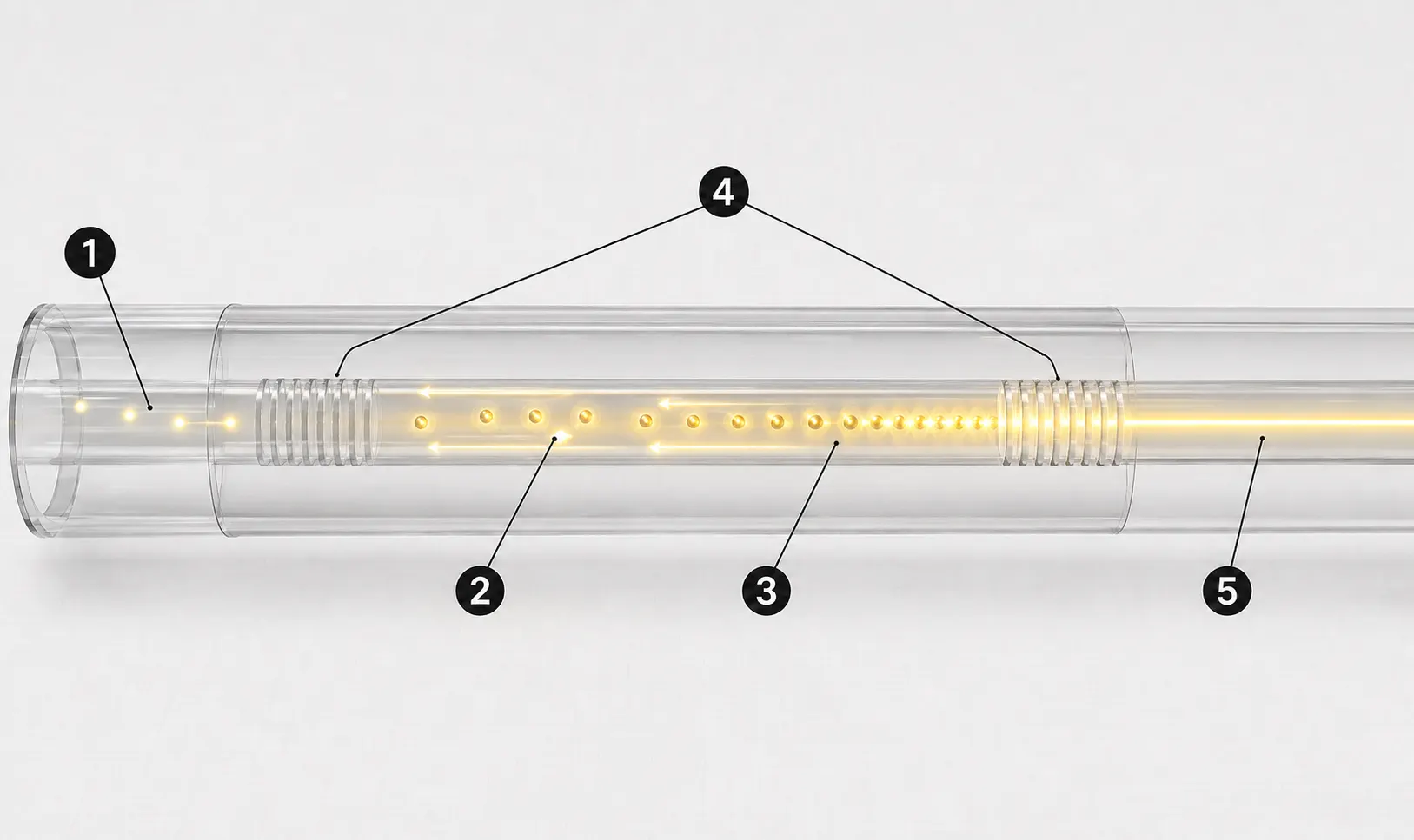

Caption: 1 - Pump light entering the active fiber, 2 - Energized rare-earth ion, 3 - Photons generated through stimulated emission. 4 - Fiber Bragg gratings forming the laser cavity, 5 - Amplified output beam
Step 6: The Beam Leaves the Source for the Machine Optics
The finished beam exits the source and enters the optical system of the machine it powers. From here, collimation, steering or scanning, and final focusing are handled by machine-specific optics, which differ between cutting, marking, welding, and cleaning systems.
Once the beam leaves the source, the fiber's own geometry has already done most of the heavy lifting. The long, thin interaction length inside the doped core allows substantial amplification within a compact space, and the high surface-area-to-volume ratio of the fiber helps dissipate heat efficiently. All-fiber sections between components also reduce the number of free-space alignment points, which is a key reason fiber lasers tend to be compact and mechanically stable compared with laser types built around open-beam optical paths.
Why Does Fiber Laser Wavelength Matter?
Wavelength is one of the main factors that determines whether a material absorbs, reflects, or transmits a laser beam, which directly affects whether a given fiber laser can process that material efficiently. For industrial ytterbium sources, output typically falls in a range of roughly 1,030-1,100 nm, commonly cited around 1,064 nm or 1,070-1,080 nm depending on the specific source design; any narrower figure should be confirmed against a particular manufacturer's documentation rather than treated as universal.
Absorption at any given wavelength is not fixed for a material category - it depends on the specific alloy, surface finish, temperature, and any oxide layer or coating present, and it can change as processing proceeds and the surface heats up. This is why claims that a wavelength works uniformly well on "most materials" or "all metals" don't hold up under real operating conditions.
Two broad patterns are useful starting points, with the caveat that neither is an absolute rule:
- Transparent materials such as clear glass and acrylic generally transmit rather than absorb light near 1 µm, making them poor candidates for common Yb fiber wavelengths without special process adaptations.
- Wood and other organic materials are typically processed with CO2 lasers around 10.6 µm rather than near-infrared fiber wavelengths, though this is a general tendency rather than a blanket exclusion for every specialized fiber system.

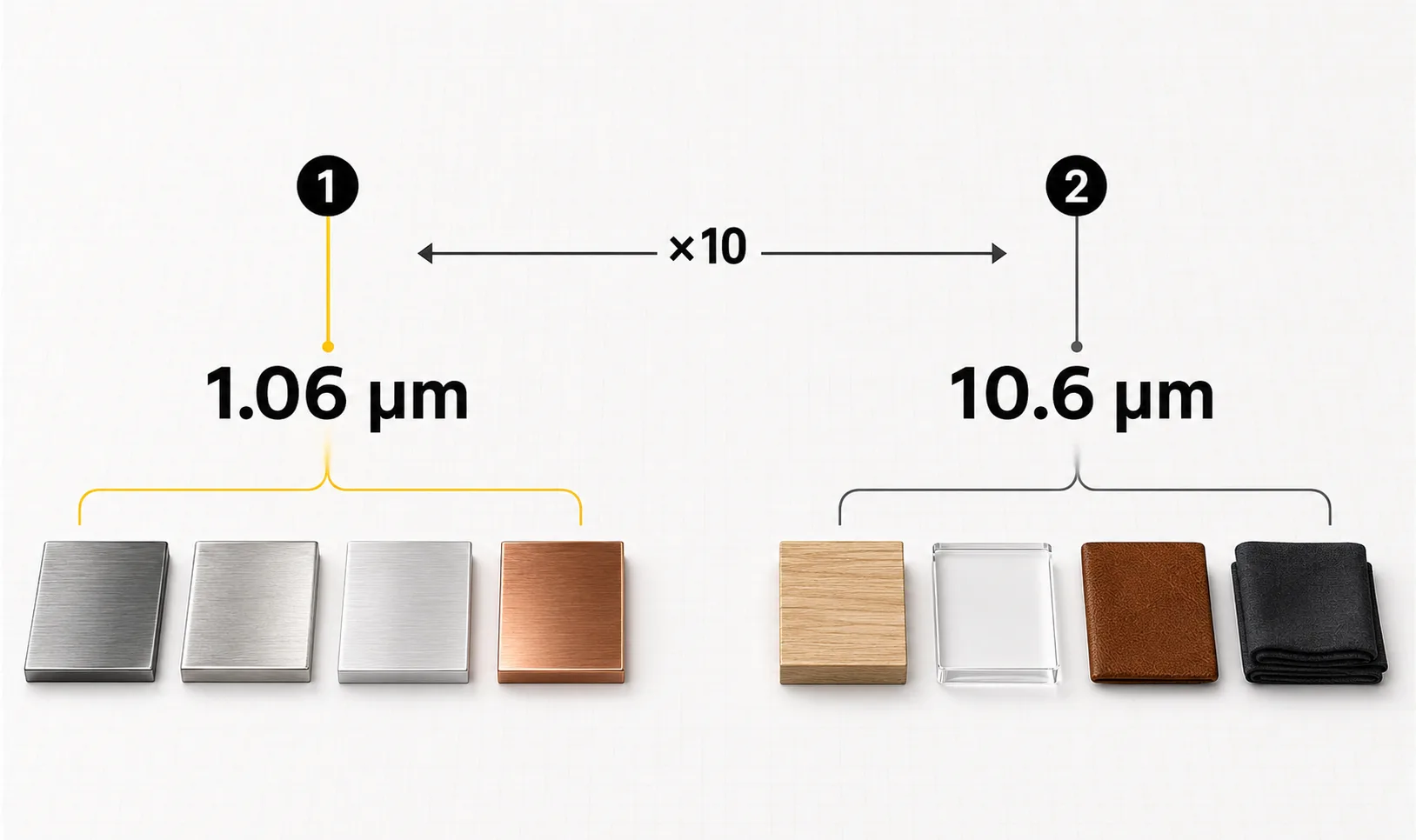

Caption: 1 - Ytterbium fiber laser - approximately 1.06 µm; representative materials: steel (stainless steel), titan, aluminum and copper, 2 - CO2 laser - approximately 10.6 µm; representative materials: wood, clear acrylic, leather and fabric.
Main Types of Fiber Lasers
A single fiber laser source can be classified along several independent axes at once, and these axes are often confused with each other in industry material. Dopant, temporal operating mode, pulse-generation architecture, and beam mode each describe a different property of the same source, not competing versions of one classification.
By Dopant and Wavelength
The dopant added to the fiber core determines the wavelength range the source can produce. Ytterbium is the dominant choice for industrial metal processing near 1 µm. Erbium and thulium serve other wavelength ranges used in telecommunications, medicine, and specialized sensing. Less common configurations - such as upconversion or Raman-shifted designs - exist mainly in research and specialized laboratory settings rather than mainstream industrial processing.
Continuous-Wave vs. Pulsed
A continuous-wave (CW) fiber laser delivers steady output and high average power, which suits high-throughput cutting, welding, and some cleaning processes. A pulsed fiber laser delivers energy in discrete pulses, producing high peak power with more controlled heat input - typical for marking, engraving, texturing, and pulsed cleaning. The right choice depends on the process and its parameters rather than a simple rule that CW means speed and pulsed means quality.
Q-Switched vs. MOPA
Q-switching describes a method of forming short, high-intensity pulses by rapidly modulating the resonator's losses. MOPA (master oscillator power amplifier) describes an architecture built from a seed source plus one or more amplification stages, which allows independent adjustment of pulse parameters within the limits of the specific source. These two terms describe different things - a pulse-formation method and a system architecture - so they should not be treated as simple alternatives to the CW/pulsed distinction.
Single-Mode vs. Multimode
Single-mode and multimode describe the spatial structure of the output beam. Single-mode output generally offers higher beam quality, tighter focusability, and a smaller achievable spot size, which benefits fine or precision work. Multimode designs can scale to higher power levels, which suits heavier processing tasks. Neither mode is universally better; the right choice depends on the balance between precision and power the application requires.
Table 1: Fiber Laser Classification Axes
| Classification axis | Main options | What changes | Typical industrial relevance |
|---|---|---|---|
| Gain medium / dopant | Ytterbium, erbium, thulium, and others | Wavelength range | Material processing, telecom, medicine, sensing |
| Temporal operation | CW, quasi-CW (QCW), pulsed | Heat input, peak vs. average power | Cutting/welding vs. marking/cleaning/microprocessing |
| Pulse architecture | Q-switched, MOPA, and other designs | Pulse control and peak characteristics | Marking, engraving, texturing, cleaning |
| Beam mode | Single-mode, multimode | Beam quality, focusability, scalable power | Fine, precision work vs. high-power processing |
This table shows classification categories, not one-to-one equivalence between rows - a real source combines a choice from each axis, and the combinations should be confirmed against manufacturer specifications.
How Is Fiber Laser Technology Used in Industrial Machines?
The same beam-generation principle described above is integrated into several distinct classes of industrial equipment, each of which routes, shapes, and applies the beam differently. This section is intentionally brief - the detailed construction of each machine type is covered in its own dedicated guide.
Fiber laser cutting machines typically use a high-power source paired with a controlled process head that moves the beam, or the workpiece, along a programmed path. Details on the cutting head, assist gas, CNC motion, piercing, thickness, and speed are covered in how a fiber laser cutting machine works.
Laser welding machines use the beam to create a localized molten zone that joins two pieces of material. Wire feeder design, welding head configuration, shielding gas, seam formation, and machine layout are covered in how a laser welding machine works.
Laser cleaning machines apply controlled energy to remove contamination or coatings while limiting effect on the base material underneath. Scanner design, pulse overlap, cleaning patterns, ablation thresholds, and extraction are covered in how a laser cleaning machine works.
Laser marking machines use a focused beam to alter or remove a thin surface layer, creating permanent codes, serial numbers, logos, or traceability marks. Galvo scanner design, F-theta lens configuration, marking field size, and focusing system are covered in how a laser marking machine works.
Beyond manufacturing, fiber lasers are also used in telecommunications, sensing, medicine, and research, since the same doped-fiber principle underlies many light sources and amplifiers outside industrial material processing. This means the term "fiber laser" is broader than production-floor equipment alone.
Table 2: Fiber Laser Integration by Machine Type
| Machine type | What the fiber laser does | Common source mode |
|---|---|---|
| Cutting machine | Melts or vaporizes material along a controlled cut path | Commonly high-power CW |
| Welding machine | Creates a localized molten zone to join parts | Commonly CW, with task-dependent variants |
| Cleaning machine | Removes coatings or contaminants through controlled laser-material interaction | Pulsed or CW, depending on process |
| Marking machine | Alters or removes a surface layer to create a permanent mark | Commonly pulsed (q-switch or mopa) |
Advantages and Limitations of Fiber Lasers
Each advantage below comes with a specific reason it holds true, and each is paired with a condition that limits it - a fiber laser's strengths are real, but they are not unconditional.

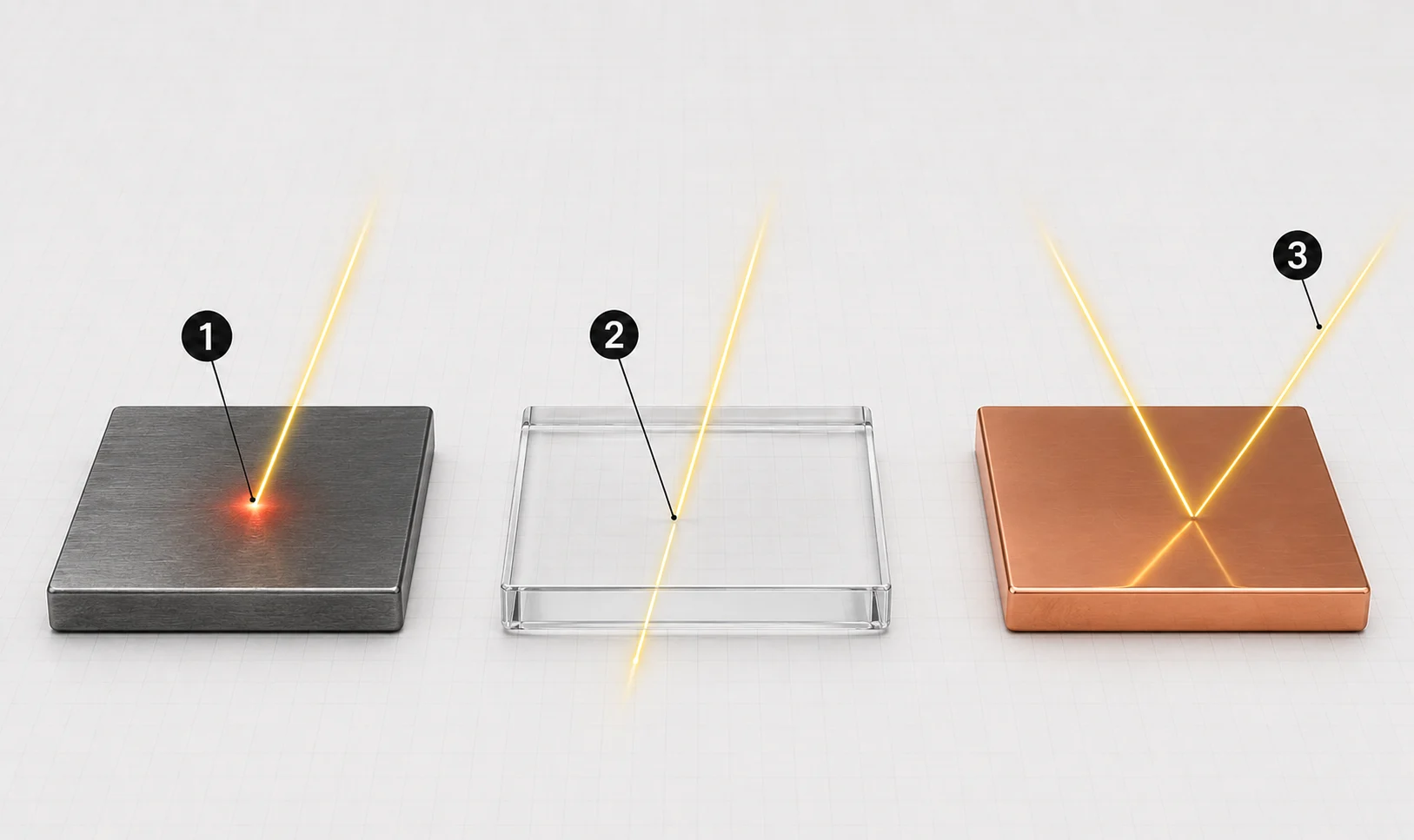

Caption: 1. Absorption - the steel absorbs energy, creating a heated zone; 2. Transmission - radiation passes through transparent glass or acrylic with almost no effect; 3. Reflection - polished copper reflects a significant portion of the energy.
| Property | Why it helps | Important limitation or condition |
|---|---|---|
| High electrical-to-optical efficiency | Reduces power consumption and heat load relative to some other industrial laser types | Actual efficiency figures vary by source model and should be confirmed against the manufacturer's datasheet |
| High beam quality and focusability (in suitable designs) | Enables small, precise focal spots for fine work | Beam quality depends on single-mode vs. multimode design and power level |
| Compact, robust all-fiber sections | Fewer free-space alignment points reduce mechanical drift and maintenance needs | Delivery and focusing optics outside the sealed fiber path still require alignment and care |
| Effective heat removal | Fiber geometry offers a high surface-area-to-volume ratio for dissipating heat | Thermal management still depends on the source's cooling system design |
| Scalable average power | Fiber architecture supports power scaling for demanding cutting and welding tasks | Nonlinear effects and beam-quality trade-offs increase as power is scaled up |
| Low routine maintenance of the sealed source | Fewer exposed optical components than free-space beam paths | Protective optics, nozzle, chiller, extraction, and motion system still require regular maintenance |
| Good integration into automated machines | Fiber delivery simplifies coupling into CNC and robotic systems | Integration quality still depends on machine design, not the source alone |
Common limitations to weigh against these advantages:
- Material compatibility is wavelength-dependent, not universal.
- Reflective metals such as copper and brass can be processed with appropriate systems, but they raise process control and back-reflection challenges.
- Transparent and organic materials often require a different wavelength - commonly CO2 - for many workshop tasks.
- Nonlinear optical effects, thermal issues, and beam-quality trade-offs become more significant as power is scaled up.
- A low-maintenance source does not mean a maintenance-free machine; optics, cooling, and extraction systems still need upkeep.
- High-power systems require enclosures, safety interlocks, extraction, and trained operators.
Fiber Laser vs. CO2 Laser
Table 3: Fiber Laser vs. CO2 Laser at a Glance
| Feature | Common industrial fiber laser | CO2 laser |
|---|---|---|
| Gain medium | Rare-earth-doped optical fiber | CO2-based gas mixture |
| Common industrial wavelength | Around 1.06 µm for ytterbium systems | Commonly 10.6 µm |
| Typical strength | Metals; high-power cutting and welding; marking | Wood, acrylic, leather, fabric, and other non-metals |
| Beam delivery / source construction | Largely fiber-integrated, with final focusing optics still required | Free-space mirrors and optics in common machine designs |
| Key caveat | Not universal for transparent or organic materials | Typical low-power workshop CO2 systems do not directly cut bare metal |
For a broader comparison across laser source types, see Virmer's guide to the main types of laser sources used in laser machines and the dedicated explainer on how a CO2 laser works.
How Long Does a Fiber Laser Last?
Fiber laser sources are known for long service life, but the widely repeated figure of 100,000 hours needs context to be accurate. Several distinct measurements get blended together in marketing material, and separating them gives a clearer picture.
MTBF is not service life. MTBF (mean time between failures) is a statistical reliability estimate calculated from component-level testing, not a guaranteed operating lifespan for a specific unit. A diode life estimate, a manufacturer's warranty period, gradual output power degradation, and the service life of the complete machine are four separate figures, and a single "100,000 hours" claim should not be assumed to cover all of them.
If a specific lifespan range is quoted for a source, it should be tied to a named manufacturer or product family and supported by that manufacturer's datasheet or reliability statement rather than treated as an industry-wide constant.
Real-world service life depends on several operating factors:
- Operating load and duty cycle
- Cooling system performance and ambient temperature
- Contamination control around optics
- Back-reflection protection
- Ongoing maintenance of optics and chiller systems
Fiber Laser Safety
Industrial ytterbium fiber lasers operate in the near-infrared range, which is invisible to the human eye but can still cause serious eye and skin injury. The absence of visible light does not mean the absence of a hazardous beam, and reflections from metal surfaces can remain dangerous even after the direct beam path is blocked.
Follow the laser class, enclosure and interlock requirements, controlled-area rules, and personal protective equipment specifications defined for the specific machine and applicable local regulations. Laser hazard classification in most jurisdictions follows IEC 60825-1 or the equivalent ANSI Z136 series of standards.
- Select protective eyewear based on the source's specific wavelength and required optical density - not generic "laser glasses."
- Identify the material and any coating before processing, and ensure adequate fume and particle extraction is in place.
- Do not treat laser processing of PVC or other chlorinated materials as a routine operation. If such a task is under consideration at all, it requires material identification, a documented risk assessment, and validation by the equipment and extraction system manufacturers - a fume extractor alone does not make the process safe.
Conclusion
A fiber laser generates and amplifies light inside a rare-earth-doped optical fiber, using pump diodes, the doped core, and an optical resonator working together to build a controlled beam. The source design determines wavelength and beam characteristics, while the operating mode - CW or pulsed - and the downstream machine optics adapt that beam for cutting, marking, welding, or cleaning. Understanding this distinction between source and machine is the foundation for evaluating any fiber laser system.
Frequently Asked Questions About Fiber Laser Technology
Why is it called a fiber laser?
It's called a fiber laser because the optical fiber itself is the active medium that generates and amplifies the light, not just a cable that carries a finished beam. The fiber's core is doped with rare-earth ions, which absorb pump light and produce amplified light through stimulated emission.
Is a fiber laser the same as a laser cutter?
No. A fiber laser is the light source, while a laser cutter is a complete machine that uses a source - often a fiber laser - along with motion systems, a cutting head, assist gas, and controls to process material. The source is one component inside the finished machine.
What wavelength does a fiber laser use?
There is no single wavelength for all fiber lasers; it depends on the dopant used. Ytterbium-doped systems, the most common choice for industrial metal processing, typically output light in a range of roughly 1030-1100 nm, often cited around 1064 or 1070-1080 nm depending on the source design.
Can a fiber laser cut non-metal materials?
It depends on the wavelength and how well the material absorbs it. Common ytterbium systems are optimized primarily for metals and some plastics, while wood, clear acrylic, and glass are usually processed with other laser types, such as CO2 systems, rather than standard fiber sources.
Can a fiber laser cut reflective metals such as copper or brass?
Modern, appropriately configured systems can process reflective metals like copper and brass, but doing so requires source and process compatibility along with back-reflection protection. The outcome depends on power, material thickness, alloy composition, and process settings.
What is the difference between a pulsed and a continuous-wave fiber laser?
A continuous-wave (CW) fiber laser outputs steady power, which suits high-throughput cutting and welding. A pulsed fiber laser delivers energy in discrete bursts with high peak power and more controlled heat input, which suits marking, engraving, and precision cleaning tasks.
Does a fiber laser need maintenance?
The sealed fiber source itself often needs little routine alignment. However, the machine's focusing optics, cooling system, extraction system, and mechanical components still require regular scheduled maintenance to keep the whole system running reliably.
How long does a fiber laser source last?
There is no single guaranteed figure that applies to every source. Manufacturers publish MTBF estimates based on component reliability testing, but this is a statistical measure, not a fixed service-life guarantee - actual lifespan depends on the specific source, operating conditions, and maintenance practices.
