What Is a CO2 Laser and How Does CO2 Laser Technology Work?

What Is a CO2 Laser?

A CO2 laser is a type of laser that uses a mixture of carbon dioxide, nitrogen, and helium gas to generate a beam of light strong enough to cut or engrave materials like wood, acrylic, and leather. It's one of several laser types available for cutting and engraving machines, each built around a different light-producing material.

If you're not yet familiar with how lasers work in general, our What is a Laser and How Does It Work? article covers the basic physics first - this article picks up from there and focuses specifically on the CO2 type.

At its core, a CO2 laser produces a beam - a tightly focused stream of light - by exciting a gas mixture sealed inside a tube. That gas mixture is what gives this laser type its name and its specific capabilities, which the next section explains in detail.

This guide walks through why the gas mixture gives this laser its name, the physical components that produce the beam, how that beam is generated and strengthened step by step, and what determines which materials it can actually cut or engrave - everything needed to understand not just what a CO2 laser does, but why it works the way it does.

Why Is It Called a "CO2" Laser?

The name comes directly from carbon dioxide (CO2), the gas responsible for actually producing the laser light. Inside the tube, CO2 is mixed with nitrogen and helium - each gas plays a distinct role, and the mixture as a whole is often called the laser's gain medium (or laser medium): the material that turns input energy into light. Every laser needs one; in a CO2 laser, that material is the gas mixture itself.

• Carbon dioxide (CO2) is the gas that actually emits the light.
• Nitrogen (N2) helps carry energy into the CO2 molecules more efficiently, making the process stronger.
• Helium (He) helps the gas mixture cool down and reset faster between pulses of energy, keeping the beam consistent.

This is different from other laser types you may come across: unlike fiber lasers, which use glass fiber, or diode lasers, which use semiconductor chips, a CO2 laser uses gas as its light-producing material. Our 4 Main Types of Lasers Used in Laser Machines guide compares all of them side by side.

Knowing what's inside the gas mixture is the first step. Next, let's look at the actual machine parts that turn that gas into a working laser beam.

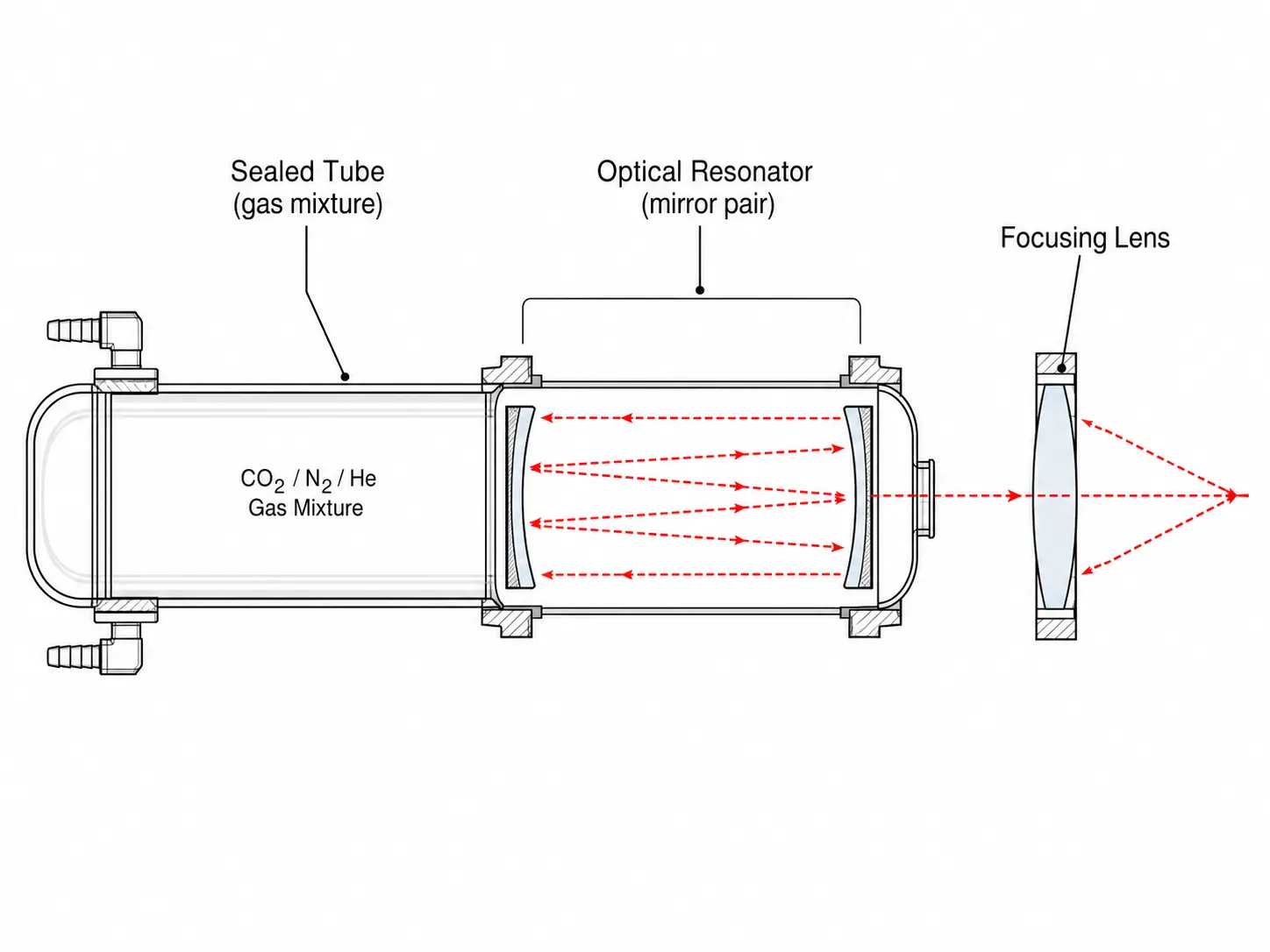

The Building Blocks of a CO2 Laser (What's Inside the Machine)

A CO2 laser source is built from three main physical parts, and understanding what each one does makes the step-by-step process in the next section much easier to follow.

• Sealed tube - holds the gas mixture and is where the light is actually produced.
• Mirrors, forming what's called an optical resonator (or resonant cavity) - a pair of mirrors facing each other, positioned so light keeps bouncing between them, getting stronger with each pass. Think of it as an echo chamber, but for light instead of sound.
• Focusing lens - takes the beam once it leaves the tube and concentrates it into a tiny, powerful point at the material, similar to how a magnifying glass concentrates sunlight into a small, hot spot.

With these parts in mind, here's what actually happens inside the tube, step by step, from the moment the machine is switched on to the moment the beam is ready to cut.

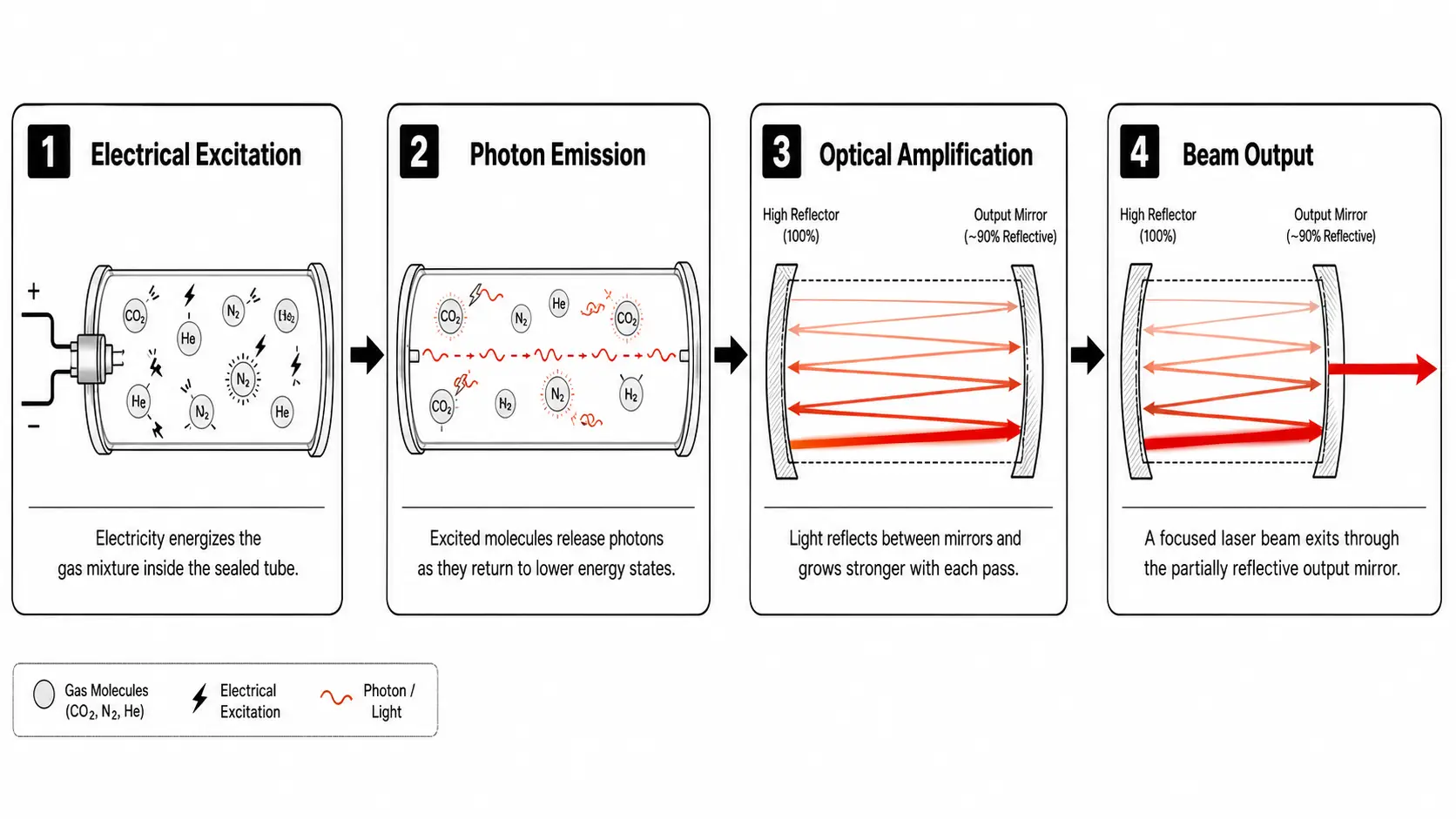

What Happens Inside the Laser Tube? (Step by Step)

Producing a working beam comes down to four sequential stages: energizing the gas, releasing light, amplifying that light between the mirrors, and letting the finished beam exit. Each stage depends on the one before it - skip any single stage and the tube produces no usable beam at all.

Step 1: Energy Goes Into the Gas

Electricity is sent into the sealed tube. Specifically, an electrical discharge passes through the gas mixture, exciting the gas molecules - giving them extra energy. When a molecule gets "excited" in this sense, it absorbs energy and jumps to a higher-energy, more active state, similar to how a person gets a burst of energy after drinking coffee. That state doesn't last: the molecule will release the energy again shortly.

Step 2: The Gas Releases Light (Photons)

As the excited gas molecules settle back down, they release tiny particles of light called photons - the smallest possible unit of light. This release of light is what actually creates the laser's beam. It's the same basic process covered in our "What is a Laser and How Does It Work?" article (known as stimulated emission), just specific to a gas medium here.

Step 3: The Mirrors Bounce and Strengthen the Light

This light bounces back and forth between the two mirrors of the optical resonator described earlier, getting stronger every time it passes through the gas. Each pass adds more photons traveling in the same direction and in step with each other, building up a far stronger, more concentrated beam than a single pass could produce - the same echo-chamber effect introduced in the previous section, now doing the actual work of amplifying the beam.

Step 4: The Beam Exits Through a Special Mirror

Once the light is strong enough, part of it escapes through one of the mirrors - an output coupler, a partially reflective mirror that lets the finished beam leave the tube while still reflecting some light back in to sustain the process. This happens continuously and extremely fast, which is why the laser appears to switch on instantly rather than "warming up" visibly.

At this point, the beam has left the tube - but it's still not ready to cut anything. Here's what happens on its way to the material.

How the Beam Reaches and Cuts (or Engraves) the Material

Leaving the tube is only the beam's first step toward doing useful work; what happens between the tube and the material's surface determines whether that beam can cut cleanly, engrave precisely, or do neither.

Inside the machine - not just inside the tube - the beam often travels through a series of additional mirrors that direct it to the cutting head. This routing is one reason mirror alignment matters for ongoing machine maintenance, a point covered in more depth later in this article. The focusing lens then concentrates the beam into a spot often smaller than a millimeter, which is what creates enough energy density - how concentrated the beam's energy is in a small area - to melt, vaporize, or burn through material. Energy density, not just raw power, is what ultimately determines cutting ability.

The difference between cutting and engraving comes down to depth: cutting means the beam goes all the way through the material's thickness, while engraving means the beam only affects the surface layer, removing or discoloring material without fully penetrating it. The width of the resulting cut line is sometimes called the kerf.

Focusing determines where the energy goes - but what determines how effectively that energy actually cuts or engraves a specific material? That comes down to wavelength.

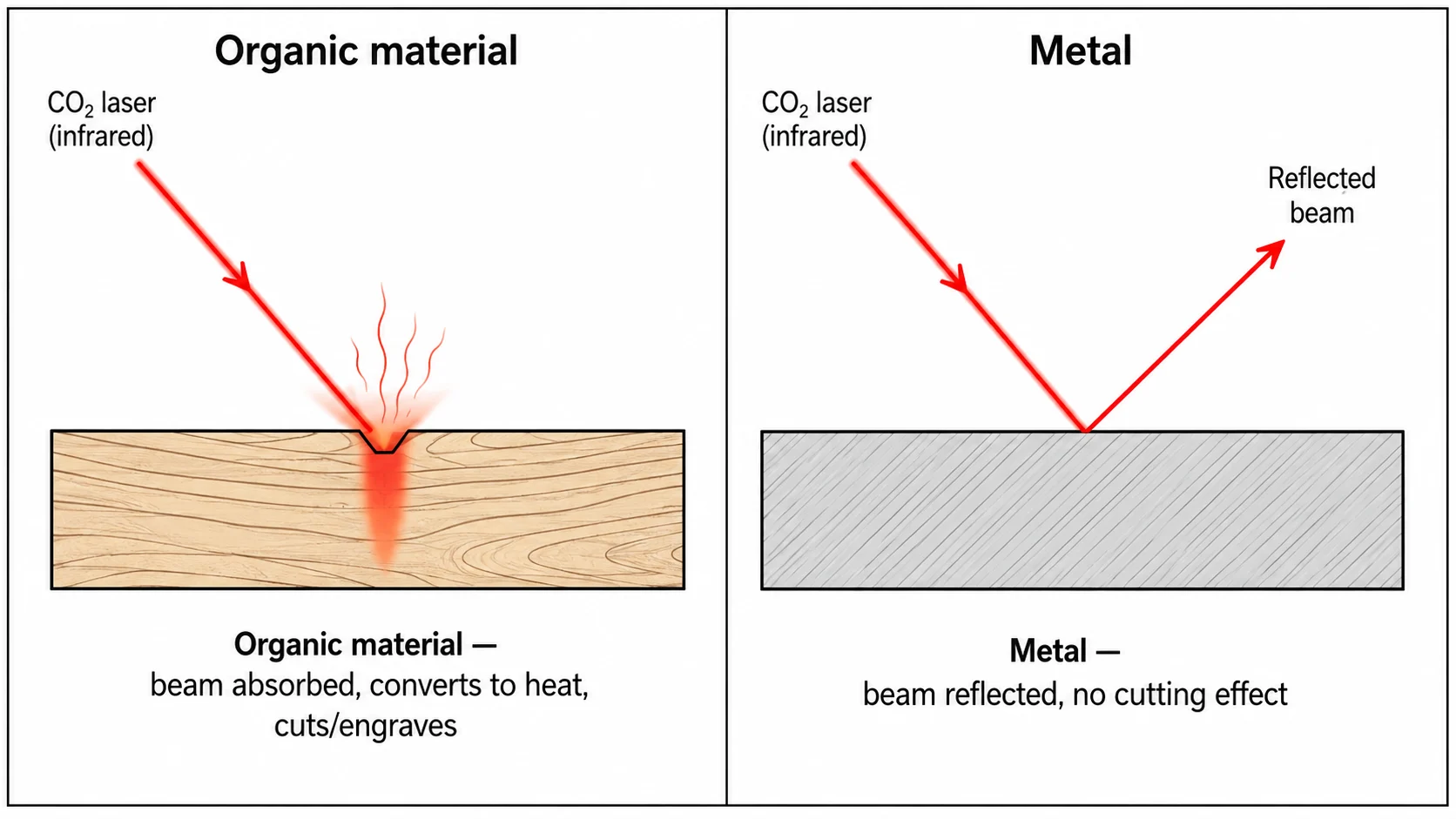

Why CO2 Lasers Work So Well on Wood, Acrylic, and Other Organic Materials

A CO2 laser's effectiveness on organic materials - and its ineffectiveness on metal - comes down to a single physical property of its light: wavelength.

Wavelength is the distance between each wave in a beam of light. Light travels in waves, and different wavelengths interact differently with different materials, in much the same way different radio frequencies carry different stations. A CO2 laser produces infrared light at a wavelength of approximately 10.6 micrometers, according to the U.S. National Institute of Standards and Technology (NIST), which falls in the infrared range - light with a wavelength longer than what the human eye can see. It's invisible, but it's still real light carrying real energy.

Organic materials - wood, acrylic, leather, fabric, paper - have molecular structures that absorb this particular wavelength efficiently. Absorption means the material "catches" the light energy and converts it into heat right at the surface, which is what allows cutting and engraving to happen. Metals, by contrast, largely reflect this wavelength rather than absorbing it - the light bounces off without transferring much energy - which is why CO2 lasers at typical workshop power levels can't effectively cut metal. Section 9 covers this limitation in more detail.

A simple comparison: a dark-colored shirt gets hot in sunlight because it absorbs light energy, while a mirror or shiny metal surface stays cooler because it reflects light away. The same underlying principle explains why CO2 light heats organic material but bounces off metal.

This wavelength behavior is also why the physical design of the laser tube matters - different tube types affect how consistent and powerful that beam actually is over time.

Two Types of CO2 Laser Tubes: Glass vs RF

Nearly every CO2 laser on the market uses one of two tube designs, and the choice affects lifespan, precision, and cost in ways that matter well beyond the physics already covered.

RF stands for radio frequency - a way of exciting the gas using radio-wave energy instead of a direct electrical current. It's a more refined way of doing the same basic job described in Step 1 of the tube process above, which is why RF tubes tend to produce a more precise, consistent beam.

A practical way to think about the difference: a glass tube is like a light bulb that eventually burns out and needs replacing outright, while an RF tube is more like a rechargeable, longer-lasting component with different maintenance expectations.

Tube type is one factor in performance - but day-to-day, what actually determines how well a CO2 laser cuts or engraves comes down to three settings working together.

What Determines Cutting and Engraving Performance?

Three adjustable settings - power, speed, and focus - work together to determine how a CO2 laser performs on any given material, and none of them alone tells the full story.

• Power, measured in wattage (the higher the wattage, generally the more energy the laser can deliver), determines how much energy is available.
• Speed determines how long the beam dwells on any given point as it moves across the material.
• Focus determines how concentrated that energy is when it reaches the surface - the same principle covered in the magnifying-glass analogy earlier.

A laser with high power but poor focus can perform worse than a lower-power laser that's properly focused, because energy density, not raw wattage, does the actual cutting.

These three settings are typically adjusted together for a specific material and thickness - a topic detailed enough that it deserves its own dedicated guide, coming soon on setting CO2 laser cutting parameters.

With power, speed, and focus in mind, the next natural question is: which materials actually respond well to a CO2 laser - and which don't?

What Materials Work Well With a CO2 Laser (and What Doesn't)

Based on the absorption behavior explained earlier, CO2 lasers perform well on organic materials and poorly on metal - and the exceptions are worth knowing before you plan a project.

A CO2 laser can also mark glass, stone, and ceramics, but only in engraving mode, not cutting. These materials don't absorb and melt the way organic materials do; instead, the beam creates a surface-level frosted or etched effect without penetrating the material, so a CO2 laser cannot cut through them.

Now that it's clear what a CO2 laser can and can't process, here's where this technology actually gets used in the real world.

Where CO2 Laser Technology Is Used

A handful of concrete examples make it easier to picture how this technology shows up outside the workshop bench:

• Signage & Advertising - cutting acrylic letters and engraving nameplates for storefronts and offices.
• Woodworking & Furniture - cutting precise plywood parts and engraving decorative panels or inlays.
• Leather Goods - engraving personalized initials on wallets, bags, or belts, and cutting leather patches.
• Fashion & Textiles - cutting fabric patterns with clean, sealed edges that won't fray.
• Gifts & Small-Business Products - engraving personalized gifts like photo frames, coasters, or ornaments for small-batch and online sellers.

With a clear picture of where CO2 lasers are used, it's worth stepping back to summarize where this technology genuinely excels - and where its limits are.

Strengths and Limitations of CO2 Laser Technology

Understanding the technology is the first step. If you're specifically considering a CO2 laser machine - what it's made of as a product, and what it's actually used for in a workshop or business - see What is a CO2 Laser Cutting & Engraving Machine: How It Works & What It's Used For. The sections below cover a few practical, ownership-level basics before you go.

Maintenance and How Long a CO2 Laser Source Lasts in Practice

Owning a CO2 laser means accounting for a short list of recurring maintenance tasks, plus a realistic expectation for when the tube itself will need attention.

Routine maintenance centers on the optical path: mirrors need periodic alignment and cleaning, since dust or misalignment reduces beam strength and cutting quality, and the focusing lens needs regular cleaning for the same reason. In practice, this means the tube lifespans discussed earlier translate into different ownership experiences. Service life depends on the tube type, manufacturer, operating power, and cooling conditions. For example, Wattsan lists a lifetime of up to 10,000 hours for the glass CO2 tubes used in some of its machines (for example Wattsan 1610 PRO) and up to 40,000 hours for its RF CO2 sources.

One more practical thing every owner should understand before using a CO2 laser: safety.

CO2 Laser Safety Basics

Laser light - including the invisible infrared light a CO2 laser produces - carries real energy and real risk, which is why basic safety awareness matters even for hobbyist use.

For quick answers to a few common questions about CO2 lasers, see below.

Frequently Asked Questions About CO2 Laser

Can a CO2 laser engrave metal, even though it can't cut it?

Not in the same way it engraves wood or acrylic. A conventional CO2 laser generally cannot directly engrave bare metal because the surface reflects much of the laser’s wavelength rather than absorbing it. However, it can mark anodized or coated metals by removing or altering the surface layer, exposing a contrasting layer underneath.

Bare metal can also be marked with a CO2 laser if a special metal-marking spray, paste, or tape is applied first. For direct and permanent engraving or marking of bare metal, using dedicated laser markers based on fiber technology is generally the more suitable solution, while for efficient metal cutting it is better to rely on specialized metal cutting systems.

How long does a CO2 laser tube realistically last with daily workshop use?

This depends on tube type: glass tubes generally need replacement sooner than RF metal tubes, which are more durable and can sometimes have their gas recharged instead. See the Maintenance section above for the specific hour ranges and what that means in practice.

Is a CO2 laser safe to use at home?

Yes, when used in an enclosed machine with proper safety interlocks and adequate ventilation. The beam itself poses a real hazard to eyes and skin, so an enclosure that blocks stray light and shuts the laser off automatically when opened is essential for home use.

What's the difference between a CO2 laser and a diode laser for a beginner?

A CO2 laser uses a gas mixture as its light source and generally offers stronger cutting power and broader material compatibility, while a diode laser uses a small semiconductor chip and is typically more compact and affordable, but less powerful.
